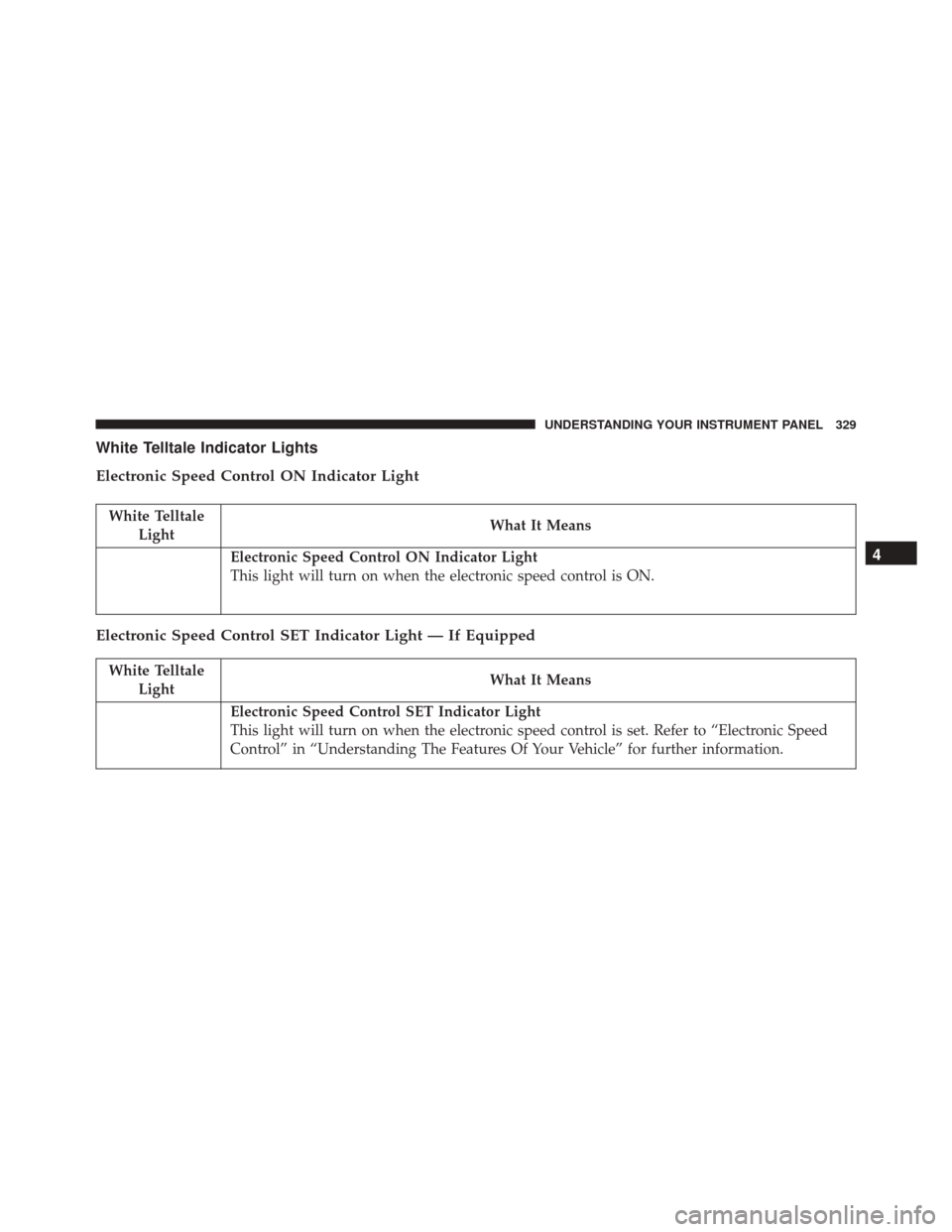

White Telltale Indicator Lights
Electronic Speed Control ON Indicator Light
White TelltaleLight What It Means
Electronic Speed Control ON Indicator Light
This light will turn on when the electronic speed control is ON.
Electronic Speed Control SET Indicator Light — If Equipped
White Telltale
Light What It Means
Electronic Speed Control SET Indicator Light
This light will turn on when the electronic speed control is set. Refer to “Electronic Speed
Control” in “Understanding The Features Of Your Vehicle” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 329

Hill Decent Control (HDC) Indicator Light — If Equipped
White TelltaleLight What It Means
Hill Decent Control (HDC) Indicator Light
This indicator will illuminate when Hill Descent Control (HDC) has been selected using the
Hill Descent Control Switch. Refer to “Electronic Brake Control” in “Starting And Operat-
ing” for further information.
Blue Telltale Indicator Lights
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam. Pull the lever toward you for a temporary high
beam on,
flash to pass scenario.
330 UNDERSTANDING YOUR INSTRUMENT PANEL

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.The EVIC Menu items consists of the following:
•
Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip A
• Trip B
• Stop/Start Info (If Equipped)
• Air Suspension (If Equipped)
• Trailer Tow
• Messages
• Screen Setup
• Vehicle Settings (Not Equipped with a Uconnect 5.0 &
8.4 radio)
Electronic Vehicle Information Center (EVIC)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 331

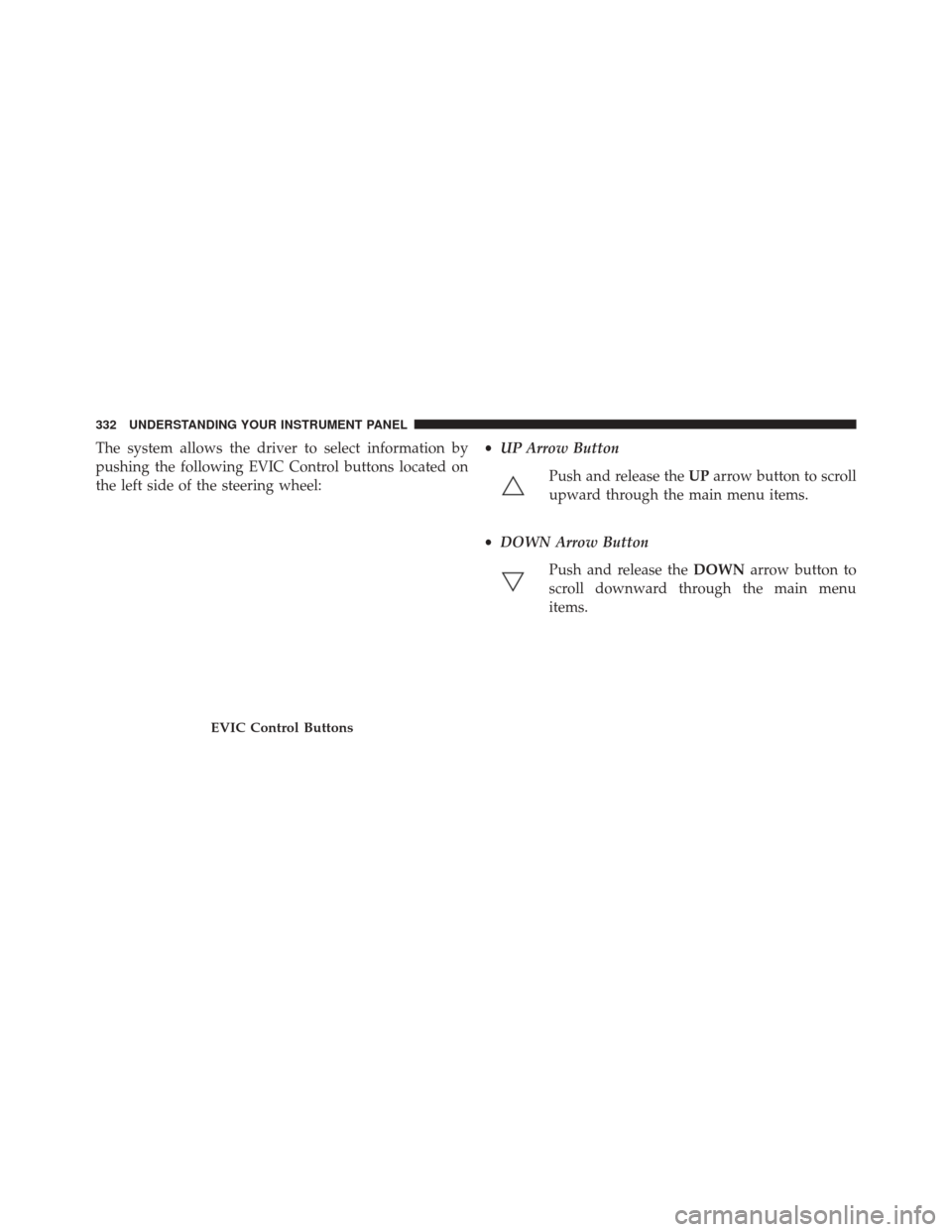

The system allows the driver to select information by
pushing the following EVIC Control buttons located on
the left side of the steering wheel:•
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu items.
• DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu
items.
EVIC Control Buttons
332 UNDERSTANDING YOUR INSTRUMENT PANEL

•RIGHT Arrow Button
Push and release the RIGHTarrow button to
access/select the information screens or sub-
menu screens of a main menu item. Push and
hold the RIGHT arrow button for two seconds
to reset displayed/selected features that can be reset.
• LEFT Arrow Button
Push and release the LEFTarrow button to
return to the main menu, to exit the main menu
push and release the UP or DOWN arrow to
highlight Turn Menu Off, then push and re-
lease the RIGHTarrow.Electronic Vehicle Information Center (EVIC)
Displays — 3.5” Display
4
UNDERSTANDING YOUR INSTRUMENT PANEL 333

The EVIC displays are located in the center portion of the
cluster and consists of seven sections:
1. Compass Display
Displays the current direction. Refer to “Compass Set-
tings” under “Customer Programmable Features —
Uconnect 5.0/8.4 Settings” for further information.
2. Temperature Display
Displays the temperature in degrees Celsius or degrees
Fahrenheit.
3. Main Screen
Displays main menu, sub-menus, settings.
4. EVIC White Telltales
5. EVIC Amber Telltales
6. EVIC Red Telltales7. Audio/Phone Information And Sub-menu Information
Whenever there are sub-menus available, the position
within the sub-menu is shown here.
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays “pop up”
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories:
•
Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the “Messages” main menu item. As long
as there is a stored message, an “i” will be displayed in
334 UNDERSTANDING YOUR INSTRUMENT PANEL

the EVIC’s compass/outside temp line. Examples of this
message type are “Right Front Turn Signal Lamp Out”
and “Low Tire Pressure.”
•Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the RUN state. Examples of this message type are
“Remote Start Aborted - Door Ajar” and “Press Brake
Pedal and Push Button to Start.”
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five seconds and then returns to the previous screen. An
example of this message type is “Automatic High Beams
On.”
Oil Life Reset
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will display in the EVIC after a single chime has sounded,
to indicate the next scheduled oil change interval. The
engine oil change indicator system is duty cycle based,
which means the engine oil change interval may fluctu-
ate, dependent upon your personal driving style.
NOTE:
Use the steering wheel EVIC controls for the
following procedure(s).
Vehicles Equipped With Passive Entry
1. Without depressing the brake pedal, push the EN- GINE START/STOP button and place the ignition to
the ON/RUN position (do not start the engine).4
UNDERSTANDING YOUR INSTRUMENT PANEL 335

2. Push and release theDOWNarrow button to
scroll downward through the main menu to “Ve-
hicle Info.”
3. Push and release the RIGHTarrow button to
access the ”Vehicle Info” screen, then scroll up or
down to select “Oil Life.”
4. Push and hold the RIGHTarrow button to select
“Reset”.
5. Push and release the RIGHTarrow button to
select “NO” or“YES” to reset the Oil Life to 100%.
6. Push and release the UParrow button to exit the
EVIC screen.
Vehicles Not Equipped With Passive Entry
1. Without depressing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine). 2. Push and release the
DOWN
arrow button to
scroll downward through the main menu to “Ve-
hicle Info.”
3. Push and release the RIGHTarrow button to
access the “Vehicle Info” screen then scroll up or
down to select “Oil Life.”
4. Push and hold the RIGHTarrow button to select
“Reset,” then select “NO” or “YES” by pushing the
RIGHT
arrow then push the RIGHTarrow
button to select reset of the Oil Life to 100%.
5. Push and release the UParrow button to exit the
EVIC screen.
NOTE: If the indicator message illuminates when you
start the vehicle, the Oil Life indicator system did not
reset. If necessary, repeat this procedure.
336 UNDERSTANDING YOUR INSTRUMENT PANEL

EVIC Selectable Menu Items
Push and release theUPorDOWNarrow but-
tons until the desired Selectable Menu item is high-
lighted in the EVIC.
Speedometer Menu Item
Push and release the UPorDOWNarrow button
until the speedometer menu item is highlighted in the
EVIC. Push and release the RIGHT
arrow button
to cycle the display between MPH and km/h.
Vehicle Info Menu Item
Push and release the UPorDOWNarrow button
until the Vehicle Info menu item is highlighted in the
EVIC. Push and release the RIGHT
arrow button
to enter the submenus items of Vehicle Info. follow the
directional prompts to access or reset any of the
following Vehicle Info submenu items:
• Tire Pressure
• Coolant Temp
• Transmission Temp (Automatic only)
• Oil Temp
• Oil Pressure
• Oil Life
• Battery Voltage
• Gauge Summary
• Engine Hours
Fuel Economy Menu Item
Push and release the UPorDOWNarrow button
until the Fuel Economy menu item is highlighted.
Push and Hold the RIGHT
arrow button to reset
Average Fuel Economy. 4
UNDERSTANDING YOUR INSTRUMENT PANEL 337

•Current Fuel Economy Gauge
• Average Fuel Economy value
• Range to Empty
Trip Menu Item
Trip A
Push and release the UP
orDOWNarrow button
until the Trip A menu item is highlighted in the EVIC.
The Trip A information will display the following:
• Distance
• Average MPG
• Elapsed Time
Push and hold RIGHT
arrow button to reset all
information.
Trip B
Push and release UP
orDOWNarrow button
until the Trip B menu item is highlighted in the EVIC.
The Trip B information will display the following:
• Distance
• Average MPG
• Elapsed Time
Push and hold the RIGHT
arrow button to reset all
the information.
Stop/Start Menu Item – If Equipped
Push and release the UPorDOWNarrow button
until the Stop/Start menu item is highlighted in the
EVIC. Push and release the RIGHT
arrow button
to display the Stop/Start status.
