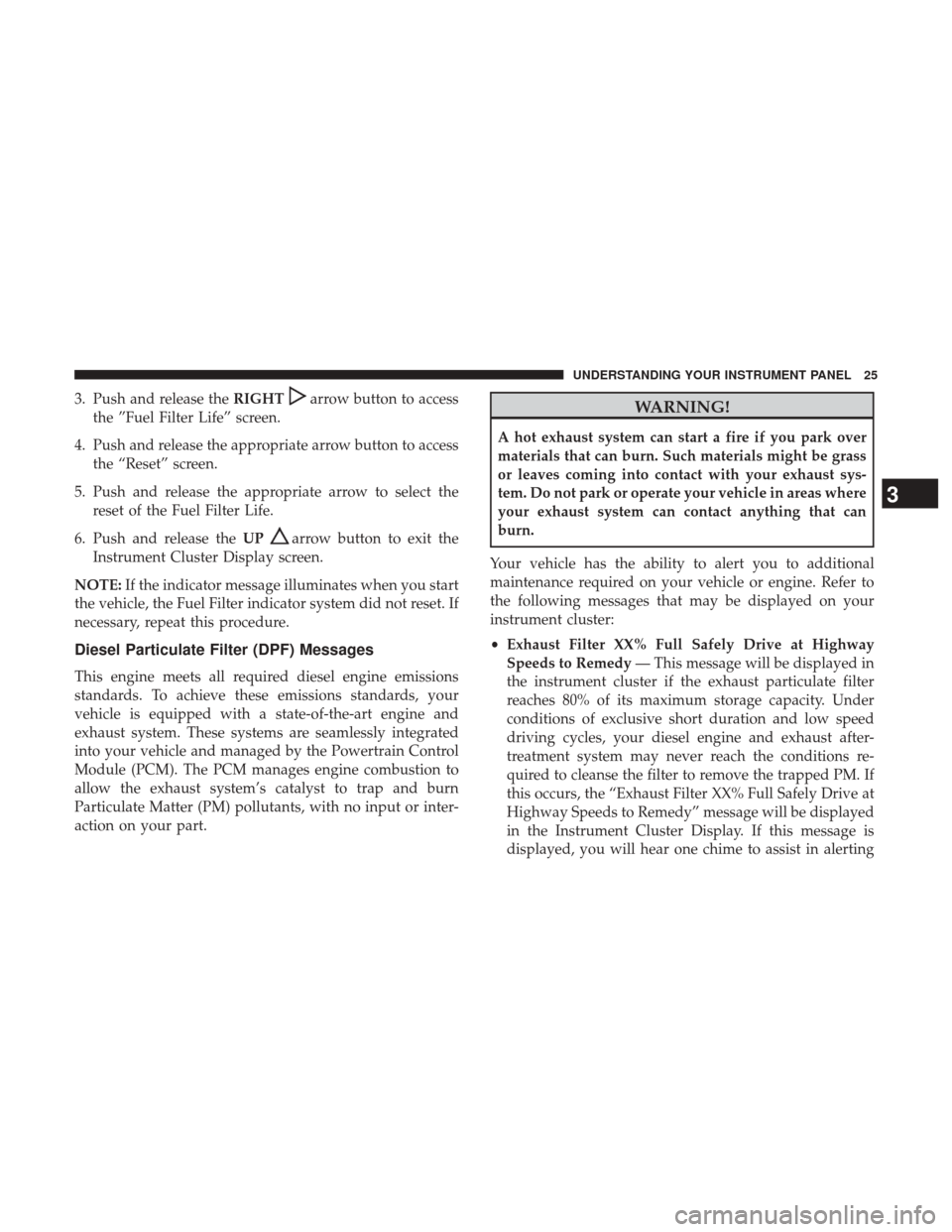

Page 27 of 228
3. Push and release theRIGHTarrow button to access
the ”Fuel Filter Life” screen.
4. Push and release the appropriate arrow button to access the “Reset” screen.
5. Push and release the appropriate arrow to select the reset of the Fuel Filter Life.
6. Push and release the UP
arrow button to exit the
Instrument Cluster Display screen.
NOTE: If the indicator message illuminates when you start
the vehicle, the Fuel Filter indicator system did not reset. If
necessary, repeat this procedure.
Diesel Particulate Filter (DPF) Messages
This engine meets all required diesel engine emissions
standards. To achieve these emissions standards, your
vehicle is equipped with a state-of-the-art engine and
exhaust system. These systems are seamlessly integrated
into your vehicle and managed by the Powertrain Control
Module (PCM). The PCM manages engine combustion to
allow the exhaust system’s catalyst to trap and burn
Particulate Matter (PM) pollutants, with no input or inter-
action on your part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be grass
or leaves coming into contact with your exhaust sys-
tem. Do not park or operate your vehicle in areas where
your exhaust system can contact anything that can
burn.
Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your
instrument cluster:
• Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy — This message will be displayed in
the instrument cluster if the exhaust particulate filter
reaches 80% of its maximum storage capacity. Under
conditions of exclusive short duration and low speed
driving cycles, your diesel engine and exhaust after-
treatment system may never reach the conditions re-
quired to cleanse the filter to remove the trapped PM. If
this occurs, the “Exhaust Filter XX% Full Safely Drive at
Highway Speeds to Remedy” message will be displayed
in the Instrument Cluster Display. If this message is
displayed, you will hear one chime to assist in alerting
3
UNDERSTANDING YOUR INSTRUMENT PANEL 25
Page 58 of 228
1 — MAX Mark
2 — MIN Mark
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Add oil only
when the level on the dipstick is below the “MIN” mark.
The total capacity from the MIN mark to the MAX mark is
1.3 qts (1.2 L).
CAUTION!
Overfilling or underfilling the crankcase will cause oil
aeration or loss of oil pressure. This could damage your
engine.
NOTE: It is possible for your oil level to be slightly higher
than a previous check. This would be due to diesel fuel that
may temporarily be in the crankcase due to operation of
the diesel particulate filter regeneration strategy. This fuel
will evaporate out under normal operation.
Never operate the engine with oil level below the “MIN”
mark or above the upper “MAX” mark.
Change Engine Oil
Refer to the “Maintenance Schedule” for the proper main-
tenance intervals.
Engine Oil Viscosity (SAE Grade)
CAUTION!
Your vehicle is equipped with an advanced technology
Diesel Engine and an emission device designed to
limit Diesel Particulate Emissions from being released
(Continued)
Engine Oil Dipstick
56 MAINTAINING YOUR VEHICLE
