CAUTION!
Prolonged operation of the steering system at the end
of the steering wheel travel will increase the steering
fluid temperature and it should be avoided when
possible. Damage to the power steering pump may
occur.
Power Steering Fluid Check — 2500/3500 Models
Checking the power steering fluid level at a defined service
interval is not required. The fluid should only be checked
if a leak is suspected, abnormal noises are apparent,
and/or the system is not functioning as anticipated. Check
fluid level when the engine is cold and off. Coordinate
inspection efforts through an authorized dealer.
CAUTION!
Do not use chemical flushes in your power steering
system as the chemicals can damage your power steer-
ing components. Such damage is not covered by the
New Vehicle Limited Warranty.
WARNING!
Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to ensure accurate fluid level reading. Do not
overfill. Use only manufacturer’s recommended power
steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids And Lubricants” in “Technical
Specifications” for further information.
FUEL SAVER TECHNOLOGY 5.7L/6.4L ENGINES
ONLY — IF EQUIPPED
This feature offers improved fuel economy by shutting off
four of the engine’s eight cylinders during light load and
cruise conditions. The system is automatic with no driver
inputs or additional driving skills required.
NOTE: This system may take some time to return to full
functionality after a battery disconnect.
394 STARTING AND OPERATING

frequent trailer towing.Refer to the “Maintenance Plan”
for the proper maintenance intervals.
NOTE: Check the automatic transmission fluid level be-
fore towing (6-speed automatic only).
Tow/Haul Mode
To reduce potential for automatic transmission overheat-
ing, activate TOW/HAUL mode when driving in hilly
areas, or select a lower gear range (using the Electronic
Range Select (ERS) shift control) on more severe grades.
Speed Control — If Equipped
• Do not use on hilly terrain or with heavy loads.
• When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
• Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
Cooling System
To reduce potential for engine and transmission overheat-
ing, take the following actions:
•City Driving
• In city traffic — while stopped, place the transmission in
NEUTRAL, but do not increase engine idle speed.
• Highway Driving
• Reduce speed.
• Air Conditioning
• Turn off temporarily.
Air Suspension System
To aid in attaching/detaching the trailer from the vehicle,
the air suspension system can be used. Refer to “Air
Suspension System” in “Starting And Operating” for fur-
ther information.
NOTE: The vehicle must remain in the engine running
position while attaching a trailer for proper leveling of the
air suspension system.
432 STARTING AND OPERATING

NOTE:When shifting out of transfer case NEUTRAL (N),
turning the engine OFF is not required, but may be helpful
to avoid gear clash. With the 8-speed automatic transmis-
sion, the engine must remain running, since turning the
engine OFF will shift the transmission to PARK (and the
transmission must be in NEUTRAL for the transfer case to
shift out of NEUTRAL).
5. Turn the engine OFF. Shift automatic transmission into PARK. On 8-speed transmissions the shifter will auto-
matically select PARK when the engine is turned off.
6. Release the brake pedal (and clutch pedal on a manual transmission).
7. Disconnect vehicle from the tow vehicle.
8. Start the engine.
9. Press and hold the brake pedal.
10. Release the parking brake.
11. Shift the transmission into gear, release the brake pedal (and clutch pedal on manual transmissions), and check
that the vehicle operates normally. NOTE:
With electronic shift transfer case:
• Steps 3 and 4 are requirements that must be met before
pushing the button to shift out of NEUTRAL (N), and
must continue to be met until the shift has been com-
pleted. If any of these requirements are not met before
pushing the button or are no longer met during the shift,
the NEUTRAL (N) indicator light will flash continu-
ously until all requirements are met or until the button is
released.
• The ignition must be in the ON/RUN mode for a shift to
take place and for the position indicator lights to be
operable. If the ignition is not in the ON/RUN mode, the
shift will not take place and no position indicator lights
will be on or flashing.
• A flashing NEUTRAL (N) position indicator light indi-
cates that shift requirements have not been met.
DRIVING TIPS
Driving On Slippery Surfaces
Acceleration
Rapid acceleration on snow covered, wet, or other slippery
surfaces may cause the driving wheels to pull erratically to
the right or left. This phenomenon occurs when there is a
6
STARTING AND OPERATING 441

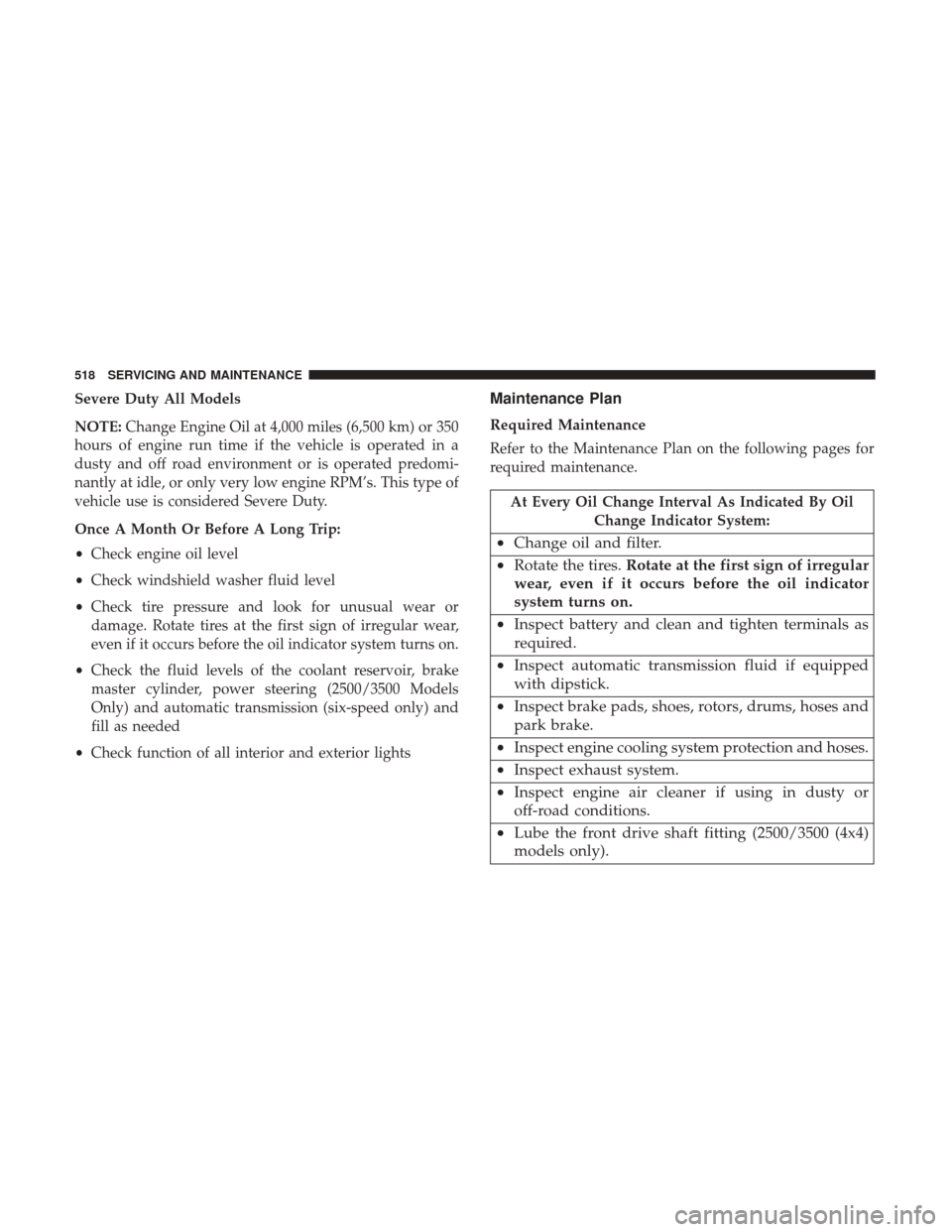

Severe Duty All Models
NOTE:Change Engine Oil at 4,000 miles (6,500 km) or 350
hours of engine run time if the vehicle is operated in a
dusty and off road environment or is operated predomi-
nantly at idle, or only very low engine RPM’s. This type of
vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns on.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering (2500/3500 Models
Only) and automatic transmission (six-speed only) and
fill as needed
• Check function of all interior and exterior lightsMaintenance Plan
Required Maintenance
Refer to the Maintenance Plan on the following pages for
required maintenance.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregular
wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses and
park brake.
• Inspect engine cooling system protection and hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
• Lube the front drive shaft fitting (2500/3500 (4x4)
models only).
518 SERVICING AND MAINTENANCE

Customer Programmable Features — Uconnect
4C/4C NAV Personal Settings
Press the “Apps” button on the touchscreen then press the
“Settings” button on the touchscreen to display the settings
menu screen. In this mode the Uconnect system allows youto access programmable features that may be equipped
such as Display, Voice, Clock, Safety & Driving Assistance,
Lights, Doors & Locks, Auto-On Comfort (if equipped),
Engine Off Options, Suspension, Trailer Brake, Audio,
Phone/Bluetooth, SiriusXM Setup (if equipped), Restore
Settings, Clear Personal Data and System Information.
NOTE:
Only one category may be selected at a time.
When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting until a
check-mark appears next to the setting, showing that
setting has been selected. Once the setting is complete,
either press the back arrow button on the touchscreen or
the Back button on the faceplate to return to the previous
menu or press the “X” button on the touchscreen to close
out of the settings screen. Pressing the Up or Down Arrow
buttons on the touchscreen on the right side of the screen
will allow you to toggle up or down through the list of
available settings.
NOTE: All settings should be changed with the ignition in
the RUN position.
Uconnect 4C/4C NAV With 8.4–inch Display Buttons On
The Touchscreen And Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate
10
MULTIMEDIA 633

Fluid Level Check.....................553, 554
Fluid Type ..........................553, 607
Shifting ............................306, 315
Special Additives ........................ .553
Automatic Transmission Limp Home Mode ........304
Axle Fluid ............................556, 607
Axle Lubrication .......................... .556
Back-Up .................................410
Back-Up Camera .......................... .410
Bar, Stabilizer/Sway System ...................361
Battery ...............................191, 526
Charging System Light ....................191
Keyless Key Fob Replacement ................24
Belts, Seat ............................... .279
Body Builders Guide ..........................7
Body Mechanism Lubrication ..................541
B-Pillar Location .......................... .564
Brake Assist System ........................ .206
Brake Control System, Electronic ................205
Brake Fluid .......................... .552, 607
Brake System ..........................552, 593
Fluid Check ............................552
Master Cylinder ........................ .552
Parking ...............................295 Warning Light
.......................... .190
Brake/Transmission Interlock ..................299
Bulb Replacement ..........................452
Bulbs, Light .......................... .281, 452
Cab Top Clearance Lights .....................458
Camera .................................410
Camera, Rear ............................ .410
Camper .................................152
Capacities, Fluid .......................... .603
Caps, Filler Oil (Engine) ..................... .523, 529, 530
Power Steering ..........................394
Radiator (Coolant

Pressure).................549
Carbon Monoxide Warning ................279, 600
Cargo Light ...............................79
Car Washes ...............................585
Cellular Phone ............................654
Center High Mounted Stop Light ...............457
Center Seat Storage Compartment ...............123
Changing A Flat Tire ........................468
Chart, Tire Sizing .......................... .560
Check Engine Light (Malfunction Indicator Light). . . .201
Checking Your Vehicle For Safety ...............278
Checks, Safety ............................ .278
12
INDEX 683

Starting...............................289
Engine Oil Viscosity .....................529, 530
Engine Oil Viscosity Chart ....................529
Enhanced Accident Response Feature .........250, 514
Entry System, Illuminated .....................83
Ethanol ............................. .598, 600
Exhaust Gas Caution .....................279, 600
Exhaust System ........................279, 545
Exterior Lighting ............................73
Exterior Lights ..........................73, 281
Filters Air Cleaner ............................ .531
Air Conditioning .....................105, 534
Engine Oil ..........................530, 604
Engine Oil Disposal .......................530
Flashers Turn Signal .......................78, 198, 281
Flash-To-Pass ..............................76
Flat Tire Stowage .......................480, 497
Flexible Fuel Vehicles Cruising Range ..........................602
Engine Oil ............................ .601
Fuel Requirements ....................600, 601
Maintenance ............................602 Replacement Parts
........................602
Starting ...............................602
Flooded Engine Starting ..................... .293
Fluid, Brake ............................. .607
Fluid Capacities ............................603
Fluid Leaks ...............................282
Fluid Level Checks Brake .................................552
Power Steering ..........................394
Fluids And Lubricants .......................604
Fog Lights ..........................78, 197, 455
Fold Flat Load Floor ........................128
Folding Rear Seat ...........................44
Four-Way Hazard Flasher .....................447
Four Wheel

Drive ..........................324
Freeing A Stuck Vehicle ..................... .509
Front Axle (Differential) ..................... .556
Fuel ................................... .596
Adding ...............................413
Additives ............................. .597
Clean Air ............................. .597
Ethanol ............................598, 600
Filler Cap (Gas Cap) ..................... .414
Gasoline ...............................596
Light .................................196
686 INDEX

Daytime Running.........................74
Engine Temperature Warning ................191
Exterior ...............................281
Fog ............................78, 197, 455
Four-Wheel Drive Indicator .................327
Hazard Warning Flasher ...................447
Headlights ..............................73
High Beam ..............................74
High Beam/Low Beam Select .................74
Hill Descent Control Indicator ...............214
Illuminated Entry .........................83
Interior ............................. .80, 82
Low Fuel ............................. .196
Malfunction Indicator (Check Engine) ..........192
Park ................................. .198
Passing ................................76
Seat Belt Reminder .......................189
Security Alarm ..........................191
Service ............................... .452
Side Marker ............................460
Tire Pressure Monitoring (TPMS) ..........194, 216
Traction Control ........................ .212
Transfer Case .......................... .327
Turn Signal ................78, 198, 281, 454, 456
Warning (Instrument Cluster Description) . . . .191, 198 Limited-Slip Differential
..................375, 557
Loading Vehicle ............................414
Tires................................. .564
Load Shed Battery Saver Mode .......................187
Battery Saver On ........................ .187
Electrical Load Reduction ...................187
Intelligent Battery Sensor ...................187
Locks Automatic Door ..........................42
Child Protection ..........................43
Power Door .............................38
Low Tire Pressure System .....................216
Lubrication, Body ..........................541
Lug Nuts ............................... .594
Maintenance Fr

ee Battery.....................526
Maintenance Schedule .......................517
Malfunction Indicator Light (Check Engine) . . . .192, 201
Manual, Service ............................680
Manual Transmission Fluid Level Check ........................557
Lubricant Selection .......................607
Memory Feature (Memory Seat) .................44
Memory Seat ............................44, 49
12
INDEX 689
