4. Lift the spare tire with one hand to give clearance to tiltthe retainer at the end of the cable.
5. Pull the retainer through the center of the wheel. NOTE:
The winch mechanism is designed for use with the
extension tubes only. Use of an air wrench or other power
tools is not recommended and can damage the winch.
Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice or slippery areas.
Gaining Access To The Retainer
Pulling The Retainer Through The Center Of The Wheel
490 IN CASE OF EMERGENCY

WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.
2. Place the gear selector into PARK. On four-wheel drive vehicles, shift the transfer case to the 4L position.
3. Turn on the Hazard Warning flasher.
4. Apply the parking brake.
5. Turn the ignition OFF.
6.
Block both the front and rear of the wheel diagonally
opposite the jacking position. For example, if the right front
wheel is being changed, block the left rear wheel.
NOTE: Passengers should not remain in the
vehicle when the vehicle is being jacked.
Jacking Instructions (2500 And 3500 Series)
WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
• Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
• Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the wheel to be
raised.
• Set the parking brake firmly and set the transmission
in PARK.
• Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
(Continued)
7
IN CASE OF EMERGENCY 491

WARNING!(Continued)
•If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that spare tires, flat or inflated, are securely
stowed, spares must be stowed with the valve stem
facing the ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare wheel, jack, and tools from storage.
2. Using the lug wrench, loosen, but do not remove, the wheel nuts by turning them counterclockwise one turn
while the wheel is still on the ground. Changing a
dually tire requires the lug wrench adapter.
Jack Warning Label
Lug Wrench Adaptor Shown In Jack And Tools Assembly
492 IN CASE OF EMERGENCY

3. Placement of the jack is critical:Front Jacking Location
When changing the front wheel, assemble the jack driver to
the jack and connect the jack driver to the extension tubes.
Place the jack under the axle as close to the tire as possible
with the drive tubes extending to the front. Connect the
extension tubes and lug wrench.
Jack / Extensions Placement 2500/3500
Front Jacking Location
494 IN CASE OF EMERGENCY

Rear Jacking Location
When changing a rear wheel, assemble the jack driver to
the jack and connect the jack driver to the extension tubes.
Place the jack under the axle between the spring and the
shock absorber with the extension tubes extending to the
rear.
Connect the extension tubes and lug wrench.CAUTION!
Before raising the wheel off the ground, make sure that
the jack will not damage surrounding truck parts and
adjust the jack position as required.
NOTE: If the bottle jack will not lower by turning the dial
(thumbwheel) by hand, it may be necessary to use the jack
driver in order to lower the jack.
4. By rotating the lug wrench clockwise, raise the vehicle until the wheel just clears the surface.
WARNING!
Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.
Rear Jacking Location
7
IN CASE OF EMERGENCY 495

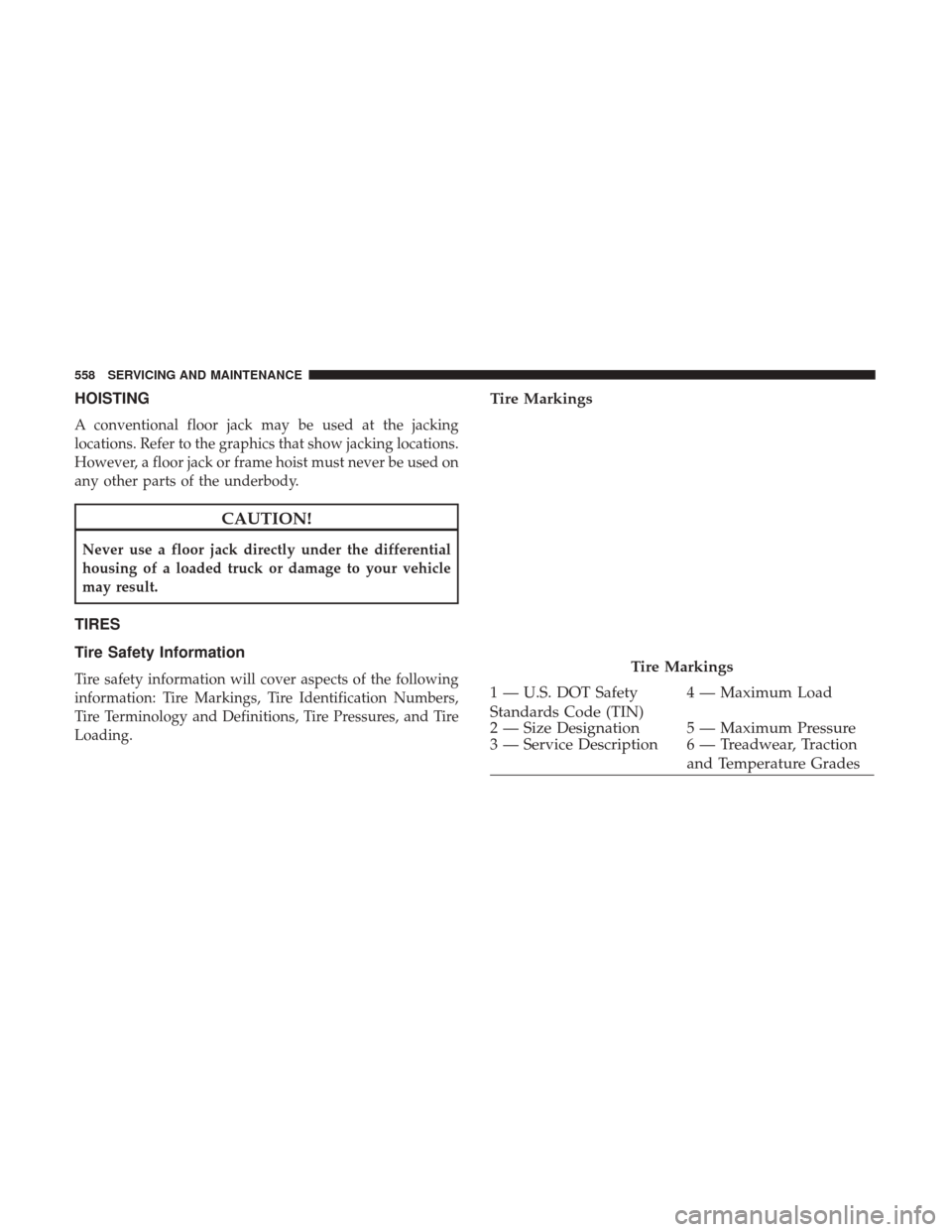

HOISTING
A conventional floor jack may be used at the jacking
locations. Refer to the graphics that show jacking locations.
However, a floor jack or frame hoist must never be used on
any other parts of the underbody.
CAUTION!
Never use a floor jack directly under the differential
housing of a loaded truck or damage to your vehicle
may result.
TIRES
Tire Safety Information
Tire safety information will cover aspects of the following
information: Tire Markings, Tire Identification Numbers,
Tire Terminology and Definitions, Tire Pressures, and Tire
Loading.
Tire Markings
Tire Markings
1 — U.S. DOT Safety
Standards Code (TIN)4 — Maximum Load
2 — Size Designation 5 — Maximum Pressure
3 — Service Description 6 — Treadwear, Traction and Temperature Grades
