child lock Ram 3500 Chassis Cab 2018 Owner's Manual

▫Automatic Door Locks — If Equipped ........39
▫ Child-Protection Door Lock ................40
 SEATS ................................41
▫ Manual Front Seat Adjustment ..............42
▫ Manual Rear Seat Adjustment ...............43
▫ Power Driver Seat Adjustment — If Equipped . . .44
▫ Power Passenger Seat Adjustment —
If Equipped ...........................46
▫ Driver Memory Seat — If Equipped ..........47
▫ Heated Seats — If Equipped ...............50
▫ Ventilated Seats — If Equipped ..............52
▫ Plastic Grocery Bag Retainers
(Regular Cab Models) ....................53
 HEAD RESTRAINTS ......................53
▫ Front Head Restraint Adjustment ............53
▫ Rear Head Restraint Adjustment .............54
▫ Front Head Restraint Removal ..............55
▫ Rear Head Restraint Removal ...............55
STEERING WHEEL .......................56
▫ Tilt Steering Column .....................56
▫ Heated Steering Wheel — If Equipped .........57
 DRIVER ADJUSTABLE PEDALS —
IF EQUIPPED ...........................57
 MIRRORS ..............................59
▫ Inside Day/Night Mirror — If Equipped ......59
▫ Automatic Dimming Mirror — If Equipped .....59
▫ Automatic Dimming Mirror With Rear View
Camera Display — If Equipped .............60
▫ Outside Mirrors ........................61
▫ Driver’s Outside Automatic Dimming Mirror — If
Equipped .............................61
▫ Power Mirrors — If Equipped ..............62
▫ Power Folding Outside Mirrors For Standard And
Trailer Tow — If Equipped .................63
▫ Trailer Towing Mirrors — If Equipped ........65
▫ Heated Mirrors — If Equipped .............65
16 GETTING TO KNOW YOUR VEHICLE

WARNING!
•Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into REVERSE, apply the parking brake, turn the
vehicle OFF, remove the key fobs from the vehicle,
and lock all doors. If equipped with Keyless Enter-
N-Go, always make sure the keyless ignition node is
in the OFF mode, remove the key fob from the
vehicle and lock the vehicle.
•
Never leave children alone in a vehicle, or with access
to an unlocked vehicle. Leaving children in a vehicle
unattended is dangerous for a number of reasons. A
child or others could be seriously or fatally injured.
Children should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or gear selector.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
• If your vehicle battery becomes low or dead, your
key fobs will become locked in the ignition.
• Do not attempt to remove the key fobs while in this
condition, damage could occur to the key fobs or
ignition module. Only remove the emergency key for
locking and unlocking the doors.
• Leave the key fob in the ignition and either:
• Jump Start the vehicle.
• Charge the battery.
3
GETTING TO KNOW YOUR VEHICLE 27

NOTE:
•Keyed Ignition systems will chime in OFF or ACC
when the driver door is open.
• “Keyless Ignition systems will chime in ACC or RUN
when the driver door is open.
• The instrument cluster display will display “Key In
Ignition.”
REMOTE START — IF EQUIPPED
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
• Gear selector in PARK
• Doors closed
• Hood closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pushed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• PANIC button not pushed
• Fuel meets minimum requirement •
System not disabled from previous remote start event
• Vehicle security alarm not active
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Cancelled — Door Open
• Remote Start Cancelled — Hood Open
• Remote Start Cancelled — Fuel Low
• Remote Start Cancelled — System Fault
• Remote Start Disabled — Start Vehicle to Reset
3
GETTING TO KNOW YOUR VEHICLE 29

DOORS
Manual Door Locks
Front and rear doors may be locked by moving the lock
knob down or unlocked by moving the lock knob up.
Front doors may be opened with the inside door handle
without lifting the lock knob.
Doors locked before closing will remain locked when
closed.The emergency key will unlock the driver door lock on
your vehicle.WARNING!
•
Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• For personal security and safety in the event of an
collision, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
• Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into FIRST gear or REVERSE, apply the parking
brake, turn the vehicle OFF, remove the key fobs
from vehicle, and lock all doors. and lock your
vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
(Continued)
Door Lock Knob
3
GETTING TO KNOW YOUR VEHICLE 35

WARNING!(Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
Power Door Locks — If Equipped
The power door lock switches are on each front door trim
panel. Use these switches to lock or unlock the doors.
NOTE: The key fob may not be able to be detected by the
vehicle Keyless Enter-N-Go system if it is located next to a
mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal and prevent
the Keyless Enter-N-Go system from starting the vehicle. If you push the power door lock switch while the key fob
is in the ignition, and any front door is open, the power
locks will not operate. This prevents you from accidentally
locking your key fob in the vehicle. Removing the key fob
or closing the door will allow the locks to operate. A chime
will sound if the key fob is in the ignition switch and a door
is open, as a reminder to remove the key fob.
Keyless Enter-N-Go — Passive Entry
The Passive Entry system is an enhancement to the vehi-
cle’s Remote Keyless Entry system and a feature of Keyless
Power Door Lock Switch
36 GETTING TO KNOW YOUR VEHICLE

authorized dealer per written request of the customer.
Please see your authorized dealer for service.
Automatic Doors Unlock — If Equipped
This feature unlocks all of the doors of the vehicle when
either front door is opened. This will occur only after the
vehicle has been shifted into the PARK position after the
vehicle has been driven (shifted out of PARK and all doors
closed).
Automatic Doors Unlock Programming — If
Equipped
The Automatic Doors Unlock feature can be enabled or
disabled as follows:
•For vehicles not equipped with a touchscreen radio,
refer to “Instrument Cluster Display” in “Getting To
Know Your Instrument Panel” for further information.
• For vehicles equipped with a touchscreen radio, refer to
“Uconnect Settings” in “Multimedia” for further infor-
mation.
NOTE: Use the Auto Unlock Doors feature in accordance
with local laws.
Child-Protection Door Lock
To provide a safer environment for children riding in the
rear seat, the rear doors (if equipped) of your vehicle have
the Child-Protection Door Lock system.
To use the system, open each rear door, use a flat blade
screwdriver (or emergency key) and rotate the dial to
engage and disengage the Child-Protection locks. When
the system on a door is engaged, that door can only be
opened by using the outside door handle even if the inside
door lock is in the unlocked position.
Child-Protection Door Lock Location
40 GETTING TO KNOW YOUR VEHICLE

WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the sliding doors cannot be opened
from the inside door handle when the Child Protection
Door Locks are engaged.NOTE:
•
After setting the Child-Protection Door Lock system,
always test the door from the inside to make certain it is
in the desired position.
• For emergency exit with the system engaged, move the
door lock switch to the unlock position, roll down the
window and open the door with the outside door
handle.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or outside
of a vehicle. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
In a collision, people riding in these areas are more
likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Child Lock Control
3
GETTING TO KNOW YOUR VEHICLE 41

SAFETY
CONTENTS
SAFETY FEATURES ..................... .160
▫ Anti-Lock Brake System (ABS) .............160
▫ Electronic Brake Control System ............161
 AUXILIARY DRIVING SYSTEMS .............172
▫ Tire Pressure Monitoring System (TPMS) ......172
 OCCUPANT RESTRAINT SYSTEMS ..........179
▫ Occupant Restraint Systems Features ........179
▫ Important Safety Precautions ..............179
▫ Seat Belt Systems ..................... .180
▫ Supplemental Restraint Systems (SRS) ........193▫
Child Restraints ...................... .204
▫ Transporting Pets ..................... .230
 SAFETY TIPS .......................... .231
▫ Transporting Passengers ..................231
▫ Exhaust Gas ......................... .231
▫ Safety Checks You Should Make Inside
The Vehicle .......................... .232
▫ Periodic Safety Checks You Should Make Outside
The Vehicle .......................... .234
5

Switchable Automatic Locking Retractors (ALR)
The seat belts in the passenger seating positions are
equipped with a Switchable Automatic Locking Retractor
(ALR) which is used to secure a child restraint system. For
additional information, refer to “Installing Child Restraints
Using The Vehicle Seat Belt” under the “Child Restraints”
section of this manual. The figure below illustrates the
locking feature for each seating position.If the passenger seating position is equipped with an ALR
and is being used for normal usage, only pull the seat belt
webbing out far enough to comfortably wrap around the
occupant’s mid-section so as to not activate the ALR. If the
ALR is activated, you will hear a clicking sound as the seat
belt retracts. Allow the webbing to retract completely in
this case and then carefully pull out only the amount of
webbing necessary to comfortably wrap around the occu-
pant’s mid-section. Slide the latch plate into the buckle
until you hear aclick.
Regular Cab Automatic Locking Retractor (ALR) Locations
ALR = Switchable Automatic Locking Retractor
Crew Cab Automatic Locking Retractor (ALR) Locations
ALR = Switchable Automatic Locking Retractor
5
SAFETY 191

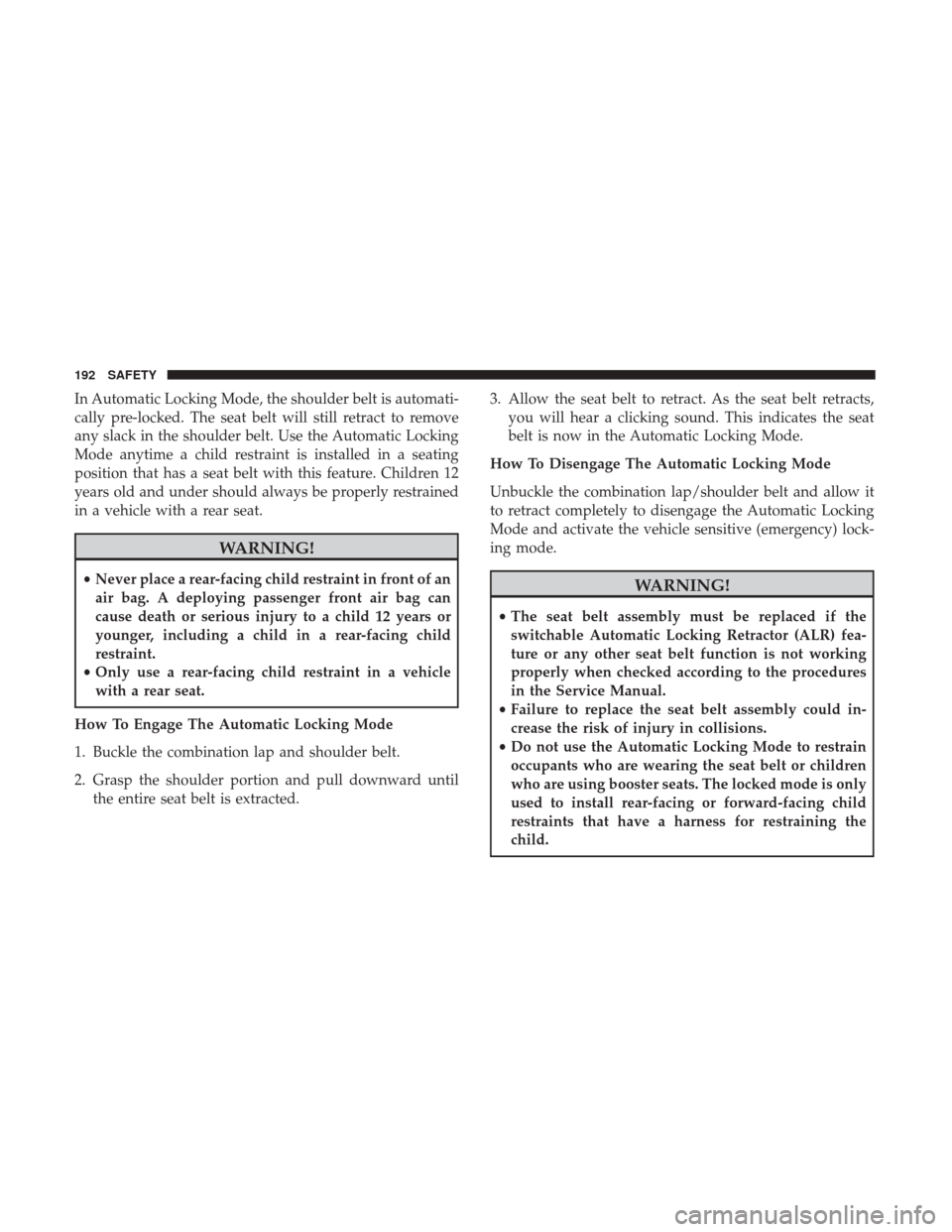

In Automatic Locking Mode, the shoulder belt is automati-
cally pre-locked. The seat belt will still retract to remove
any slack in the shoulder belt. Use the Automatic Locking
Mode anytime a child restraint is installed in a seating
position that has a seat belt with this feature. Children 12
years old and under should always be properly restrained
in a vehicle with a rear seat.
WARNING!
•Never place a rear-facing child restraint in front of an
air bag. A deploying passenger front air bag can
cause death or serious injury to a child 12 years or
younger, including a child in a rear-facing child
restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grasp the shoulder portion and pull downward until the entire seat belt is extracted. 3. Allow the seat belt to retract. As the seat belt retracts,
you will hear a clicking sound. This indicates the seat
belt is now in the Automatic Locking Mode.
How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and allow it
to retract completely to disengage the Automatic Locking
Mode and activate the vehicle sensitive (emergency) lock-
ing mode.WARNING!
• The seat belt assembly must be replaced if the
switchable Automatic Locking Retractor (ALR) fea-
ture or any other seat belt function is not working
properly when checked according to the procedures
in the Service Manual.
• Failure to replace the seat belt assembly could in-
crease the risk of injury in collisions.
• Do not use the Automatic Locking Mode to restrain
occupants who are wearing the seat belt or children
who are using booster seats. The locked mode is only
used to install rear-facing or forward-facing child
restraints that have a harness for restraining the
child.
192 SAFETY
