ESP Ram 5500 Chassis Cab 2011 Owner's Guide

If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
FUSES
Totally Integrated Power Module
The totally integrated power module (TIPM) is located in
the engine compartment near the battery. This center
contains cartridge fuses and mini fuses. A description of
each fuse and component may be stamped on the inside
cover, otherwise the cavity number of each fuse is
stamped on the inside cover that corresponds to the
following chart.
Cavity CartridgeFuseMini
Fuse Description
J01 30 Amp Pink Bat – Presafe #1/
CM2200
J02 30 Amp Pink Bat – Trailer Tow
Main
Totally Integrated Power Module (TIPM)
414 MAINTAINING YOUR VEHICLE

Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711
and for Voice callers, dial 1 800 855-0511 to connect with
a Bell Relay Service operator.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind onlythe manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If you
have any questions about the service contract, call the
manufacturer’s Service Contract National Customer Hot-
line at 1-800-521-9922 (Canadian residents, call 1-800-485-
2001).
The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a ser-
vice contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Vehicle Limited Warranty expires, please refer to the
contract documents, and contact the person listed in
those documents.
9
IF YOU NEED CONSUMER ASSISTANCE 451

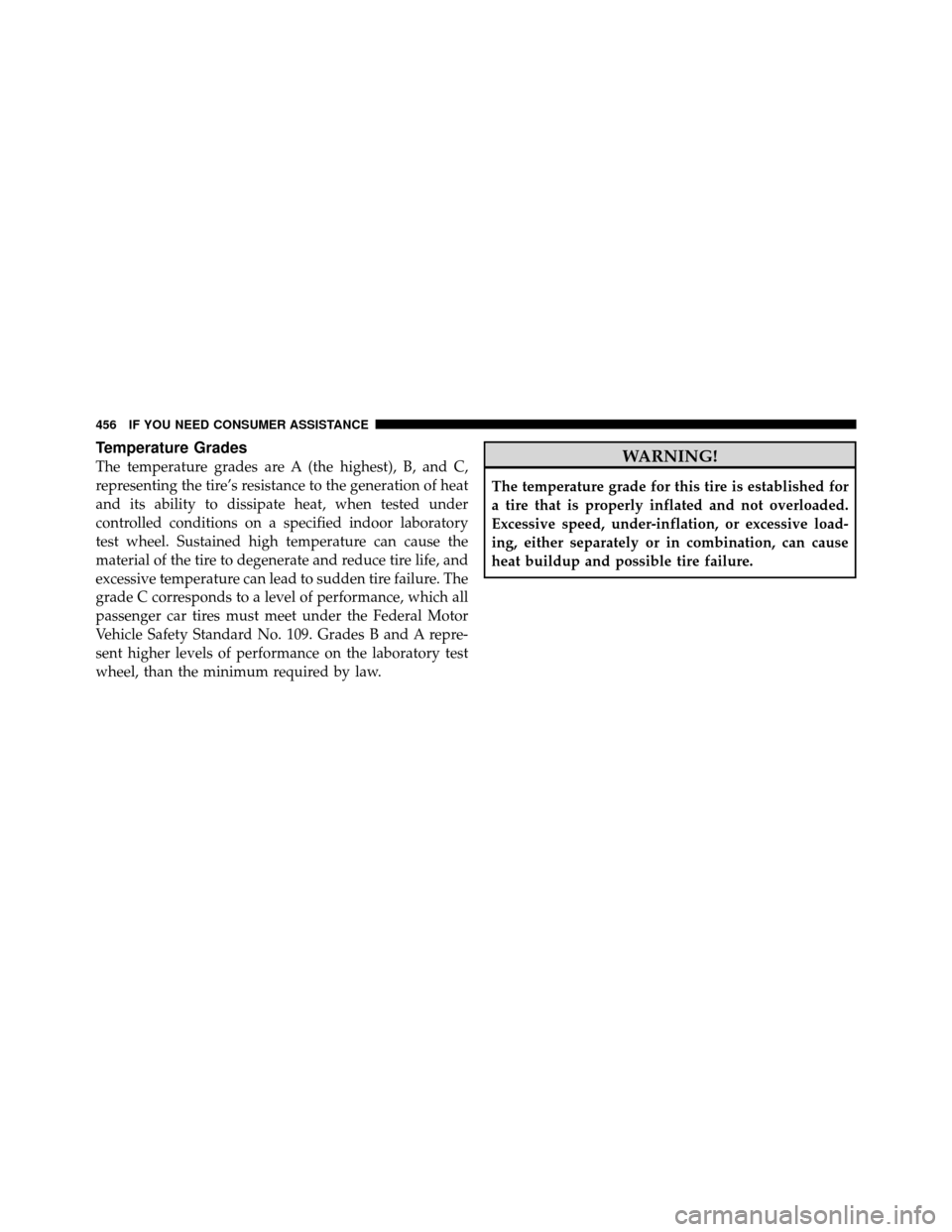

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
456 IF YOU NEED CONSUMER ASSISTANCE

Break-In Recommendations................ 72
Compartment Identification ............... 381
Coolant (Antifreeze) .................... 427
Exhaust Gas Caution .................. 74,325
Flooded, Starting ...................... 266
Jump Starting ......................... 370
Oil .............................. 386,427
Oil Filler Cap ......................... 387
Oil Selection .......................... 387
Oil Synthetic ......................... 388
Temperature Gauge .................... 180
Enhanced Accident Response Feature .......... 56
Exhaust Gas Caution ................74,325,394
Exhaust System ....................... 74,394
Exterior Lighting ........................ 139
Exterior Lights .......................... 75
Filters Air Cleaner .......................... 388 Engine Fuel
.......................... 427
Engine Oil ........................ 388,427
Engine Oil Disposal .................... 388
Flashers Turn Signal ...................... 75,144,180
Flat Tire Stowage ........................ 369
Flooded Engine Starting ................... 266
Fluid, Brake ........................... 428
Fluid Capacities ......................... 426
Fluid Leaks ............................. 76
Fluid Level Checks Automatic Transmission ................. 407
Brake .............................. 402
Power Steering ........................ 292
Fluids, Lubricants and Genuine Parts .......... 427
Fog Lights ....................... 140,191,422
Four Wheel Drive ....................... 277
Four-Way Hazard Flasher .................. 358
Freeing A Stuck Vehicle ................... 374
462 INDEX
