To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm System
(if equipped). Insert the Key Fob into the ignition switch
and turn the switch to the ON/RUN position.
NOTE:
•The ignition switch must be in the ON/RUN position
in order to drive the vehicle.
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the message “Insert Key/
Turn To On” will flash in the EVIC until you insert the
Key Fob into the ignition swich. Once inserted, the
message “Turn To On” will flash in the EVIC until you
turn the ignition switch to the ON/RUN position.
Remote Start Comfort Systems — If Equipped
When remote start is activated, the heated steering
wheel, and driver heated seat features will automaticallyturn on in cold weather. In warm weather, the driver
vented seat feature will automatically turn on when the
remote start is activated. These features will stay on
through the duration of remote start or until the ignition
switch is turned to the ON position.
The Remote Start Comfort System can be activated and
deactivated through the Electronic Vehicle Information
Center (EVIC). For more information on Remote Start
Comfort System operation refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features (System Setup)” in “Understanding Your Instru-
ment Panel”.
DOOR LOCKS
Manual Door Locks
Front and rear doors may be locked by moving the lock
plunger down or unlocked by moving the lock plunger
up.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down or in partially open positions. This is a
normal occurrence and can be minimized. If the buffeting
occurs with the rear windows open, open the front and
rear windows together to minimize the buffeting.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:
•Three-point lap and shoulder belts for the driver and
all passengers
•Advanced Front Airbags for driver and front passen-
ger — if equipped
•An energy-absorbing steering column and steering
wheel
•Knee bolsters/blockers for front seat occupants
•All seat belt systems (except driver’s, first and second
row center position) include Automatic Locking Re-
tractors (ALR)
If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems.
NOTE: The Advanced Front Airbags have a multistage
inflator design. This allows the airbag to have different
rates of inflation based on severity and type of collision.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

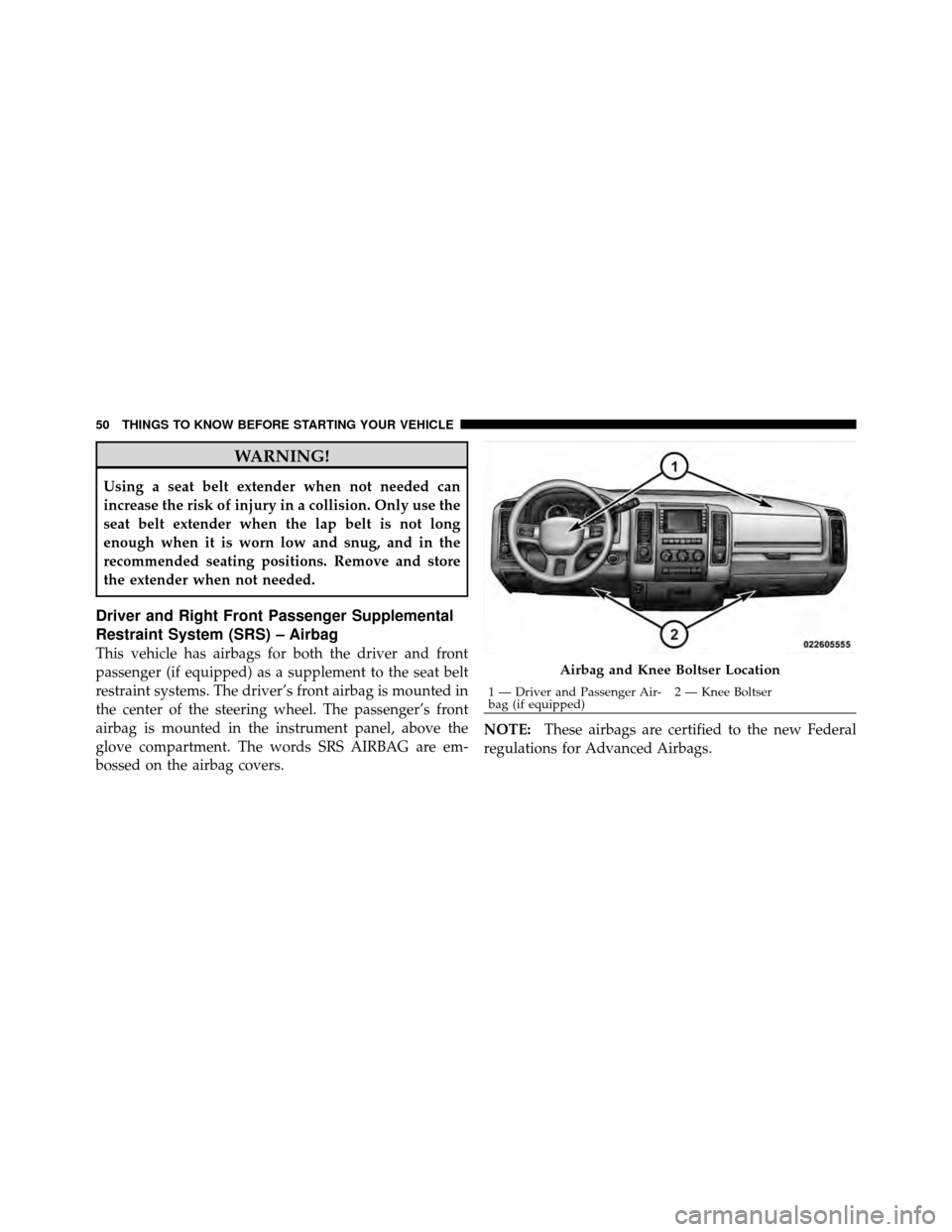

WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.
Driver and Right Front Passenger Supplemental
Restraint System (SRS) – Airbag
This vehicle has airbags for both the driver and front
passenger (if equipped) as a supplement to the seat belt
restraint systems. The driver’s front airbag is mounted in
the center of the steering wheel. The passenger’s front
airbag is mounted in the instrument panel, above the
glove compartment. The words SRS AIRBAG are em-
bossed on the airbag covers.NOTE:
These airbags are certified to the new Federal
regulations for Advanced Airbags.
Airbag and Knee Boltser Location
1 — Driver and Passenger Air-
bag (if equipped) 2 — Knee Boltser
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The Advanced Front Airbags have a multistage inflator
design. This allows the airbag to have different rates of
inflation based on the severity and type of collision.
NOTE:Airbag covers may not be obvious in the interior
trim; but they will open during airbag deployment.
Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Controller (ORC)
•Airbag Warning Light
•Driver Front Airbag
•Front Passenger Airbag — if equipped
•Steering Wheel and Column
•Instrument Panel
•Knee Impact Bolster
Advanced Front Airbag Features
The Advanced Front Airbag system has multistage driver
and front passenger (if equipped) airbags. This system
provides output appropriate to the severity and type of
collision as determined by the Occupant Restraint Con-
troller (ORC).
The first stage inflator is triggered immediately during an
impact that requires airbag deployment. The timing of
the second stage determines whether the output force is
low, medium, or high. If a low output is sufficient to meet
the need, the remaining gas in the inflator is expended.
WARNING!
•No objects should be placed over or near the
airbag on the instrument panel, because any such
objects could cause harm if the vehicle is in a crash
severe enough to cause the airbag to inflate.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51

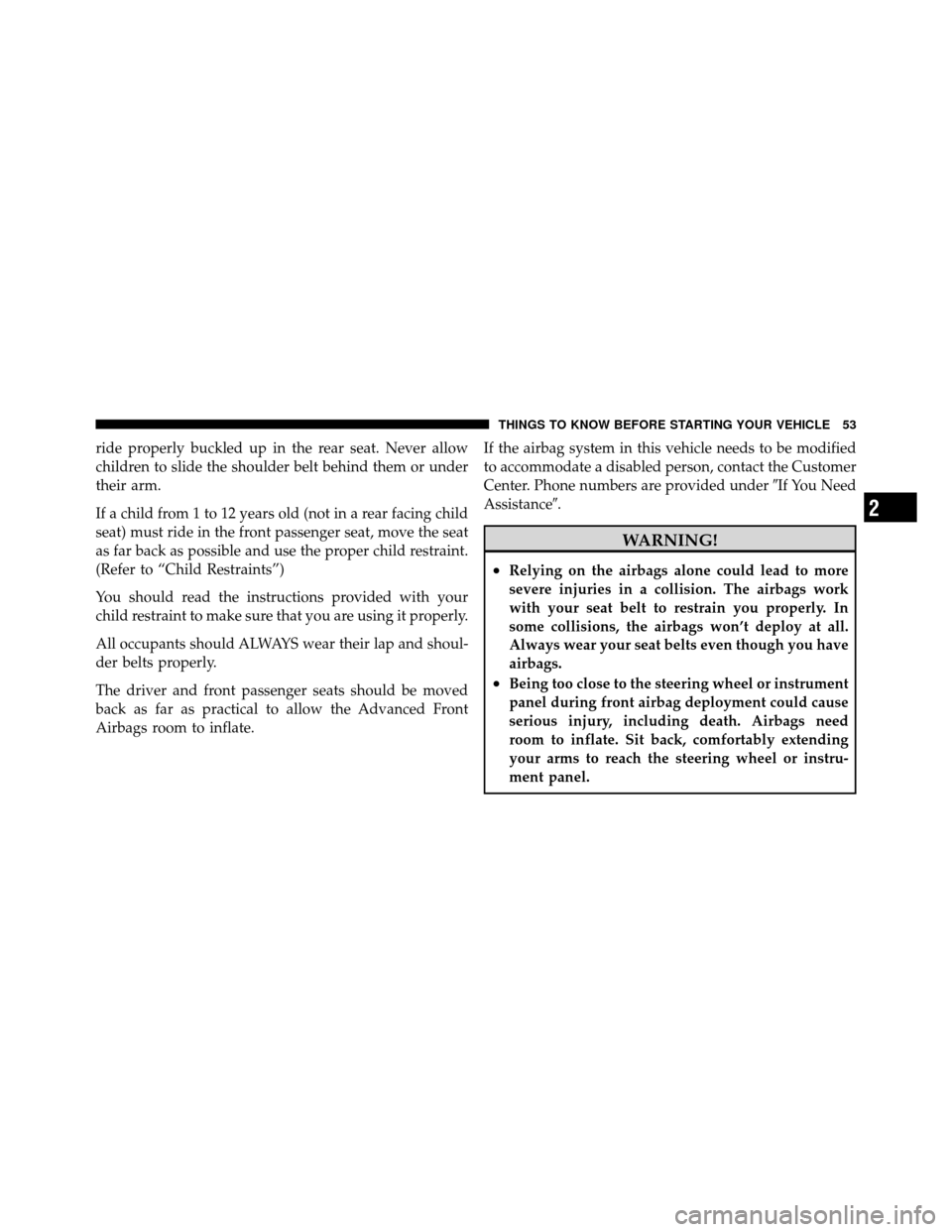

ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
their arm.
If a child from 1 to 12 years old (not in a rear facing child
seat) must ride in the front passenger seat, move the seat
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”)
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
All occupants should ALWAYS wear their lap and shoul-
der belts properly.
The driver and front passenger seats should be moved
back as far as practical to allow the Advanced Front
Airbags room to inflate.If the airbag system in this vehicle needs to be modified
to accommodate a disabled person, contact the Customer
Center. Phone numbers are provided under
If You Need
Assistance.
WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions, the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•Being too close to the steering wheel or instrument
panel during front airbag deployment could cause
serious injury, including death. Airbags need
room to inflate. Sit back, comfortably extending
your arms to reach the steering wheel or instru-
ment panel.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53

The ORC contains a backup power supply system that
may deploy the airbags even if the battery loses power or
it becomes disconnected prior to deployment.Also, the ORC turns on the Airbag Warning
Light in the instrument panel for approxi-
mately six to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Airbag Warning Light will turn off. If the
ORC detects a malfunction in any part of the system, it
turns on the Airbag Warning Light, either momentarily
or continuously. A single chime will sound if the light
comes on again after initial startup.
It also includes diagnostics that will illuminate the instru-
ment cluster Airbag Warning Light if a malfunction is
noted. The diagnostics also record the nature of the
malfunction.WARNING!
Ignoring the Airbag Warning Light in your instru-
ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.
Driver and Passenger Airbag Inflator Units
The Driver and Passenger Airbag/Inflator Units are
located in the center of the steering wheel and the right
side of the instrument panel (if equipped). When the
ORC detects a collision requiring the airbags, it signals
the inflator units. A large quantity of non-toxic gas is
generated to inflate the Advanced Front Airbags. Differ-
ent airbag inflation rates are possible, based on the
collision type and severity. The steering wheel hub trim
cover and the upper right side of the instrument panel
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55

Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or add aftermarket side steps or running boards.
•It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has an airbag system.(Continued)
WARNING! (Continued)
•Do not attempt to modify any part of your ad-
vanced airbag system. The airbag may inflate
accidentally or may not function properly if modi-
fications are made. Take your vehicle to an autho-
rized dealer for any advanced airbag system ser-
vice. If your seat, including your trim cover and
cushion, needs to be serviced in any way (includ-
ing removal or loosening/tightening of seat attach-
ment bolts), take the vehicle to your authorized
dealer. Only manufacturer approved seat accesso-
ries may be used. If it is necessary to modify an
advanced airbag system for persons with disabili-
ties, contact your authorized dealer.
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

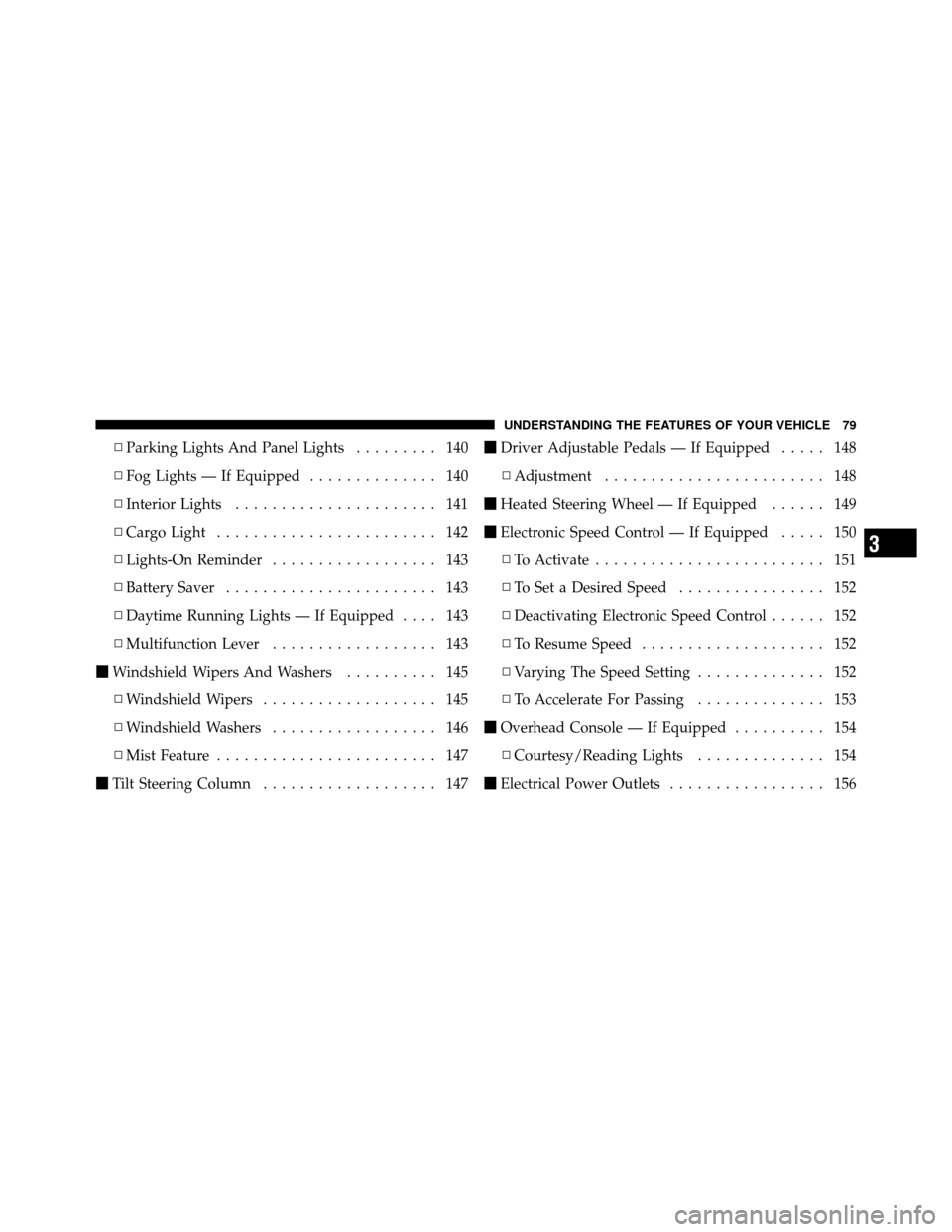

▫Parking Lights And Panel Lights ......... 140
▫ Fog Lights — If Equipped .............. 140
▫ Interior Lights ...................... 141
▫ Cargo Light ........................ 142
▫ Lights-On Reminder .................. 143
▫ Battery Saver ....................... 143
▫ Daytime Running Lights — If Equipped .... 143
▫ Multifunction Lever .................. 143
 Windshield Wipers And Washers .......... 145
▫ Windshield Wipers ................... 145
▫ Windshield Washers .................. 146
▫ Mist Feature ........................ 147
 Tilt Steering Column ................... 147
Driver Adjustable Pedals — If Equipped ..... 148
▫ Adjustment ........................ 148
 Heated Steering Wheel — If Equipped ...... 149
 Electronic Speed Control — If Equipped ..... 150
▫ To Activate ......................... 151
▫ To Set a Desired Speed ................ 152
▫ Deactivating Electronic Speed Control ...... 152
▫ To Resume Speed .................... 152
▫ Varying The Speed Setting .............. 152
▫ To Accelerate For Passing .............. 153
 Overhead Console — If Equipped .......... 154
▫ Courtesy/Reading Lights .............. 154
 Electrical Power Outlets ................. 156
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in an
accident causing serious injury or death.
Uconnect™ Phone Button Depending on the vehicle options, either the
radio or the mirror will contain the two control
buttons
(Uconnect™ Phone button) and
(Voice Command button) that will en-
able you to access the system.
Voice Command Button Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section. The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetooth
cellular phone. See the
Uconnect™ website for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any Uconnect™
Phone features. Refer to your cellular service provider or
the phone manufacturer for details.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect™ Phone such as CELLor caller ID on
certain radios.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
