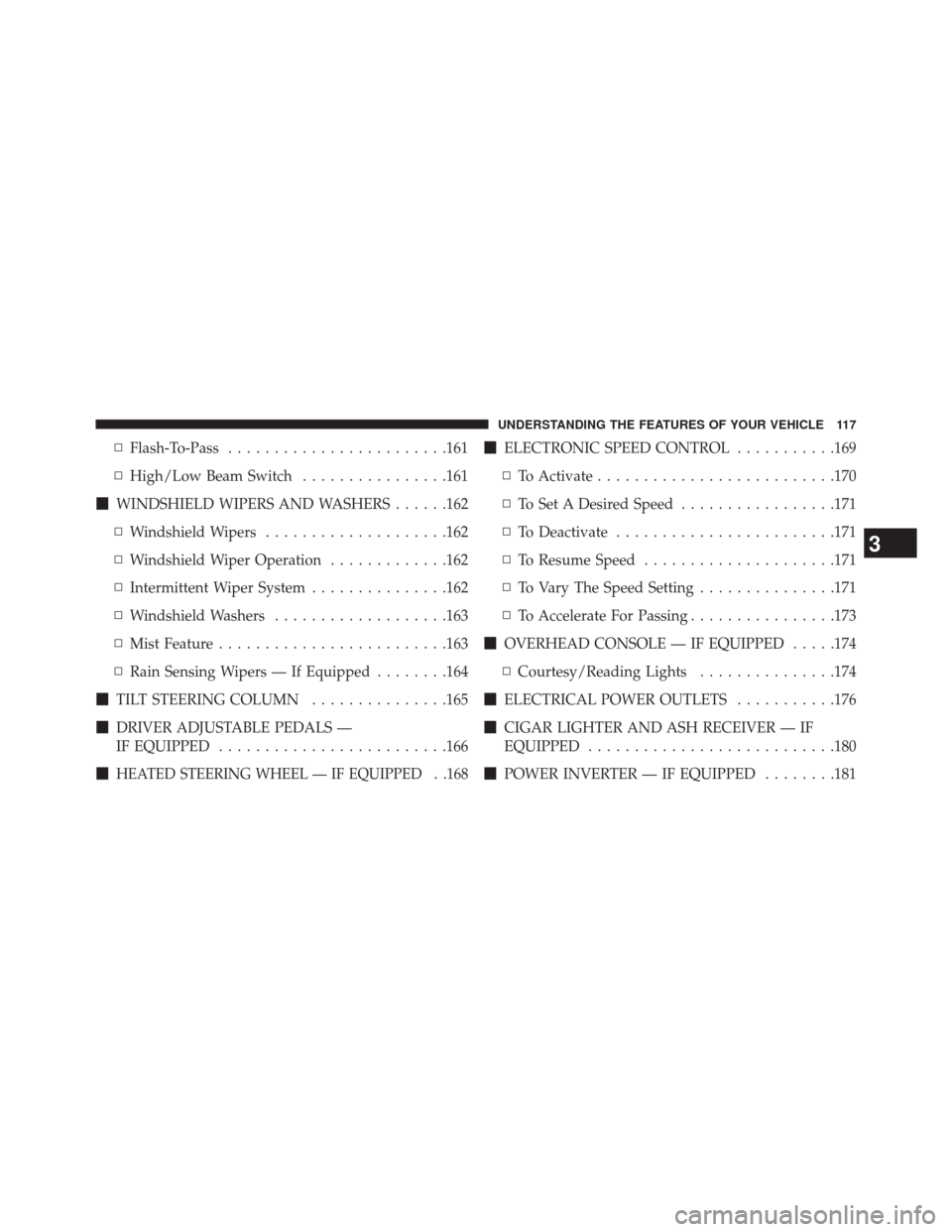

windshield wipers Ram 5500 Chassis Cab 2014 Owner's Manual

▫Flash-To-Pass ....................... .161
▫ High/Low Beam Switch ................161
 WINDSHIELD WIPERS AND WASHERS ......162
▫ Windshield Wipers ....................162
▫ Windshield Wiper Operation .............162
▫ Intermittent Wiper System ...............162
▫ Windshield Washers ...................163
▫ Mist Feature ........................ .163
▫ Rain Sensing Wipers — If Equipped ........164
 TILT STEERING COLUMN ...............165
 DRIVER ADJUSTABLE PEDALS —
IF EQUIPPED ........................ .166

HEATED STEERING WHEEL — IF EQUIPPED . .168
 ELECTRONIC SPEED CONTROL ...........169
▫ To Activate ......................... .170
▫ To Set A Desired Speed .................171
▫ To Deactivate ....................... .171
▫ To Resume Speed .....................171
▫ To Vary The Speed Setting ...............171
▫ To Accelerate For Passing ................173
 OVERHEAD CONSOLE — IF EQUIPPED .....174
▫ Courtesy/Reading Lights ...............174
 ELECTRICAL POWER OUTLETS ...........176
 CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED .......................... .180
 POWER INVERTER — IF EQUIPPED ........181
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

WINDSHIELD WIPERS AND WASHERS
Windshield Wipers
The wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the handle to select
the desired wiper speed.
Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.
Intermittent Wiper System
The intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range.
The delay interval decreases as you rotate the knob until
it enters the low continual speed position. The delay can
be regulated from a maximum of about 18 seconds
between cycles, to a cycle every one second. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.
Windshield Wiper/Washer Switch
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

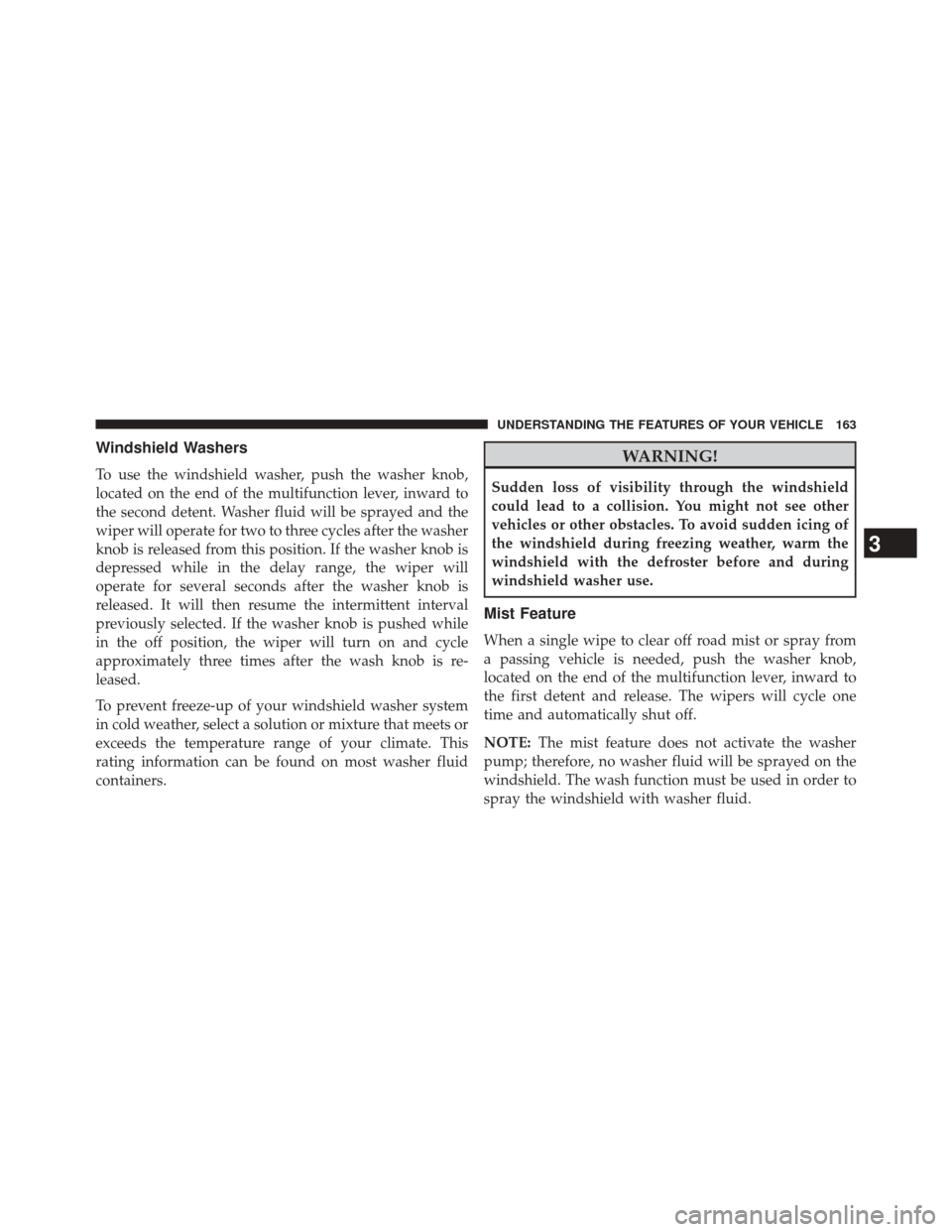

Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed and the
wiper will operate for two to three cycles after the washer
knob is released from this position. If the washer knob is
depressed while in the delay range, the wiper will
operate for several seconds after the washer knob is
released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while
in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is re-
leased.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
When a single wipe to clear off road mist or spray from
a passing vehicle is needed, push the washer knob,
located on the end of the multifunction lever, inward to
the first detent and release. The wipers will cycle one
time and automatically shut off.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of five settings
to activate this feature.
NOTE:If your vehicle is equipped with a touchscreen,
this feature can be programmed through the Uconnect®
system. Refer to “Uconnect® Settings” in “Understand-
ing Your Instrument Panel” for further information.
If your vehicle is not equipped with a touchscreen, this
feature can be programmed through the Electronic Ve-
hicle Information Center (EVIC). Refer to “Electronic
Vehicle Information Center (EVIC)” in “Understanding
Your Instrument Panel” for further information.
The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position 1 is the least sensitive, and wiper delay position 5 is the most sensi-
tive. Setting 3 should be used for normal rain conditions.
Settings 1 and 2 can be used if the driver desires less
wiper sensitivity. Setting 4 and 5 can be used if the driver
desires more sensitivity. Place the wiper switch in the
OFF position when not using the system.
NOTE:
•
The Rain Sensing feature will not operate when the
wiper switch is in the low or high-speed position.
• The Rain Sensing feature may not function properly
when ice, or dried salt water is present on the wind-
shield.
• Use of Rain-X® or products containing wax or silicone
may reduce Rain Sensing performance.
The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Auto Wipers — If Equipped
When ON is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the SELECT button until a check-mark appears next to
the feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated. When the system is deactivated, the system
reverts to the standard intermittent wiper operation.
Hill Start Assist (HSA)
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, press and release the
SELECT button until a check-mark appears next to thefeature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, scroll
up or down until the preferred setting is highlighted,
then press and release the SELECT button until a check-
mark appears next to the setting, showing that the setting
has been selected.
Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for 0, 30, 60, or 90 seconds when the doors
are unlocked with the RKE transmitter. To make your
selection, scroll up or down until the preferred setting is
4
UNDERSTANDING YOUR INSTRUMENT PANEL 241

•ParkSense® Rear Park Assist Chime Volume
Rear Park Assist chime volume settings can be selected
from the EVIC or Uconnect® System (if equipped). The
chime volume settings include LOW, MEDIUM, and
HIGH. The factory default volume setting is MEDIUM.
Refer to “EVIC settings” or “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
• Rain Sensing Auto Wipers
When this feature is selected, the system will automati-
cally activate the windshield wipers if it senses moisture
on the windshield. To make your selection, touch the
“Rain Sensing” soft-key, until a check-mark appears next
to the setting, showing that setting has been selected.
Touch the back arrow soft-key to return to the previous
menu. •
Hill Start Assist — If Equipped
When this feature is selected, the Hill Start Assist (HSA)
system is active. Refer to “Electronic Brake Control
System” in “Starting And Operating” for system function
and operating information. To make your selection, touch
the “Hill Start Assist” soft-key, until a check-mark ap-
pears next to the setting, showing that the setting has
been selected. Touch the back arrow soft-key to return to
the previous menu.
• Four Corner Air Suspension Modes — If Equipped
There are four air suspension modes designed to protect
the system in unique situations. Tire Jack Mode is se-
lected to assist in changing a spare tire. Transport Mode
is selected to assist when the vehicle is being flat bed
towed. Wheel Alignment Mode is selected before per-
forming a wheel alignment, refer to your authorized
254 UNDERSTANDING YOUR INSTRUMENT PANEL

Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reser-
voir, take some washer fluid and apply it to a cloth or
towel and wipe the wiper blades clean. This will help
blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
After the engine has warmed up, operate the defroster for
a few minutes to reduce the possibility of smearing or
458 MAINTAINING YOUR VEHICLE

Defroster, Rear Window.....................192
Defroster, Windshield ......................112
Delay (Intermittent) Wipers ..................162
Differential, Limited-Slip ....................322
Dipsticks Automatic Transmission ..................475
Power Steering ........................ .327
Disabled Vehicle Towing ....................438
Disposal Antifreeze (Engine Coolant) ................466
Door Locks Door Locks ............................35
KeyFob...............................35
Remote ...............................35
Remote Keyless Entry (RKE) ................35
Door Locks, Automatic ......................37
Driving Through Flowing, Rising, or Shallow Standing
Water ............................... .324Dual Rear Wheels
........................ .371
Electrical Power Outlets .....................176
Electric Rear Window Defrost .................192
Electronically Shifted Transfer Case .............316
Electronic Brake Control System ...............333
Anti-Lock Brake System ..................333
Traction Control System ...................334
Electronic Range Select (ERS) .................308
Electronic Speed Control (Cruise Control) ........169
Electronic Stability Control (ESC) ..............338
Electronic Vehicle Information Center (EVIC) ......212
Electronic Vehicle Information Center (EVIC) . . . .212
Electronic Vehicle Information Center (EVIC) Setup
Menu ............................... .212
EVIC Messages ........................ .212
Emergency Brake ........................ .328
Emergency, In Case of Freeing Vehicle When Stuck ................435
10
INDEX 529

Untwisting Procedure, Seat Belt................58
Vehicle Identification Number (VIN) .............6
Vehicle Loading ......................... .352
Vehicle Modifications/Alterations ...............7
Vehicle Storage .......................... .287
Viscosity, Engine Oil ...................... .453
Warning Lights (Instrument Cluster Description) . . .200
Warnings and Cautions .......................6
Warranty Information ..................... .520
Washers, Windshield ...................... .163
Washing Vehicle ......................... .478
Water Driving Through ....................... .324
Wheel and Wheel Trim .....................480
Wheel and Wheel Trim Care .................480
Wheel Cover ........................... .428
Wheel Nut Torque ........................ .428Wind Buffeting
............................47
Window Fogging ........................ .287
Windows ................................44
Power ................................44
Rear Sliding .......................... .193
Reset Auto-Up ..........................46
Wind Buffeting ..........................47
Windshield Defroster .......................112
Windshield Washers ...................... .162
Fluid ............................... .162
Windshield Wiper Blades ....................457
Windshield Wipers ....................... .162
Wiper Blade Replacement ...................457
Wipers, Intermittent ...................... .162
Wipers, Rain Sensitive ..................... .164
542 INDEX
