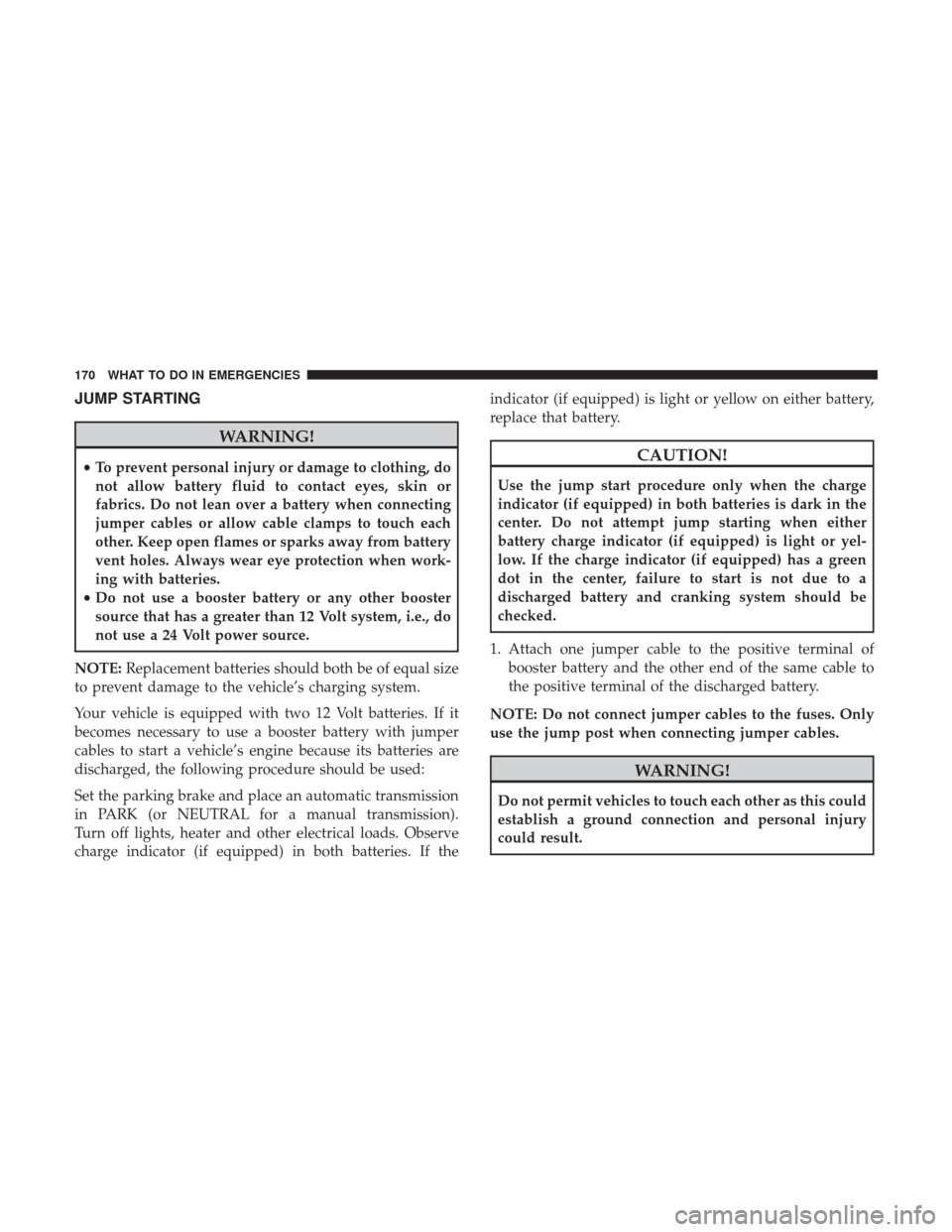

JUMP STARTING
WARNING!
•To prevent personal injury or damage to clothing, do
not allow battery fluid to contact eyes, skin or
fabrics. Do not lean over a battery when connecting
jumper cables or allow cable clamps to touch each
other. Keep open flames or sparks away from battery
vent holes. Always wear eye protection when work-
ing with batteries.
• Do not use a booster battery or any other booster
source that has a greater than 12 Volt system, i.e., do
not use a 24 Volt power source.
NOTE: Replacement batteries should both be of equal size
to prevent damage to the vehicle’s charging system.
Your vehicle is equipped with two 12 Volt batteries. If it
becomes necessary to use a booster battery with jumper
cables to start a vehicle’s engine because its batteries are
discharged, the following procedure should be used:
Set the parking brake and place an automatic transmission
in PARK (or NEUTRAL for a manual transmission).
Turn off lights, heater and other electrical loads. Observe
charge indicator (if equipped) in both batteries. If the indicator (if equipped) is light or yellow on either battery,
replace that battery.CAUTION!
Use the jump start procedure only when the charge
indicator (if equipped) in both batteries is dark in the
center. Do not attempt jump starting when either
battery charge indicator (if equipped) is light or yel-
low. If the charge indicator (if equipped) has a green
dot in the center, failure to start is not due to a
discharged battery and cranking system should be
checked.
1. Attach one jumper cable to the positive terminal of booster battery and the other end of the same cable to
the positive terminal of the discharged battery.
NOTE: Do not connect jumper cables to the fuses. Only
use the jump post when connecting jumper cables.
WARNING!
Do not permit vehicles to touch each other as this could
establish a ground connection and personal injury
could result.
170 WHAT TO DO IN EMERGENCIES

2. Connect one end of the other jumper cable to negative(-) post of booster battery. Connect the other end of the
jumper cable to a good ground on the engine block of
the vehicle with the discharged battery. Make sure a
good connection is made, free of dirt and grease.
NOTE:
• Take care that the clamps from one cable do not inad-
vertently touch clamps from the other cable.
• Do not lean over the battery when making connection. •
The negative connection must provide good electrical
conductivity and current carrying capacity.
WARNING!
• Do not connect the cable to the negative post of the
discharge battery. The resulting electrical spark
could cause the battery to explode.
• During cold weather when temperatures are below
freezing point, electrolyte in a discharged battery
may freeze. Do not attempt jump starting because the
battery could rupture or explode. The battery tem-
perature must be brought up above freezing point
before attempting to jump start.
3. After the engine is started or if the engine fails to start, cables must be disconnected in the following order:
• Disconnect the negative cable at the engine ground.
• Disconnect the negative cable at the negative post on
booster battery.
• Disconnect the cable from the positive post of both
batteries.
Positive Jumping Location
6
WHAT TO DO IN EMERGENCIES 171

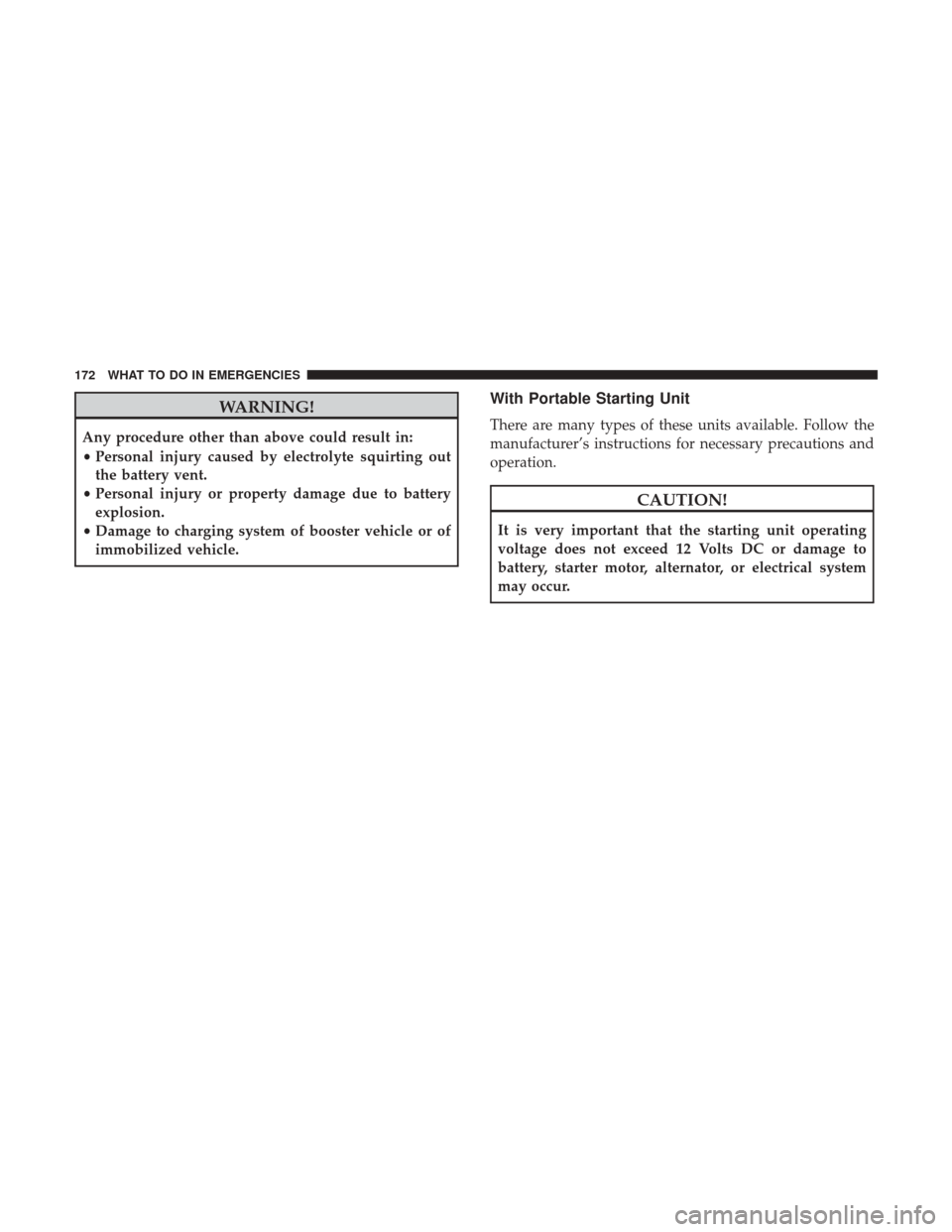

WARNING!
Any procedure other than above could result in:
•Personal injury caused by electrolyte squirting out
the battery vent.
• Personal injury or property damage due to battery
explosion.
• Damage to charging system of booster vehicle or of
immobilized vehicle.
With Portable Starting Unit
There are many types of these units available. Follow the
manufacturer’s instructions for necessary precautions and
operation.
CAUTION!
It is very important that the starting unit operating
voltage does not exceed 12 Volts DC or damage to
battery, starter motor, alternator, or electrical system
may occur.
172 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 6.7L DIESEL —
SIX-SPEED 68RFE (2500/3500 Models) .........174
 ENGINE COMPARTMENT — 6.7L DIESEL —
SIX-SPEED AS69RC HD (3500/CHASSIS CAB
MODELS) ............................ .175
 MAINTENANCE PROCEDURES .............176
▫ Engine Oil .......................... .176
▫ Engine Air Cleaner Filter .................180
▫ Draining Fuel/Water Separator Filter ........184
▫ Engine Mounted Fuel Filter Replacement ......185
▫ Underbody Mounted Fuel Filter Replacement . . .186
▫ Priming If The Engine Has Run Out Of Fuel . . .188
▫ Intervention Regeneration Strategy — Message
Process Flow ......................... .189
▫ Diesel Exhaust Fluid .....................190 ▫
Maintenance-Free Batteries ................190
▫ Cooling System ....................... .191
▫ Charge Air Cooler — Inter-Cooler ...........195
▫ Brake System ........................ .195
▫ Clutch Hydraulic System .................196
▫ Transfer Case — If Equipped ..............197
▫ Manual Transmission — If Equipped .........197
▫ Automatic Transmission — If Equipped .......197
▫ Noise Control System Required Maintenance &
Warranty ........................... .200
 FLUID CAPACITIES ..................... .204
 FLUIDS, LUBRICANTS AND GENUINE PARTS . .205
▫ Engine ............................. .205
▫ Chassis ............................ .207
7

ENGINE COMPARTMENT — 6.7L DIESEL — SIX-SPEED 68RFE (2500/3500 Models)
1 — Battery7 — Washer Fluid Reservoir
2 — Engine Coolant Reservoir 8 — Power Steering Fluid Reservoir
3 — Automatic Transmission Dipstick 9 — Power Distribution Center
4 — Brake Fluid Reservoir 10 — Engine Oil Dipstick
5 — Battery 11 — Engine Oil Fill
6 — Aux Power Distribution Center 12 — Air Cleaner Filter
174 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 6.7L DIESEL — SIX-SPEED AS69RC HD (3500/CHASSIS CAB MODELS)
1 — Battery7 — Washer Fluid Reservoir
2 — Engine Coolant Reservoir 8 — Power Steering Fluid Reservoir
3 — Automatic Transmission Dipstick 9 — Power Distribution Center
4 — Brake Fluid Reservoir 10 — Engine Oil Dipstick
5 — Battery 11 — Engine Oil Fill
6 — Aux Power Distribution Center 12 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 175

MAINTENANCE PROCEDURES
The pages that follow contain therequiredmaintenance
services determined by the engineers who designed your
vehicle.
Besides those maintenance items specified in the fixed
maintenance schedule, there are other components which
may require servicing or replacement in the future.
CAUTION!
• Failure to properly maintain your vehicle or perform
repairs and service when necessary could result in
more costly repairs, damage to other components or
negatively impact vehicle performance. Immediately
have potential malfunctions examined by an autho-
rized dealership or qualified repair center.
(Continued)
CAUTION! (Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, power steering or air conditioning.
Such damage is not covered by the New Vehicle
Limited Warranty. If a flush is needed because of
component malfunction, use only the specified fluid
for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained at the correct level. Check
the oil level at regular intervals. The best time to check the
oil level is before starting the engine after it has been
parked overnight. When checking oil after operating the
engine, first ensure the engine is at full operating tempera-
ture, then wait for 30 minutes after engine shutdown to
check the oil.
176 MAINTAINING YOUR VEHICLE

Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Add oil only
when the level on the dipstick is below the “ADD” mark.
The total capacity from the ADD mark to the Full mark is
2 qts (1.9L).
CAUTION!
Overfilling or underfilling the crankcase will cause oil
aeration or loss of oil pressure. This could damage your
engine.
Never operate the engine with oil level below the “ADD”
mark or above the upper “SAFE” mark.
Change Engine Oil
Refer to the “Maintenance Schedule” for the proper main-
tenance intervals.
Engine Oil Selection
For best performance and maximum protection under all
types of operating conditions, the manufacturer only rec-
ommends engine oils that are API CJ-4 certified and meet
the requirements of FCA LLC. Use MOPAR or an equiva-
lent oil meeting FCA Material Standard MS-10902. Prod-
ucts meeting Cummins CES 20081 may also be used. The
identification of these engine oils are typically located on
the back of the oil container.
Engine Oil Dipstick
1 — ADD Range
2—FullMark
3 — SAFE Range7
MAINTAINING YOUR VEHICLE 177

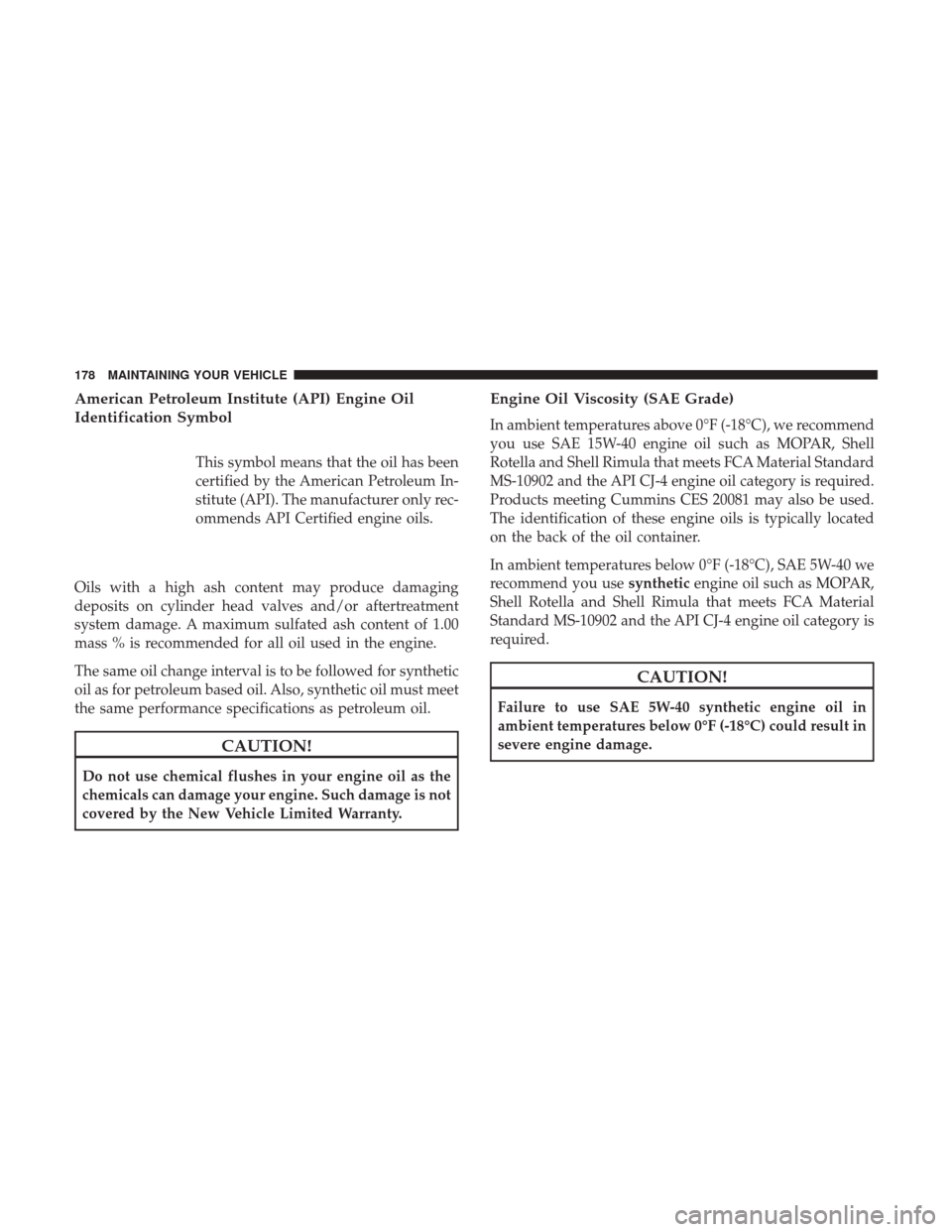

American Petroleum Institute (API) Engine Oil
Identification Symbol
This symbol means that the oil has been
certified by the American Petroleum In-
stitute (API). The manufacturer only rec-
ommends API Certified engine oils.
Oils with a high ash content may produce damaging
deposits on cylinder head valves and/or aftertreatment
system damage. A maximum sulfated ash content of 1.00
mass % is recommended for all oil used in the engine.
The same oil change interval is to be followed for synthetic
oil as for petroleum based oil. Also, synthetic oil must meet
the same performance specifications as petroleum oil.
CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is not
covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity (SAE Grade)
In ambient temperatures above 0°F (-18°C), we recommend
you use SAE 15W-40 engine oil such as MOPAR, Shell
Rotella and Shell Rimula that meets FCA Material Standard
MS-10902 and the API CJ-4 engine oil category is required.
Products meeting Cummins CES 20081 may also be used.
The identification of these engine oils is typically located
on the back of the oil container.
In ambient temperatures below 0°F (-18°C), SAE 5W-40 we
recommend you use syntheticengine oil such as MOPAR,
Shell Rotella and Shell Rimula that meets FCA Material
Standard MS-10902 and the API CJ-4 engine oil category is
required.
CAUTION!
Failure to use SAE 5W-40 synthetic engine oil in
ambient temperatures below 0°F (-18°C) could result in
severe engine damage.
178 MAINTAINING YOUR VEHICLE
