Ram Cargo Van 2014 Owner's Manual

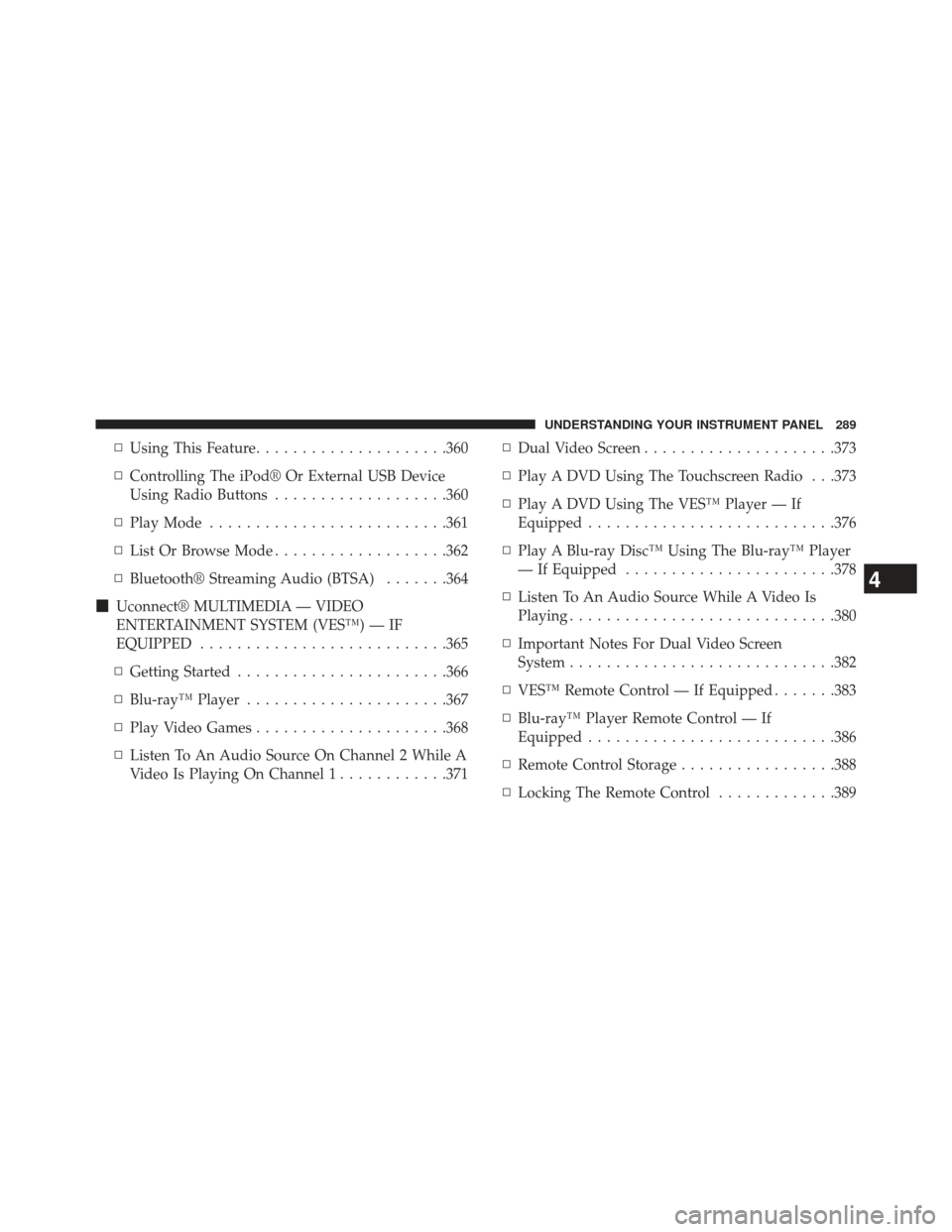

▫Using This Feature .....................360
▫ Controlling The iPod® Or External USB Device
Using Radio Buttons ...................360
▫ Play Mode ......................... .361
▫ List Or Browse Mode ...................362
▫ Bluetooth® Streaming Audio (BTSA) .......364
 Uconnect® MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES™) — IF
EQUIPPED .......................... .365
▫ Getting Started ...................... .366
▫ Blu-ray™ Player ..................... .367
▫ Play Video Games .....................368
▫ Listen To An Audio Source On Channel 2 While A
Video Is Playing On Channel 1 ............371▫
Dual Video Screen .....................373
▫ Play A DVD Using The Touchscreen Radio . . .373
▫ Play A DVD Using The VES™ Player — If
Equipped .......................... .376
▫ Play A Blu-ray Disc™ Using The Blu-ray™ Player
— If Equipped ...................... .378
▫ Listen To An Audio Source While A Video Is
Playing ............................ .380
▫ Important Notes For Dual Video Screen
System ............................ .382
▫ VES™ Remote Control — If Equipped .......383
▫ Blu-ray™ Player Remote Control — If
Equipped .......................... .386
▫ Remote Control Storage .................388
▫ Locking The Remote Control .............389
4
UNDERSTANDING YOUR INSTRUMENT PANEL 289

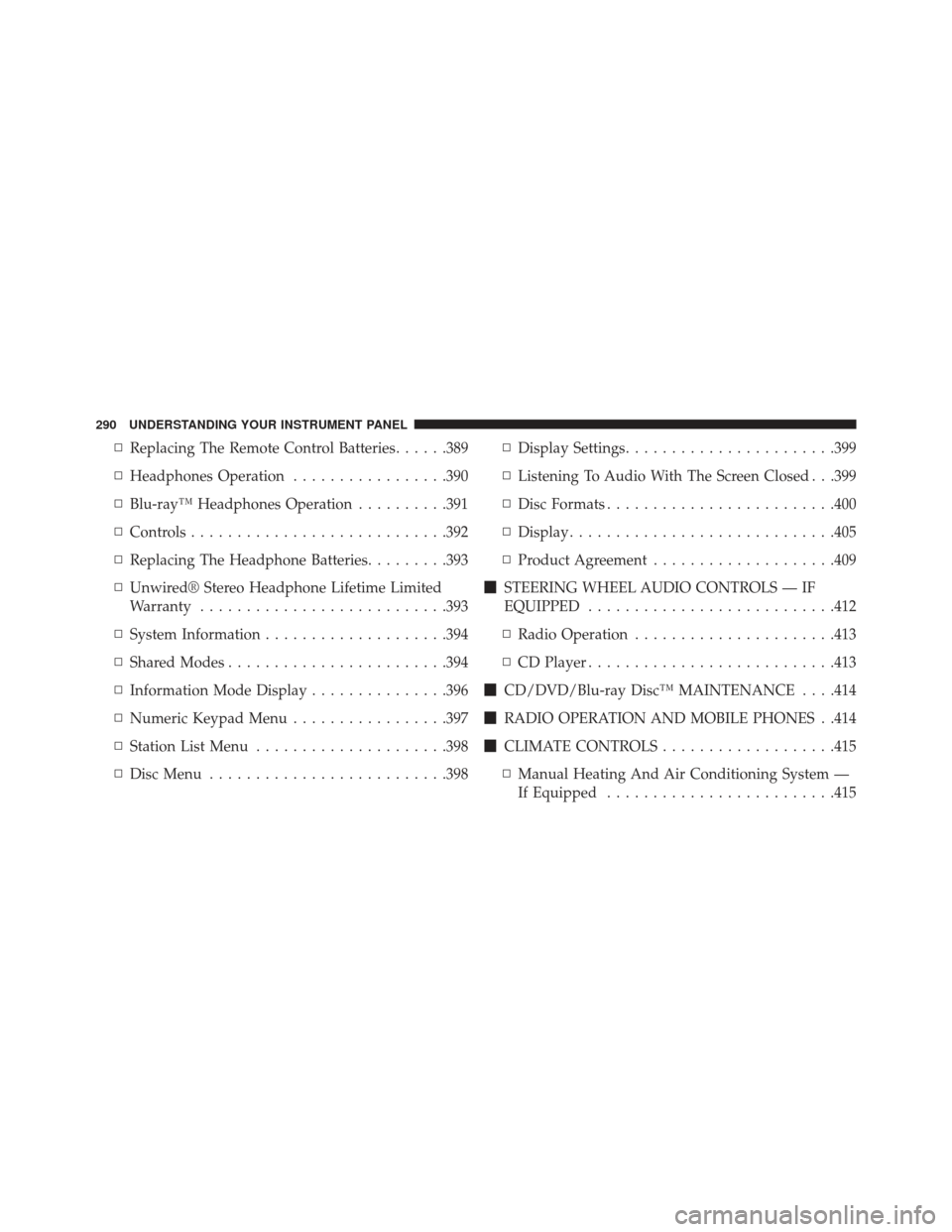

▫Replacing The Remote Control Batteries ......389
▫ Headphones Operation .................390
▫ Blu-ray™ Headphones Operation ..........391
▫ Controls ........................... .392
▫ Replacing The Headphone Batteries .........393
▫ Unwired® Stereo Headphone Lifetime Limited
Warranty .......................... .393
▫ System Information ....................394
▫ Shared Modes ....................... .394
▫ Information Mode Display ...............396
▫ Numeric Keypad Menu .................397
▫ Station List Menu .....................398
▫ Disc Menu ......................... .398▫
Display Settings ...................... .399
▫ Listening To Audio With The Screen Closed . . .399
▫ Disc Formats ........................ .400
▫ Display ............................ .405
▫ Product Agreement ....................409
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .412
▫ Radio Operation ..................... .413
▫ CD Player .......................... .413
 CD/DVD/Blu-ray Disc™ MAINTENANCE . . . .414
 RADIO OPERATION AND MOBILE PHONES . .414
 CLIMATE CONTROLS ...................415
▫ Manual Heating And Air Conditioning System —
If Equipped ........................ .415
290 UNDERSTANDING YOUR INSTRUMENT PANEL

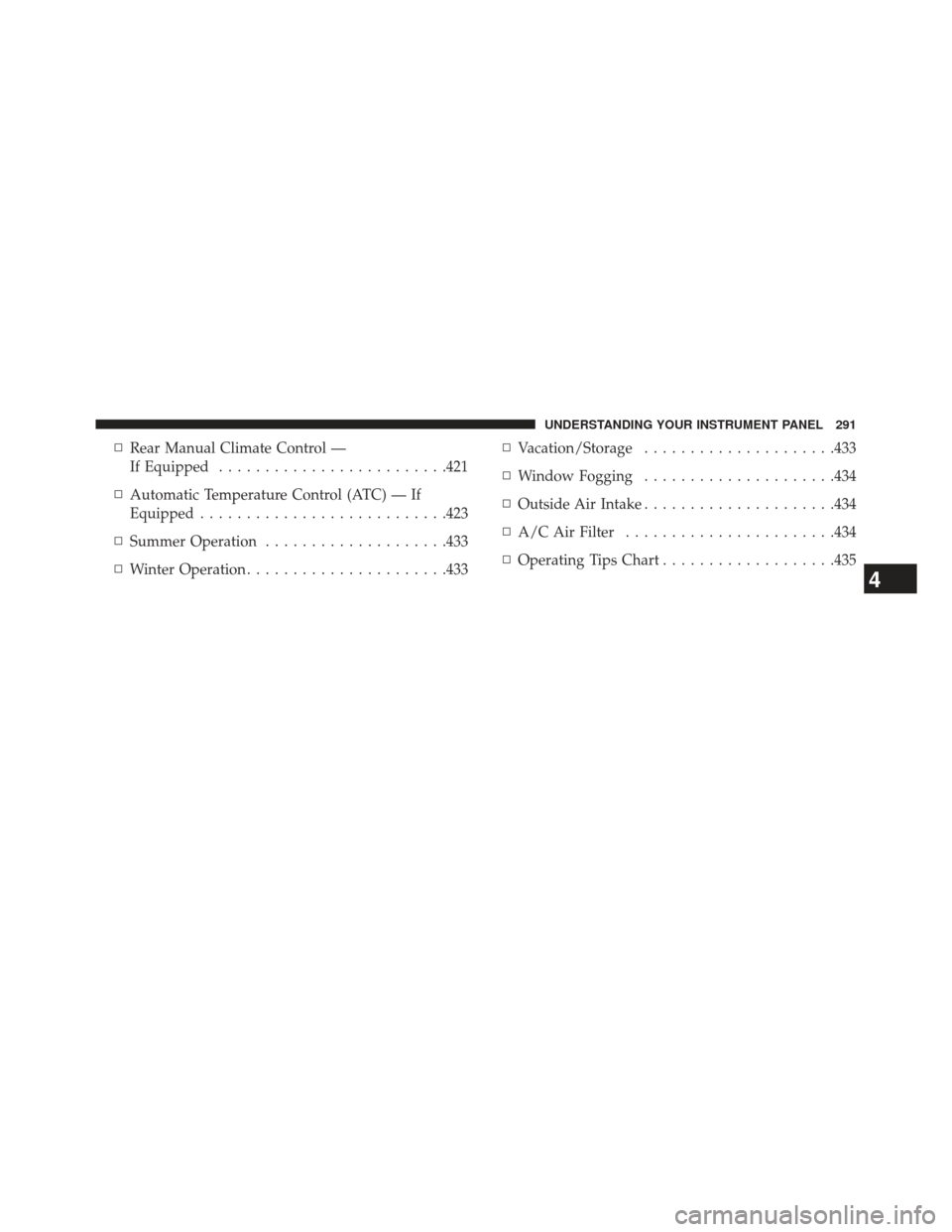

▫Rear Manual Climate Control —
If Equipped ........................ .421
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... .423
▫ Summer Operation ....................433
▫ Winter Operation ..................... .433▫
Vacation/Storage .....................433
▫ Window Fogging .....................434
▫ Outside Air Intake .....................434
▫ A/C Air Filter ...................... .434
▫ Operating Tips Chart ...................435
4
UNDERSTANDING YOUR INSTRUMENT PANEL 291

INSTRUMENT PANEL FEATURES
1 — Air Vents5 — Upper Glove Compartment 9 — Storage Bin 13 — Hood Release
2 — Instrument Cluster 6 — Lower Glove Compartment 10 — Cup Holders 14 — Dimmer Switch
3 — Shift Lever 7 — Climate Controls 11 — Switch Bank15 — Headlight Switch
4 — Radio 8 — DVD – If Equipped 12 — Ignition Switch
292 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER — BASE
4
UNDERSTANDING YOUR INSTRUMENT PANEL 293

INSTRUMENT CLUSTER — PREMIUM
294 UNDERSTANDING YOUR INSTRUMENT PANEL

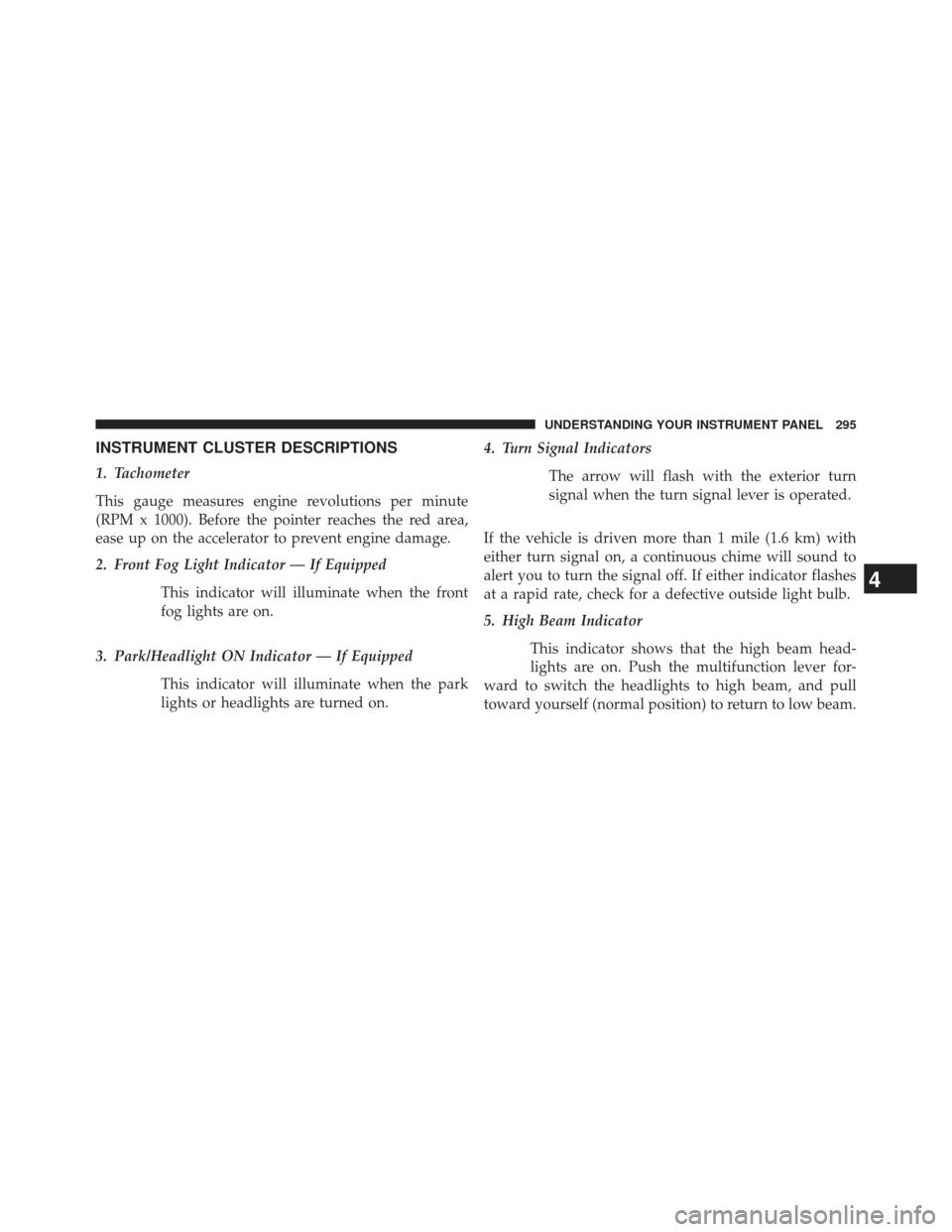

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
This gauge measures engine revolutions per minute
(RPM x 1000). Before the pointer reaches the red area,
ease up on the accelerator to prevent engine damage.
2. Front Fog Light Indicator — If EquippedThis indicator will illuminate when the front
fog lights are on.
3. Park/Headlight ON Indicator — If Equipped This indicator will illuminate when the park
lights or headlights are turned on. 4. Turn Signal Indicators
The arrow will flash with the exterior turn
signal when the turn signal lever is operated.
If the vehicle is driven more than 1 mile (1.6 km) with
either turn signal on, a continuous chime will sound to
alert you to turn the signal off. If either indicator flashes
at a rapid rate, check for a defective outside light bulb.
5. High Beam Indicator This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295

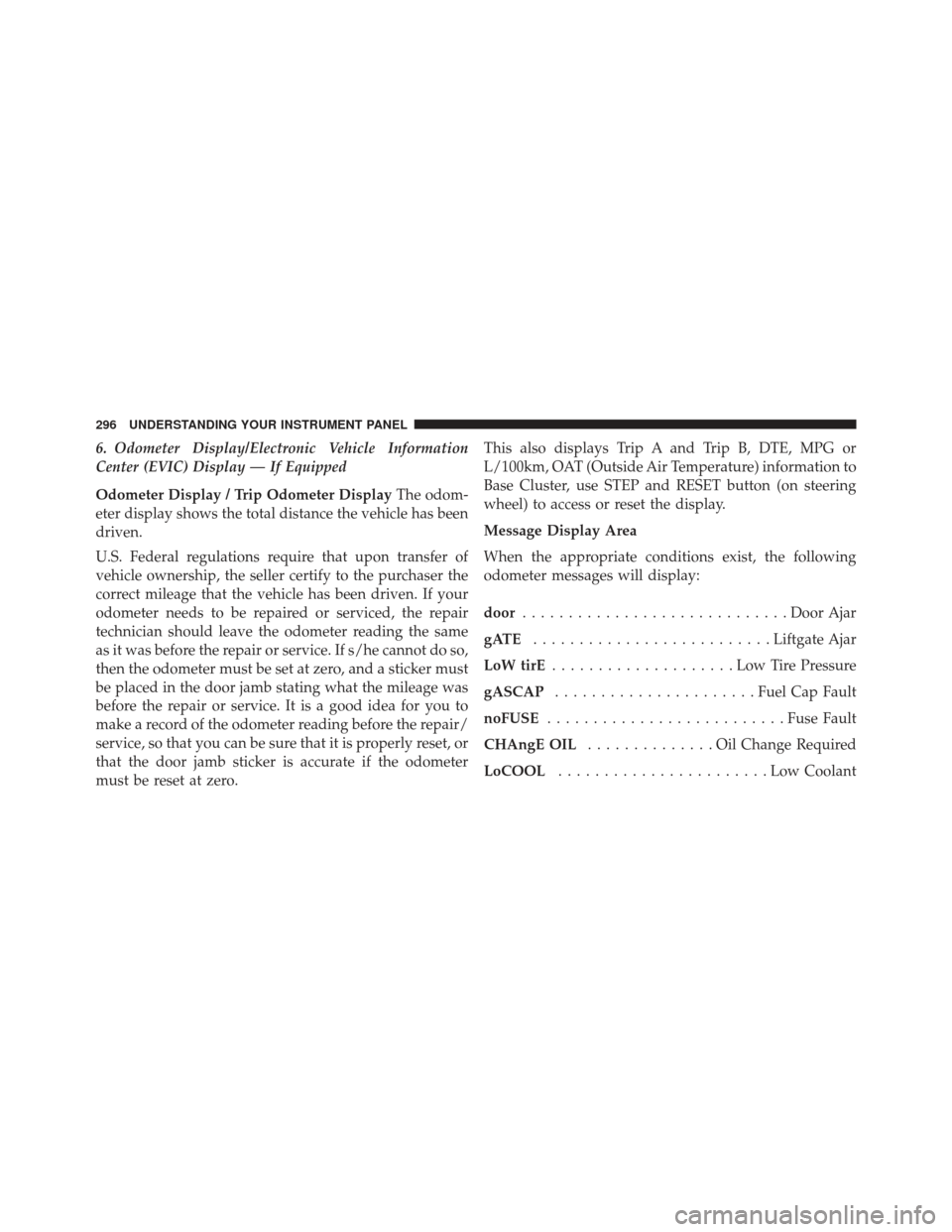

6. Odometer Display/Electronic Vehicle Information
Center (EVIC) Display — If Equipped
Odometer Display / Trip Odometer DisplayThe odom-
eter display shows the total distance the vehicle has been
driven.
U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
odometer needs to be repaired or serviced, the repair
technician should leave the odometer reading the same
as it was before the repair or service. If s/he cannot do so,
then the odometer must be set at zero, and a sticker must
be placed in the door jamb stating what the mileage was
before the repair or service. It is a good idea for you to
make a record of the odometer reading before the repair/
service, so that you can be sure that it is properly reset, or
that the door jamb sticker is accurate if the odometer
must be reset at zero. This also displays Trip A and Trip B, DTE, MPG or
L/100km, OAT (Outside Air Temperature) information to
Base Cluster, use STEP and RESET button (on steering
wheel) to access or reset the display.
Message Display Area
When the appropriate conditions exist, the following
odometer messages will display:
door
............................. Door Ajar
gATE .......................... Liftgate Ajar
LoW tirE ....................LowTirePr essure
gASCAP ...................... Fuel Cap Fault
noFUSE .......................... Fuse Fault
CHAngE OIL ..............Oil Change Required
LoCOOL .......................Low Coolant
296 UNDERSTANDING YOUR INSTRUMENT PANEL

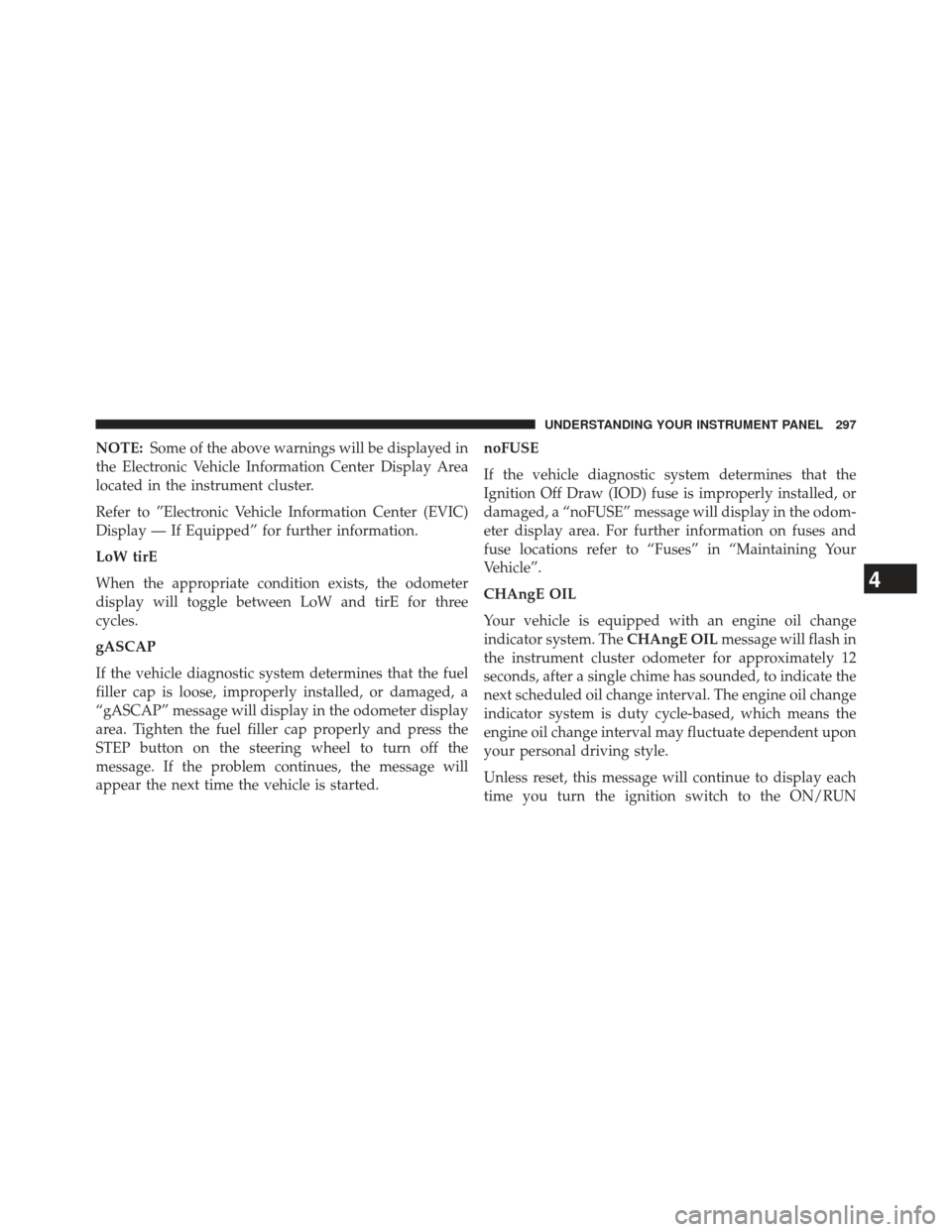

NOTE:Some of the above warnings will be displayed in
the Electronic Vehicle Information Center Display Area
located in the instrument cluster.
Refer to ”Electronic Vehicle Information Center (EVIC)
Display — If Equipped” for further information.
LoW tirE
When the appropriate condition exists, the odometer
display will toggle between LoW and tirE for three
cycles.
gASCAP
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“gASCAP” message will display in the odometer display
area. Tighten the fuel filler cap properly and press the
STEP button on the steering wheel to turn off the
message. If the problem continues, the message will
appear the next time the vehicle is started. noFUSE
If the vehicle diagnostic system determines that the
Ignition Off Draw (IOD) fuse is improperly installed, or
damaged, a “noFUSE” message will display in the odom-
eter display area. For further information on fuses and
fuse locations refer to “Fuses” in “Maintaining Your
Vehicle”.
CHAngE OIL
Your vehicle is equipped with an engine oil change
indicator system. The
CHAngE OILmessage will flash in
the instrument cluster odometer for approximately 12
seconds, after a single chime has sounded, to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty cycle-based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
4
UNDERSTANDING YOUR INSTRUMENT PANEL 297

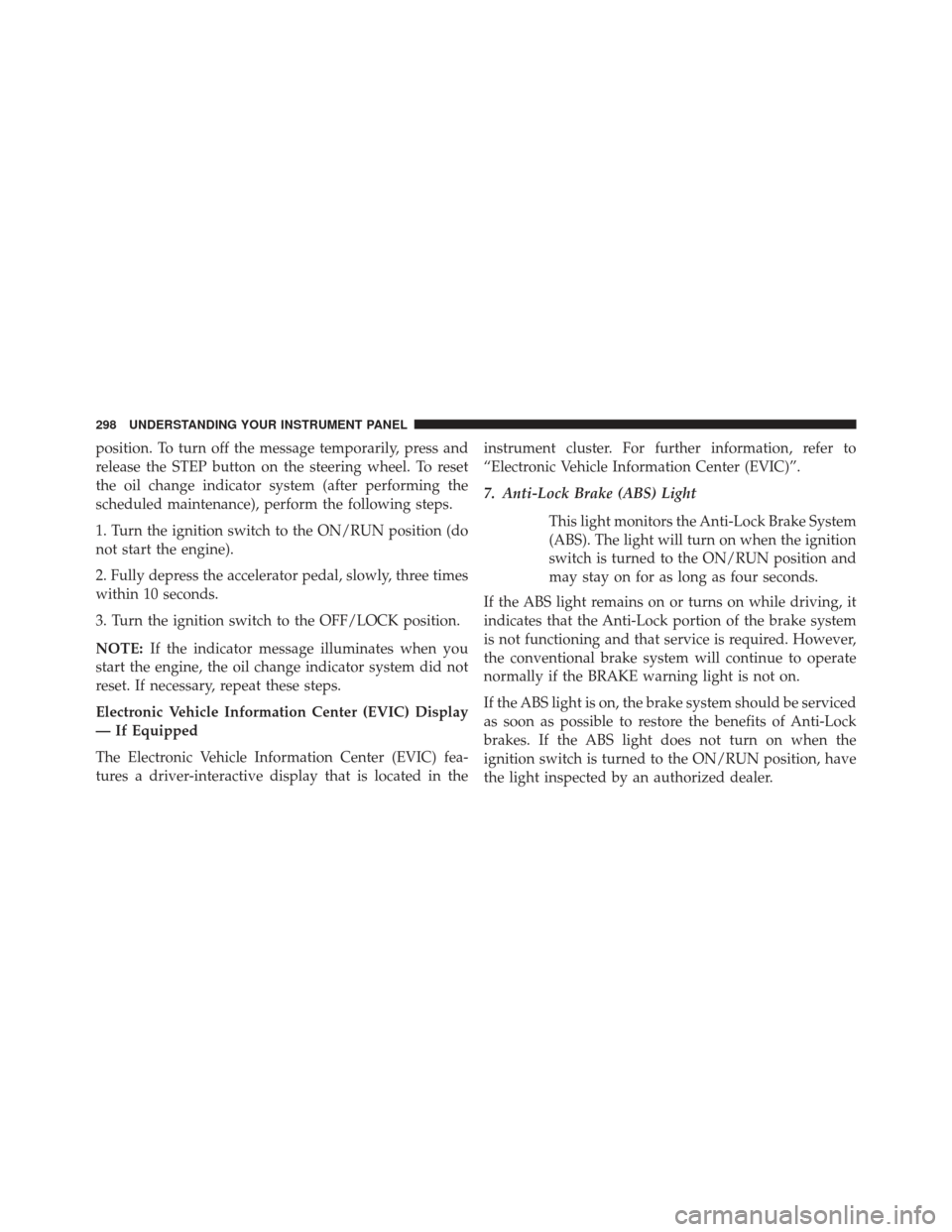

position. To turn off the message temporarily, press and
release the STEP button on the steering wheel. To reset
the oil change indicator system (after performing the
scheduled maintenance), perform the following steps.
1. Turn the ignition switch to the ON/RUN position (do
not start the engine).
2. Fully depress the accelerator pedal, slowly, three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:If the indicator message illuminates when you
start the engine, the oil change indicator system did not
reset. If necessary, repeat these steps.
Electronic Vehicle Information Center (EVIC) Display
— If Equipped
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the instrument cluster. For further information, refer to
“Electronic Vehicle Information Center (EVIC)”.
7. Anti-Lock Brake (ABS) Light
This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.
298 UNDERSTANDING YOUR INSTRUMENT PANEL
