RAM CHASSIS CAB 2011 Owners Manual

CIGAR LIGHTER AND ASH RECEIVER —
IF EQUIPPED
A removable ash receiver and cigar lighter are available.
For vehicles with a bench seat the cupholder tray can be
used to hold the ash receiver. For vehicles equipped with a floor console the cuphold-
ers may be used.
POWER INVERTER — IF EQUIPPED
A 115 Volt (150 Watts Maximum) outlet is located on the
center stack of the instrument panel, to the right of the
radio. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end video games, such as Playsta-
tion3 and XBox360 will exceed this power limit, as will
most power tools.
The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
may have to be reset manually. To reset the inverter
manually press the power inverter button OFF and ON.Ash Receiver and Cigar Lighter (Bench Seat)1 — Cigar Lighter
2 — Ash Receiver160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

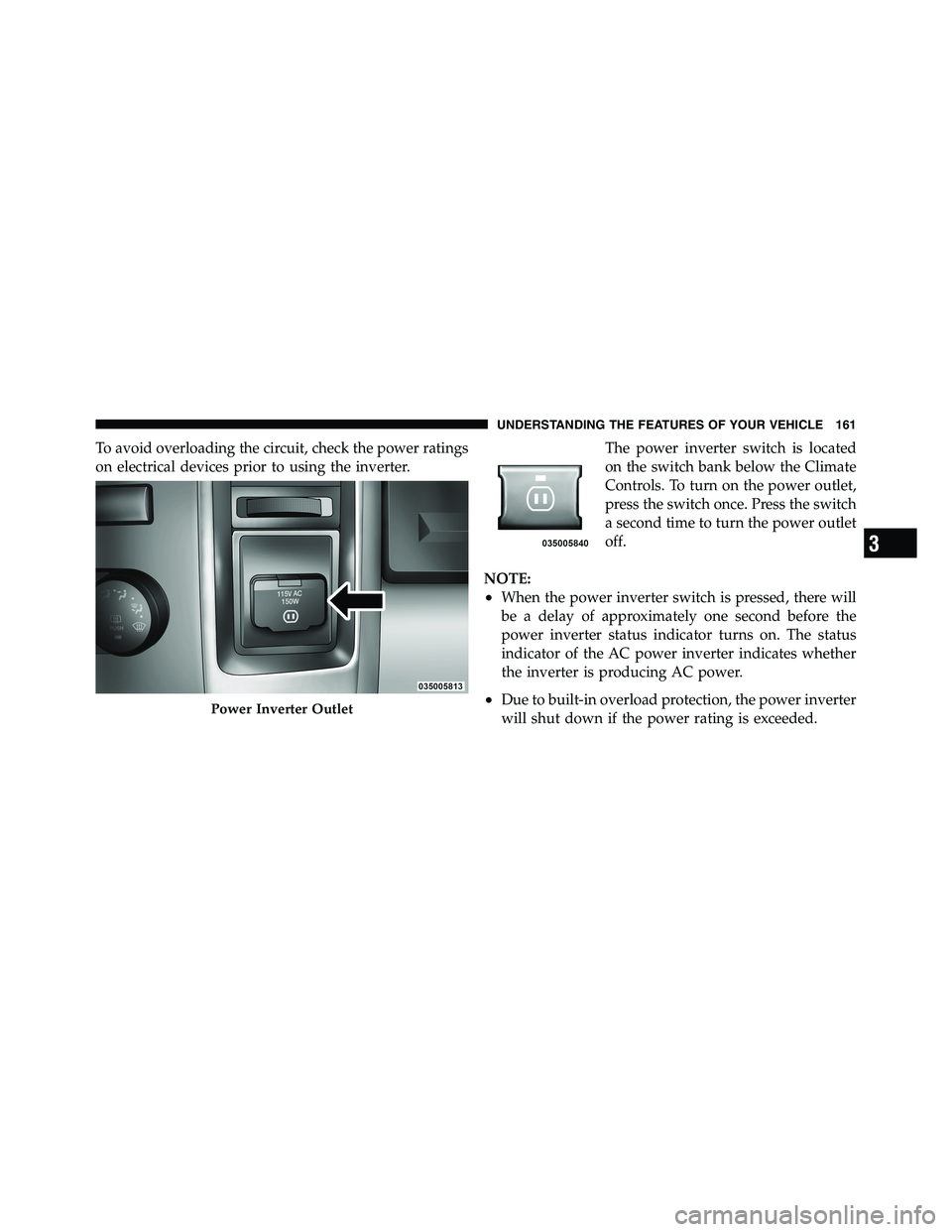

To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter. The power inverter switch is located
on the switch bank below the Climate
Controls. To turn on the power outlet,
press the switch once. Press the switch
a second time to turn the power outlet
off.
NOTE:
• When the power inverter switch is pressed, there will
be a delay of approximately one second before the
power inverter status indicator turns on. The status
indicator of the AC power inverter indicates whether
the inverter is producing AC power.
• Due to built-in overload protection, the power inverter
will shut down if the power rating is exceeded.Power Inverter Outlet
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

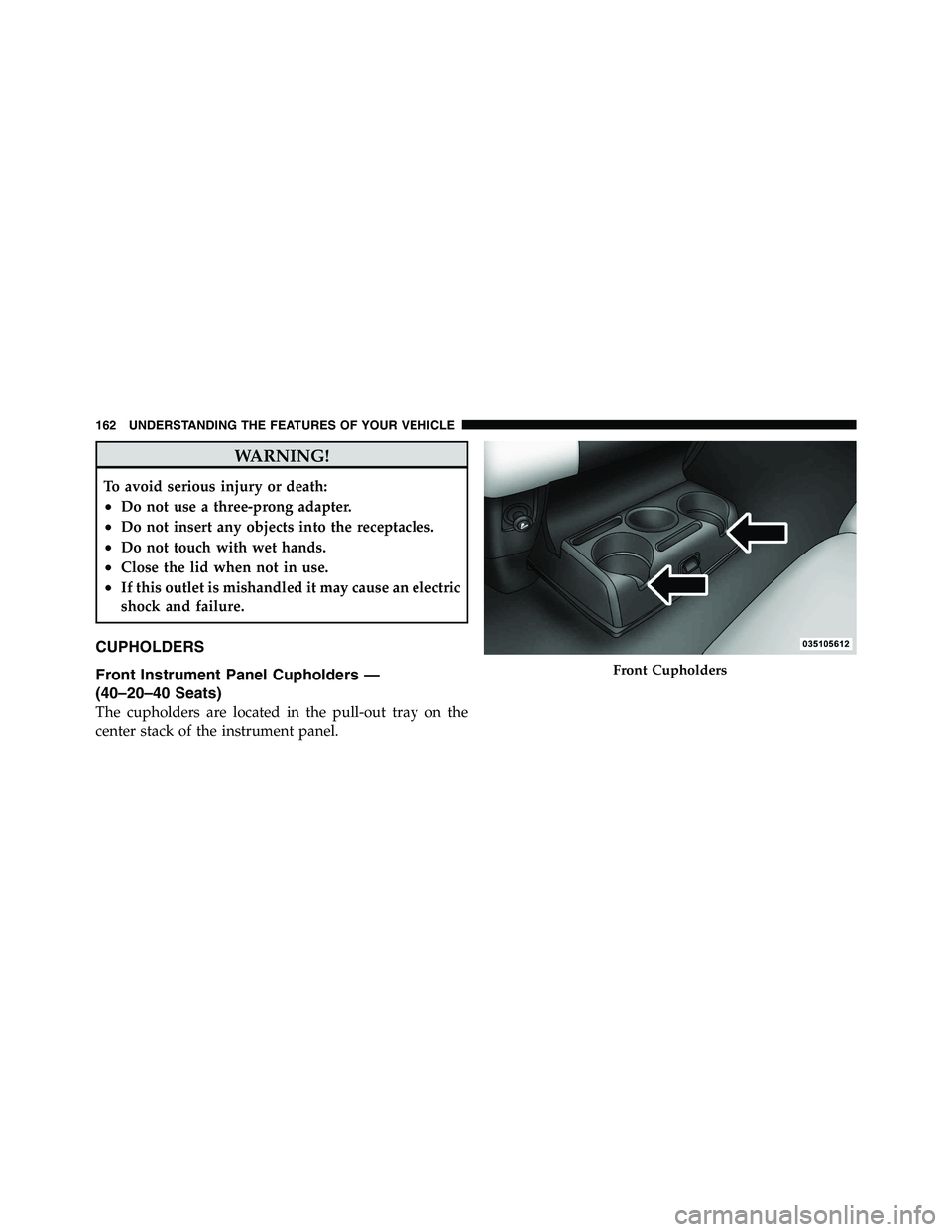

WARNING!To avoid serious injury or death:
• Do not use a three-prong adapter.
• Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled it may cause an electric
shock and failure.
CUPHOLDERS
Front Instrument Panel Cupholders —
(40–20–40 Seats)
The cupholders are located in the pull-out tray on the
center stack of the instrument panel. Front Cupholders162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

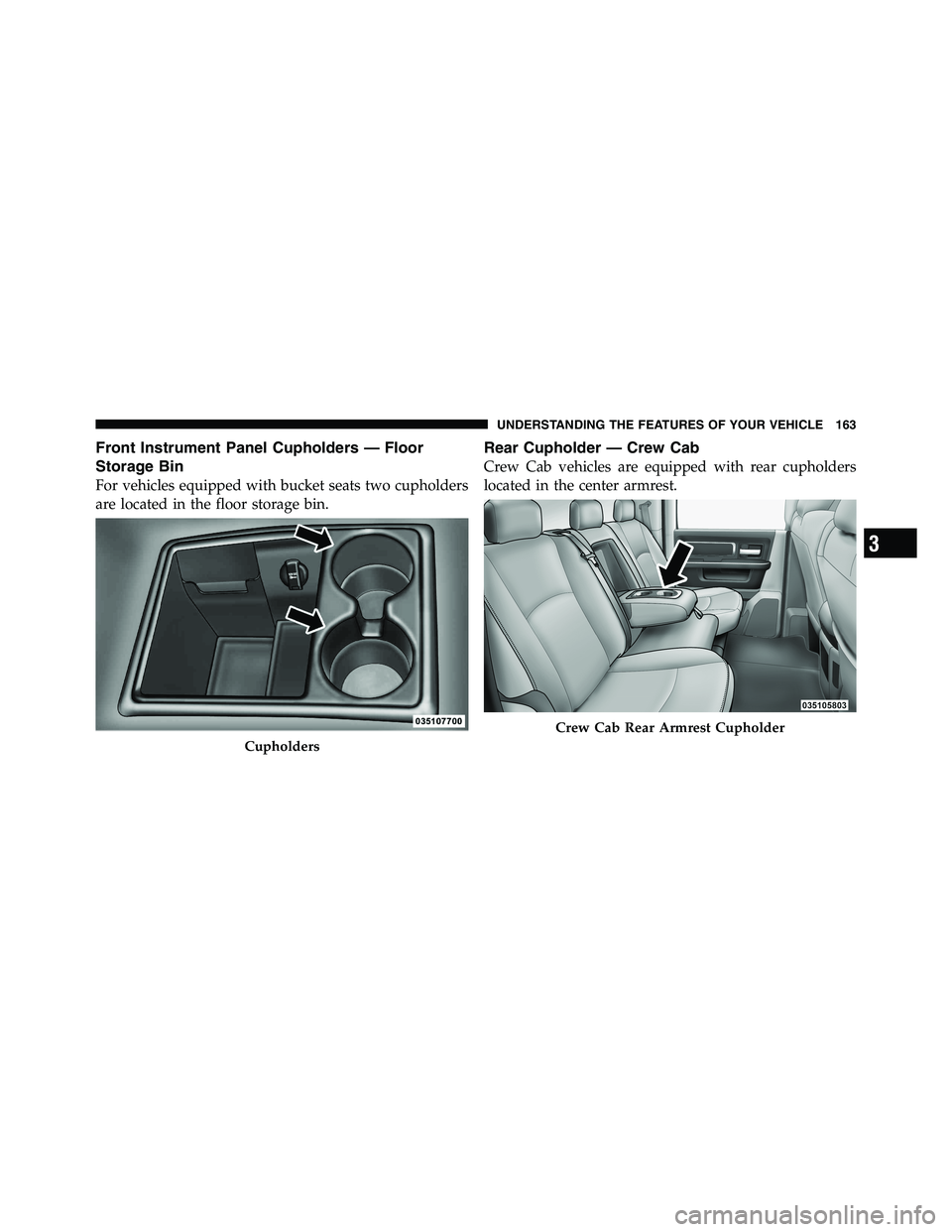

Front Instrument Panel Cupholders — Floor
Storage Bin
For vehicles equipped with bucket seats two cupholders
are located in the floor storage bin. Rear Cupholder — Crew Cab
Crew Cab vehicles are equipped with rear cupholders
located in the center armrest.
Cupholders Crew Cab Rear Armrest Cupholder
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

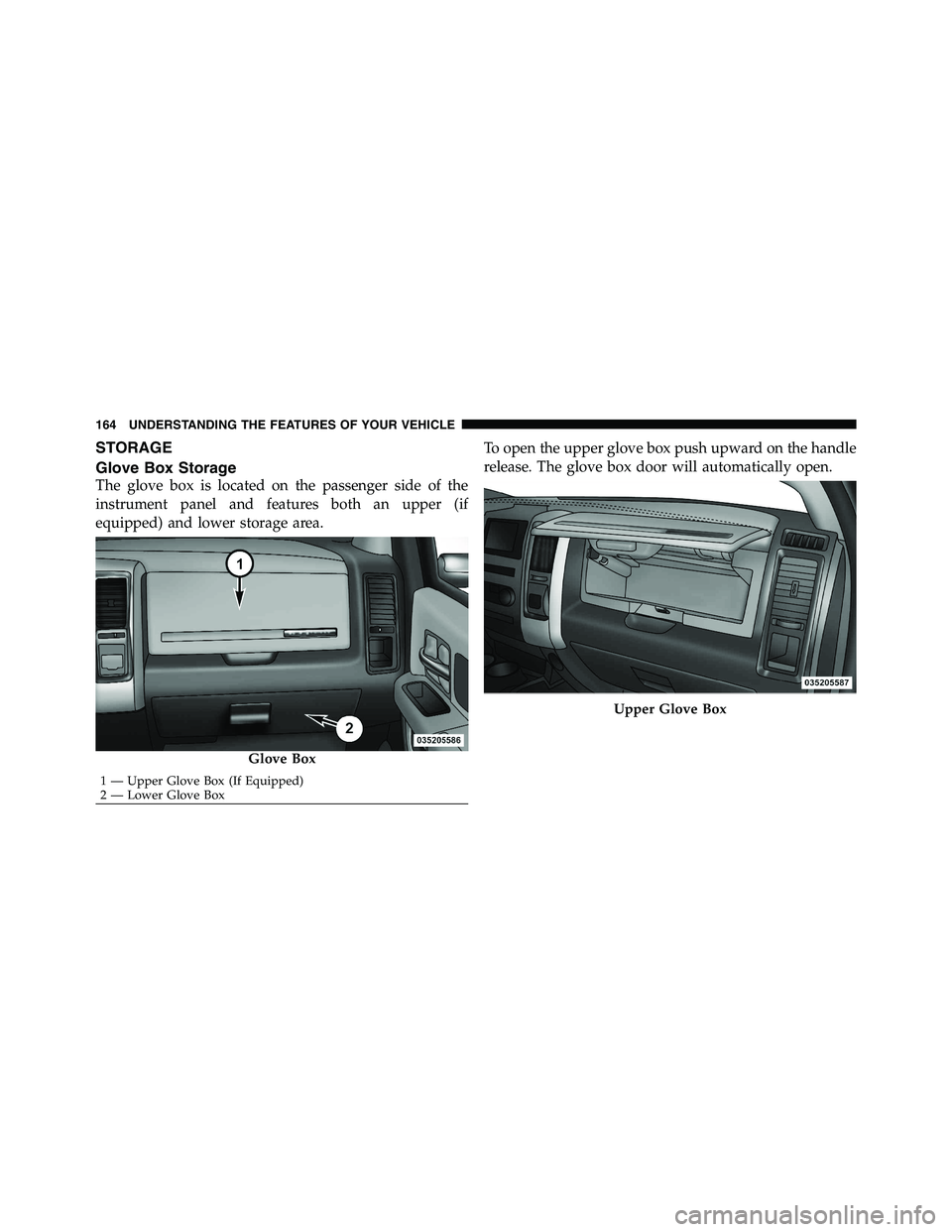

STORAGE
Glove Box Storage
The glove box is located on the passenger side of the
instrument panel and features both an upper (if
equipped) and lower storage area. To open the upper glove box push upward on the handle
release. The glove box door will automatically open.
Glove Box1 — Upper Glove Box (If Equipped)
2 — Lower Glove Box Upper Glove Box164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

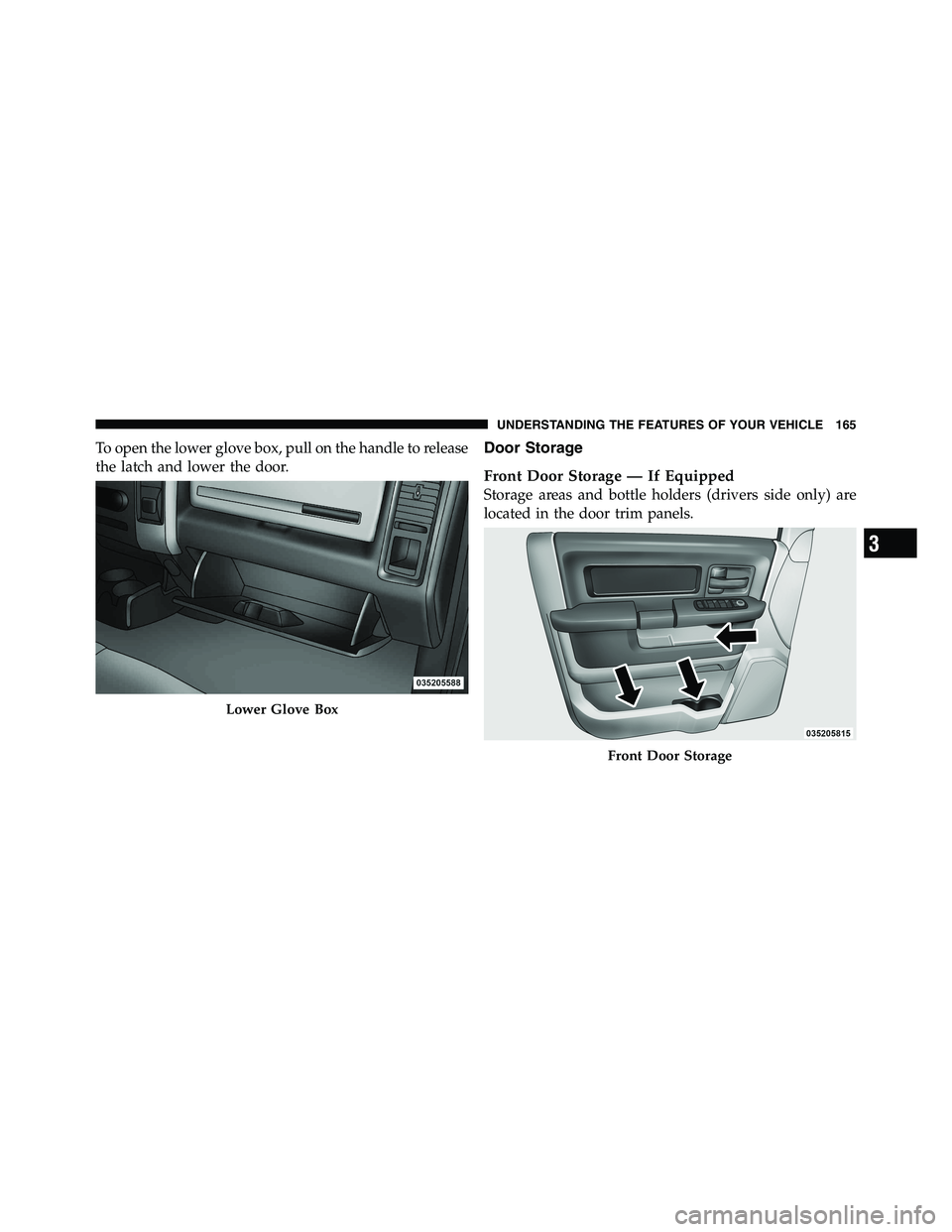

To open the lower glove box, pull on the handle to release
the latch and lower the door. Door Storage
Front Door Storage — If Equipped
Storage areas and bottle holders (drivers side only) are
located in the door trim panels.
Lower Glove Box
Front Door Storage
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

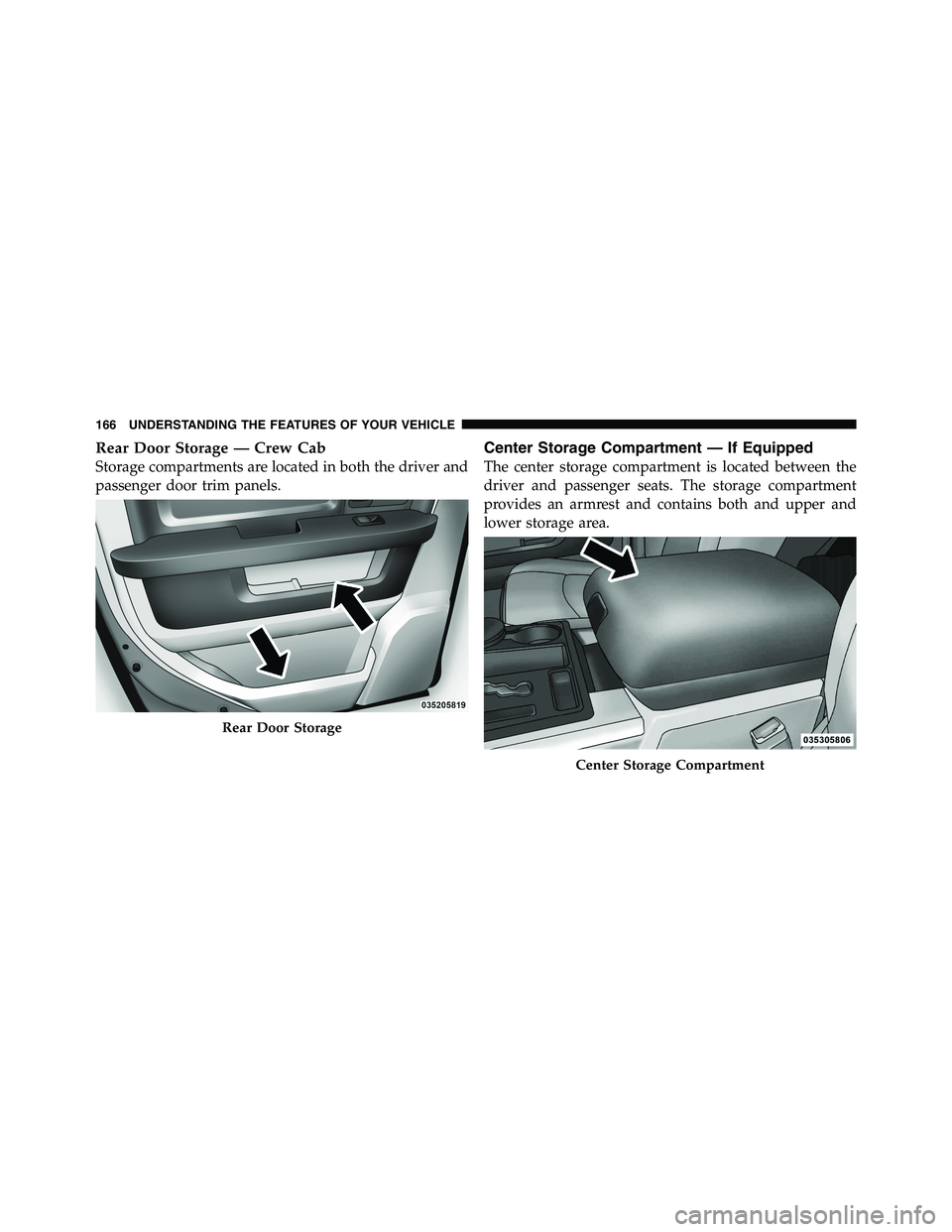

Rear Door Storage — Crew Cab
Storage compartments are located in both the driver and
passenger door trim panels. Center Storage Compartment — If Equipped
The center storage compartment is located between the
driver and passenger seats. The storage compartment
provides an armrest and contains both and upper and
lower storage area.
Rear Door Storage
Center Storage Compartment166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

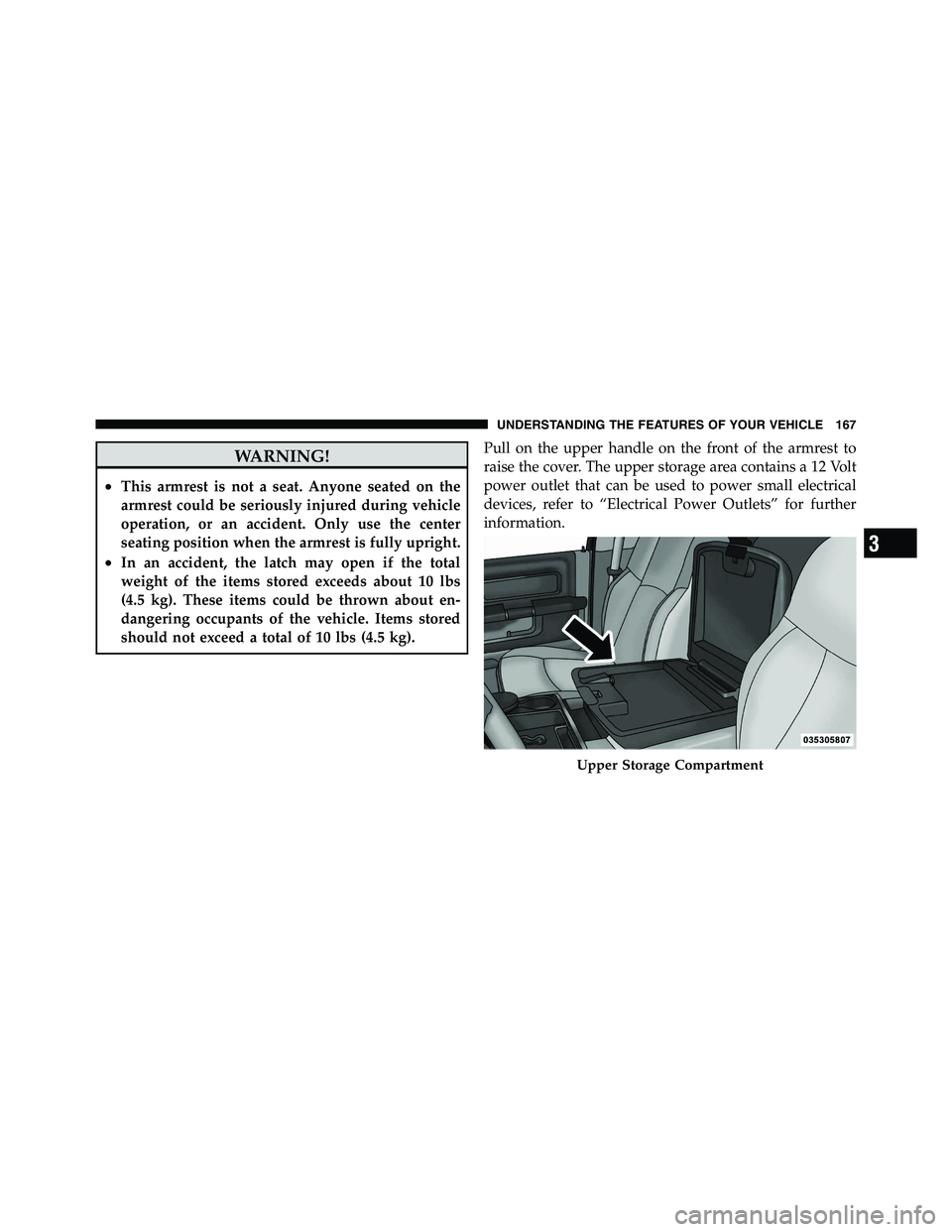

WARNING!• This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or an accident. Only use the center
seating position when the armrest is fully upright.
• In an accident, the latch may open if the total
weight of the items stored exceeds about 10 lbs
(4.5 kg). These items could be thrown about en-
dangering occupants of the vehicle. Items stored
should not exceed a total of 10 lbs (4.5 kg). Pull on the upper handle on the front of the armrest to
raise the cover. The upper storage area contains a 12 Volt
power outlet that can be used to power small electrical
devices, refer to “Electrical Power Outlets” for further
information.
Upper Storage Compartment
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

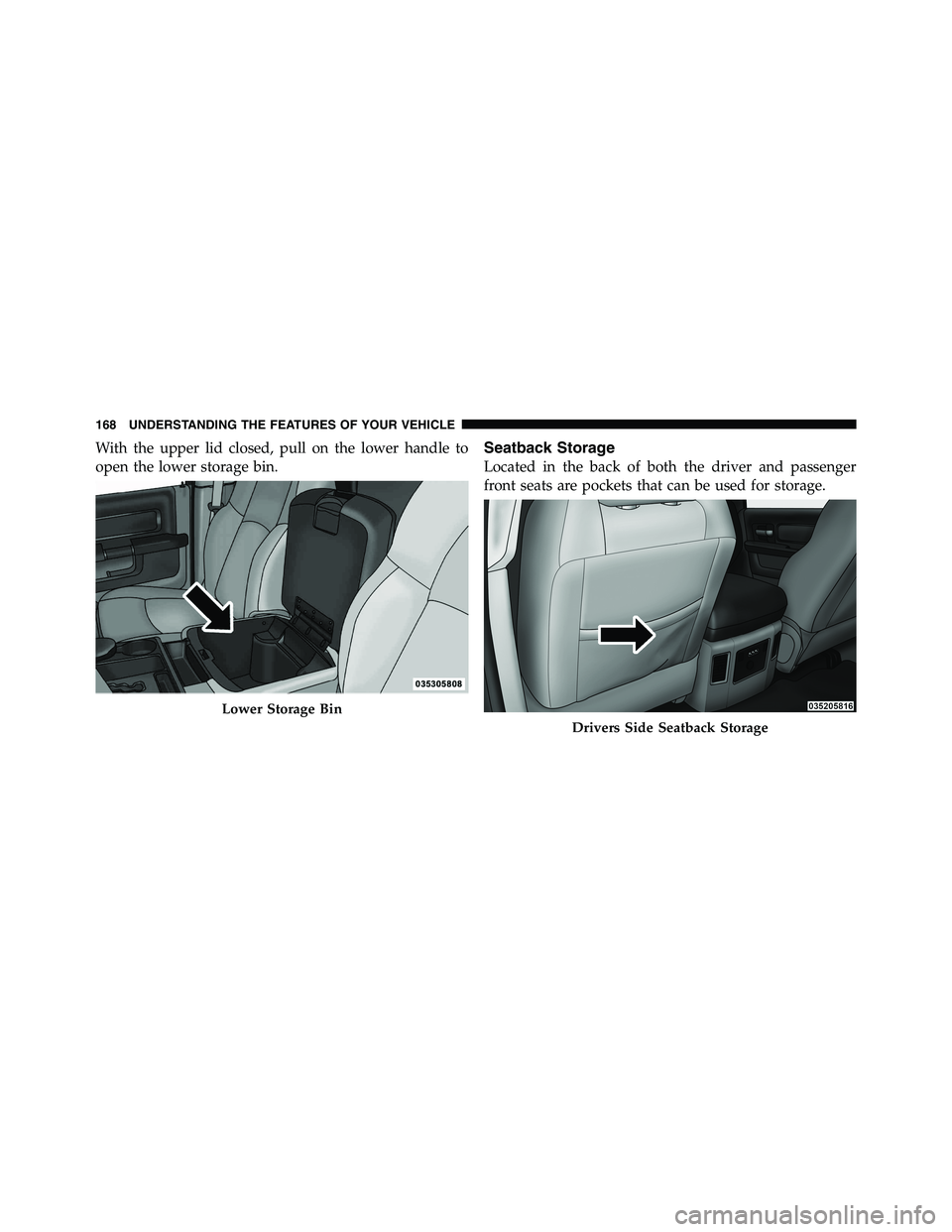

With the upper lid closed, pull on the lower handle to
open the lower storage bin. Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Lower Storage Bin
Drivers Side Seatback Storage168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Storage (Regular Cab)
The storage bin is located behind the front seats and runs
the length of the cab. Storage and Seats (Crew Cab)
The Crew Cab models provide additional storage under
the rear seats. Lift the seats to access the storage com-
partment.
To open the storage compartments, lift upward on the
handle of the latch and open the lid.
Storage Bin
Crew Cab Storage3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
