RAM CHASSIS CAB 2011 User Guide

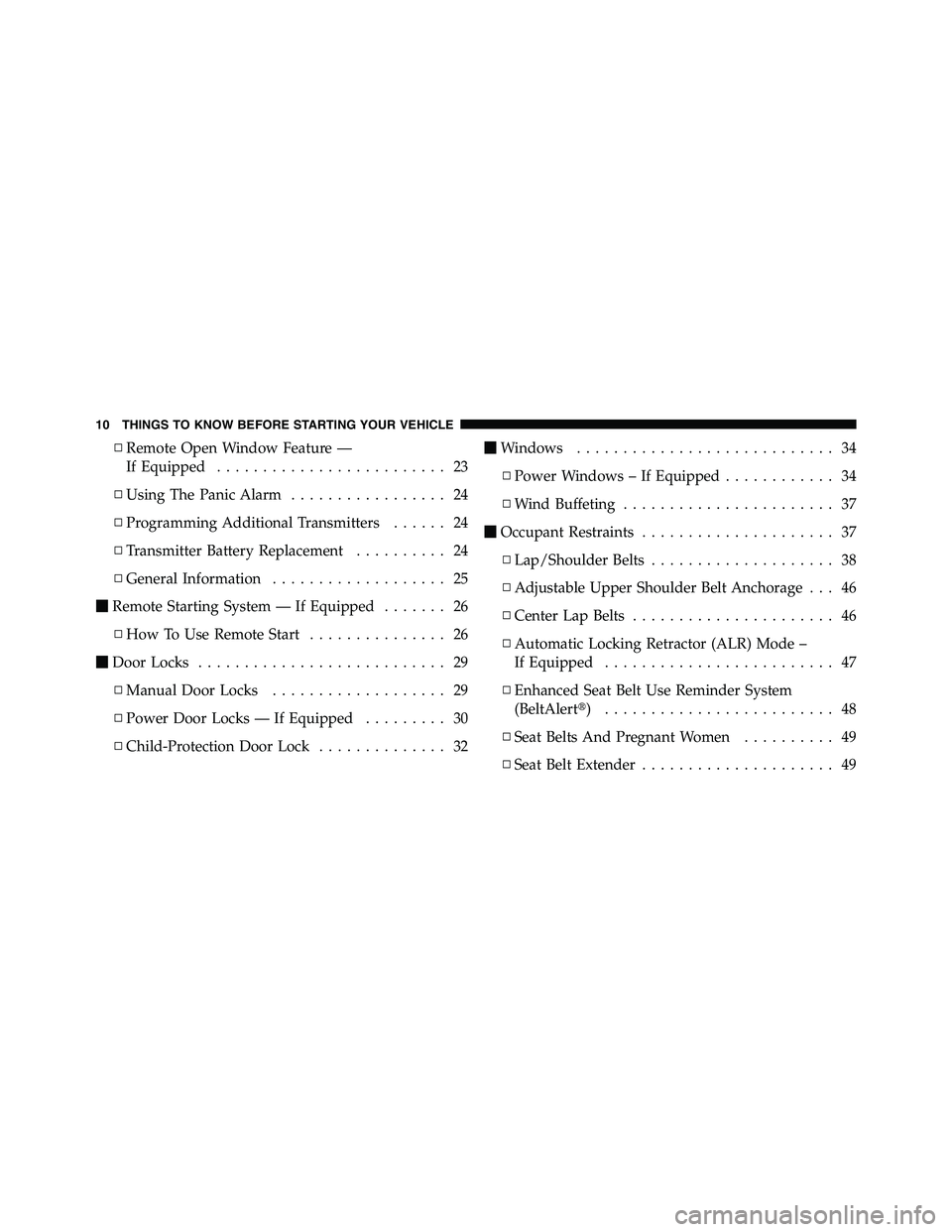

▫ Remote Open Window Feature —
If Equipped ......................... 23
▫ Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 24
▫ Transmitter Battery Replacement .......... 24
▫ General Information ................... 25
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 26
 Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks — If Equipped ......... 30
▫ Child-Protection Door Lock .............. 32  Windows ............................ 34
▫ Power Windows – If Equipped ............ 34
▫ Wind Buffeting ....................... 37
 Occupant Restraints ..................... 37
▫ Lap/Shoulder Belts .................... 38
▫ Adjustable Upper Shoulder Belt Anchorage . . . 46
▫ Center Lap Belts ...................... 46
▫ Automatic Locking Retractor (ALR) Mode –
If Equipped ......................... 47
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert  ) ......................... 48
▫ Seat Belts And Pregnant Women .......... 49
▫ Seat Belt Extender ..................... 4910 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫ Driver And Right Front Passenger
Supplemental Restraint System (SRS) –
Airbag ............................. 49
▫ Airbag System Components .............. 51
▫ Advanced Front Airbag Features .......... 51
▫ Airbag Deployment Sensors And Controls . . . 54
▫ Event Data Recorder (EDR) .............. 59
▫ Child Restraints ...................... 60  Engine Break-In Recommendations .......... 71
 Safety Tips ........................... 72
▫ Transporting Passengers ................ 72
▫ Exhaust Gas ......................... 73
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 73
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 76
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Key Fob with Remote Keyless Entry (RKE) —
If Equipped
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Standard Blade Ignition Key — If Equipped
Your vehicle may use a standard blade key ignition
system. The authorized dealer that sold you your vehicle
has the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place. You can insert the
double-sided standard blade key into the ignition switch
with either side up. Wireless Ignition Node (WIN) — If Equipped
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. You can keep the emergency key with you when
valet parking.
Wireless Ignition Node (WIN)1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
NOTE: You can insert the double-sided emergency key
into the lock cylinder with either side up. Removing Key Fob From Ignition
Place the shift lever in PARK (if equipped with an
automatic transmission). Turn the Key Fob to the OFF
position and then remove the Key Fob.
NOTE:
• For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for 10 minutes after
the ignition switch is turned to the OFF position.
Opening either front door will cancel this feature.
• For vehicles equipped with the EVIC, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition switch is turned to the OFF position. Opening
either front door will cancel this feature. The time for this
feature is programmable. Refer to “Electronic VehicleEmergency Key Removal14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Information Center (EVIC) /Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
WARNING!• Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death. CAUTION!An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:
• The Key-In-Ignition reminder only sounds when the
Key Fob is placed in the OFF or ACC ignition position.
• If equipped with Electronic Vehicle Information Cen-
ter (EVIC) the EVIC will display “Key In Ignition”. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

SENTRY KEY
The Sentry Key  Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will not allow the engine to crank if an invalid
Key Fob is used to start and operate the vehicle.
NOTE: A Key Fob that has not been programmed is also
considered an invalid key.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
Key Fob to try to start the engine. Either of these
conditions will result in the engine being shut off after
two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!The Sentry Key  Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!Always remove the Sentry Keys  from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs. Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:
• When having the Sentry Key  Immobilizer System
serviced, bring all vehicle keys with you to an autho-
rized dealer.
• If a programmed Key Fob is lost, see your authorized
dealer to have all remaining Key Fobs erased from the
system’s memory. This will prevent the lost Key Fobs
from starting your vehicle. The remaining Keys Fobs
must then be reprogrammed.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

General Information
The Sentry Key  system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the Ve-
hicle Security Alarm is activated, interior switches for
door locks are disabled. The system provides both au-
dible and visible signals, for the first three minutes the
horn will sound and the headlights, park lamps and/or
turn signals will flash and Vehicle Security Light will
flash repeatedly. For an additional 15 minutes only, the
headlights, park lamps and/or turn signals and Vehicle Security Light will flash. The engine will run only if a
valid Sentry Key  is used to start the vehicle. Use of the
Sentry Key  will disable the alarm.
Rearming of the System
The Vehicle Security Alarm will rearm itself after the 15
additional minutes of headlights and Vehicle Security
Light flashing, if the system has not been disabled. If the
condition which initiated the alarm is still present, the
system will ignore that condition and monitor the re-
maining doors and ignition.
To Arm the System
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument panel cluster will flash rapidly for about
16 seconds to indicate that the alarm is being set. After
the alarm is set, the Vehicle Security Light will flash at a
slower rate to indicate that the system is armed.18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the system checked
by an authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the system in your absence, the horn will
sound three times when you unlock the doors and the
Vehicle Security Light will flash for 30 seconds. Check the
vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key  . If an unpro-
grammed Sentry Key  is used to start a vehicle, the
engine will run for two seconds and then the alarm will
be initiated. To exit the alarming mode, press the RKE
transmitter UNLOCK button, or start the vehicle with a
programmed Sentry Key  .
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors. This feature is only available if you have Remote
Keyless Entry.
The lights will fade to off after approximately 30 seconds,
or they will immediately fade to off once the ignition
switch is turned to ON/RUN.
NOTE:
• The front courtesy overhead console and door courtesy
lights do not turn off if the dimmer control is in the
interior lights ON position (extreme right position). 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
