remote start RAM CHASSIS CAB 2011 Owner's Manual

Manual Heating and Air Conditioning System
The controls for the manual heating and air conditioning
system in this vehicle consist of a series of outer rotary
dials and inner push knobs. These comfort controls can
be set to obtain desired interior conditions. Front Blower Control
There are four blower speeds. Use this
control to regulate the amount of air
forced through the system in any
mode you select. The blower speed
increases as you move the control
clockwise from the OFF position.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the OFF position.
Temperature Control
Use this control to regulate the tem-
perature of the air inside the passenger
compartment. Rotating the knob coun-
terclockwise, from top center into the
blue area of the scale, indicates cooler1 – Front Blower 4 – DEFROST Mode
2 – Temperature Control 5 – Air Conditioning (A/C)
3 – MODE Control 6 – RECIRCULATION Control248 UNDERSTANDING YOUR INSTRUMENT PANEL

Inflation pressures specified on the placard are always
“cold tire inflation pressure.” Cold tire inflation pressure
is defined as the tire pressure after the vehicle has not
been driven for at least three hours, or driven less than
1 mile (1.6 km) after a three hour period. The cold tire
inflation pressure must not exceed the maximum infla-
tion pressure molded into the tire sidewall.
Check tire pressures more often if subject to a wide range
of outdoor temperatures, as tire pressures vary with
temperature changes.
Tire pressures change by approximately 1 psi (7 kPa) per
12°F (7°C) of air temperature change. Keep this in mind
when checking tire pressure inside a garage, especially in
the winter.
Example: If garage temperature = 68°F (20°C) and the
outside temperature = 32°F (0°C) then the cold tire inflation pressure should be increased by 3 psi (21 kPa),
which equals 1 psi (7 kPa) for every 12°F (7°C) for this
outside temperature condition.
Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
during operation. DO NOT reduce this normal pressure
build up or your tire pressure will be too low.
Tire Inflation Pressure – 4500/5500 with Steel
Carcass Ply Tires
This type of tire utilizes steel cords in the sidewall. As
such, they cannot be treated like normal light truck tires.
Adjusting tire pressure must be performed by personnel
trained, supervised and equipped accordingly.
Inflation Pressure Adjustment When Mounted to
Vehicle
During procedures when adding tire inflation pressure,
the technician or individual must utilize a remote infla-
tion device, and ensure that all persons are clear of the
trajectory area.306 STARTING AND OPERATING

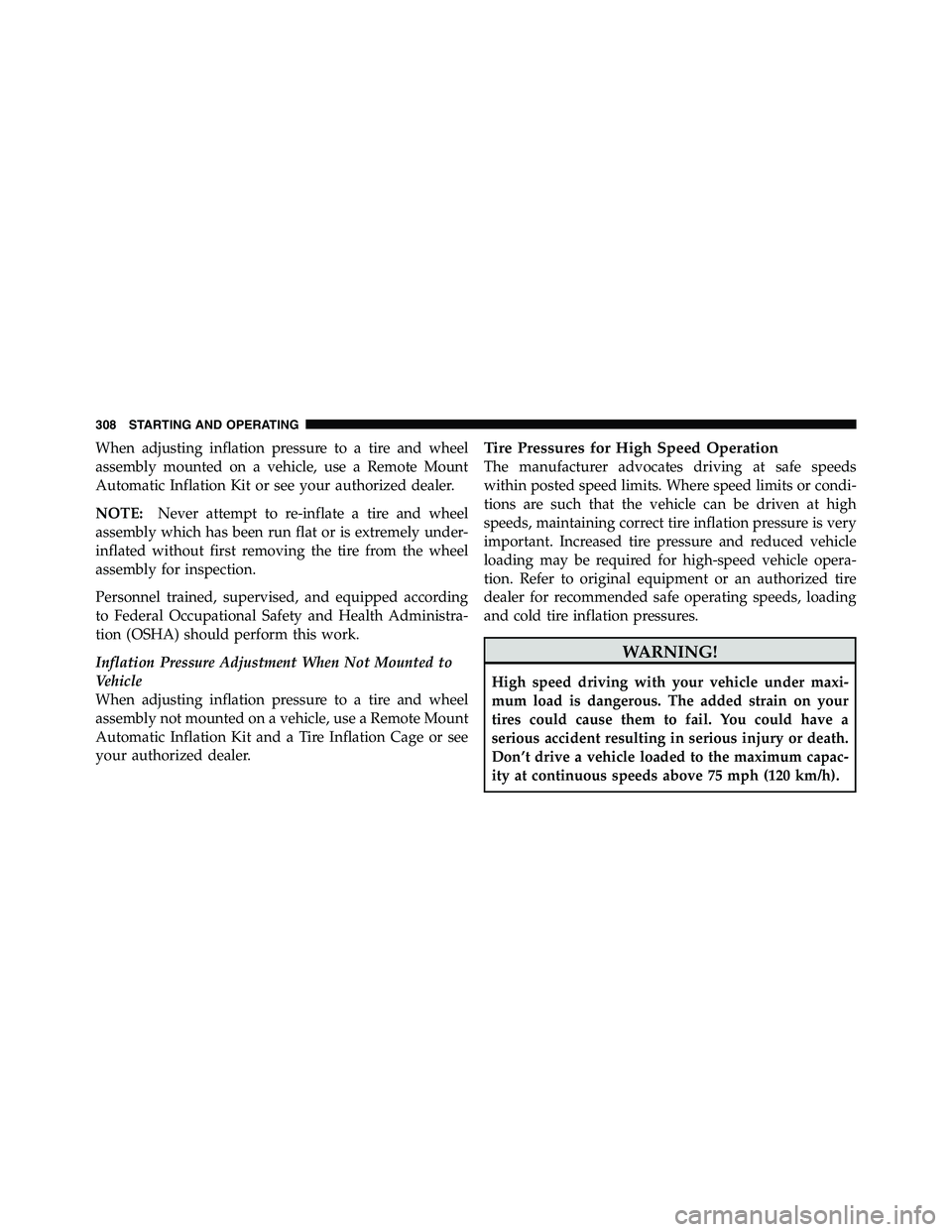

When adjusting inflation pressure to a tire and wheel
assembly mounted on a vehicle, use a Remote Mount
Automatic Inflation Kit or see your authorized dealer.
NOTE: Never attempt to re-inflate a tire and wheel
assembly which has been run flat or is extremely under-
inflated without first removing the tire from the wheel
assembly for inspection.
Personnel trained, supervised, and equipped according
to Federal Occupational Safety and Health Administra-
tion (OSHA) should perform this work.
Inflation Pressure Adjustment When Not Mounted to
Vehicle
When adjusting inflation pressure to a tire and wheel
assembly not mounted on a vehicle, use a Remote Mount
Automatic Inflation Kit and a Tire Inflation Cage or see
your authorized dealer. Tire Pressures for High Speed Operation
The manufacturer advocates driving at safe speeds
within posted speed limits. Where speed limits or condi-
tions are such that the vehicle can be driven at high
speeds, maintaining correct tire inflation pressure is very
important. Increased tire pressure and reduced vehicle
loading may be required for high-speed vehicle opera-
tion. Refer to original equipment or an authorized tire
dealer for recommended safe operating speeds, loading
and cold tire inflation pressures.
WARNING!High speed driving with your vehicle under maxi-
mum load is dangerous. The added strain on your
tires could cause them to fail. You could have a
serious accident resulting in serious injury or death.
Don’t drive a vehicle loaded to the maximum capac-
ity at continuous speeds above 75 mph (120 km/h).308 STARTING AND OPERATING

Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 309
Radiator Cap (Coolant Pressure Cap) ....... 393,395
Radio Operation ........................ 247
Radio, Satellite (Uconnect™ studios) .......... 240
Rear Axle (Differential) ................. 400,401
Rear Window Features .................... 171
Rear Window, Sliding ..................... 172
Reclining Front Seats ..................... 124
Recorder, Event Data ...................... 59
Recreational Towing ...................... 344
Shifting into Transfer Case Neutral (N) .... 346,349
Shifting out of Transfer Case Neutral (N) . . 348,352
Reformulated Gasoline .................... 318
Refrigerant ............................ 388
Reminder, Seat Belt ....................... 48 Remote Control
Starting System ........................ 26
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 245
Remote Starting System .................... 26
Replacement Keys ........................ 17
Replacement Parts ....................... 380
Replacement Tires ....................... 311
Reporting Safety Defects ................... 448
Resetting Oil Change Indicator ........... 184,199
Restraint, Head ......................... 126
Restraints, Child ....................... 60,65
Restraints, Occupant ...................... 37
Rotation, Tires .......................... 315
Safety Checks Inside Vehicle ................. 73
Safety Checks Outside Vehicle ............... 76
Safety Defects, Reporting .................. 448
Safety, Exhaust Gas ....................... 73
10 INDEX 465

Transfer Case, Shifting out of Transfer Case
Neutral (N) ....................... 348,352
Shoulder Belt Upper Anchorage .............. 46
Shoulder Belts ........................... 38
Signals, Turn ...................... 76,145,179
Sliding Rear Window
Power .............................. 172
Snow Chains (Tire Chains) ................. 313
Snow Plow ............................ 340
Snow Tires ............................ 315
Spark Plugs ............................ 423
Speed Control (Cruise Control) .............. 152
Speedometer ........................... 180
Starting ............................. 26,263
Automatic Transmission ................. 263
Engine Fails to Start .................... 264
Remote .............................. 26
Starting Procedures (Gas Engines) ............ 263
Steel Carcass Ply Tires .................... 306 Steering
Power ........................... 288,289
Wheel, Heated ........................ 151
Wheel, Tilt ........................... 148
Steering Wheel Audio Controls .............. 245
Steering Wheel Mounted Sound System
Controls .............................. 245
Storage Compartment, Center Seat ........... 166
Storage, Vehicle ...................... 257,415
Storing Your Vehicle ...................... 415
Supplemental Tire Pressure Information ........ 313
Synthetic Engine Oil ...................... 384
System, Remote Starting .................... 26
Tachometer ............................ 179
Temperature Control, Automatic (ATC) ........ 252
Temperature Gauge, Engine Coolant .......... 179
Tether Anchor, Child Restraint ............. 64,67
Tilt Steering Column ..................... 148
10 INDEX 467
