amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE: Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor performance of blades may be present with chattering,
marks, water lines or wet spots. If any condition is
present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.
Adding Washer Fluid
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reser-
voir, take some washer fluid and apply it to a cloth or
towel and wipe the wiper blades clean. This will help
blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
7 MAINTAINING YOUR VEHICLE 389

Under normal operating conditions, the catalytic con-
verter will not require maintenance. However, it is impor-
tant to keep the engine properly tuned to assure proper
catalyst operation and prevent possible catalyst damage.
NOTE: Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe
and abnormal catalyst overheating. If this occurs, stop
the vehicle, turn off the engine and allow it to cool.
Service, including a tune-up to manufacturer’s specifica-
tions, should be obtained immediately.
To minimize the possibility of catalytic converter dam-
age:
• Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion. • Do not try to start the engine by pushing or towing the
vehicle.
• Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Cooling System
WARNING!You or others can be badly burned by hot coolant or
steam from your radiator. If you see or hear steam
coming from under the hood, do not open the hood
until the radiator has had time to cool. Never try to
open a cooling system pressure cap when the radiator
is hot.392 MAINTAINING YOUR VEHICLE

• If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
• If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
• Use MOPAR  Touch Up Paint or equivalent on
scratches as soon as possible. Your authorized dealer
has touch up paint to match the color of your vehicle.
Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use MOPAR
Wheel Cleaner or equivalent or select a nonabrasive,
non-acidic cleaner. Do not use scouring pads, steel wool,
a bristle brush, or metal polishes. Only MOPAR  or
equivalent is recommended. Do not use oven cleaner. Avoid automatic car washes that use acidic solutions or
harsh brushes that may damage the wheels’ protective
finish.
Stain Repel Fabric Cleaning Procedure –
If Equipped
Stain Repel seats may be cleaned in the following man-
ner:
• Remove as much of the stain as possible by blotting
with a clean, dry towel.
• Blot any remaining stain with a clean, damp towel.
• For tough stains, apply MOPAR  Total Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove stain. Use a fresh, damp towel to
remove soap residue.
7 MAINTAINING YOUR VEHICLE 407

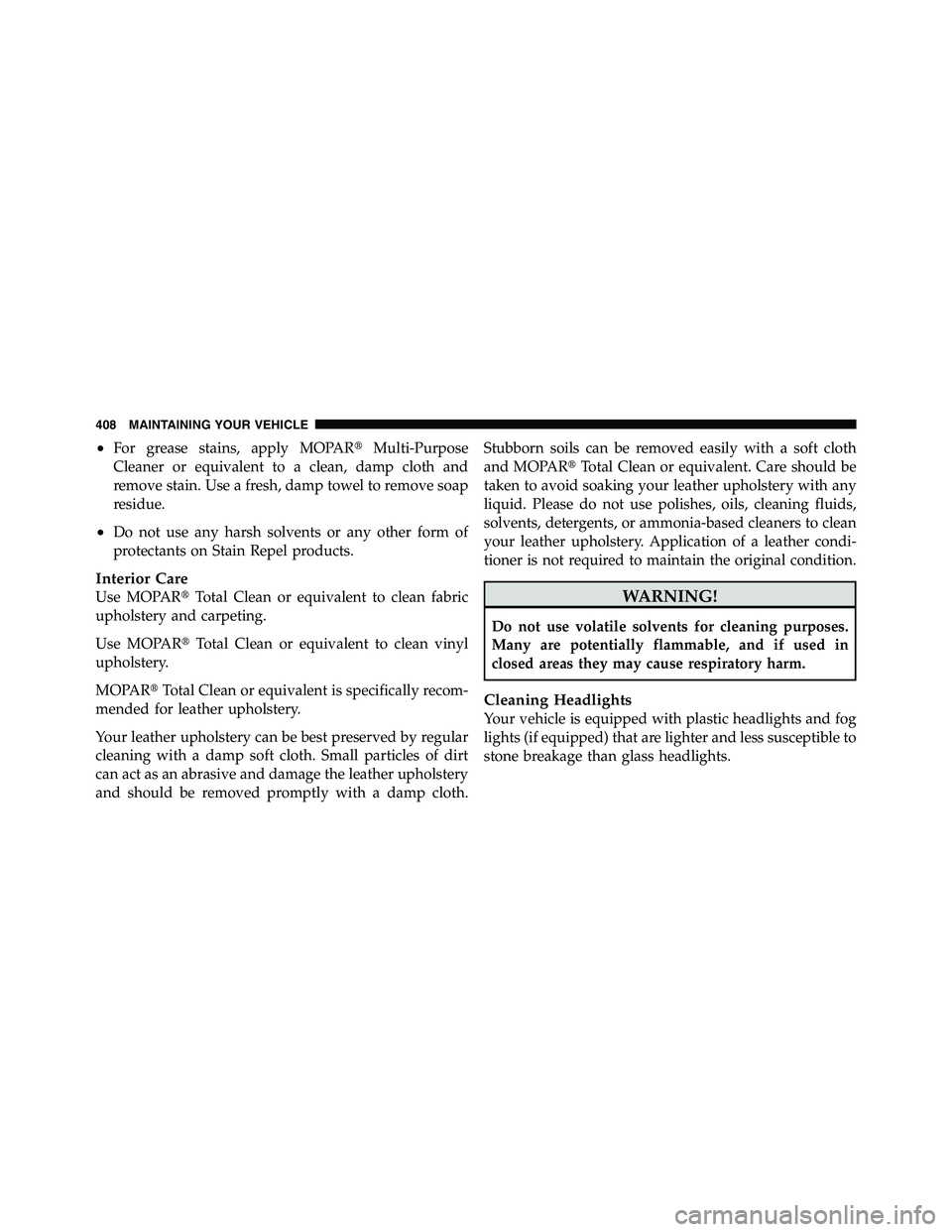

• For grease stains, apply MOPAR  Multi-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove stain. Use a fresh, damp towel to remove soap
residue.
• Do not use any harsh solvents or any other form of
protectants on Stain Repel products.
Interior Care
Use MOPAR  Total Clean or equivalent to clean fabric
upholstery and carpeting.
Use MOPAR  Total Clean or equivalent to clean vinyl
upholstery.
MOPAR  Total Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth. Stubborn soils can be removed easily with a soft cloth
and MOPAR  Total Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights (if equipped) that are lighter and less susceptible to
stone breakage than glass headlights.408 MAINTAINING YOUR VEHICLE

Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR  Glass Cleaner or any commercial house-
hold-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
7 MAINTAINING YOUR VEHICLE 409

If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
FUSES
Totally Integrated Power Module
The totally integrated power module (TIPM) is located in
the engine compartment near the battery. This center
contains cartridge fuses and mini fuses. A description of
each fuse and component may be stamped on the inside
cover, otherwise the cavity number of each fuse is
stamped on the inside cover that corresponds to the
following chart. Cavity Cartridge
Fuse Mini
Fuse Description
J01 30 Amp
Pink Bat – Presafe #1/
CM2200
J02 30 Amp
Pink Bat – Trailer Tow
MainTotally Integrated Power Module (TIPM)410 MAINTAINING YOUR VEHICLE

Cavity Cartridge
Fuse Mini
Fuse Description
M19 5 Amp
Ta n Ign R/ACC –
Sunroof/Window Sw
Illum
M20 25 Amp
Natural Frt Wiper
M21 25 Amp
Natural Door Locks
M22 20 Amp
Yellow Fuel Pump
M23 20 Amp
Yellow Bat – Trlr Light/Pre-
Safe #2
M24 20 Amp
Yellow Bat – Trlr Tow BUX/
HGM
M25 10 Amp
Red Bat – J1962 Diag/
Mirrors
M26 10 Amp
Red Bat – Ign Sw, WIN,
PASS Cavity Cartridge
Fuse Mini
Fuse Description
M27 15 Amp
Blue Bat – CHMSL/Brake
Sw
M28 10 Amp
Red Bat – Corax TPM/
PEM/HVAC Htr
Pump
M29 15 Amp
Blue Bat – Folding Mirror
M30 25 Amp
Natural Bat – Inverter
M31 20 Amp
Yellow Bat – Pwr Out #1
M32 20 Amp
Yellow Fr/Rr Washer
M33 15 Amp
Blue Bat – NGC/EATX/
PCM
M34 15 Amp
Blue Bat – CCN/Interior
Light/SCM/Sw Bank412 MAINTAINING YOUR VEHICLE

Cavity Cartridge
Fuse Mini
Fuse Description
M35 20 Amp
Yellow Htd Seat/Htd Str
Wheel/Rear Htd Seat
M36 20 Amp
Yellow Ign R-Rear Seat/Steer
Wheel
M37 10 Amp
Red Horn #1
M38 20 Amp
Yellow IOD-CCN/Interior
Mods
M39 30 Amp
Green IOD-Amp/Radio
M40 25 Amp
Natural Rear Wiper
M41 15 Amp
Blue IOD-SDARS/VES
2–3/DVD/HFM/
UGDO/Vanity Lamp
M42 10 Amp
Red IOD-HVAC, U/Hood
Lamp Cavity Cartridge
Fuse Mini
Fuse Description
M43 10 Amp
Red Horn #2
M44 10 Amp
Red IGN R/S-ORC/OCM
M45 10 Amp
Red IGN R-ORC/Trail
Tow (BUX) Sense
M46 20 Amp
Yellow IGN R-Trail Tow
(BUX)
M47 10 Amp
Red IGN R-H/Lamp
Wash/HVAC/Park
Assist/Ir Sns
M48 20 Amp
Yellow IGN R/ACC-Pwr
Outlet #2
M49 20 Amp
Yellow IGN R/ACC/Bat-Pwr
Outlet #3
M50 25 Amp
Natural ASD #1, #2
7 MAINTAINING YOUR VEHICLE 413

24,000 Miles (39,000 km) or
18 Months Maintenance
Service Schedule ❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
24,000 miles (39 000 km).
❏ Lube the front drive shaft fitting (4x4
only).
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front and rear axle fluid,
change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing. Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer 32,000 Miles (52,000 km) or 24 Months Maintenance Service
Schedule ❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
32,000 miles (52 000 km).
❏ Replace the engine air cleaner filter.
❏ Replace the spark plugs.
❏ Lube the front drive shaft fitting (4x4 only).
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the transfer case fluid.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S 430 MAINTENANCE SCHEDULES

40,000 Miles (65,000 km) or
30 Months Maintenance
Service Schedule ❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
40,000 miles (65 000 km).
❏ Lube the front drive shaft fitting (4x4
only).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer 48,000 Miles (78,000 km) or 36 Months Maintenance Service
Schedule ❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
48,000 miles (78 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Lube the front drive shaft fitting (4x4 only).
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing. Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
SMAINTENANCE SCHEDULES 431
