wiper fluid RAM CHASSIS CAB 2011 Owners Manual

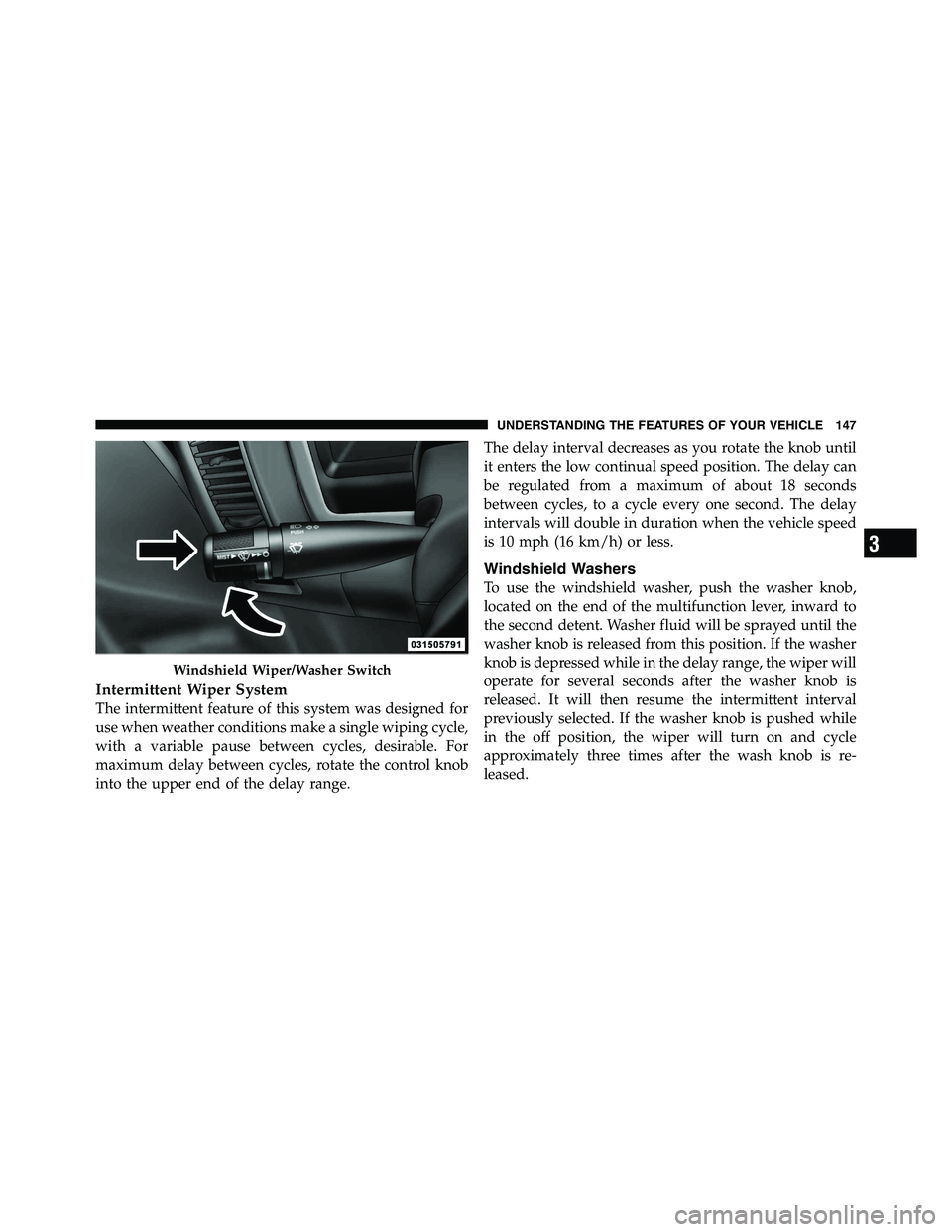

Intermittent Wiper System
The intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range. The delay interval decreases as you rotate the knob until
it enters the low continual speed position. The delay can
be regulated from a maximum of about 18 seconds
between cycles, to a cycle every one second. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed until the
washer knob is released from this position. If the washer
knob is depressed while in the delay range, the wiper will
operate for several seconds after the washer knob is
released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while
in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is re-
leased.Windshield Wiper/Washer Switch
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147

To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use. Mist Feature
Push the washer knob, located on the end of the multi-
function lever, inward to the first detent. The wipers will
cycle one time and automatically shut off to clear road
mist or spray from a passing vehicle.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the multifunction lever.
Pull the lever toward the steering wheel to unlock the
steering column. With one hand firmly on the steering
wheel, move the steering column up or down, as desired.
Release the lever to lock the steering column firmly in
place.148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MAINTAINING YOUR VEHICLECONTENTS  Engine Compartment — 5.7L ............. 377
 Onboard Diagnostic System (OBD II) ....... 378
▫ Loose Fuel Filler Cap Message ........... 378
 Emissions Inspection And Maintenance
Programs ............................ 379
 Replacement Parts ..................... 380
 Dealer Service ........................ 380
 Maintenance Procedures ................. 381
▫ Engine Oil ......................... 382 ▫ Engine Oil Filter ..................... 384
▫ Engine Air Cleaner Filter ............... 384
▫ Maintenance-Free Battery .............. 385
▫ Air Conditioner Maintenance ............ 387
▫ Front Prop Shaft Lubrication – Four-Wheel
Drive Models ....................... 388
▫ Body Lubrication .................... 388
▫ Windshield Wiper Blades ............... 389
▫ Adding Washer Fluid ................. 389
7

amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE: Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor performance of blades may be present with chattering,
marks, water lines or wet spots. If any condition is
present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.
Adding Washer Fluid
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reser-
voir, take some washer fluid and apply it to a cloth or
towel and wipe the wiper blades clean. This will help
blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
7 MAINTAINING YOUR VEHICLE 389

Instrument Panel and Controls .............. 176
Instrument Panel Lens Cleaning ............. 409
Integrated Power Module (Fuses) ............ 410
Integrated Trailer Brake Controls ............. 334
Interior Appearance Care .................. 408
Interior Lights .......................... 143
Intermittent Wipers (Delay Wipers) ........... 147
Introduction ............................. 4
Inverter Outlet (115V) ..................... 160
Jack Location ........................... 356
Jump Starting .......................... 366
Key, Programming ........................ 17
Key, Replacement ........................ 17
Key, Sentry (Immobilizer) ................... 16
Key-In Reminder ......................... 15
Keyless Entry System ...................... 20
Keys ................................. 12 Lane Change and Turn Signals .............. 145
Lane Change Assist ...................... 146
Lap Belts .............................. 46
Lap/Shoulder Belts ....................... 38
LATCH
(Lower Anchors and Tether for CHildren) ....... 64
Latches ................................ 76
Leaks, Fluid ............................ 76
Life of Tires ............................ 310
Light Bulbs ............................. 76
Lights .............................. 76,140
Airbag ........................ 55,59,74,190
Alarm .............................. 182
Anti-Lock ........................... 190
Anti-Lock Warning ..................... 293
Automatic Headlights ................... 141
Brake Warning ........................ 187
Bulb Replacement ................... 415,416
Cap Top Clearance ..................... 420
10 INDEX 461

Warning Lights
(Instrument Cluster Description) ............. 179
Warnings and Cautions ..................... 6
Warranty Information ..................... 448
Washers, Windshield .................. 147,389
Washing Vehicle ......................... 405
Water
Driving Through ...................... 285
Wheel and Wheel Trim .................... 407
Wheel and Wheel Trim Care ................ 407
Wheel Cover ........................... 362
Wheel Nut Torque .................... 361,365
Wind Buffeting .......................... 37 Window Fogging ........................ 257
Windows .............................. 34
Power ............................... 34
Rear Sliding .......................... 172
Windshield Defroster ...................... 74
Windshield Washers ................ 146,147,389
Fluid ............................ 146,389
Windshield Wiper Blades .................. 389
Windshield Wipers ....................... 146
Wiper Blade Replacement .................. 389
Wipers, Intermittent ...................... 147470 INDEX
