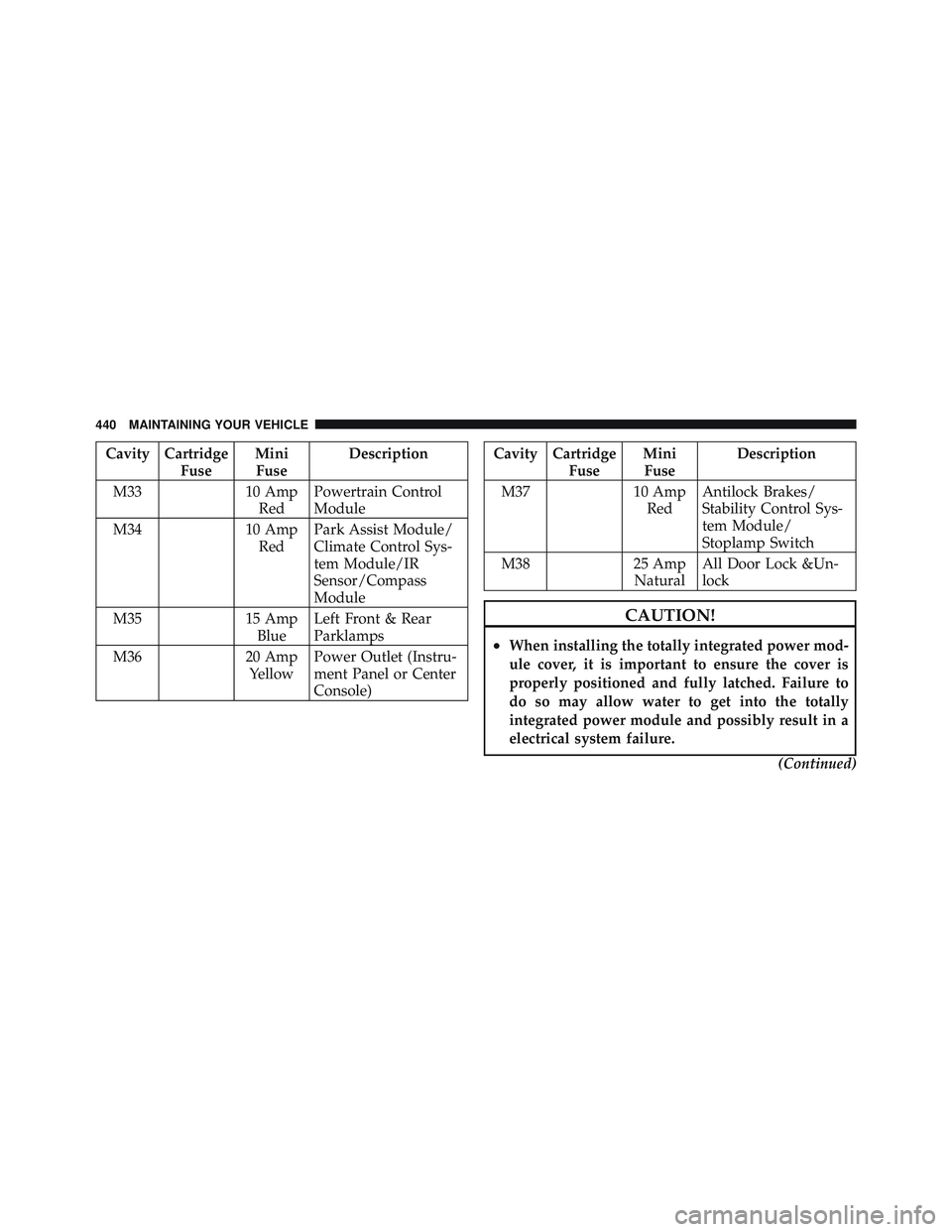

Cavity Cartridge
Fuse Mini
Fuse Description
M33 10 Amp
Red Powertrain Control
Module
M34 10 Amp
Red Park Assist Module/
Climate Control Sys-
tem Module/IR
Sensor/Compass
Module
M35 15 Amp
Blue Left Front & Rear
Parklamps
M36 20 Amp
Yellow Power Outlet (Instru-
ment Panel or Center
Console) Cavity Cartridge
Fuse Mini
Fuse Description
M37 10 Amp
Red Antilock Brakes/
Stability Control Sys-
tem Module/
Stoplamp Switch
M38 25 Amp
Natural All Door Lock &Un-
lock
CAUTION!• When installing the totally integrated power mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the totally
integrated power module and possibly result in a
electrical system failure.
(Continued)440 MAINTAINING YOUR VEHICLE
