key RAM CHASSIS CAB 2012 Owner's Guide

The memory buttons 1 and 2 can be programmed to recall
the driver’s seat position, driver’s outside mirror position,
adjustable brake, accelerator pedals position and radio
station preset settings. Your Remote Keyless Entry (RKE)
transmitters can also be programmed to recall the same
positions when the UNLOCK button is pressed. NOTE: The power lumbar option is not programmable
with driver memory seats.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to either
memory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Setting Memory Positions And Linking RKE
Transmitter To Memory
NOTE: Each time the S (SET) button and a numbered
button 1 or 2 are pressed, you erase the memory settings
for that button and store a new one.
1. Insert the ignition key, and turn the ignition switch to
the ON/RUN position.
2. Press the driver door MEMORY button number 1 if
you are setting the memory for driver 1, or button
number 2 if you are setting the memory for driver 2. TheMemory Seat Buttons
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141

system will recall any stored settings. Wait for the system
to complete the memory recall before continuing to
Step 3.
3. Adjust the driver ’s seat, recliner, and driver ’s
sideview mirror to the desired positions.
4. Adjust the power adjustable pedals (if equipped) to
the desired positions.
5. Turn on the radio and set the radio station presets (up
to 12 AM and 12 FM stations can be set).
6. Turn the ignition switch to the OFF position and
remove the key.
7. Press and release the S (SET) button located on the
driver ’s door. 8. Within five seconds, press and release MEMORY
button 1 or 2 on the driver ’s door. The next step must be
performed within five seconds if you desire to also use a
RKE transmitter to recall memory positions.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key, and turn the ignition switch to
the ON position.
11. Select “Remote Linked to Memory” in the Electronic
Vehicle Information Center (EVIC) and enter “Yes”. Refer
to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.
12. Repeat the above steps to set the next memory
position, using the other numbered memory button, or to
link another RKE transmitter to memory.142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Memory Position Recall
NOTE: The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).
To recall the memory settings for driver one, press
MEMORY button number 1 on the driver ’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
MEMORY button number 2 on the driver ’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons on the drivers seat during a recall (S,
1, or 2). When a recall is cancelled, the driver ’s seat, driver ’s mirror and the pedals stop moving. A delay of
one second will occur before another recall can be
selected.
To Disable A RKE Transmitter Linked To Memory
1. Turn the ignition switch to the LOCK position, and
remove the key.
2. Press and release MEMORY button number 1. The
system will recall any memory settings stored in position
1. Wait for the system to complete the memory recall
before continuing to Step 3.
3. Press and release the memory S (SET) button located
on the driver ’s door.
4. Within five seconds, press and release MEMORY
button 1 on the driver ’s door.
5. Within five seconds, press and release the UNLOCK
button on the RKE transmitter. To disable another RKE 3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143

transmitter linked to either memory position, repeat
steps 1 through 5 for each RKE transmitter.
NOTE: Once programmed, all RKE transmitters linked
to memory can be easily enabled or disabled at one time.
Refer to “Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.
Easy Entry/Exit Seat
This feature provides automatic driver ’s seat positioning
which will enhance driver mobility out of and into the
vehicle.
There are two possible Easy Entry/Exit adjustments
available:
• The seat cushion will move rearward approximately
2.5 in (60 mm), if the starting position of the seat is
greater than or equal to 2.67 in (68 mm) forward of the
rear seat stop when the key is removed from the ignition switch. The seat will then move forward
approximately 2.5 in (60 mm) when the key is placed
into the ignition and turned out of the LOCK position.
• The seat will move to the position located 0.3 in
(8 mm) forward of the rear stop if the starting position
is between 0.9 to 2.67 in (23 to 68 mm) forward of the
rear stop when the key is removed from the ignition
switch. The seat will move forward to the memory/
driving position when the key is placed into the
ignition, and turned out of the LOCK position toward
the ACC/ON position.
The Easy Entry/Exit feature will be automatically dis-
abled if the seat is already positioned closer than 0.9 in
(23 mm) forward of the rear stop. At this position, there
is no benefit to the driver by moving the seat for Easy
Exit/Entry.
Each stored memory setting will have an associated Easy
Entry/Exit position.144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Fog Lights — If Equipped
The fog lights are turned on by placing the headlight
rotary control in the parking light or headlight position
and pushing in the headlight rotary control. The fog lights will operate only when the parking lights
are on or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster will
illuminate when the fog lights are on. The fog lights will
turn off when the switch is pushed a second time, when
the headlight switch is rotated to the off position, or the
high beam is selected.
Interior Lights
Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotating
wheel on the bottom of the switch) is rotated to the far
right detent position, or if equipped, when the UNLOCK
button is pressed on the Remote Keyless Entry (RKE)
transmitter. When a door is open and the interior lights
are on, rotating the dimmer control all the way left, to the
OFF detent, will cause all the interior lights to go out.
This is also known as the  Party  mode because it allows
the doors to stay open for extended periods of time
without discharging the vehicle’s battery.Fog Light Switch150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Power Sliding Rear Window Switch — If Equipped
Courtesy/Reading Lights
Both lights in the overhead console and rear passenger
compartment will illuminate as courtesy lights when a
door is opened, when the dimmer control is rotated to the
courtesy light position (full right position), or when the UNLOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter, if equipped. These lights are also
operated individually as reading lights by pressing on
the corresponding lens.
Overhead Console
Front Courtesy/Reading Lights164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

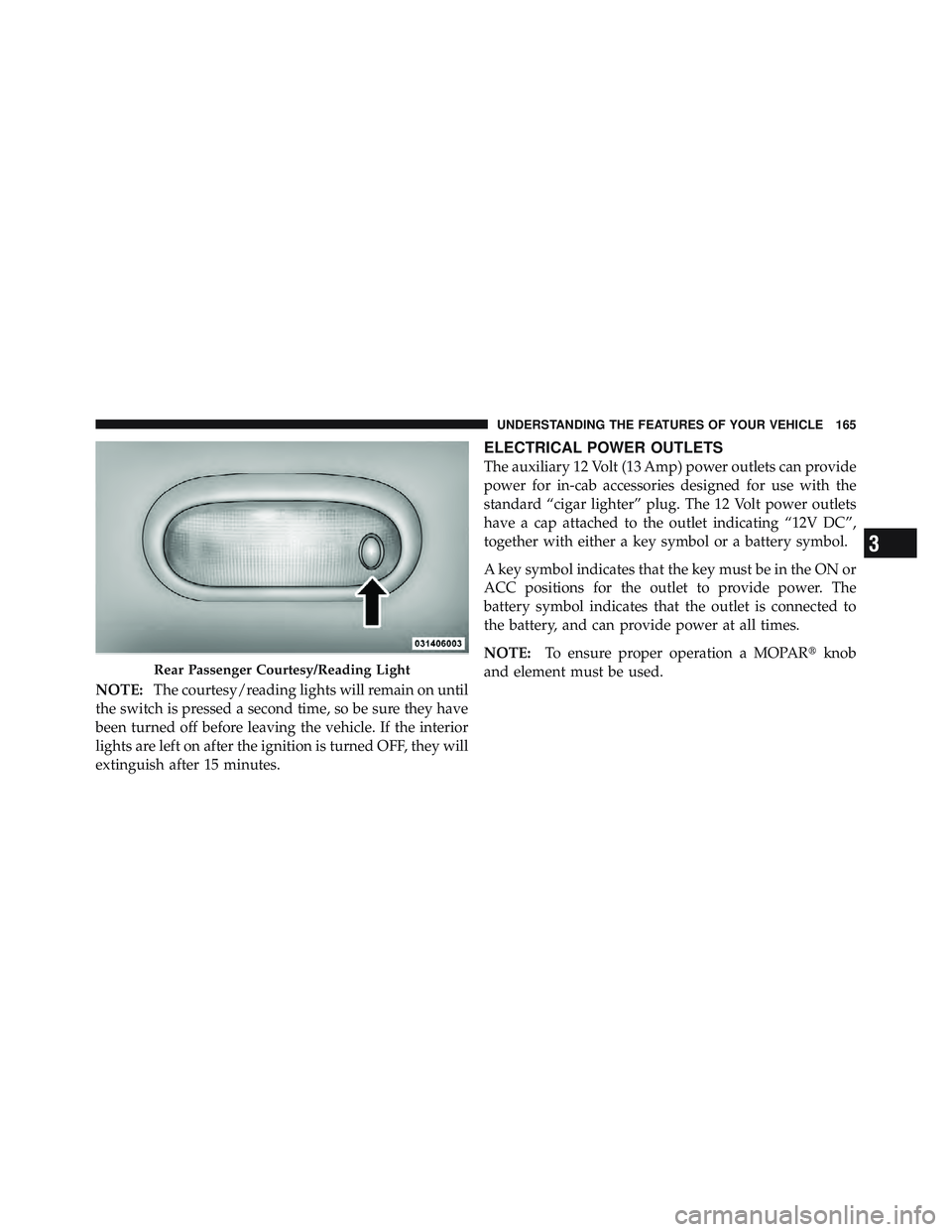

NOTE: The courtesy/reading lights will remain on until
the switch is pressed a second time, so be sure they have
been turned off before leaving the vehicle. If the interior
lights are left on after the ignition is turned OFF, they will
extinguish after 15 minutes. ELECTRICAL POWER OUTLETS
The auxiliary 12 Volt (13 Amp) power outlets can provide
power for in-cab accessories designed for use with the
standard “cigar lighter” plug. The 12 Volt power outlets
have a cap attached to the outlet indicating “12V DC”,
together with either a key symbol or a battery symbol.
A key symbol indicates that the key must be in the ON or
ACC positions for the outlet to provide power. The
battery symbol indicates that the outlet is connected to
the battery, and can provide power at all times.
NOTE: To ensure proper operation a MOPAR  knob
and element must be used.Rear Passenger Courtesy/Reading Light
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

The key symbol indicates that this outlet can supply
power when the key is in the ON or ACC positions.
All accessories connected to the outlet(s) should be
removed or turned off when the vehicle is not in use to
protect the battery against discharge.
WARNING!To avoid serious injury or death:
• Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving
the vehicle.
• If this outlet is mishandled, it may cause an
electric shock and failure.Power Outlet Fuse Locations1 — M7 Fuse 20 A Yellow Power Outlet Center Seat (Opt) or
with Console Rear
2 — M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel or
with Console Front
3 — M36 Fuse 20 A Yellow Power Outlet Instrument Panel or
with Console Center168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

rotate at the same speed. Low range provides a greater
gear reduction ratio to provide increased torque at the
wheels.
7. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. The
light will come on when the ignition is first
turned to ON/RUN and remain on briefly as a
bulb check. If the light does not come on during starting,
have the system checked by an authorized dealer.
If a problem is detected, the light will come on while the
engine is running. Cycle the ignition key when the
vehicle has completely stopped and the shift lever is
placed in the PARK position, the light should turn off.
If the light remains lit with the engine running, your
vehicle will usually be drivable; however, see an autho-
rized dealer for service as soon as possible. If the light is
flashing when the engine is running, immediate service is required and you may experience reduced performance,
an elevated/rough idle or engine stall and your vehicle
may require towing.
For vehicles equipped with a premium cluster this indi-
cator will display in the Electronic Vehicle Information
Center (EVIC). Refer to ”Electronic Vehicle Information
Center (EVIC) — If Equipped” for further information.
8. 4WD Indicator
This light indicates the vehicle is in four-wheel
drive and 4LOCK. 4WD allows all four wheels
to receive torque from the engine simultane-
ously.
9. SVC (Service) 4WD
The SVC 4WD light monitors the electric shift
four-wheel drive system. If the SVC 4WD light
stays on or comes on during driving, it means
that the four-wheel drive system is not func-
tioning properly and that service is required. 4 UNDERSTANDING YOUR INSTRUMENT PANEL 191

Electronic Vehicle Information Center (EVIC)
Displays
When the appropriate conditions exist, the EVIC displays
the following messages:
• Left front turn signal lamp out
• Right front turn signal lamp out
• Left rear turn signal lamp out
• Right rear turn signal lamp out
• Service air filter
• Perform service
• ESC Off
• Coolant Low
• Check Trailer Brake Wiring
• Service Trailer Brake System • Trailer Brake Connected
• Trailer Brake Disconnected
• Lights On
• Keyfob Battery Low
• Wrong Key
• Damaged Key
• Key not programmed
• Key In Ignition
• Turn Signal On
• Oil Change Due > Dealer Info
• System Setup Unavailable
• Warning Object Detected
• System Setup Unavailable - Vehicle in Motion 4 UNDERSTANDING YOUR INSTRUMENT PANEL 205
