NOTE: To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm System
(if equipped). Insert the Key Fob into the ignition switch
and turn the switch to the ON/RUN position.
NOTE:
• The ignition switch must be in the ON/RUN position
in order to drive the vehicle.
• For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the message “Insert Key/
Turn To On” will flash in the EVIC until you insert the
Key Fob into the ignition switch. Once inserted, the message “Turn To On” will flash in the EVIC until you
turn the ignition switch to the ON/RUN position.
• “Remote Start Active — Key To Run” will display in
the EVIC until you insert and turn the key to ON/
RUN position. Refer to “Electronic Vehicle Information
Center (EVIC)” for further information.
Remote Start Comfort Systems — If Equipped
When remote start is activated, the heated steering
wheel, and driver heated seat features will automatically
turn on in cold weather. In warm weather, the driver
vented seat feature will automatically turn on when the
remote start is activated. These features will stay on
through the duration of remote start or until the ignition
switch is turned to the ON/RUN position.
The Remote Start Comfort System can be activated and
deactivated through the Electronic Vehicle Information
Center (EVIC). For more information on Remote Start
Comfort System operation refer to “Electronic Vehicle 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

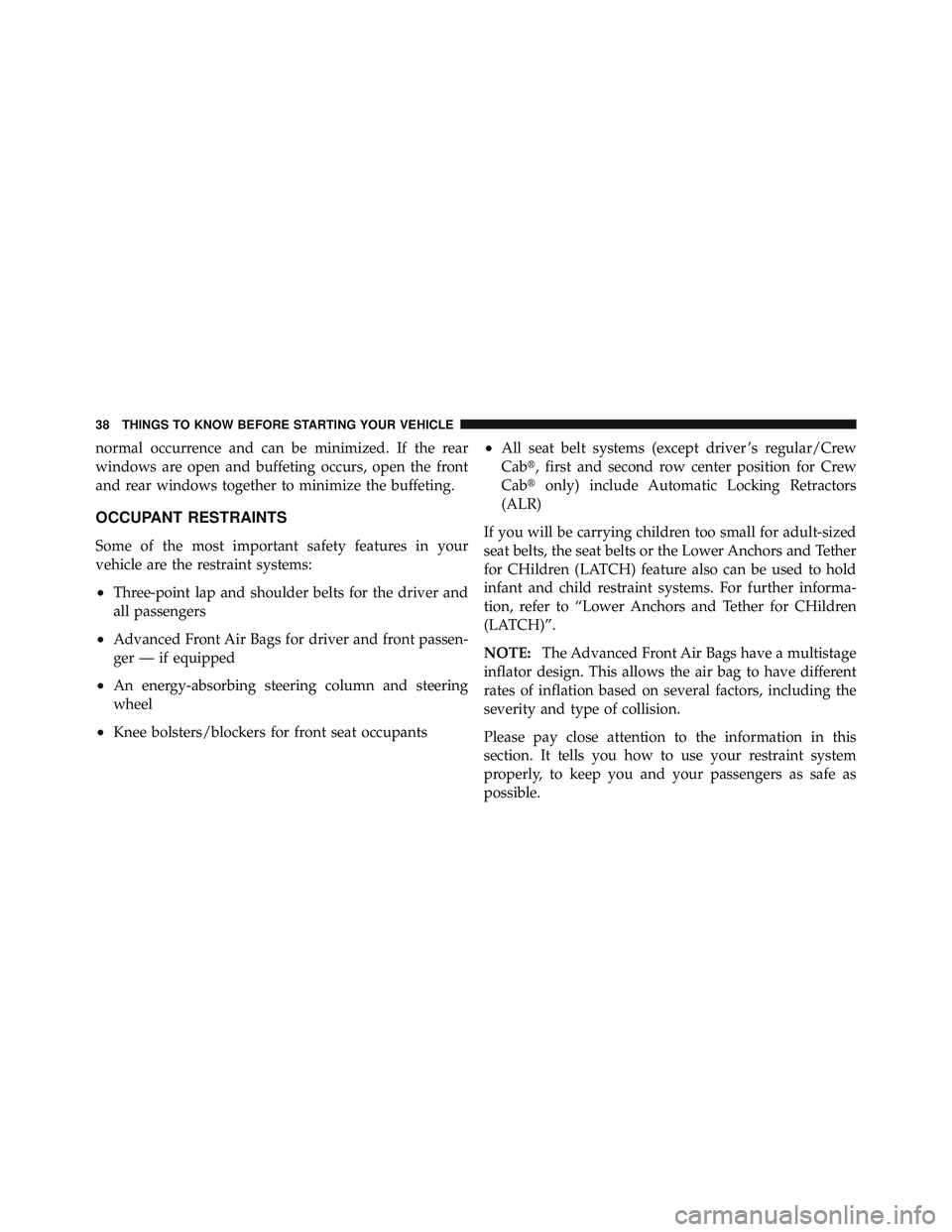

normal occurrence and can be minimized. If the rear
windows are open and buffeting occurs, open the front
and rear windows together to minimize the buffeting.
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:
• Three-point lap and shoulder belts for the driver and
all passengers
• Advanced Front Air Bags for driver and front passen-
ger — if equipped
• An energy-absorbing steering column and steering
wheel
• Knee bolsters/blockers for front seat occupants • All seat belt systems (except driver ’s regular/Crew
Cab  , first and second row center position for Crew
Cab  only) include Automatic Locking Retractors
(ALR)
If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems. For further informa-
tion, refer to “Lower Anchors and Tether for CHildren
(LATCH)”.
NOTE: The Advanced Front Air Bags have a multistage
inflator design. This allows the air bag to have different
rates of inflation based on several factors, including the
severity and type of collision.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Seat Belts And Pregnant Women
We recommend that pregnant women use seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug against the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.
Seat Belt Extender
If a seat belt is too short even when fully extended, your
authorized dealer can provide you with a seat belt
extender. This extender should be used only if the
existing belt is not long enough. When it is not required,
remove the extender and store it. WARNING!Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.
Driver and Right Front Passenger Supplemental
Restraint System (SRS) — Air Bag
This vehicle has Advanced Front Air Bags for both the
driver and front passenger (if equipped) as a supplement
to the seat belt restraint systems. The driver’s Advanced
Front Air Bag is mounted in the center of the steering
wheel. The passenger’s Advanced Front Air Bag is
mounted in the instrument panel, above the glove com-
partment. The words SRS AIRBAG are embossed on the
air bag covers.52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• After any accident, the vehicle should be taken to an
authorized dealer immediately.
Air Bag System Components
Your vehicle may be equipped with the following air bag
system components:
• Occupant Restraint Controller (ORC)
• Air Bag Warning Light
• Steering Wheel and Column
• Instrument Panel
• Knee Impact Bolster
• Driver Advanced Front Air Bag
• Passenger Advanced Front Air Bag
• Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage
driver and front passenger (if equipped) air bags. This
system provides output appropriate to the severity and
type of collision as determined by the Occupant Restraint
Controller (ORC).
The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.
WARNING!• No objects should be placed over or near the air
bag on the instrument panel, because any such
objects could cause harm if the vehicle is in a
collision severe enough to cause the air bag to
inflate.
(Continued)54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
their arm.
If a child from 1 to 12 years old (not in a rear facing child
seat) must ride in the front passenger seat, move the seat
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”)
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
All occupants should always wear their lap and shoulder
belts properly.
The driver and front passenger seats should be moved
back as far as practical to allow the Advanced Front Air
Bags room to inflate. If the air bag system in this vehicle needs to be modified
to accommodate a disabled person, contact the Customer
Center. Phone numbers are provided under  If You Need
Assistance  .
WARNING!• Relying on the air bags alone could lead to more
severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In
some collisions, the air bags won’t deploy at all.
Always wear your seat belts even though you have
air bags.
• Being too close to the steering wheel or instrument
panel during Advanced Front Air Bag deployment
could cause serious injury, including death. Air
Bags need room to inflate. Sit back, comfortably
extending your arms to reach the steering wheel or
instrument panel.56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Driver And Passenger Advanced Front Air Bag
Inflator Units
The Driver and Passenger Advanced Front Air Bag
Inflator Units are located in the center of the steering
wheel and on the right side of the instrument panel (if
equipped). When the ORC detects a collision requiring
the Advanced Front Air Bags, it signals the inflator units.
A large quantity of non-toxic gas is generated to inflate
the Advanced Front Air Bags. Different air bag inflation
rates are possible, based on the collision type and sever-
ity. The steering wheel hub trim cover and the upper
right side of the instrument panel separate and fold out
of the way as the air bags inflate to their full size. The air
bags fully inflate in about 50 to 70 milliseconds. This is
about half of the time it takes to blink your eyes. The air
bags then quickly deflate while helping to restrain the
driver and front passenger. The Advanced Front Air Bag gas is vented through the
vent holes in the sides of the air bag. In this way, the air
bags do not interfere with your control of the vehicle.
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
• Cut off fuel to the engine.
• Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
• Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
• Unlock the doors automatically. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59

Do not drive your vehicle after the air bags have de-
ployed. If you are involved in another collision, the air
bags will not be in place to protect you.
WARNING!Deployed air bags cannot protect you in another
collision. Have the air bags replaced by an autho-
rized dealer immediately. Also, have the Occupant
Restraint Controller (ORC) system serviced as well. Maintaining Your Air Bag System
WARNING!• Modifications to any part of the air bag system
could cause it to fail when you need it. You could
be injured if the air bag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or add aftermarket side steps or running boards.
• It is dangerous to try to repair any part of the air
bag system yourself. Be sure to tell anyone who
works on your vehicle that it has an air bag system.
(Continued)2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61

WARNING! (Continued)• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81

▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 149
▫ Headlight Delay ..................... 149
▫ Parking Lights And Panel Lights ......... 149
▫ Fog Lights — If Equipped .............. 150
▫ Interior Lights ...................... 150
▫ Cargo Light ........................ 152
▫ Lights-On Reminder .................. 152
▫ Battery Saver ....................... 152
▫ Daytime Running Lights — If Equipped .... 153
▫ Multifunction Lever .................. 153
 Windshield Wipers And Washers .......... 154
▫ Windshield Wipers ................... 154
▫ Windshield Wiper Operation ............ 155 ▫ Intermittent Wiper System .............. 155
▫ Windshield Washers .................. 156
▫ Mist Feature ........................ 156
 Tilt Steering Column ................... 157
 Driver Adjustable Pedals — If Equipped ..... 158
 Heated Steering Wheel — If Equipped ...... 159
 Electronic Speed Control ................ 160
▫ To Activate ......................... 161
▫ To Set A Desired Speed ................ 162
▫ To Deactivate ....................... 162
▫ To Resume Speed .................... 162
▫ To Vary The Speed Setting .............. 162
▫ To Accelerate For Passing .............. 1633 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

WARNING!Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in a
collision causing serious injury or death.
Uconnect™ Phone Button
The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect™ Phone button and Voice Com-
mand button) that will enable you to
access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command. Voice Command Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetooth  mobile phone. See the
Uconnect™ website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect™ Phone such as “CELL” or caller ID on
certain radios. 3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
