RAM CHASSIS CAB 2017 User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS  A WORD ABOUT YOUR KEYS ...............11
▫ Wireless Ignition Node (WIN) And Key Fob —
If Equipped ............................11
▫ Keyless Push Button Ignition And Key Fob —
If Equipped ............................12
▫ Emergency Key Removal ..................14
▫ Removing Key Fob From The (WIN) Ignition . . .15
▫ Key-In-Ignition Reminder .................17
▫ General Information .....................17
 SENTRY KEY ...........................18
▫ Replacement Key Fobs ...................19
▫ Customer Key Fob Programming ............19
▫ General Information .....................19
 VEHICLE SECURITY ALARM ...............20
▫ Rearming Of The System ..................20 ▫ To Arm The System ......................20
▫ To Disarm The System ....................21
▫ Security System Manual Override ............21
 ILLUMINATED APPROACH ................22
 REMOTE KEYLESS ENTRY .................22
▫ Remote Unlock The Doors .................23
▫ To Lock The Doors .......................24
▫ Sound Horn With Remote Key Lock ..........25
▫ Using The Panic Alarm ...................25
▫ Programming Additional Key Fobs ...........25
▫ Key Fob Battery Replacement ..............26
▫ General Information .....................28
 REMOTE STARTING SYSTEM — IF EQUIPPED . . .28
▫ How To Use Remote Start ..................29 2

▫ Remote Start Abort Message ...............29
▫ To Enter Remote Start Mode ................30
▫ To Exit Remote Start Mode Without Driving The
Vehicle ...............................30
▫ To Exit Remote Start Mode And Drive The
Vehicle ...............................30
▫ Remote Start Comfort Systems — If Equipped . . .30
▫ General Information .....................31
 DOOR LOCKS ..........................31
▫ Manual Door Locks ......................31
▫ Power Door Locks — If Equipped ...........32
▫ Child-Protection Door Lock ................34
 KEYLESS ENTER-N-GO — PASSIVE ENTRY .....35
▫ General Information .....................38
 WINDOWS .............................38
▫ Power Windows — If Equipped .............38
▫ Wind Buffeting .........................40  OCCUPANT RESTRAINT SYSTEMS ...........41
▫ Occupant Restraint Systems Features .........41
▫ Important Safety Precautions ...............41
▫ Seat Belt Systems .......................42
▫ Supplemental Restraint Systems (SRS) .........55
▫ Child Restraints ........................66
▫ Transporting Pets .......................89
 ENGINE BREAK-IN RECOMMENDATIONS .....90
▫ Diesel Engine ..........................90
 SAFETY TIPS ...........................91
▫ Transporting Passengers ...................91
▫ Exhaust Gas ...........................91
▫ Safety Checks You Should Make Inside
The Vehicle ...........................92
▫ Periodic Safety Checks You Should Make
Outside The Vehicle .....................9410 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a either a Wireless Ignition Node (WIN) system,
or a Keyless Push Button Ignition system.
Wireless Ignition Node (WIN) And Key Fob — If
Equipped
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent positions
are OFF, ACC, and ON/RUN. The START position is a
spring-loaded momentary contact position. When released
from the START position, the switch automatically returns
to the ON/RUN position. Wireless Ignition Switch1—OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START 2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

Wireless Ignition Node (WIN) Key Fob
The key fob operates the ignition switch. Insert the square
end of the key fob into the ignition switch located on the
instrument panel and rotate to the desired position. The
WIN key fob also contains an emergency key which is
stored in the rear of the key fob. Keyless Push Button Ignition And Key Fob — If
Equipped
This feature allows the driver to operate the ignition switch
with the push of a button as long as the Remote Keyless
Entry key fob is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start RUN
will illuminate.
NOTE: In case the ignition switch does not change with
the push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side (side opposite
of the emergency key) of the key fob against the ENGINE
START/STOP button, with your foot applied on the brake
pedal, and push to operate the ignition switch.Wireless Ignition Node (WIN) Key Fob12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Keyless Push Button Ignition Key Fob
This Keyless Push Button Ignition key fob allows the driver
to operate the ignition switch with the push of a button, as
long as the Remote Keyless Entry key fob is in the
passenger compartment. The Keyless Push Button Ignition
has four operating positions, three of which are labeled and
will illuminate when in position. The three positions are
OFF, ACC, and ON/RUN. The fourth position is START,
during start RUN will illuminate. It also contains the
Remote Keyless Entry key fob and an emergency key,
which stores in the rear of the key fob.Keyless Push Button Ignition1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
Keyless Push Button Ignition Key Fob 2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Emergency Key Removal
Wireless Ignition Node (WIN) Key Fob — If Equipped
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. You can
keep the emergency key with you when valet parking.
To remove the emergency key, slide the mechanical latch at
the top of the key fob sideways with your thumb and then
pull the key out with your other hand.
NOTE: When using the emergency key to gain access to
your vehicle, be aware that the security alarm may be
triggered. Insert the key fob into the ignition and place the
ignition in the ON/RUN mode to disarm the security
system. Keyless Push Button Ignition Key Fob — If Equipped
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. You can
keep the emergency key with you when valet parking.
To remove the emergency key, slide the mechanical latch
on the backside of the key fob sideways with your thumb
and then pull the key out with your other hand. WIN Key Fob14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: When using the emergency key to gain access to
your vehicle, be aware that the security alarm may be
triggered. Insert the key fob into the ignition and place the
ignition in the ON/RUN mode to disarm the security
system.
NOTE: You can insert the double-sided emergency key
into the door lock cylinder with either side up. Removing Key Fob From The (WIN) Ignition
Place the gear selector in PARK (if equipped with an
automatic transmission). Turn the key fob to the OFF
position and then remove the key fob.Keyless Push Button Key Fob Key Fob With Remote Keyless Entry (WIN) 2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:
• The power window switches, radio, power sunroof (if
equipped), and power outlets will remain active for up
to 10 minutes after the ignition switch is turned to the
OFF position. Opening either front door will cancel this
feature. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
• For vehicles not equipped with a touchscreen radio,
refer to “Instrument Cluster Display  in “Understanding
Your Instrument Panel” for further information.
• For vehicles equipped with a touchscreen radio, refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
WARNING!• Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into REVERSE, apply the parking brake, turn the
vehicle OFF, remove the key fobs from vehicle, and
lock all doors. and lock your vehicle. If equipped
with Keyless Enter-N-Go, always make sure the
keyless ignition node is in “OFF” mode, remove the
key fob from the vehicle and lock the vehicle. (Continued) WARNING! (Continued)• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

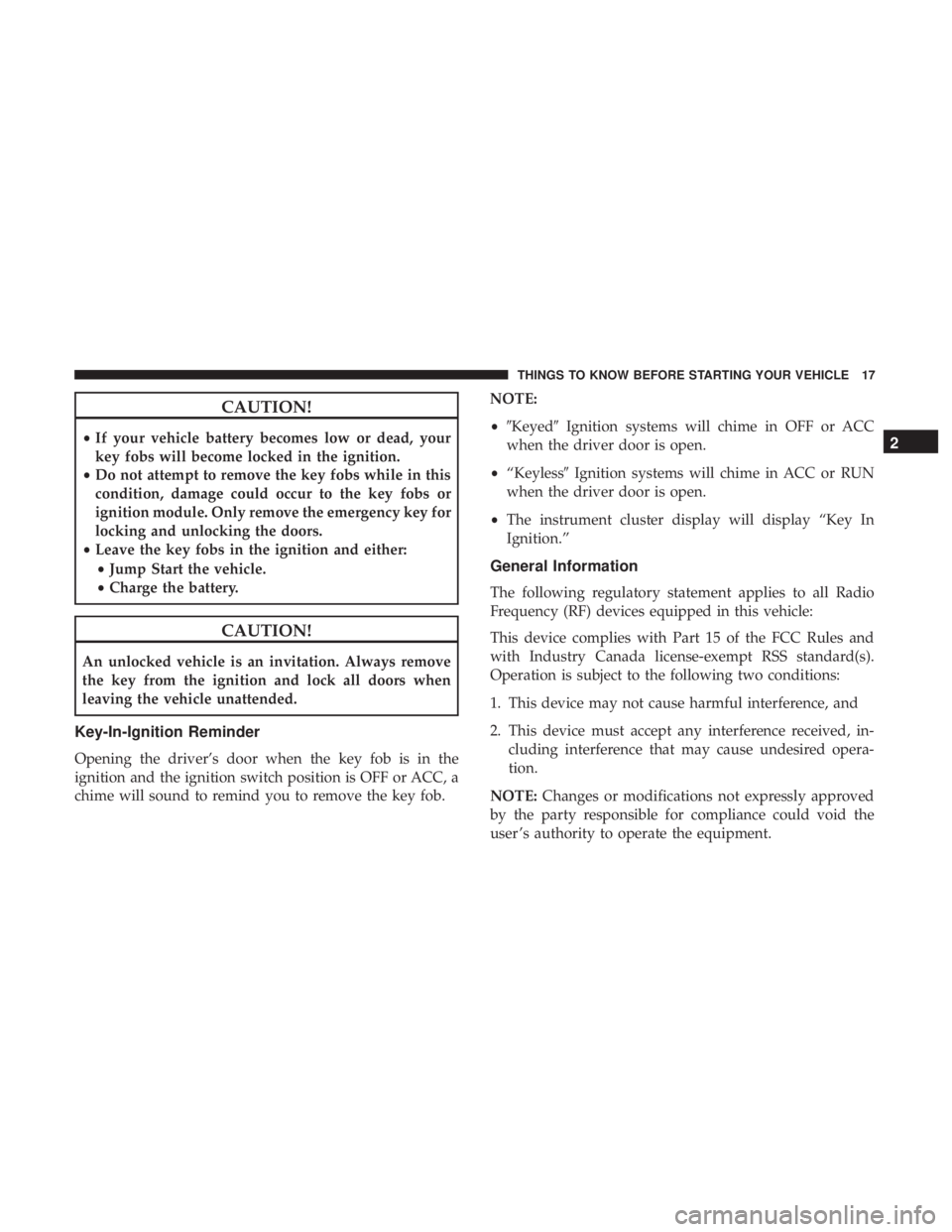

CAUTION!• If your vehicle battery becomes low or dead, your
key fobs will become locked in the ignition.
• Do not attempt to remove the key fobs while in this
condition, damage could occur to the key fobs or
ignition module. Only remove the emergency key for
locking and unlocking the doors.
• Leave the key fobs in the ignition and either:
• Jump Start the vehicle.
• Charge the battery.
CAUTION!An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all doors when
leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key fob is in the
ignition and the ignition switch position is OFF or ACC, a
chime will sound to remind you to remove the key fob. NOTE:
•  Keyed  Ignition systems will chime in OFF or ACC
when the driver door is open.
• “Keyless  Ignition systems will chime in ACC or RUN
when the driver door is open.
• The instrument cluster display will display “Key In
Ignition.”
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in-
cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment. 2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The system
does not need to be armed or activated. Operation is
automatic, regardless of whether the vehicle is locked or
unlocked.
The system uses a key fob, an Ignition Node Module,
Keyless Push Button Ignition and a RF receiver to prevent
unauthorized vehicle operation. Therefore, only key fobs
that are programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine to
crank if an invalid key fob is used to start and operate the
vehicle. The system will shut the engine off in two seconds
if an invalid key fob is used to start the engine.
NOTE: A key fob that has not been programmed is also
considered an invalid key.
During normal operation, after placing the keyless ignition
in the ON/RUN position, the vehicle security light will
turn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is a
problem with the electronics. In addition, if the light begins
to flash after the bulb check, it indicates that someone used an invalid key fob to try to start the engine. Either of these
conditions will result in the engine being shut off after two
seconds.
If the vehicle security light turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the electronics. Should this
occur, have the vehicle serviced as soon as possible by an
authorized dealer.
CAUTION!The Sentry Key Immobilizer system is not compatible
with some aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics.18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
