Ram ProMaster 2014 Manual PDF

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS .............................72
▫ Inside Day/Night Mirror — If Equipped .....72
▫ Outside Mirrors .......................72
▫ Outside Mirrors Folding Feature ...........73
▫ Power Mirrors — If Equipped .............73
▫ Heated Mirrors — If Equipped ............74
▫ Power Folding Mirrors — If Equipped .......74
 SEATS ...............................76
▫ Manual Front Seat Adjustments ............76
▫ Air Seat — If Equipped ..................82 ▫
Swivel Seat — If Equipped ................83
▫ Flap On Bench — If Equipped .............84
▫ Heated Seats — If Equipped ..............85
▫ Head Restraints .......................86
▫ Adjustable Armrests — If Equipped .........87
 TO OPEN AND CLOSE THE HOOD .........88
 LIGHTS ..............................90
▫ Multifunction Lever ....................90
▫ Headlights ...........................91
▫ Dimmer Controls ......................913

▫Daytime Running Lights — If Equipped ......92
▫ Lights-On Reminder ....................92
▫ Battery Saver .........................92
▫ Fog Lights — If Equipped ................93
▫ Turn Signals ..........................93
▫ Parking Lights ........................93
▫ Lane Change Assist ....................93
▫ High Beam/Low Beam Select Switch ........93
▫ Flash-To-Pass .........................94
▫ Follow Me Home/Headlight Delay ..........94
▫ Map/Dome/Lights .....................95
 WINDSHIELD WIPERS AND WASHERS ......98
▫ Windshield Wipers .....................98 ▫
Intermittent Wiper System ...............98
▫ Low Speed ...........................99
▫ High Speed ..........................99
▫ Mist Feature ..........................99
▫ Windshield Washer Operation .............99
 TELESCOPING STEERING COLUMN ........100
 ELECTRONIC SPEED CONTROL ...........101
▫ To Activate ......................... .102
▫ To Set A Desired Speed .................102
▫ To Deactivate ....................... .103
▫ To Resume Speed .....................103
▫ To Vary The Speed Setting ...............103
▫ To Accelerate For Passing ................105
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

PARKSENSE® REAR PARK ASSIST —
IF EQUIPPED ........................ .106
▫ ParkSense® Rear Park Assist Sensors ........106
▫ ParkSense® Rear Park Assist Alerts .........107
▫ ParkSense® Rear Park Assist Failure
Indications ......................... .109
▫ Cleaning The ParkSense® Rear Park Assist
System ............................ .109
▫ ParkSense® Rear Park Assist System Usage
Precautions ..........................110
 PARKVIEW® REAR BACK UP CAMERA —
IF EQUIPPED .........................112
 OVERHEAD CONSOLE — IF EQUIPPED .....114
▫ Map/Dome/Lights ....................114
POWER OUTLETS — IF EQUIPPED .........116
 CIGAR LIGHTER AND ASH RECEIVER —
IF EQUIPPED .........................118
 CUPHOLDERS ........................119
 STORAGE ............................119
▫ Glove Compartments ..................119
▫ Front Door Storage — If Equipped .........120
▫ Dash Storage ....................... .120
▫ Dashboard Clipboard ...................121
 CARGO AREA FEATURES ................121
▫ CargoArea ........................ .121
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71

MIRRORS
Inside Day/Night Mirror — If Equipped
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. Adjust the mirror to
center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Manual Rearview Mirror
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or
other object. Use your inside mirror when judging
the size or distance of a vehicle seen in a side convex
mirror.
Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions:
•Full forward position
• Full rearward position
• Normal position
Power Mirrors — If Equipped
The power mirror controls are located on the driver-side
door trim panel.
To adjust a mirror, turn the control knob toward the left
upper, left lower, right upper or right lower mirror
positions indicated by one of the four arrow’s on the
Power Mirror Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73

switch. Tilt the control wand in the direction you want
the mirror to move. When you are finished adjusting the
mirror, turn the control to the center position “O” to
prevent accidentally moving a mirror.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
Power Folding Mirrors — If Equipped
The switch for the power folding mirrors is located on the
drivers door panel below the power mirror controls.
Press the switch to the right and the mirrors will fold in,
press the switch to the left and the mirrors will return to
the normal driving position. The power fold mirrors are designed to be folded and
unfolded using the power folding switch. If the mirrors
are manually folded, the mirror head may appear loose.
Power Folding Mirror Switch
1 — Power Folding Mirror (Normal Driving Position)
2 — Power Folding Mirror (Fold In Position)
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the mirror head or pivot exhibits a slight amount of
play, the mirror should be power folded closed, then
power folded open (This may require multiple button
pushes).
NOTE:The intended use of the power fold mirrors is by
pushing the buttons to fold and unfold the mirrors. Only
manually fold the mirrors when necessary.
Forward Folding
Mirrors can be folded forward manually or by accidental
impact. In this case it is possible to restore to position
both ways, manually and electrically (as described
above).
Power/Manual Folding Mirror Positions
1 — Normal Driving Position
2 — Fold In Position
3 — Fold Forward Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75

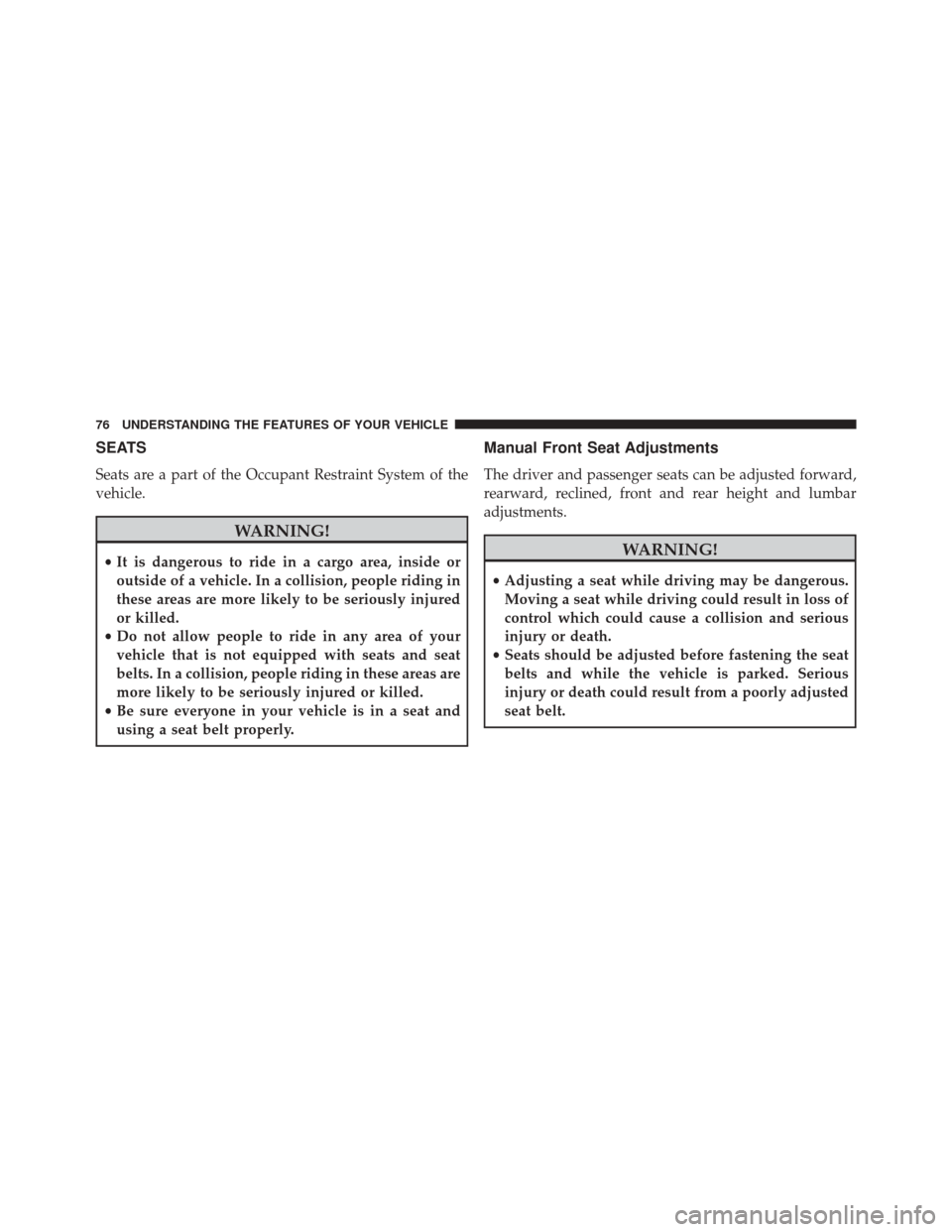

SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas are
more likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Front Seat Adjustments
The driver and passenger seats can be adjusted forward,
rearward, reclined, front and rear height and lumbar
adjustments.
WARNING!
• Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Forward And Rearward Adjustment
The adjusting bar is at the front of the seat, near the floor.
Pull the bar upward to move the seat forward or rear-
ward. Release the bar once the seat is in the desired
position. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
Lumbar Support — If Equipped
This feature allows you to increase or decrease the
amount of lumbar support. The lumbar control knob is
located on the rear upper outboard side of the driver’s
seatback. Rotate the control forward to increase and
rearward to decrease the desired amount of lumbar
support.
1 — Forward/Rearward Adjusting Bar
2 — Lumbar Knob
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77

Height Adjustment — Without Swivel Seat —
If Equipped
The height adjusting levers are located on the center
outboard side of the seat. Lift up on the front lever to
adjust the front of the seat up or down. Lift up on the rear
lever to adjust the rear of the seat up or down.
1 — Front Height Adjusting Lever
2 — Rear Height Adjusting Lever
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
