Ram ProMaster 2017 Owner's Manual

Radio
Use your voice to quickly get to the AM, FM or SiriusXM
Satellite Radio stations you would like to hear. (Subscrip-
tion or included SiriusXM Satellite Radio trial required.)
Push the VR button
. After the beep, say
•Tune to ninety-five-point-five FM
• Tune to Satellite Channel Hits 1 TIP:
At any time, if you are not sure of what to say or want
to learn a Voice Command, push the VR button
and say
“Help.” The system will provide you with a list of
commands.
Media
Uconnect offers connections via USB, Bluetooth and Aux-
iliary ports (If Equipped). Voice operation is only available
for connected USB and iPod devices.
Uconnect 5.0/5.0 NAV VR
Uconnect 5.0/5.0 NAV Radio
4
UNDERSTANDING YOUR INSTRUMENT PANEL 169

Push the VR button. After the beep, say one of the
following commands and follow the prompts to switch
your media source or choose an artist.
• Change source to Bluetooth
• Change source to iPod
• Change source to USB
• Play artist Beethoven; Play album Greatest Hits; Play
song Moonlight Sonata; Play genreClassical
TIP: Press the “Browse” button on the touchscreen to see
all of the music on your iPod or USB device. Your Voice
Command must match exactlyhow the artist, album, song
and genre information is displayed.
Phone
Making and answering hands-free phone calls is easy with
Uconnect. When the Phonebook button is illuminated for
the Uconnect radio, your system is ready. Check
UconnectPhone.com for mobile phone compatibility and
pairing instructions.
Push the Phone button
. After the beep, say one of the
following commands
• Call John Smith
• Dial 123-456-7890 and follow the system prompts
Uconnect 5.0/5.0 NAV Media
170 UNDERSTANDING YOUR INSTRUMENT PANEL

•Redial (call previous outgoing phone number)
• Call back (call previous incoming phone number)
TIP: When providing a Voice Command, push the Phone
button
and say “Call,”then pronounce the name
exactly as it appears in your phone book. When a
contact has multiple phone numbers, you can say “Call
John Smith work.” Voice Text Reply
Uconnect will announce
incomingtext messages. Push the
PHONE button
and say Listen.(Must have compat-
ible mobile phone paired to Uconnect system.)
1. Once an incoming text message is read to you, push the
PHONE button
. After the beep, say... “Reply.”
2. Listen to the Uconnect prompts. After the beep, repeat
one of the pre-defined messages and follow the system
prompts.
PRE-DEFINED VOICE TEXT REPLY RESPONSES
Yes. Stuck in traffic. See you later.No. Start without
me. I’ll be late.
Okay. Where are you? I will be minuteslate.
Call me. Are you there
yet?
I’ll call you later. I need direc- tions.See you in
of minutes.
I’m on my way. Can’t talk right
now.
I’m lost. Thanks.
Uconnect 5.0 Phone
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

TIP:Your mobile phone must have the full implementation
of the Message Access Profile (MAP) to take advantage of
this feature. For details about MAP, visit
UconnectPhone.com. Apple iPhone iOS6 or later supports
reading incoming text messages only.
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause unde-
sired operation.
NOTE:
• The transmitter has been tested and it complies with
FCC and IC rules. Changes or modifications not ex-
pressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
• The term IC before the certification/registration number
only signifies that Industry Canada technical specifica-
tions were met.
Additional Information
© 2016 FCA US LLC. All rights reserved. Mopar and
Uconnect are registered trademarks and Mopar Owner
Connect is a trademark of FCA US LLC. Android is a
trademark of Google Inc. SiriusXM and all related marks
and logos are trademarks of SiriusXM Radio Inc. Yelp, Yelp
logo, Yelp burst and related marks are registered trade-
marks of Yelp.
For Uconnect system support, call: 1-877-855-8400
(24 hours a day 7 days a week) or visit DriveUconnect.com.
Uconnect Access services support, call: 1-855-792-4241
Please have your Uconnect Security PIN ready when you
call.
172 UNDERSTANDING YOUR INSTRUMENT PANEL

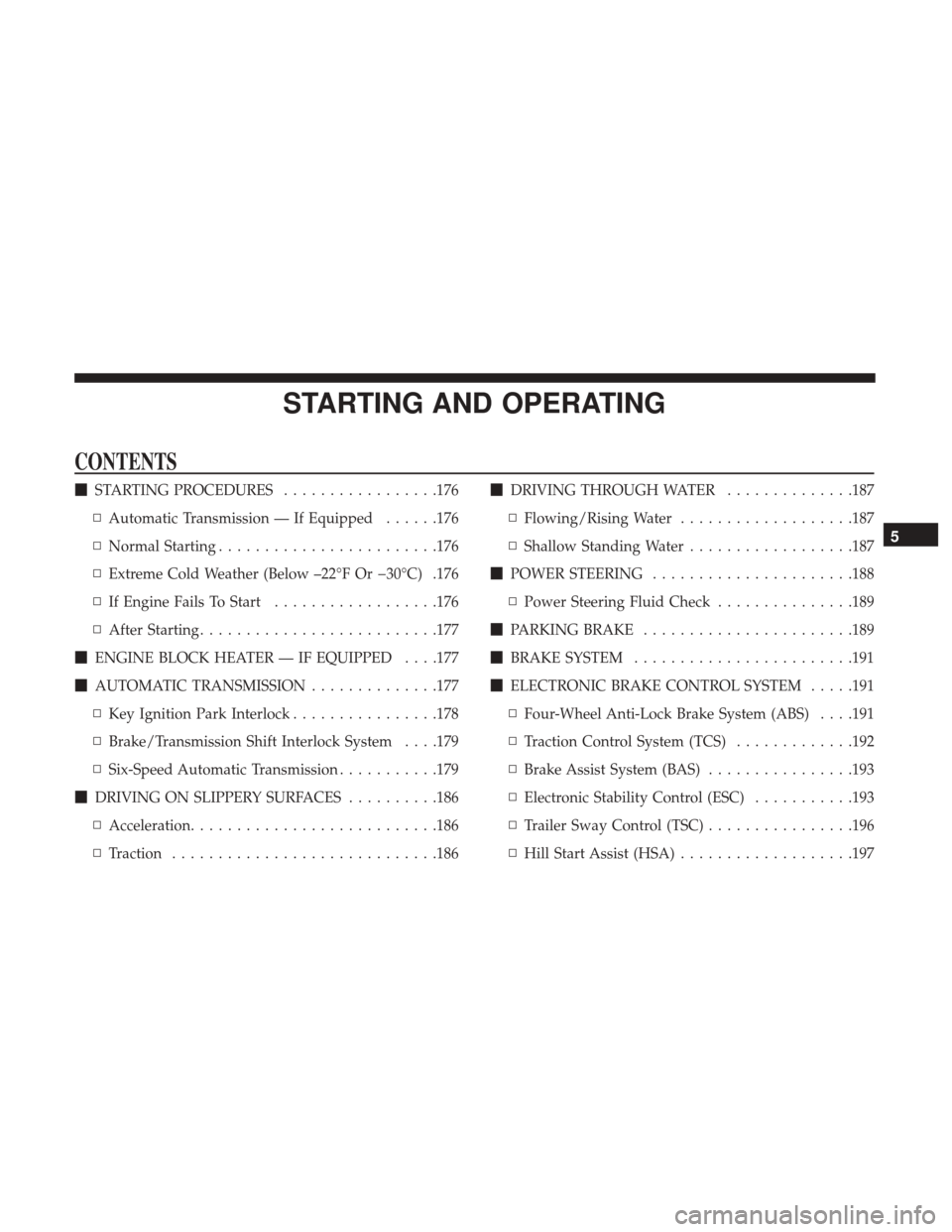

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES .................176
▫ Automatic Transmission — If Equipped ......176
▫ Normal Starting ....................... .176
▫ Extreme Cold Weather (Below –22°F Or 30°C) .176
▫ If Engine Fails To Start ..................176
▫ After Starting ......................... .177
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .177
 AUTOMATIC TRANSMISSION ..............177
▫ Key Ignition Park Interlock ................178
▫ Brake/Transmission Shift Interlock System . . . .179
▫ Six-Speed Automatic Transmission ...........179
 DRIVING ON SLIPPERY SURFACES ..........186
▫ Acceleration .......................... .186
▫ Traction ............................ .186
DRIVING THROUGH WATER ..............187
▫ Flowing/Rising Water ...................187
▫ Shallow Standing Water ..................187
 POWER STEERING ..................... .188
▫ Power Steering Fluid Check ...............189
 PARKING BRAKE ...................... .189
 BRAKE SYSTEM ....................... .191
 ELECTRONIC BRAKE CONTROL SYSTEM .....191
▫ Four-Wheel Anti-Lock Brake System (ABS) . . . .191
▫ Traction Control System (TCS) .............192
▫ Brake Assist System (BAS) ................193
▫ Electronic Stability Control (ESC) ...........193
▫ Trailer Sway Control (TSC) ................196
▫ Hill

Start Assist (HSA) ...................197
5

TIRE SAFETY INFORMATION ..............198
▫ Tire Markings ........................ .198
▫ Tire Identification Number (TIN) ............201
▫ Tire Terminology And Definitions ...........203
▫ Tire Loading And Tire Pressure ............204
 TIRES — GENERAL INFORMATION .........207
▫ Tire Pressure ......................... .207
▫ Tire Inflation Pressures ..................209
▫ Tire Pressures For High Speed Operation .....209
▫ Radial Ply Tires ....................... .210
▫ Tire Types ........................... .210
▫ Run Flat Tires — If Equipped ..............212
▫ Spare Tires — If Equipped ................212
▫ Tire Spinning ........................ .214
▫ Tread Wear Indicators ...................215
▫ Life Of Tire .......................... .216
▫ Replacement Tires ..................... .216
TIRE CHAINS (TRACTION DEVICES) .........217
 TIRE ROTATION RECOMMENDATIONS ......218
 TIRE PRESSURE MONITORING
SYSTEM (TPMS) ....................... .219
▫ Base System .......................... .221
▫ General Information ....................222
 FUEL REQUIREMENTS ...................223
▫ 3.6L Engine .......................... .223
▫ Reformulated Gasoline ..................223
▫ Gasoline/Oxygenate
Blends...............224
▫ E-85 Usage In Non-Flex Fuel Vehicles .........224
▫ CNG And LP Fuel System Modifications ......224
▫ MMT In Gasoline ...................... .225
▫ Materials Added To Fuel .................225
▫ Fuel System Cautions ....................225
▫ Carbon Monoxide Warnings ...............226
174 STARTING AND OPERATING

ADDING FUEL ........................ .227
▫ Fuel Filler Cap (Gas Cap) .................227
▫ Loose Fuel Filler Cap Message .............228
 VEHICLE LOADING .....................228
▫ Vehicle Certification Label ................228
TRAILER TOWING ..................... .230
▫ Common Towing Definitions ...............230
▫ Towing Tips ......................... .238
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................239
▫ Towing This Vehicle Behind Another Vehicle . . .239
▫ Recreational Towing —
Automatic Transmission ..................240
5
STARTING AND OPERATING 175

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle (or in
a location accessible to children). A child could
operate power windows, other controls, or move the
vehicle.
Automatic Transmission — If Equipped
The gear selector must be in the PARK or NEUTRAL
position before you can start the engine. Press the brake
pedal before shifting to any driving gear.
NOTE: You must press the brake pedal before shifting out
of PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
Turn the ignition switch to the AVV/ACC (START) posi-
tion and release it when the engine starts. If the engine fails
to start within 10 seconds, turn the ignition switch to the
STOP (OFF/LOCK) position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
Extreme Cold Weather (Below –22°F Or 30°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.
If Engine Fails To Start
WARNING!
Never pour fuel or other flammable liquids into the
throttle body air inlet opening in an attempt to start the
vehicle. This could result in a flash fire causing serious
personal injury.
176 STARTING AND OPERATING

CAUTION!
•Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• To prevent damage to the starter, do not continuously
crank the engine for more than 15 seconds at a time.
Wait 10 to 15 seconds before trying again.
After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a grounded,
three-wire extension cord.
The engine block heater must be plugged in at least one
hour to have an adequate warming effect on the engine.
WARNING!
Remember to disconnect the engine block heater cord
before driving. Damage to the 110-115 Volt electrical
cord could cause electrocution.
AUTOMATIC TRANSMISSION
WARNING!
• It is dangerous to shift out of PARK or NEUTRAL if
the engine speed is higher than idle speed. If your
foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when the
engine is idling normally and your foot is firmly
pressing the brake pedal.
• Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles, you
should never exit a vehicle while the engine is
running. Before exiting a vehicle always apply the
parking brake, shift the transmission into PARK,
turn the engine OFF, and remove the ignition key.
(Continued)
5
STARTING AND OPERATING 177

WARNING!(Continued)
Once the key is removed, the transmission is locked
in PARK, securing the vehicle against unwanted
movement.
• When leaving the vehicle, always remove the igni-
tion key from the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a number
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the trans-
mission gear selector.
• Do not leave the ignition key in or near the vehicle
(or in a location accessible to children). A child could
operate power windows, other controls, or move the
vehicle.
CAUTION!
Damage to the transmission may occur if the following
precautions are not observed:
• Shift into or out of PARK or REVERSE only after the
vehicle has come to a complete stop.
• Do not shift between PARK, REVERSE, NEUTRAL,
or DRIVE when the engine is above idle speed.
• Before shifting into any gear, make sure your foot is
firmly pressing the brake pedal.
NOTE: You must press and hold the brake pedal while
shifting out of PARK.
Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Interlock
which requires the transmission to be in PARK before the
ignition can be turned to the LOCK/OFF (key removal)
position. The key can only be removed from the ignition
when the ignition is in the LOCK/OFF position, and once
removed the transmission is locked in PARK.
NOTE: If a malfunction occurs, the system will trap the
key in the ignition to warn you that this safety feature is
inoperable. The engine can be started and stopped but the
key cannot be removed until you obtain service.
178 STARTING AND OPERATING
