maintenance schedule RAM PROMASTER 2021 Owners Manual

5
SERVICING AND MAINTENANCE
SCHEDULED SERVICING .................................. 211Maintenance Plan......................................212
ENGINE COMPARTMENT .................................. 215
3.6L Engine ...............................................215Checking Oil Level......................................216
Adding Washer Fluid..................................217Maintenance-Free Battery .......................217
Pressure Washing ......................................217
VEHICLE MAINTENANCE ................................... 218
Engine Oil ...................................................218
Engine Oil Filter ..........................................219Engine Air Cleaner Filter ...........................219
Air Conditioner Maintenance ...................219Body Lubrication ........................................221
Windshield Wiper Blades .........................221
Exhaust System ........................................221
Cooling System ..........................................223Brake System ............................................226
Automatic Transmission ............................226
FUSES .........................................................228
BULB REPLACEMENT ................................235
TIRES .................................................................. 240
Tire Safety Information .............................240Tires — General Information .....................248Tire Types ...................................................252
Spare Tires — If Equipped .........................253
Wheel And Wheel Trim Care ....................255
Snow Traction Devices .............................257Tire Rotation Recommendations ..............258 DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES .................. 259
Treadwear .................................................. 259
Traction Grades ......................................... 259
Temperature Grades ................................. 259
STORING THE VEHICLE .....................................260
BODYWORK ........................................................ 260
Protection From Atmospheric Agents....... 260
Body And Underbody Maintenance .......... 260Preserving The Bodywork .......................... 261
INTERIORS ......................................................... 261
Seats And Fabric Parts .............................. 261
Plastic And Coated Parts ........................... 262
Leather Surfaces ....................................... 263Glass Surfaces .......................................... 263Cleaning The Instrument Panel
Cupholders ................................................. 263
TECHNICAL SPECIFICATIONS
VEHICLE IDENTIFICATION NUMBER.................264
BRAKE SYSTEM .................................................. 264

WHEEL AND TIRE TORQUE SPECIFICATIONS .... 264

Torque Specifications ................................ 264
FUEL REQUIREMENTS .......................................265
3.6L Engine ................................................ 265
Reformulated Gasoline ............................ 266
Materials Added To Fuel ........................... 266
Gasoline/Oxygenate Blends ..................... 266Do Not Use E-85 In Non-Flex Fuel
Vehicles ...................................................... 266
CNG And LP Fuel System Modifications ..... 267

MMT In Gasoline........................................ 267
Fuel System Cautions................................ 267
FLUID CAPACITIES ............................................. 268
ENGINE FLUIDS AND LUBRICANTS ................. 268
CHASSIS FLUIDS AND LUBRICANTS ............... 270
CUSTOMER ASSISTANCE
SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE .......................................... 271 Prepare For The Appointment .................. 271Prepare A List............................................. 271
Be Reasonable With Requests ................. 271
IF YOU NEED ASSISTANCE .............................. 271
FCA US LLC Customer Center ................... 272
FCA Canada Inc. Customer Center ........... 272
Mexico ........................................................ 272
Puerto Rico And US Virgin Islands ............ 272
Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY) ..................... 272 Service Contract ....................................... 272
WARRANTY INFORMATION .............................. 273
MOPAR PARTS .................................................. 273
REPORTING SAFETY DEFECTS ........................ 273 In The 50 United States And
Washington, D.C. ....................................... 273 In Canada ................................................... 273
PUBLICATION ORDER FORMS ........................ 274
General Information.......................................... 274

21_VF_OM_EN_USC_t.book Page 5

GETTING TO KNOW YOUR INSTRUMENT PANEL45
If equipped with a Uconnect system, some
customer programmable features will display in
the radio Úpage 89.
The system allows the driver to select
information by pushing the following buttons
mounted on the instrument panel to the left of
the steering column:

Display Control Buttons

NOTE:
The MODE button must be pushed prior to
pressing the up arrow and down arrow
buttons .MODE Button:
Push and hold the MODE button for a time
longer than one second to access/select the
information screens or submenu screens of a
main menu item. Push and hold the MODE
button for two seconds to reset displayed/
selected features that can be reset.
Up And Down Arrow Buttons:
Push and release the up and down
arrow buttons to scroll upward and down -
ward through the main menu and submenus
or adjust the illumination on the instrument
panel when the headlights are on.
CHANGE ENGINE OIL — IF EQUIPPED
Your vehicle is equipped with an engine oil
change indicator system. The “Change Engine
Oil” message will display in the instrument
cluster display. The engine oil change indicator
system is duty cycle based, which means the
engine oil change interval may fluctuate,
dependent upon your personal driving style. Unless reset, this message will continue to
display each time you turn the ignition switch to
the ON/RUN position. To turn off the message
temporarily, push and release the
MODE
button . To reset the oil change indicator system
(after performing the scheduled maintenance),
refer to the following procedure.

1. Turn the ignition switch to the ON position (do not start the engine).

2. Fully push the accelerator pedal slowly, three times, within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:
If the indicator message illuminates when you
start the vehicle, the oil change indicator
system did not reset. If necessary, repeat this
procedure.
3

21_VF_OM_EN_USC_t.book Page 45

STARTING AND OPERATING81
TRAILER TOWING WEIGHTS (MAXIMUM
T
RAILER WEIGHT RATINGS)
NOTE:
For trailer towing information (maximum trailer
weight ratings) refer to the following website
addresses:
ramtrucks.com/en/towing_guide/
ramtruck.ca (Canada)
rambodybuilder.com
TRAILER AND TONGUE WEIGHT
Never exceed the maximum tongue weight
stamped on your bumper or trailer hitch.

Weight Distribution
Consider the following items when computing
the weight on the rear axle of the vehicle:The tongue weight of the trailer.
The weight of any other type of cargo or
equipment put in or on your vehicle.
The weight of the driver and all passengers.
NOTE:
Remember that everything put into or on the
trailer adds to the load on your vehicle. Also,
additional factory-installed options or
dealer-installed options must be considered as
part of the total load on your vehicle. Refer to the Tire And Loading Information placard for the
maximum combined weight of occupants and
cargo for your vehicle Ú
page 245.
TOWING REQUIREMENTS
To promote proper break-in of your new vehicle
drivetrain components, the following guidelines
are recommended.
Perform the maintenance listed in the
Scheduled Servicing Úpage 211. When towing
a trailer, never exceed the GAWR or GCWR
ratings.
CAUTION!
Always load a trailer with 60% of the weight in
the front of the trailer. This places 10% of the
GTW on the tow hitch of your vehicle. Loads
balanced over the wheels or heavier in the
rear can cause the trailer to sway severely
side to side which will cause loss of control of
the vehicle and trailer. Failure to load trailers
heavier in front is the cause of many trailer
collisions.
CAUTION!
Do not tow a trailer at all during the first
500 miles (805 km) the new vehicle is driven. The engine, axle or other parts could
be damaged.
Then, during the first 500 miles (805 km)
that a trailer is towed, do not drive over
50 mph (80 km/h) and do not make starts
at full throttle. This helps the engine and
other parts of the vehicle wear in at the
heavier loads.
4

21_VF_OM_EN_USC_t.book Page 81

211
SERVICING AND MAINTENANCE
SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil
change indicator system. The oil change
indicator system will remind you that it is time to
take your vehicle in for scheduled maintenance.

Based on engine operation conditions, the oil
change indicator message will illuminate in the
instrument cluster. This means that service is
required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, and
extremely hot or cold ambient temperatures will
influence when the “Oil Change Required”
message is displayed. Severe Operating
Conditions can cause the change oil message to
illuminate as early as 3,500 miles (5,600 km)
since last reset. Have the vehicle serviced as
soon as possible, within the next 500 miles
(805 km).
An authorized dealer will reset the oil change
indicator message after completing the
scheduled oil change. If a scheduled oil change
is performed by someone other than an
authorized dealer, the message can be reset by
referring to the steps described under
Instrument Cluster Display Ú
page 45.
NOTE:
Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 km),
12 months or 350 hours of engine run time,
whichever comes first. The 350 hours of engine
run or idle time is generally only a concern for
fleet customers. Severe Duty All Models

Vehicles that are operated in a dusty and off-road
environment, or predominately at idle or very low
engine RPM are known as Severe Duty vehicles.
It is recommended that you change the engine oil
at 4,000 miles (6,500 km) or 350 hours of
engine run time.

Once A Month Or Before A Long Trip:
Check engine oil level
Check windshield washer fluid level
Check the tire pressures and look for unusual
wear or damage. Rotate at the first sign of
irregular wear, even if it occurs before the oil
indicator system turns on
Check the fluid levels of the coolant reservoir,
brake master cylinder, and power steering
and fill as needed
Check function of all interior and exterior
lights
8

21_VF_OM_EN_USC_t.book Page 211

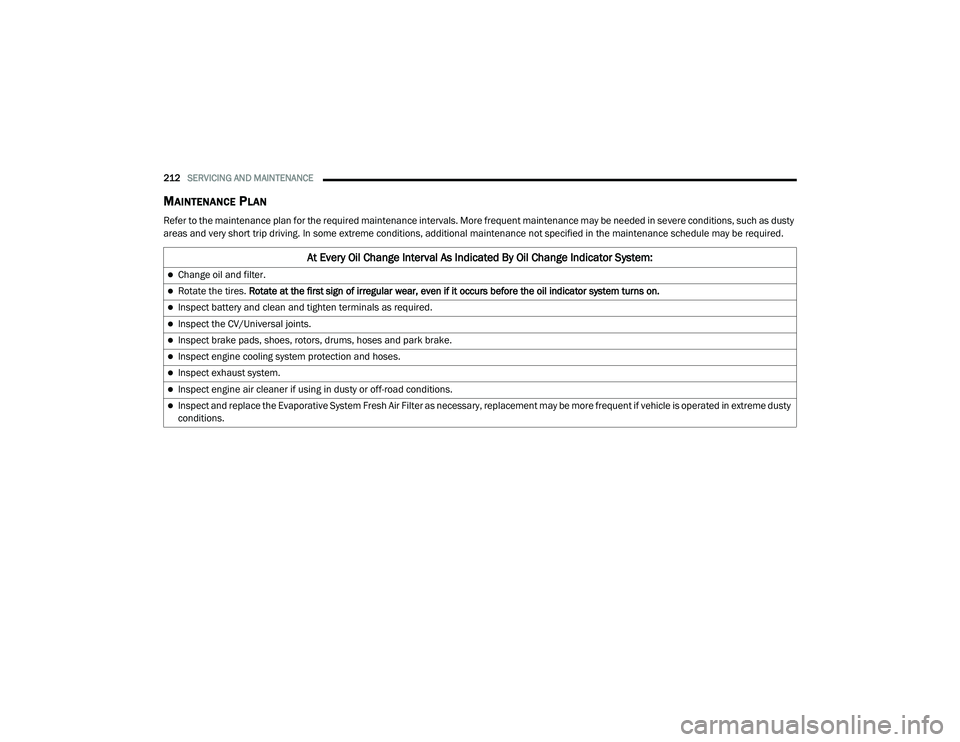

212SERVICING AND MAINTENANCE
MAINTENANCE PLAN
Refer to the maintenance plan for the required maintenance intervals. More frequent maintenance may be needed in severe conditions, such as dusty
areas and very short trip driving. In some extreme conditions, additional maintenance not specified in the maintenance schedule may be required.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Rotate the tires. Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system turns on.
Inspect battery and clean and tighten terminals as required.
Inspect the CV/Universal joints.
Inspect brake pads, shoes, rotors, drums, hoses and park brake.
Inspect engine cooling system protection and hoses.
Inspect exhaust system.
Inspect engine air cleaner if using in dusty or off-road conditions.
Inspect and replace the Evaporative System Fresh Air Filter as necessary, replacement may be more frequent if vehicle is operated in extreme dusty
conditions.

21_VF_OM_EN_USC_t.book Page 212

SERVICING AND MAINTENANCE251
Tread Wear Indicators
Tread wear indicators are in the original
equipment tires to help you in determining
when your tires should be replaced.

Tire Tread

These indicators are molded into the bottom of
the tread grooves. They will appear as bands
when the tread depth becomes a 1/16 of an
inch (1.6 mm). When the tread is worn to the
tread wear indicators, the tire should be
replaced.
Life Of Tire
The service life of a tire is dependent upon
varying factors including, but not limited to:
Driving style.
Tire pressure - Improper cold tire inflation
pressures can cause uneven wear patterns
to develop across the tire tread. These
abnormal wear patterns will reduce tread life,
resulting in the need for earlier tire replace -
ment.
Distance driven.
Performance tires, tires with a speed rating of
V or higher, and Summer tires typically have
a reduced tread life. Rotation of these tires
per the vehicle scheduled maintenance is
highly recommended. NOTE:
Wheel Valve Stem must be replaced as well
when installing new tires due to wear and tear
in existing tires.
Keep dismounted tires in a cool, dry place with
as little exposure to light as possible. Protect
tires from contact with oil, grease, and gasoline.
Replacement Tires

The tires on your new vehicle provide a balance of
many characteristics. They should be inspected
regularly for wear and correct cold tire inflation
pressures. The manufacturer strongly
recommends that you use tires equivalent to the
originals in size, quality and performance when
replacement is needed. Refer to the paragraph
on “Tread Wear Indicators” in this section. Refer
to the Tire and Loading Information placard or the
Vehicle Certification Label for the size
designation of your tire. The Load Index and
Speed Symbol for your tire will be found on the
original equipment tire sidewall.

See the Tire Sizing Chart example found in the
Tire Safety Information section of this manual
for more information relating to the Load Index
and Speed Symbol of a tire Ú
page 241.
1 — Worn Tire
2 — New Tire
WARNING!
Tires and the spare tire should be replaced
after six years, regardless of the remaining
tread. Failure to follow this warning can result
in sudden tire failure. You could lose control
and have a collision resulting in serious injury
or death.
8

21_VF_OM_EN_USC_t.book Page 251

279
Security Alarm
............................................. 50Service...................................................... 235Tire Pressure Monitoring (TPMS)............... 161Traction Control......................................... 152Turn Signals................................ 26, 54, 188Warning Instrument Cluster Descriptions..................................... 49, 54Loading Vehicle........................................ 76, 77Capacities................................................... 77Tires.......................................................... 245LocksAutomatic Door.................................... 14, 15Low Tire Pressure System............................. 161Lubrication, Body........................................... 221Lug Nuts/Bolts.............................................. 264
M
Maintenance Free Battery............................. 217Maintenance Schedule.................................. 211Malfunction Indicator Light (Check Engine)..... 52ManualService...................................................... 274Methanol....................................................... 266Mirrors............................................................. 23Electric Remote........................................... 24Exterior Folding........................................... 24Heated........................................................ 25Outside........................................................ 24Rearview..................................................... 23
Modifications/AlterationsVehicle........................................................... 7Monitor, Tire Pressure System...................... 161Mopar Parts.................................................. 273MP3 Control..................................................... 37Multi-Function Control Lever............................ 26
N
New Vehicle Break-In Period............................ 58
O
Occupant Restraints..................................... 164Octane Rating, Gasoline (Fuel)..................... 265Oil Change Indicator........................................ 45Reset........................................................... 45Oil Filter, Change.......................................... 219Oil Filter, Selection........................................ 219Oil Pressure Light............................................. 50Oil, Engine............................................ 218, 268Capacity.................................................... 268Checking................................................... 216Dipstick.................................................... 216Disposal................................................... 218Filter................................................ 219, 268Filter Disposal........................................... 218Identification Logo.................................... 218Materials Added To.................................. 218Pressure Warning Light............................... 50Recommendation............................ 218, 268
Synthetic................................................... 218Viscosity.................................................... 268Onboard Diagnostic System.............................55Operating Precautions.....................................55Operator ManualOwner's Manual........................................ 274Outside Rearview Mirrors.......................... 23, 24Overheating, Engine...................................... 206
P
Paint Care..................................................... 260Parking Brake..................................................59ParkSense System, Rear..................................69Passing Light....................................................26Pets............................................................... 187Phone Mode.................................................. 112Placard, Tire And Loading Information.......... 245PowerMirrors.........................................................24Outlet (Auxiliary Electrical Outlet).................37Steering................................................66, 67Windows......................................................39Power Steering Fluid..................................... 270Pregnant Women And Seat Belts.................. 170Preparation For Jacking....................... 190, 191
11

21_VF_OM_EN_USC_t.book Page 279

280 R
Radial Ply Tires
.............................................. 250Radiator Cap (Coolant Pressure Cap)............ 224Radio Frequency General Information.................................. 148Rear Camera................................................... 73Rear Cross Path............................................. 158Rear ParkSense System.................................. 69Rearview Mirror............................................... 23Recreational Towing........................................ 85Reformulated Gasoline.................................. 266Refrigerant.................................................... 220Release, Hood................................................. 40Reminder, Seat Belt...................................... 166Remote Keyless EntryProgramming Additional Key Fobs.............. 11Replacement Bulbs....................................... 235Replacement Keys........................................... 11Replacement Tires......................................... 251Reporting Safety Defects............................... 273Restraints, Child............................................ 181Restraints, Head.............................................. 20Rotation, Tires............................................... 258
S
Safety Checks Inside Vehicle......................... 187Safety Checks Outside Vehicle...................... 188Safety Defects, Reporting.............................. 273Safety Information, Tire................................. 240Safety Tips..................................................... 186
Safety, Exhaust Gas...................................... 189Satellite Radio.............................................. 102Schedule, Maintenance................................ 211Seat Belts............................................ 165, 187Adjustable Shoulder Belt.......................... 169Adjustable Upper Shoulder Anchorage..... 169Adjustable Upper Shoulder Belt Anchorage..................................... 169Automatic Locking Retractor (ALR)........... 171Child Restraints........................................ 181Energy Management Feature................... 171Front Seat............................... 165, 166, 168Inspection................................................. 187Lap/Shoulder Belt Operation.................... 168Lap/Shoulder Belt Untwisting................... 169Lap/Shoulder Belts.................................. 166Operating Instructions.............................. 168Pregnant Women...................................... 170Rear Seat................................................. 166Reminder.................................................. 166Untwisting Procedure............................... 169Seat Belts Maintenance............................... 262Seats............................................................... 15Adjustment.................................................. 15Heated......................................................... 19Rear Folding................................................ 15Tilting........................................................... 15Security Alarm........................................... 13, 50Selection Of Coolant (Antifreeze).................. 268Sentry Key (Immobilizer).................................. 12
Service Assistance........................................ 271Service Contract............................................ 272Service Manuals........................................... 274SettingsPersonal......................................................89Settings, Audio.............................................. 107Shift Lever Override...................................... 207Shoulder Belts.............................................. 166Signals, Turn.......................................... 54, 188Sirius Satellite Radio..................................... 102Favorites................................................... 106Replay....................................................... 104SiriusXM Satellite RadioBrowse in SXM.......................................... 106Favorites................................................... 106Replay....................................................... 104Snow Chains (Tire Chains)............................ 257Snow Tires.................................................... 253Spare Tires........................................... 253, 255Spark Plugs................................................... 268Starting............................................................57Automatic Transmission..............................57Button..........................................................12Cold Weather...............................................57Engine Fails To Start....................................57Steering...........................................................15Column Lock................................................15Power....................................................66, 67Steering Wheel Audio Controls...................... 146Storage, Vehicle..................................... 35, 260

21_VF_OM_EN_USC_t.book Page 280
