INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Upper Dash Storage13 — Climate Controls
2 — Multifunction Lever (External Lights) 8 — Radio 14 — USB Charger/AUX
3 — Instrument Cluster 9 — Passenger Air Bag15 — Driver Air Bag
4— Horn 10 — Lower Dash Storage16 — Uconnect Phone Buttons
5— Electronic Speed Control Switches 11 — Glove compartment 17 — Gear Selector
6— Multifunction Lever (Front/Rear Wiper,
Trip Computer) 12 — Switch Bank
4
UNDERSTANDING YOUR INSTRUMENT PANEL 117

2. Push theDOWNarrow button. “OFF” will flash in
the display
3. Push the MENUbutton briefly to return to the menu
screen or hold the MENUbutton down to return to the
standard screen without storing.
Trip B Data
This function can be used to activate (On) or deactivate
(Off) the Trip B display (Partial Trip).
Refer to Trip Computer in this section for further infor-
mation.
To switch the function On/Off:
1. Push the MENUbutton briefly. The display will flash
On or Off according to the previous setting.
2. Push and release the UP
orDOWNarrow
button to select.
Push the MENUbutton briefly to return to the menu
screen or hold the MENUbutton down to return to the
standard screen without storing.
Set Time
With this function, it is possible to set the time through two
submenus: TimeandMode. To set the time:
1. Push the
MENUbutton; the display will show the two
submenus “Time” and “Mode”.
2. Push and release the UP
orDOWNarrow
button to switch between the two submenus.
3. Select the required option and then push MENU.
4. If selecting the “Time” submenu, briefly push MENU,
the “hours” will flash on the display.
5. Push and release the UP
orDOWNarrow
button to adjust.
6. Push the MENUbutton; the “minutes” will flash on the
display.
7. Push and release the UP
orDOWNarrow
button to adjust.
8. Push the MENUbutton briefly to return to the menu
screen or hold the MENUbutton down to return to the
standard screen without storing.
The setting will increase or decrease by one unit each time
theUP
or DOWNarrow button is pushed. Hold 4
UNDERSTANDING YOUR INSTRUMENT PANEL 123

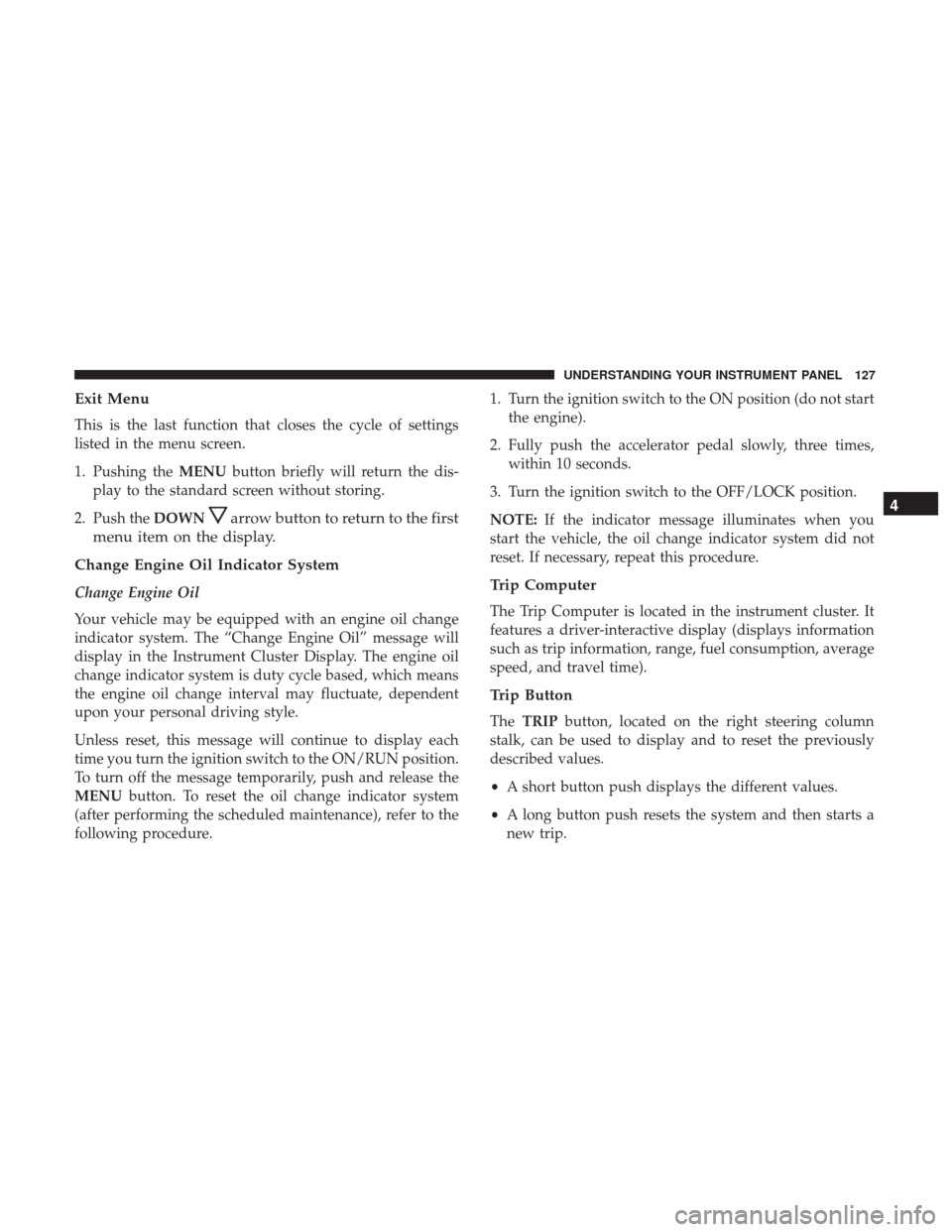

Exit Menu
This is the last function that closes the cycle of settings
listed in the menu screen.
1. Pushing theMENUbutton briefly will return the dis-
play to the standard screen without storing.
2. Push the DOWN
arrow button to return to the first
menu item on the display.
Change Engine Oil Indicator System
Change Engine Oil
Your vehicle may be equipped with an engine oil change
indicator system. The “Change Engine Oil” message will
display in the Instrument Cluster Display. The engine oil
change indicator system is duty cycle based, which means
the engine oil change interval may fluctuate, dependent
upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN position.
To turn off the message temporarily, push and release the
MENU button. To reset the oil change indicator system
(after performing the scheduled maintenance), refer to the
following procedure. 1. Turn the ignition switch to the ON position (do not start
the engine).
2. Fully push the accelerator pedal slowly, three times, within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays information
such as trip information, range, fuel consumption, average
speed, and travel time).
Trip Button
The TRIP button, located on the right steering column
stalk, can be used to display and to reset the previously
described values.
• A short button push displays the different values.
• A long button push resets the system and then starts a
new trip.
4
