Page 121 of 347

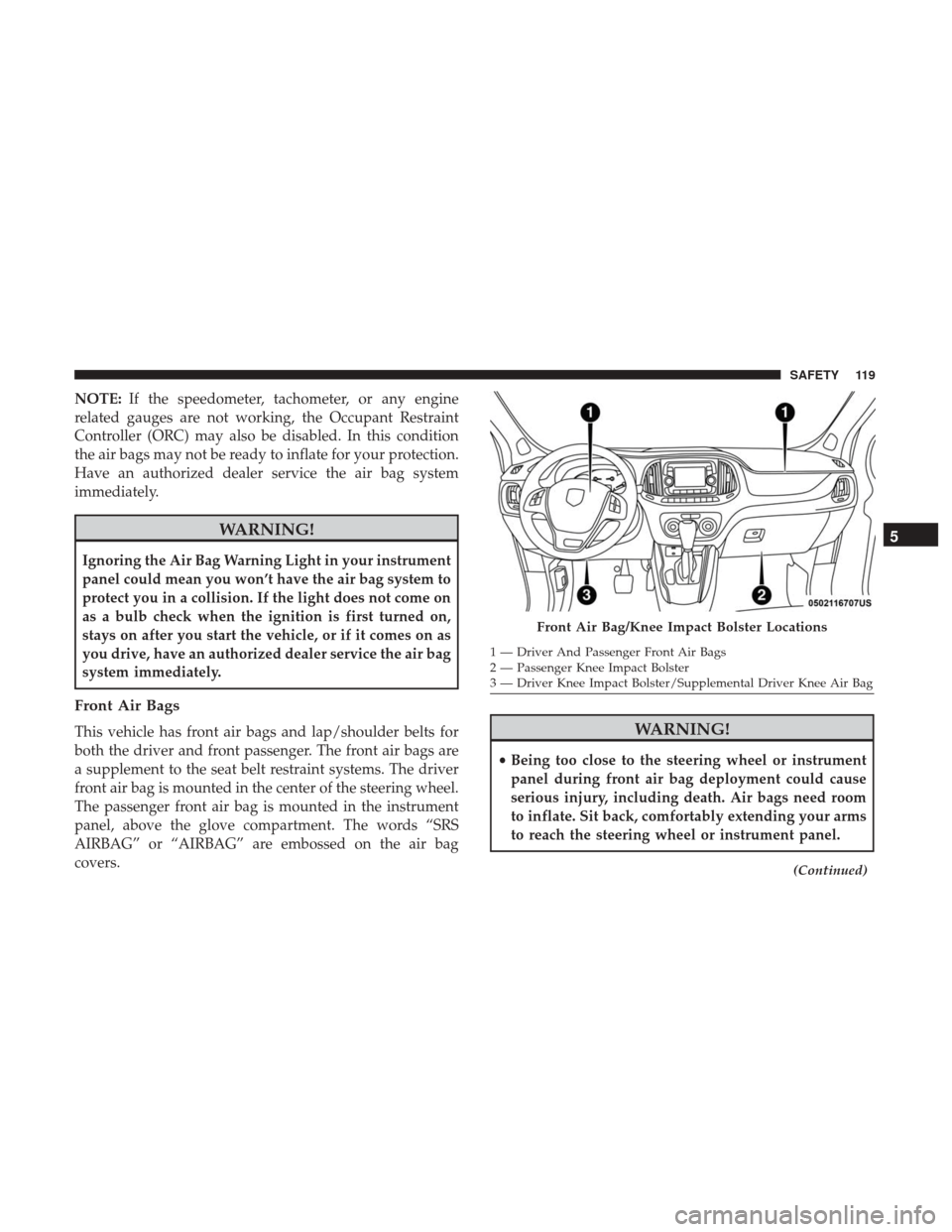

NOTE:If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. In this condition
the air bags may not be ready to inflate for your protection.
Have an authorized dealer service the air bag system
immediately.
WARNING!
Ignoring the Air Bag Warning Light in your instrument
panel could mean you won’t have the air bag system to
protect you in a collision. If the light does not come on
as a bulb check when the ignition is first turned on,
stays on after you start the vehicle, or if it comes on as
you drive, have an authorized dealer service the air bag
system immediately.
Front Air Bags
This vehicle has front air bags and lap/shoulder belts for
both the driver and front passenger. The front air bags are
a supplement to the seat belt restraint systems. The driver
front air bag is mounted in the center of the steering wheel.
The passenger front air bag is mounted in the instrument
panel, above the glove compartment. The words “SRS
AIRBAG” or “AIRBAG” are embossed on the air bag
covers.WARNING!
• Being too close to the steering wheel or instrument
panel during front air bag deployment could cause
serious injury, including death. Air bags need room
to inflate. Sit back, comfortably extending your arms
to reach the steering wheel or instrument panel.
(Continued)
Front Air Bag/Knee Impact Bolster Locations
1 — Driver And Passenger Front Air Bags
2 — Passenger Knee Impact Bolster
3 — Driver Knee Impact Bolster/Supplemental Driver Knee Air Bag
5
SAFETY 119
Page 124 of 347
Supplemental Seat-Mounted Side Air Bags (SABs) are
located in the outboard side of the front seats. The SABs are
marked with a “SRS AIRBAG” or “AIRBAG” label sewn
into the outboard side of the seats.
The SABs may help to reduce the risk of occupant injury
during certain side impacts, in addition to the injury
reduction potential provided by the seat belts and body
structure.When the SAB deploys, it opens the seam on the outboard
side of the seatback’s trim cover. The inflating SAB deploys
through the seat seam into the space between the occupant
and the door. The SAB moves at a very high speed and
with such a high force that it could injure occupants if they
are not seated properly, or if items are positioned in the
area where the SAB inflates. Children are at an even greater
risk of injury from a deploying air bag.
WARNING!
Do not use accessory seat covers or place objects
between you and the Side Air Bags; the performance
could be adversely affected and/or objects could be
pushed into you, causing serious injury.
Supplemental Side Air Bag Inflatable Curtains (SABICs)
This vehicle is equipped with Supplemental Side Air Bag
Inflatable Curtains (SABICs).
Supplemental Seat-Mounted Side Air Bag Label
122 SAFETY
Page 125 of 347
Supplemental Side Air Bag Inflatable Curtains (SABICs)
are located above the side windows. The trim covering the
SABICs is labeled “SRS AIRBAG” or “AIRBAG.”
SABICs may help reduce the risk of head and other injuries
to front and rear seat outboard occupants in certain side
impacts, in addition to the injury reduction potential
provided by the seat belts and body structure.
The SABIC deploys downward, covering the side win-
dows. An inflating SABIC pushes the outside edge of the
headliner out of the way and covers the window. The
SABICs inflate with enough force to injure occupants ifthey are not belted and seated properly, or if items are
positioned in the area where the SABICs inflate. Children
are at an even greater risk of injury from a deploying air
bag.
The SABICs may help reduce the risk of partial or complete
ejection of vehicle occupants through side windows in
certain side impact events.
WARNING!
•
Do not mount equipment, or stack luggage or other
cargo up high enough to block the deployment of the
SABICs. The trim covering above the side windows
where the SABIC and its deployment path are lo-
cated should remain free from any obstructions.
• In order for the SABICs to work as intended, do not
install any accessory items in your vehicle which
could alter the roof. Do not add an aftermarket
sunroof to your vehicle. Do not add roof racks that
require permanent attachments (bolts or screws) for
installation on the vehicle roof. Do not drill into the
roof of the vehicle for any reason.
Supplemental Side Air Bag Inflatable Curtain (SABIC)
Label Location
5
SAFETY 123
Page 334 of 347
Adding Engine Coolant (Antifreeze).............252
Additives, Fuel ........................... .294
AirBag..................................119 Air Bag Operation ....................... .120
Driver Knee Air Bag ..................... .121
Enhanced Accident Response ................234
Event Data Recorder (EDR) .................234
If A Deployment Occurs ....................126
Knee Impact Bolsters ..................... .121
Maintaining Your Air Bag System .............127
Transporting Pets ....................... .147
Air Bag Light .......................... .83, 149
Air Bag Maintenance ....................... .127
Air Cleaner, Engine (Engine Air Cleaner Filter) ......246
Air Conditioner Maintenance ..................246
Air Conditioning Filter .......................55
Air Conditioning, Operating Tips .............54, 56
Air Conditioning Refrigerant ...............246, 247
Air Conditioning System .....................246
Air Filter ............................... .246
Air Pressure, Tires ......................... .272
Alarm (Security Alarm) .......................22
Alarm System (Security Alarm) .................22
Alterations/Modifications, Vehicle ................6
Antifreeze (Engine Coolant) ................251, 296 Disposal
.............................. .254
Anti-Lock Brake System (ABS) ..................96
Anti-Lock Warning Light ......................87
Ashtray ..................................67
Assist, Hill Start ............................98
Audio Systems (Radio) ...................... .300
Auto Down Power Windows ...................58
Automatic Transaxle .........................19
Automatic Transmission ...............160, 161, 258
Adding Fluid ....................... .258, 298
Fluid And Filter Changes ...................258
Fluid Change .......................... .258
Fluid Level Check .................... .257, 258
Fluid
Type ......................... .257, 298
Special Additives ........................ .257
Auto Up Power Windows .....................58
Auxiliary Electrical Outlet (Power Outlet) ..........65
Axle Lubrication .......................... .298
Battery .............................. .85, 243
Charging System Light .....................85
Keyless Key Fob Replacement ................18
Belts, Seat ............................... .149
Body Builders Guide ..........................6
Body Mechanism Lubrication ..................247
332 INDEX
Page 339 of 347
Immobilizer (Sentry Key)......................20
Inside Rearview Mirror .......................38
Instrument Cluster ....................... .72, 91
Instrument Cluster Display Instrument Cluster Display ..................74
Instrument Panel Lens Cleaning ................287
Interior And Instrument Lights ..................43
Interior Appearance Care .....................287
Interior Lights ..............................43
Introduction ................................4
iPod Control ............................. .315
iPod/USB/MP3 Control ..................... .315
Bluetooth Streaming Audio .................315
Jack Operation ........................ .209, 261
Jump Starting ............................ .225
Key Fob Programming Additional Key Fobs .............19
Key Fob Battery Service (Remote Keyless Entry) .....18
Key Fob Programming (Remote Keyless Entry) ......19
Key-In Reminder ............................20
Key, Replacement ...........................21
Keys ....................................16 Key, Sentry (Immobilizer)
......................20
Lane Change Assist ..........................43
Lap/Shoulder Belts ........................ .108
Latches ................................. .151
Hood ..................................60
Leaks, Fluid ............................. .151
Life Of Tires ............................. .275
Light Bulbs .......................... .151, 197
Lights ............................... .41, 151
AirBag ............................ .83, 149
Brake Assist Warning ..................... .100
Brake Warning ...........................83
Bulb Replacement ....................... .197
Cruise .................................92
Engine Temperature Warning .................85
Exterior .............................. .151
Hazard Warning Flasher ...................197
Interior ................................43
Low Fuel ...............................87
Malfunction Indicator (Check Engine) ...........89
Park ............................... .42,
91
Passing ................................42
Seat Belt Reminder ........................86
Service ............................... .197
12
INDEX 337
