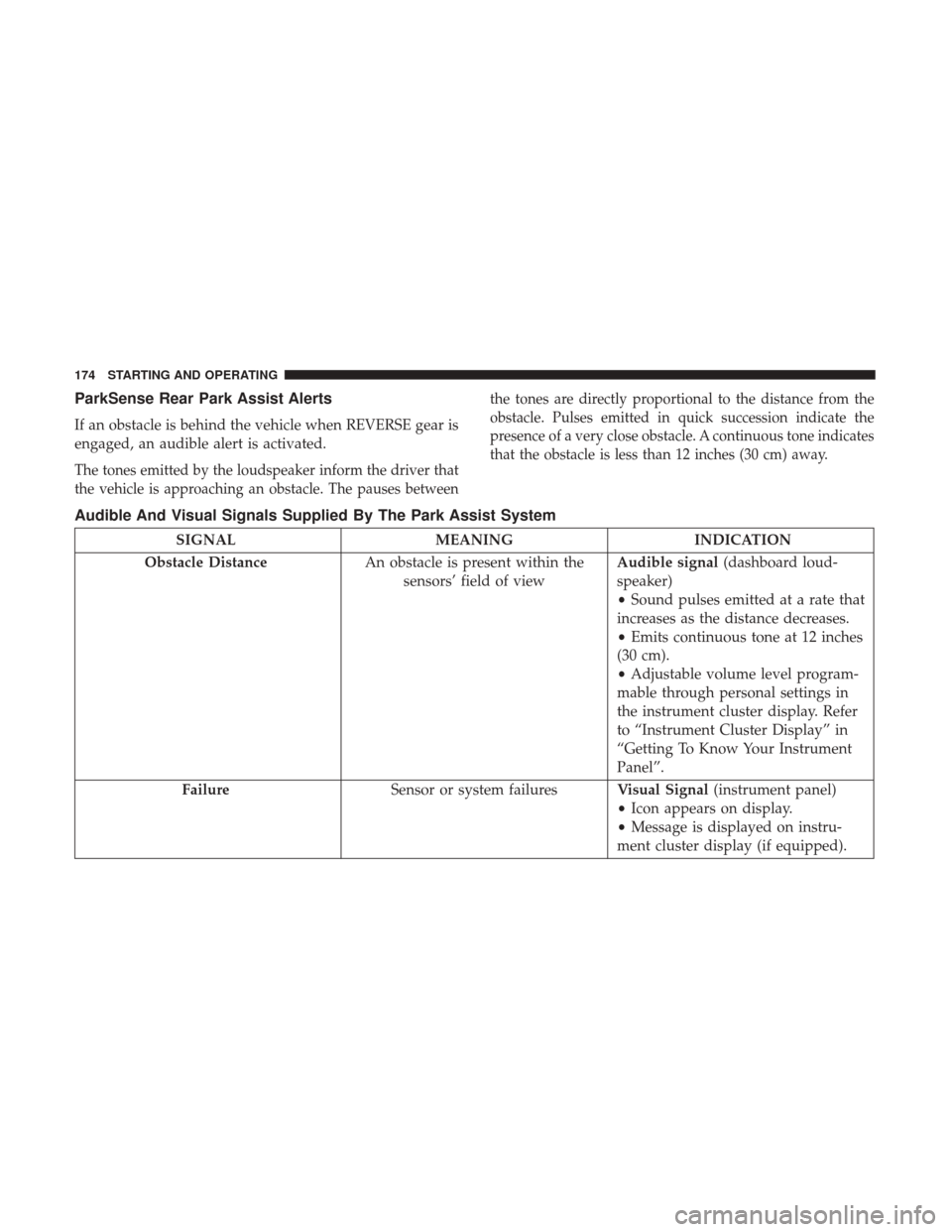

ParkSense Rear Park Assist Alerts
If an obstacle is behind the vehicle when REVERSE gear is
engaged, an audible alert is activated.
The tones emitted by the loudspeaker inform the driver that
the vehicle is approaching an obstacle. The pauses betweenthe tones are directly proportional to the distance from the
obstacle. Pulses emitted in quick succession indicate the
presence of a very close obstacle. A continuous tone indicates
that the obstacle is less than 12 inches (30 cm) away.
Audible And Visual Signals Supplied By The Park Assist System
SIGNAL
MEANINGINDICATION
Obstacle Distance An obstacle is present within the
sensors’ field of view Audible signal
(dashboard loud-
speaker)
• Sound pulses emitted at a rate that
increases as the distance decreases.
• Emits continuous tone at 12 inches
(30 cm).
• Adjustable volume level program-
mable through personal settings in
the instrument cluster display. Refer
to “Instrument Cluster Display” in
“Getting To Know Your Instrument
Panel”.
Failure Sensor or system failures Visual Signal(instrument panel)
• Icon appears on display.
• Message is displayed on instru-
ment cluster display (if equipped).
174 STARTING AND OPERATING

off and remove the Tire Service Kit, drive the vehicle 30 feet
(10 meters) back and forth, to better distribute the sealant
inside the tire.
Attach the clear flexible filling tube of the compressor
directly to the tire valve and repeat the inflation process.
When the correct pressure has been reached, start driving the
vehicle to uniformly distribute the sealant inside the tire.
After 10 minutes, stop and check the tire pressure. If the
pressure is below 19 psi (1.3 bar), do not drive the vehicle, as
the tire is too damaged, contact the nearest authorized dealer.
WARNING!
Tire Service Kit is not a permanent flat tire repair. Have
the tire inspected and repaired or replaced after using
Tire Service Kit. Do not exceed 65 mph (110 km/h) until
the tire is repaired or replaced. Failure to follow this
warning can result in injuries that are serious or fatal to
you, your passengers, and others around you. Have the
tire checked as soon as possible at an authorized dealer.
If the pressure is at 19 psi (1.3 bar) or above repeat the
inflation process to reach the correct tire pressure and
continue driving.Peel off the warning label from the bottle and place it on
the dashboard as a reminder to the driver that a tire has
been treated with Tire Service Kit.
WARNING!
The metal end fitting from Power Plug may get hot
after use, so it should be handled carefully.
NOTE: Replace the sealant canister prior to the expiration
date at your authorized dealer.
Tire Service Kit Expiration Date Location
224 IN CASE OF EMERGENCY
