3.15
Sun visor storage 2
This can be used for storing motorway
tickets, cards, etc.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Front door storage pockets 1
They can hold a 1.5-litre bottle.

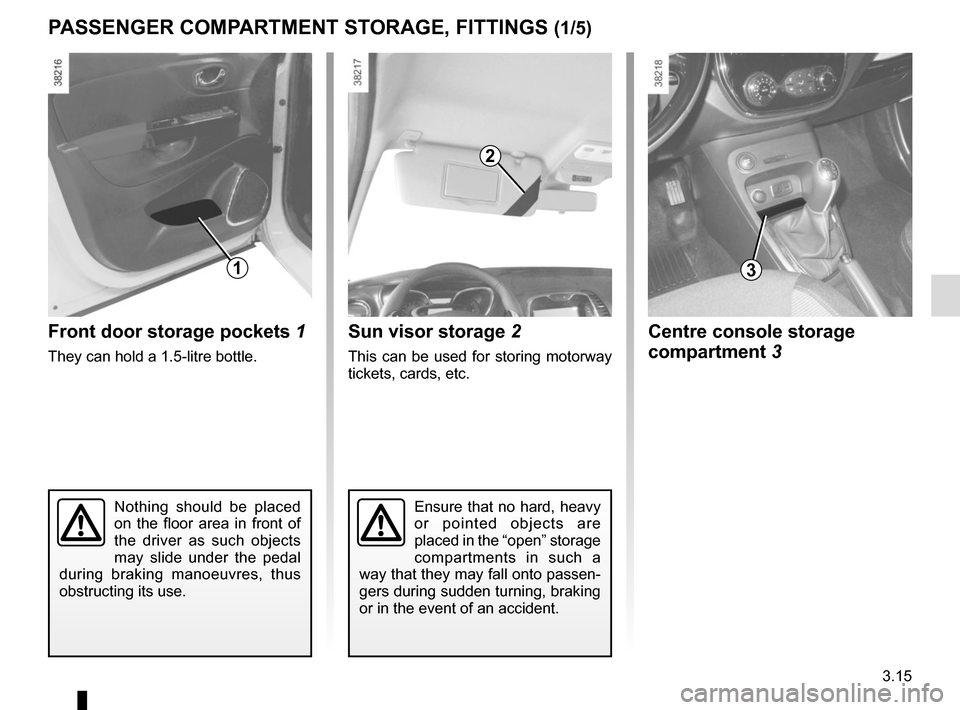

PASSENGER COMPARTMENT STORAGE, FITTINGS (1/5)
1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
2
Centre console storage
compartment 3
3
Page 142 of 244
3.16
Passenger storage drawer
To open, press the button 7 to unlock
the drawer and pull the handle 6.
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/5)
Maximum load allowed in the pas-
senger storage compartment: 6 kg,
evenly distributed.
Glovebox
To open the glovebox, lift catch 8.
8
Dashboard storage
compartment 5
To open it, press the lid 4.
5
7
6
When driving, ensure
that the storage drawer is
closed. Risk of injury.
4
Page 143 of 244
3.17

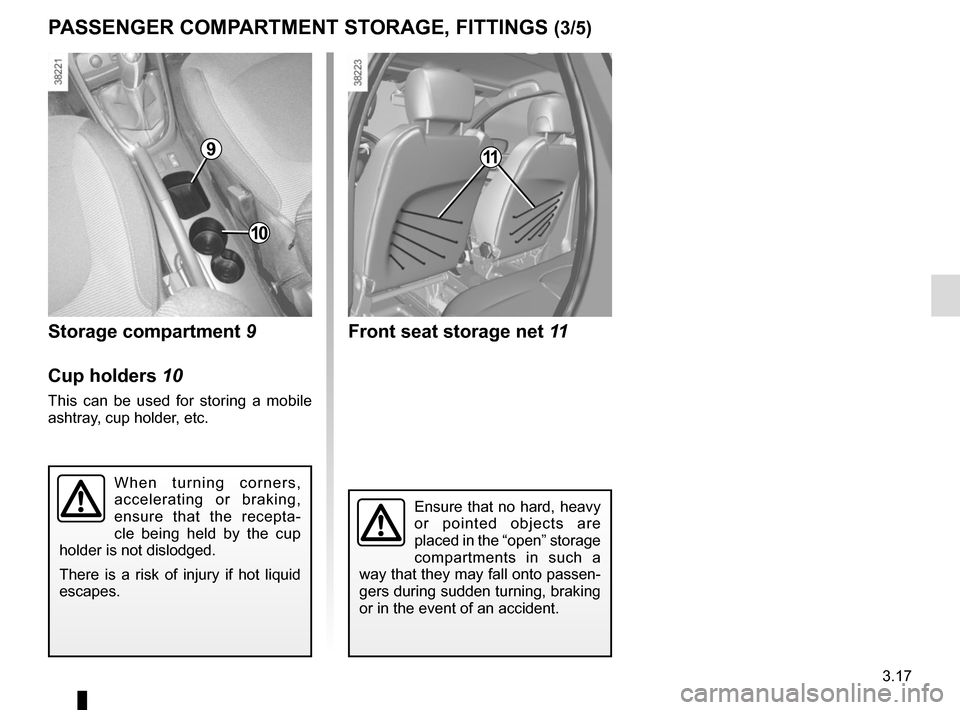

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/5)
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
Front seat storage net 11
11
Storage compartment 9
Cup holders 10
This can be used for storing a mobile
ashtray, cup holder, etc.
9
10
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Page 144 of 244
3.18
Rear door storage
compartment 14
They can hold a 0.5-litre bottle.
14

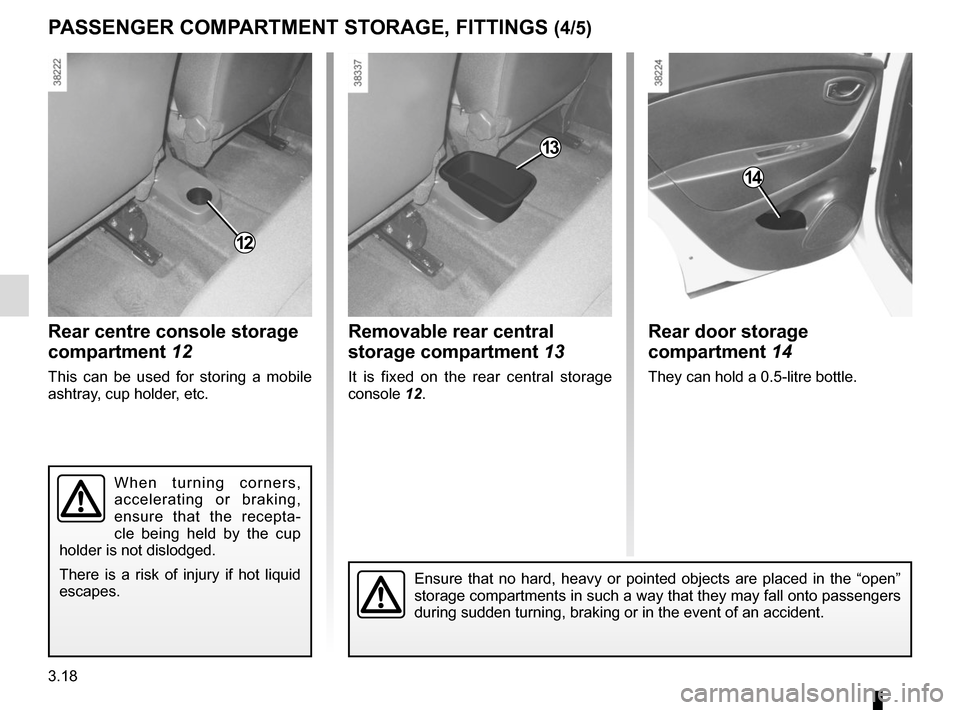

PASSENGER COMPARTMENT STORAGE, FITTINGS (4/5)
12
Rear centre console storage
compartment 12
This can be used for storing a mobile
ashtray, cup holder, etc.
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
Removable rear central
storage compartment 13
It is fixed on the rear central storage
console 12.
Ensure that no hard, heavy or pointed objects are placed in the “open\
”
storage compartments in such a way that they may fall onto passengers
during sudden turning, braking or in the event of an accident.
13
Page 145 of 244
3.19
Grab handle 15
This offers support and can be held
when the vehicle is being driven. Do
not use it for getting into or out of the
vehicle.

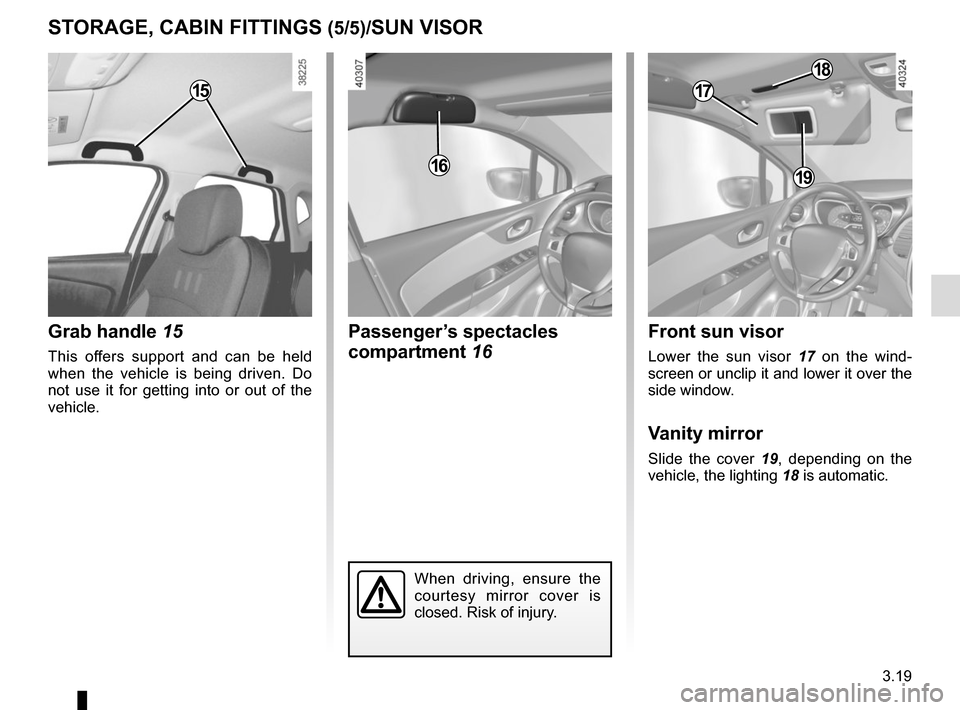

STORAGE, CABIN FITTINGS (5/5)/SUN VISOR
Front sun visor
Lower the sun visor 17 on the wind-
screen or unclip it and lower it over the
side window.
Vanity mirror
Slide the cover 19, depending on the
vehicle, the lighting 18 is automatic.
17
19
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
15
18
Passenger’s spectacles
compartment 16
16
Page 146 of 244
3.20
Ashtray
It can be housed in either position 1
or 3.
Cigarette lighter 2
With the ignition on, push in the ciga-
rette lighter 2. It will spring back with a click when it is ready. Pull it out to use.
After use, replace it without pushing it
all the way in.

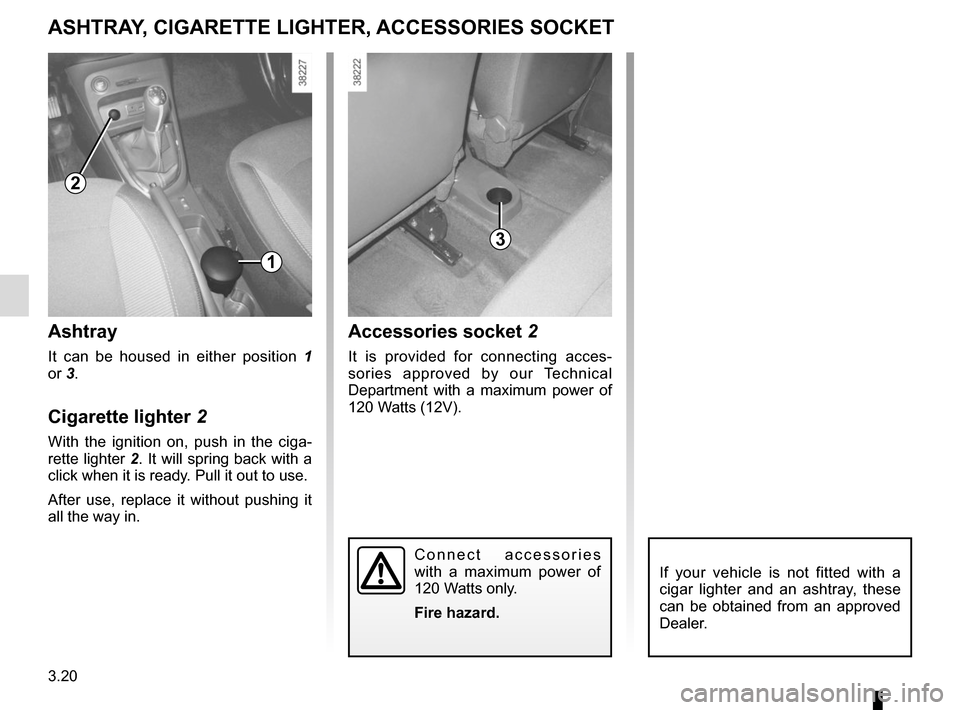

ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET
3
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Accessories socket 2
It is provided for connecting acces-
sories approved by our Technical
Department with a maximum power of
120 Watts (12V).
1
2
Page 147 of 244
3.21
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
To raise the headrest
Raise the headrest as far as it will go,
then press button A and remove the
headrest.
If necessary, fold the seatback down
to take out the headrest (see the infor-
mation on “Sliding rear bench seat” in
Section 3).
To refit the headrest
Enter the rods in their housing and
push down the headrest until it locks to
use it in the high position. Check that it
is correctly locked.
Position for use
Raise the headrest as far as possible to
use it in the high position. Check that it
is correctly locked.
Storage position
Press button A and lower the headrest
completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
REAR HEAD RESTS
A
Page 148 of 244
3.22

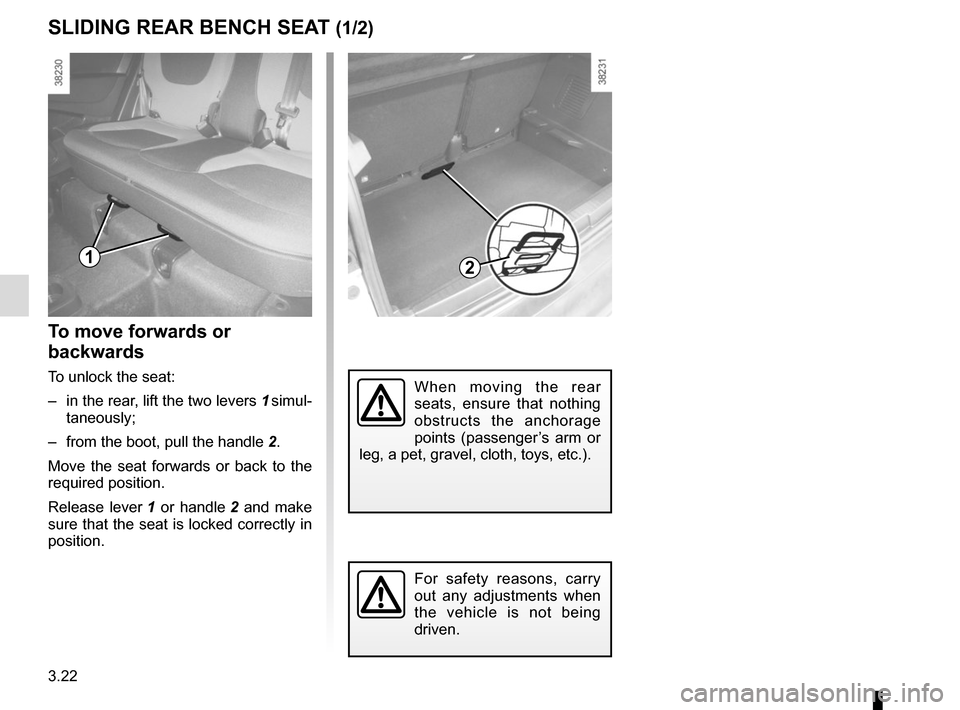

SLIDING REAR BENCH SEAT (1/2)
To move forwards or
backwards
To unlock the seat:
– in the rear, lift the two levers 1 simul-taneously;
– from the boot, pull the handle 2.
Move the seat forwards or back to the
required position.
Release lever 1 or handle 2 and make
sure that the seat is locked correctly in
position.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
1
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
2
Page 149 of 244
3.23
B
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the headrests fully.
Place the seat belts in their guides A.
Lift the handle 3 and lower the seat-
back B.
Before moving the seatback, put
the seat belt in belt guide A to avoid
damaging it.
To replace the seatback, proceed in
the reverse order to removal.
Refit the seatback and click it back into
place.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
The configuration of the two-seat
bench with the small seatback B
pulled down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
SLIDING REAR BENCH SEAT (2/2)
A
3
Page 150 of 244
3.24
Opening the doors manually
from the inside
If it is impossible to unlock the tailgate,
it can be done manually from inside:
– access the luggage compartment by tilting the rear bench seatback(s),
– insert a pencil or similar object in recess 3 and slide the unit as shown
in the illustration;
– push the tailgate to open it.

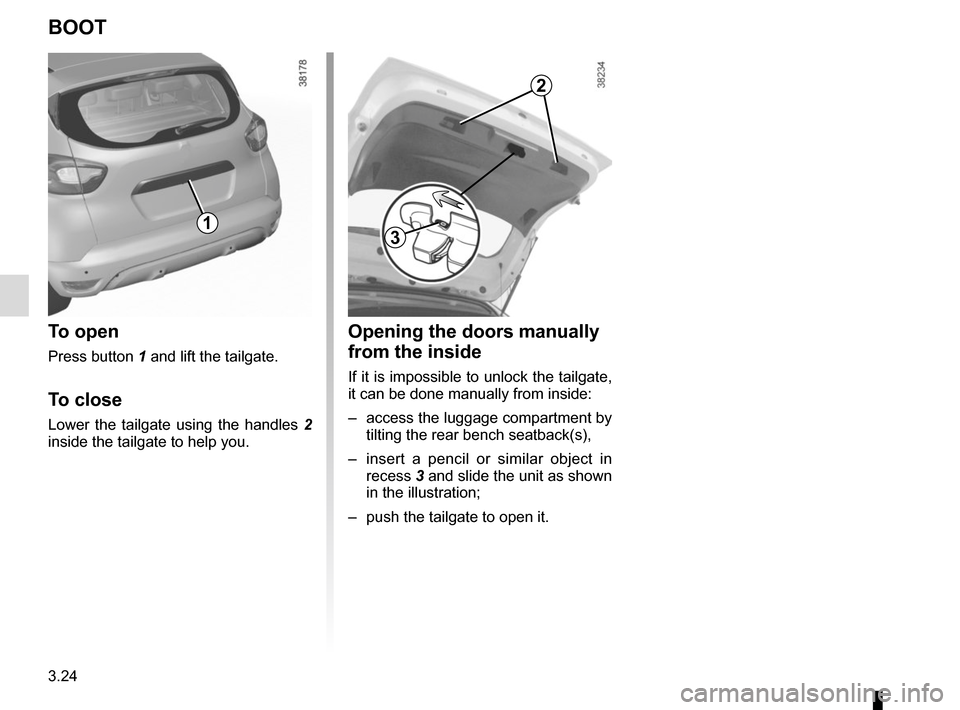

BOOT
To open
Press button 1 and lift the tailgate.
To close
Lower the tailgate using the handles 2
inside the tailgate to help you.
13
2
