RENAULT CAPTUR 2014 1.G Owners Manual 5.21
Clip 1
Remove the fuse using tweezers  1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.F

Page 202 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.22
FUSES (2/3)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
1
8
15
24
2
9
16
25
3
10
17
26
4
11
18
27
5
12
19
2829
6
13
2022
30
7
14
2123
3231
33
34
35
3

Page 203 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.23

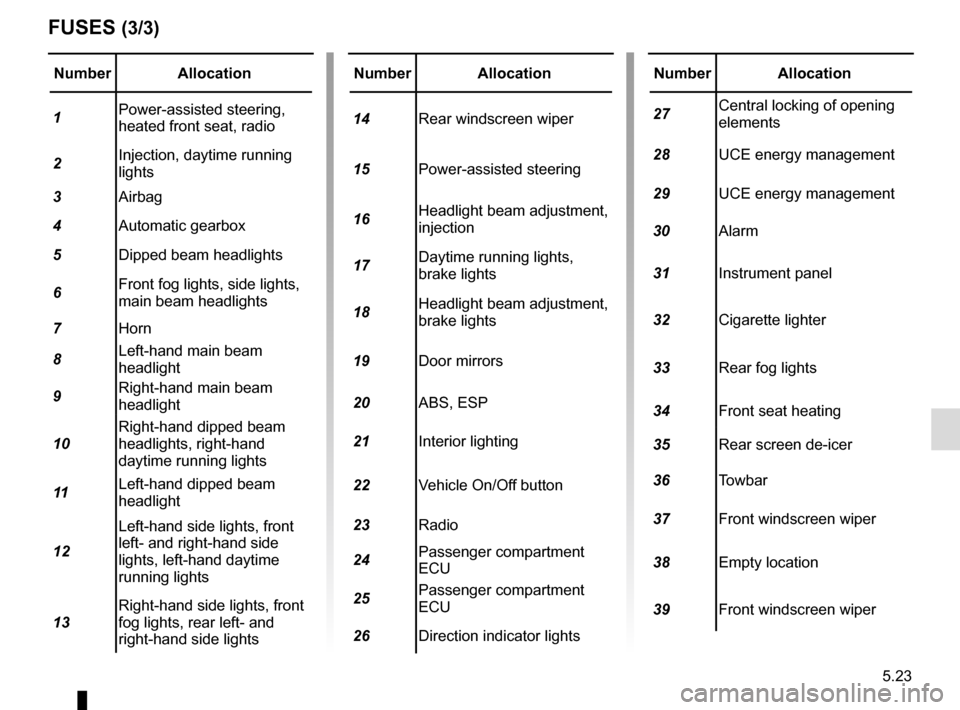

Number Allocation
1 Power-assisted steering,
heated front seat, radio
2 Injection, daytime running
lights
3 Airbag
4 Automatic gearbox
5 Dipped beam headlights
6 Front fog lights, side lights,

Page 204 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.24
BATTERY: breakdown recovery (1/2)
To avoid all risk of sparks:
–  Ensure that any electrical consumers (courtesy lights, etc.) are switched
off before disconnecting or recon-
necting the batte

Page 205 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.25
BATTERY: breakdown recovery (2/2)
Depending on the vehicle, unclip the
battery cover.
Connect the positive cable A to the
support on the (+) terminal 1, then to the
(+) terminal 4 of the batt

Page 206 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.26
Radio location 1
Unclip the blanking cover. The aerial, +
and – supply and speaker wire connec-
tions are located behind it.
Door speakers 2
To install any equipment, please con-
sult an autho

Page 207 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.27
ACCESSORIES
Electrical and electronic accessoriesBefore installing this type of accessory (particularly for transmitters\
/receivers: frequency bandwidth, power level, po-
sition of the aerial, e

Page 208 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.28
Lower tab 3, by pressing on either
side A.
Then push the blade forwards  B, to re-
lease hook  4.
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the bl

Page 209 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.29
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Rear screen wiper blade 5
–  With the ignition off, lift wip

Page 210 of 244

RENAULT CAPTUR 2014 1.G Owners Manual 5.30
TOWING: breakdown recovery (1/2)
Before towing, unlock the steering
column: with the clutch depressed,
engage first gear  (lever in position  N
or  R for vehicles with automatic gear-
boxes),
