Page 121 of 246

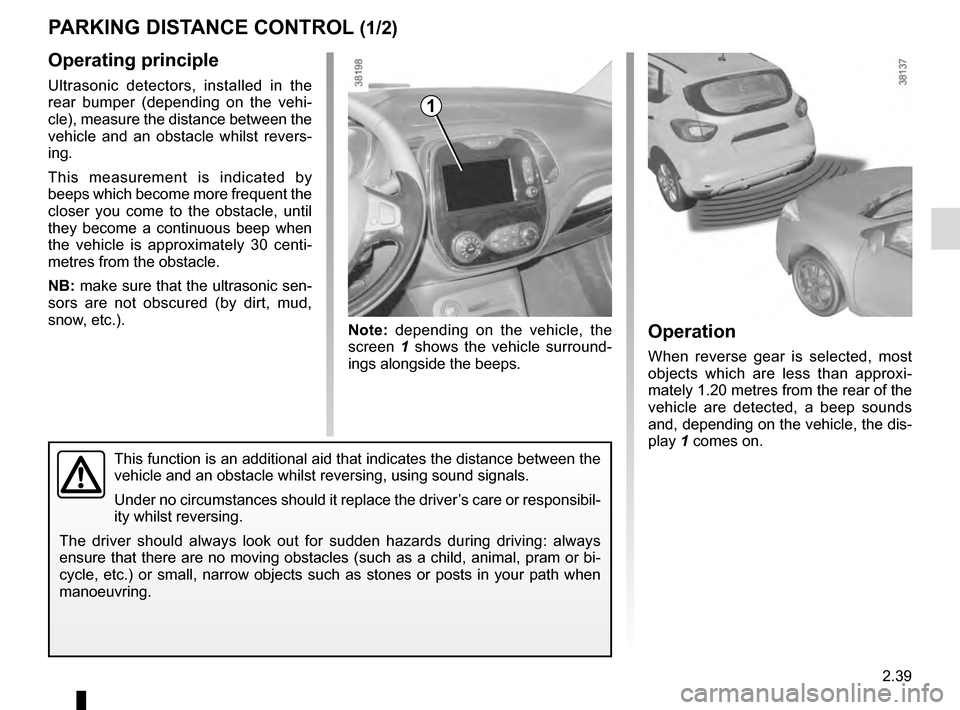

RENAULT CAPTUR 2016 1.G Owners Manual 2.39
Operating principle
Ultrasonic detectors, installed in the
rear bumper (depending on the vehi-
cle), measure the distance between the
vehicle and an obstacle whilst revers-
ing.
This measuremen

Page 122 of 246

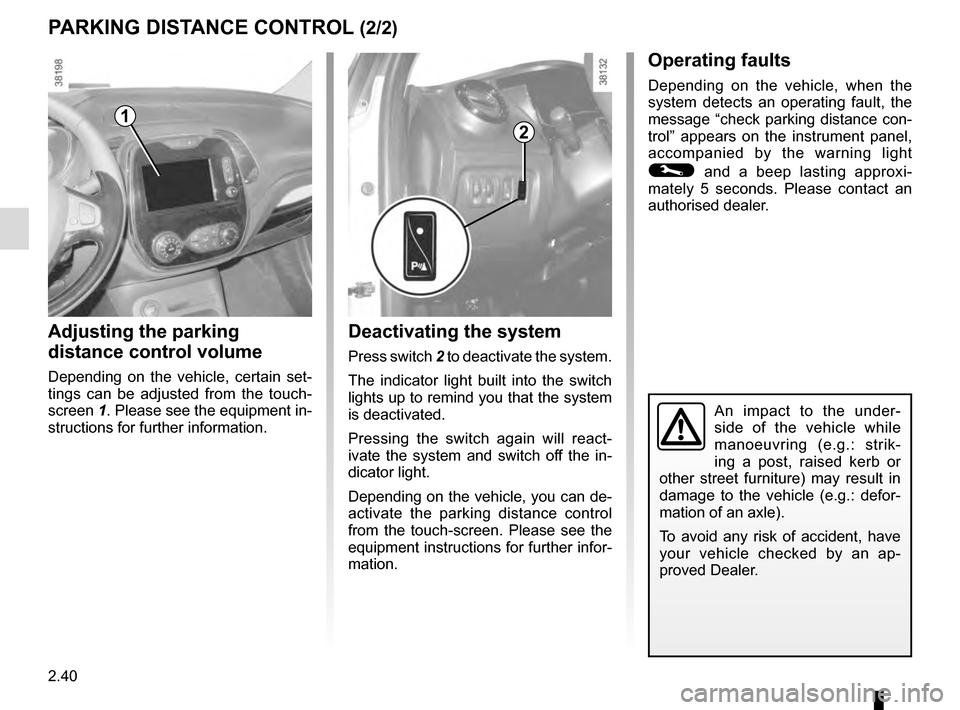

RENAULT CAPTUR 2016 1.G Owners Manual 2.40
Deactivating the system
Press switch 2 to deactivate the system.
The indicator light built into the switch
lights up to remind you that the system
is deactivated.
Pressing the switch again will

Page 123 of 246

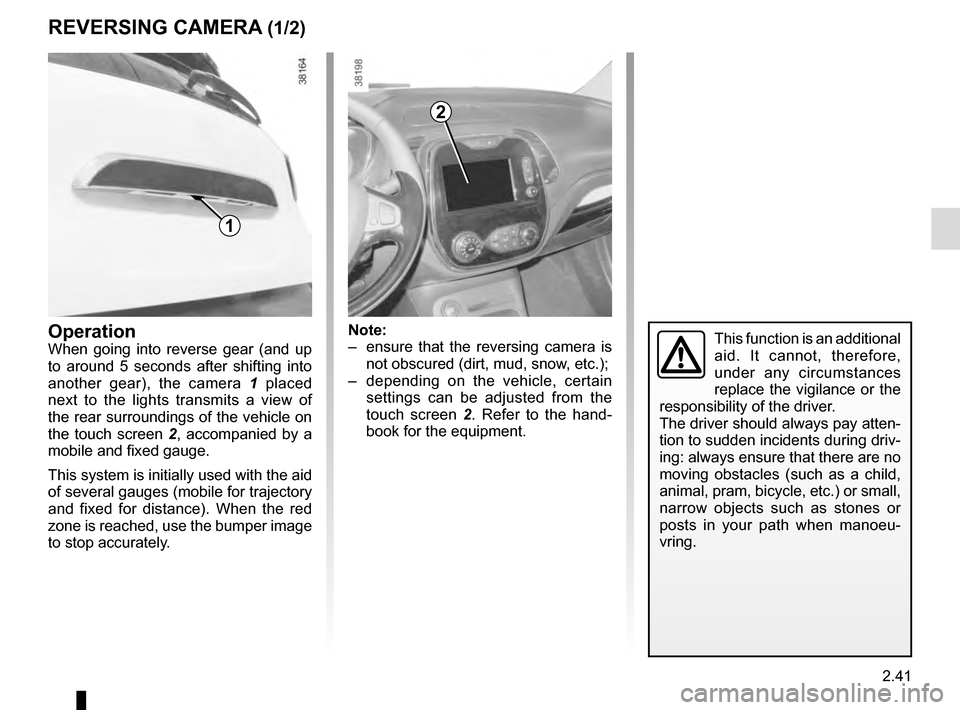

RENAULT CAPTUR 2016 1.G Owners Manual 2.41
REVERSING CAMERA (1/2)
2
1
Note:
–  ensure that the reversing camera is not obscured (dirt, mud, snow, etc.);
–  depending on the vehicle, certain  settings can be adjusted from the
touch sc

Page 124 of 246

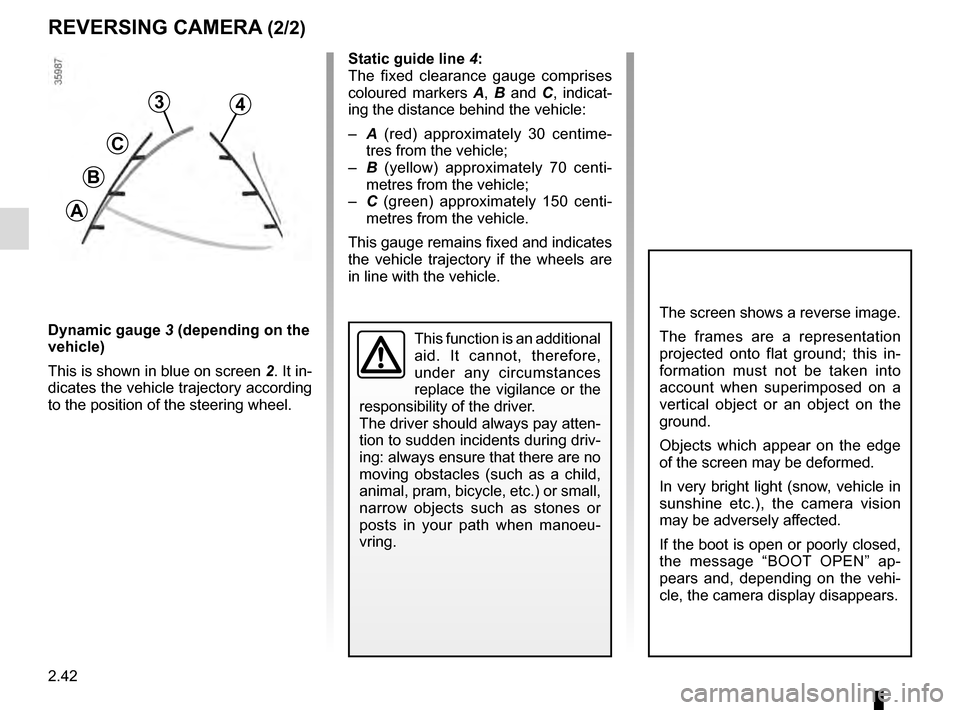

RENAULT CAPTUR 2016 1.G Owners Manual 2.42
REVERSING CAMERA (2/2)
The screen shows a reverse image.
The frames are a representation
projected onto flat ground; this in-
formation must not be taken into
account when superimposed on a
ve

Page 125 of 246

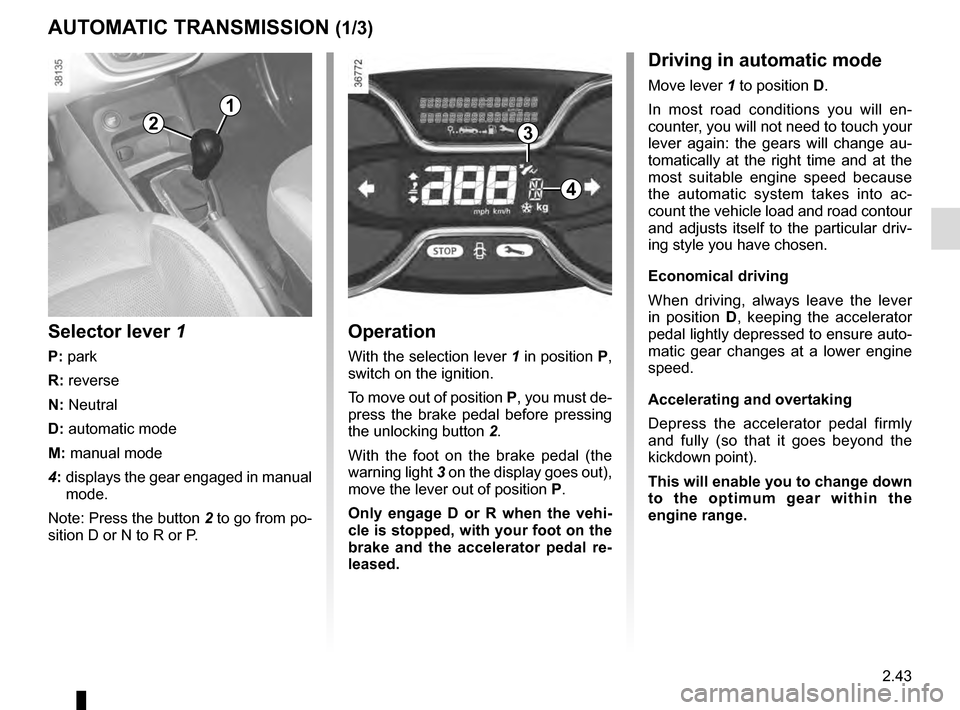

RENAULT CAPTUR 2016 1.G Owners Manual 2.43
AUTOMATIC TRANSMISSION (1/3)
Operation
With the selection lever 1 in position P,
switch on the ignition.
To move out of position P, you must de-
press the brake pedal before pressing
the unlock

Page 126 of 246

RENAULT CAPTUR 2016 1.G Owners Manual 2.44
AUTOMATIC TRANSMISSION (2/3)
Special cases
In certain driving conditions (for exam-
ple, engine protection, operation of the
Electronic Stability Programme: the au-
tomatic system may change gea

Page 127 of 246

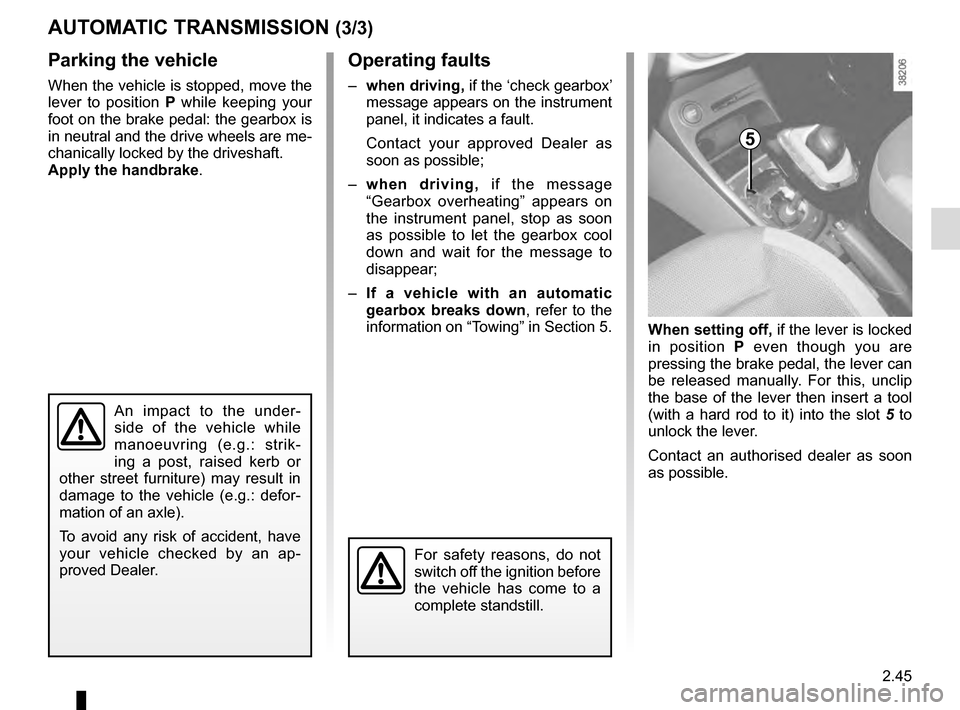

RENAULT CAPTUR 2016 1.G Owners Manual 2.45
AUTOMATIC TRANSMISSION (3/3)
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive w

Page 128 of 246

RENAULT CAPTUR 2016 1.G Owners Manual 2.46

Page 129 of 246

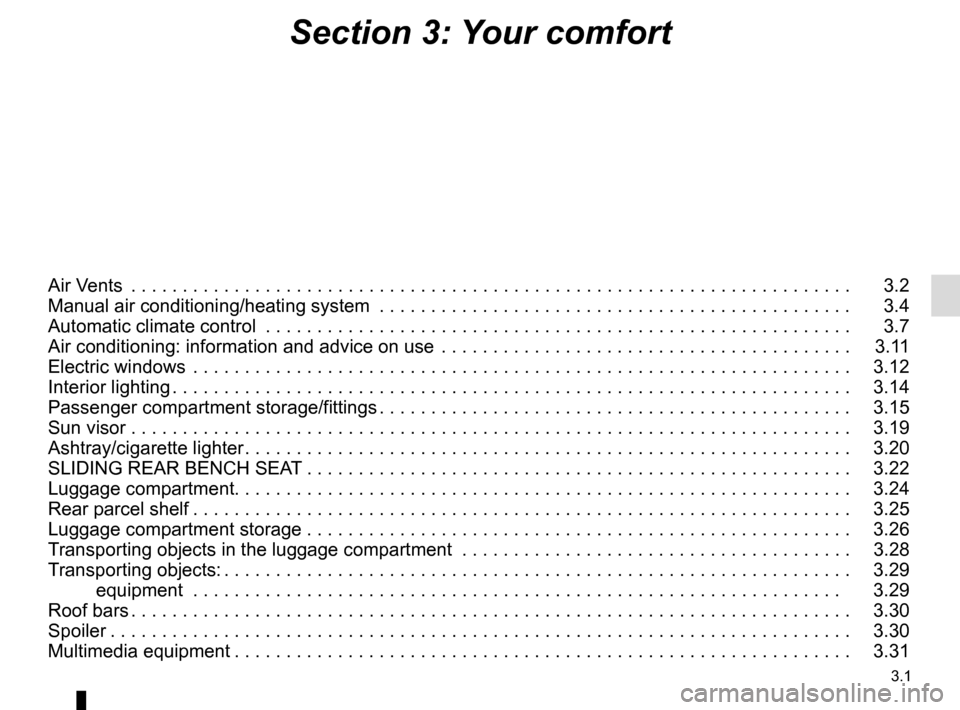

RENAULT CAPTUR 2016 1.G Owners Manual 3.1
Section 3: Your comfort
Air Vents  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   3.2
Manual air co

Page 130 of 246

RENAULT CAPTUR 2016 1.G Owners Manual 3.2
AIR VENTS, air outlets (1/2)
3
8
5612
7
 1   Left-hand side window demister
outlet.
  2  Left-hand air vent.
  3   Windscreen demisting vents.
  4  Centre air vents.
5  Right-hand air vent.
  6
