5.11
Tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition. You
must make sure that your tyres con-
form to local road traffic regulations.When the tyre tread has been worn
to the level of the warning strips, they
become visible
2: it is then neces-
sary to replace your tyres because the
tread rubber is now only 1.6 mm deep
at most, resulting in poor road hold-
ing on wet roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips
1 which are indicators moulded into
the tread at several points.
TYRES (1/3)
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
1
2
Page 202 of 258

5.12
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, assume an in-
crease of 0.2 to 0.3 bar (or 3 PSI).
Never deflate a hot tyre.
TYRES (2/3)
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa- tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi-
tions of use (refer to the label affixed
to the edge of the driver’s door).
Tyre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af-
fixed to the edge of the driver’s door). Vehicle fitted with a tyre pressure
loss warning system
If under-inflated (puncture, low pres-
sure etc.), the warning light
on
the instrument panel comes on. See
“Tyre pressure loss warning” in
Section 2.
Emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in-
structions on “Changing a wheel” in
Section 5.
Changing wheels around
This practice is not recommended.
Page 203 of 258

5.13
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
TYRES (3/3)
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning : These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces-
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
17” wheels cannot be
fitted with chains.
If you wish to fit snow
chains, you must use spe-
cial equipment .
Consult an approved Dealer.
Fitting new tyres
For your safety, please re-
spect the speed limit.
When they need to be re-
placed, only tyres of the
same make, size, type and profile
should be used on a single axle.
They must: either have a load ca-
pacity and a speed capacity at
least equal to the original tyres,
or correspond to those recom-
mended by your authorised
dealer.
Failure to heed these instructions
could endanger your safety and
affect your vehicle’s roadworthi-
ness.
Risk of loss of control of the ve-
hicle.
Page 204 of 258

5.14
Direction indicator lights
Turn the bulb holder 1 a quarter of a
turn and take out the bulb.
Bulb type: PY21W.
Once the bulb has been replaced,
check that it is properly secured.
Dipped beam headlight
To change the bulb:
– remove cover A;
– disconnect the wiring 3 (black lead);
– unclip the spring 2 and remove the
bulb.
Bulb type: H1.
FRONT HEADLIGHTS: changing bulbs (1/3)
Please note when work-
ing close to the engine that
it may be hot. The engine
cooling fan may also start
at any moment. The
warning
light in the engine compartment re-
minds you of this.
Risk of injury.
A
12
3
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved dealer.
Page 205 of 258

5.15
Main beam headlight
To change the bulb:
– remove cover B;
– disconnect the wiring 5 (black lead);
– unclip the spring 4 and remove the
bulb.
Bulb type: H1.
It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
FRONT HEADLIGHTS: changing bulbs (2/3)
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved dealer.
B
Please note when work-
ing close to the engine that
it may be hot. The engine
cooling fan may also start
at any moment. The
warning
light in the engine compartment re-
minds you of this.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).5
4
Note: the side light bulb under the
cover B is deactivated. There is no
need to change it.
Page 206 of 258

5.16
LED daytime running lights/
side lights 8
Please see an authorised dealer.
Direction indicators/dipped
beam headlights/LED main
beam headlights 6
(depending on vehicle)
Consult an approved dealer
LED front fog lights 7
Please see an authorised dealer.
FRONT HEADLIGHTS: changing bulbs (3/3)
6
78
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
Page 207 of 258

5.17
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/3)
Brake lights and direction indicator
lights
Open the boot lid and remove screws 1.Pull on the outside A
of the light and
remove the rear light unit.
Remove the bulb holder by releasing
clips 2, then clips 3.
Change the bulb.
Refit the bulb holder and push the unit
in fully until it locks in place.
Check that the light is properly locked
in position.
Tighten screws 1. 4
Direction indicator lights
Bulb type: PY21W.
5 Brake light
Bulb type: P21W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
A
2
3
4
5

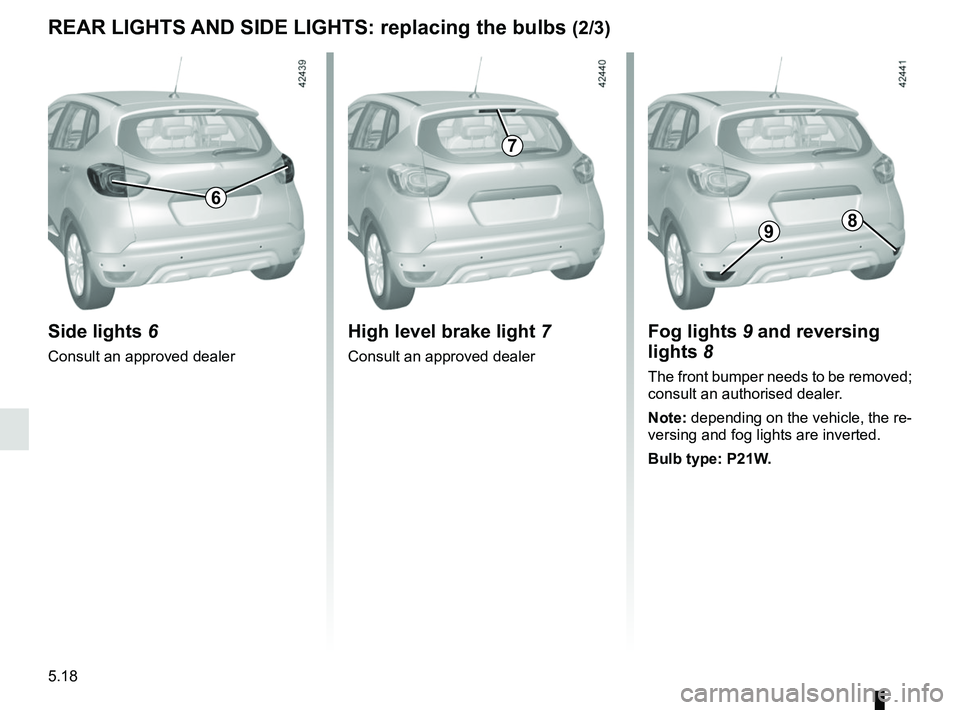

Page 208 of 258

5.18
Side lights 6
Consult an approved dealer
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/3)
High level brake light 7
Consult an approved dealer
Fog lights 9 and reversing
lights 8
The front bumper needs to be removed;
consult an authorised dealer.
Note: depending on the vehicle, the re-
versing and fog lights are inverted.
Bulb type: P21W.
6
7
98
Page 209 of 258

5.19
Number plate lights 10
– Unclip light 10 by pressing tab 11 ;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/3)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side repeaters with bulbs 12
– Unclip the repeater 12 (using a
flat-blade screwdriver type tool po-
sitioned at B to tilt the repeater to-
wards the front of the vehicle);
– turn the bulb holder a quarter of a turn and take out the bulb.
Bulb type: WY5W.
LED side repeaters(depending on vehicle)
Consult an approved dealer.
1211
10
B
Page 210 of 258

5.20
Reading light/courtesy light
assembly 1
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb concerned.
Type of bulb: W5W.
LED reading lights 2(depending on vehicle)
Consult an approved dealer
INTERIOR LIGHTING: changing bulbs (1/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
Courtesy light 3Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb concerned.
Type of bulb: W5W.
LED reading light/courtesy
light assembly 4
(depending on vehicle)
Consult an approved dealer
2
3
4
