Page 41 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page41
1.33

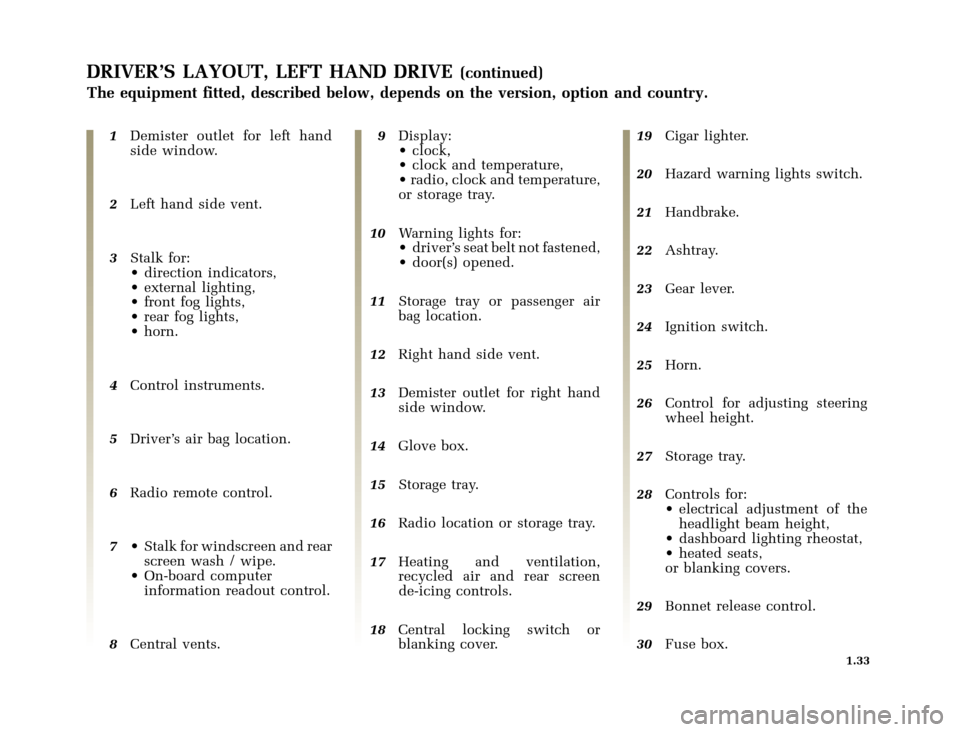

DRIVER’S LAYOUT, LEFT HAND DRIVE(continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left hand
side window.
2Left hand side vent.
3Stalk for:
• direction indicators,
• external lighting,
• front fog lights,
• rear fog lights,
• horn.
4Control instruments.
5Driver’s air bag location.
6Radio remote control.
7• Stalk for windscreen and rear
screen wash / wipe.
• On-board computer
information readout control.
8Central vents.9Display:
• clock,
• clock and temperature,
• radio, clock and temperature,
or storage tray.
10Warning lights for:
• driver’s seat belt not fastened,
• door(s) opened.
11Storage tray or passenger air
bag location.
12Right hand side vent.
13Demister outlet for right hand
side window.
14Glove box.
15Storage tray.
16Radio location or storage tray.
17Heating and ventilation,
recycled air and rear screen
de-icing controls.
18Central locking switch or
blanking cover.19Cigar lighter.
20Hazard warning lights switch.
21Handbrake.
22Ashtray.
23Gear lever.
24Ignition switch.
25Horn.
26Control for adjusting steering
wheel height.
27Storage tray.
28Controls for:
• electrical adjustment of the
headlight beam height,
• dashboard lighting rheostat,
• heated seats,
or blanking covers.
29Bonnet release control.
30Fuse box.
Page 43 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page43
1.35

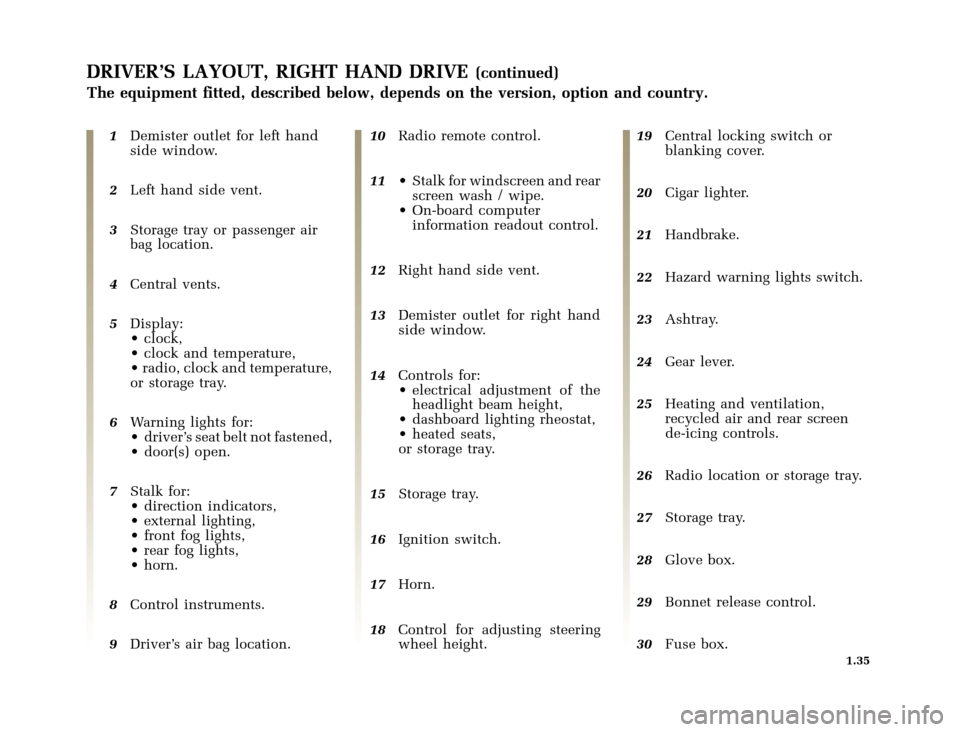

DRIVER’S LAYOUT, RIGHT HAND DRIVE(continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left hand
side window.
2Left hand side vent.
3Storage tray or passenger air
bag location.
4Central vents.
5Display:
• clock,
• clock and temperature,
• radio, clock and temperature,
or storage tray.
6Warning lights for:
• driver’s seat belt not fastened,
• door(s) open.
7Stalk for:
• direction indicators,
• external lighting,
• front fog lights,
• rear fog lights,
• horn.
8Control instruments.
9Driver’s air bag location.10Radio remote control.
11• Stalk for windscreen and rear
screen wash / wipe.
• On-board computer
information readout control.
12Right hand side vent.
13Demister outlet for right hand
side window.
14Controls for:
• electrical adjustment of the
headlight beam height,
• dashboard lighting rheostat,
• heated seats,
or storage tray.
15Storage tray.
16Ignition switch.
17Horn.
18Control for adjusting steering
wheel height.19Central locking switch or
blanking cover.
20Cigar lighter.
21Handbrake.
22Hazard warning lights switch.
23Ashtray.
24Gear lever.
25Heating and ventilation,
recycled air and rear screen
de-icing controls.
26Radio location or storage tray.
27Storage tray.
28Glove box.
29Bonnet release control.
30Fuse box.
