check engine light RENAULT CLIO 2009 X85 / 3.G Owner's Manual

Downloaded from www.Manualslib.com manuals search engine
bonnet...................................................(up to the end of the DU)
4.2
ENG_UD14669_3Capot moteur (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_4
Closing the bonnet
Before closing the bonnet, make sure that nothing has been left in the engine compartment.To close the bonnet, replace stay 4 in holder 5. Hold the middle of the bonnet and guide it down to one foot (30 cm) above the closed position, then re- lease. It will latch automatically under its own weight.
Bonnet
To open the bonnet, pull the handle 1.
BONNET
1
2
The engine may be hot when carrying out operations in close proximity. In addition, the engine cooling fan can come on at any moment.
Risk of injury.
3
4
5
Unlocking the bonnet catch
To open, push tab 2 to the left as you open the bonnet.
Lift the bonnet and release stay 4 from its holder 5. For your own safety, it is very important to fix the stay into re- tainer 3 in the bonnet.
In the event of even a slight impact involving the radia- tor grille or bonnet, have the bonnet lock checked by an approved Dealer as soon as pos- sible.
2
Ensure that the bonnet is properly locked.Check that nothing is pre- venting the catch from lock- ing (gravel, cloth, etc.).

Downloaded from www.Manualslib.com manuals search engine
maintenance:mechanical ......................................(up to the end of the DU)engine oil level ......................................(up to the end of the DU)engine oil ..............................................(up to the end of the DU)
4.3
ENG_UD12585_2Niveau huile moteur/Vidange moteur (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_4
Variant 1Variant 2Interpretation of messages
25302Message 1“Oil level OK”
The message “oil” is
displayed, alternating
with dashes
No displayMessage 2“Adjust oil level”
If the level is at minimum: depending on the vehicle, the message “top up oil level” or “oil” appears on the display, al-
ternating with dashes and the © warning light on the instrument panel comes on: message 2.
It is vital to top up the oil as soon as possible.
Engine oil level: general information
The display only warns the driver if the oil level is at the minimum level. It does not inform the driver that the oil level has exceeded the maximum level as this can only be measured
using a dipstick.
Minimum oil level warning on instru- ment panel
When the ignition is switched on, if the level is above the minimum level, the message “oil ok” or “oil level correct” is shown on the display for approximately 15 seconds.For more information, press the trip computer readout button: the message
“oil level” will be shown on the display with squares which are replaced by dashes when the level drops.
To advance to trip computer reading, press the button again.
It is normal for an engine to use oil for lubrication and cooling of moving parts and it is normal to top up the level be- tween oil changes.
However, contact your approved Dealer if more than 0.5 litres is being consumed every 600 miles (1,000 km) after the running in period.
Check the oil level at regular inter- vals and before any long journey to avoid the risk of damaging your engine.
Reading the oil level
The oil level should be read with the ve- hicle on level ground, after the engine has been switched off for some time.
The dipstick must be used to read the exact oil level and make sure that the maximum level has not been exceeded (risk of engine damage). Refer to the following pages.
The instrument panel display only alerts the driver when the oil level is at its min- imum.
ENGINE OIL LEVEL: general information (1/2)

Downloaded from www.Manualslib.com manuals search engine
brake fluid ..............................................................(current page)levels:brake fluid ........................................................(current page)tanks and reservoirsbrake fluid ........................................................(current page)
4.8
ENG_UD14670_2Niveau / Filtres (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_4
JauneNoirNoir texte
brake fluid
Level 1
It is normal for the level to drop as the brake shoes become worn, but it must never drop lower than the “MINI" warn- ing line.
If you wish to check the disc and drum wear yourself, you should obtain the document explaining the checking pro- cedure from the manufacturer ’s net- work or web site.
Topping up
After any operation on the hydraulic cir- cuit, a specialist must replace the brake fluid.
Only use fluids approved by our Technical Department (and taken from a sealed container).
Replacement interval
Refer to the Maintenance Service Booklet for your vehicle.
Brake fluid level
The level should be read with the engine switched off and on level ground.
This should be checked frequently, and immediately if you notice even the slightest loss in braking efficiency.
LEVELS (2/3)
1
The engine may be hot when carrying out opera- tions in close proximity. In addition, the engine cooling fan can come on at any moment.
Risk of injury.
Consult your approved dealer at once if you notice an abnormal or repeated drop in any of the fluid levels.

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

4.13
ENG_UD11386_4Entretien de la carrosserie (X45 - H45 - X85 - B85 - C85 - S85 - K85 - \
X95 - B95 - D95 - Renault)ENG_NU_853-3_BCSK85_Renault_4

– Before going through a roller type car wash, return the windscreen wiper stalk to the Park position (refer to the information on the “Windscreen wash/wipe” in Section 1). Check the mounting of external accessories, additional lights and mirrors, and ensure that the wiper blades are se- cured with adhesive tape.
Remove the radio aerial mast if your vehicle is fitted with this equipment.
Remember to remove the tape and refit the antenna after washing.
– Spray mechanical components,
hinges, etc. with products approved by our Technical Department to protect them after they have been cleaned.
BODyWORK MAINTENANCE (2/2)
We have selected special products to care for your vehicle and you can obtain these from the manufactur- er’s accessory outlets.
– Observe the vehicle stopping dis- tances when driving on gravelled surfaces to prevent paint damage.
– Repair, or have repaired quickly,
areas where the paint has been dam- aged, to prevent corrosion spread- ing.
– Remember to visit the body shop
periodically if your vehicle has an anti-corrosion warranty. Refer to the Maintenance Service Booklet.
– Respect local regulations about

washing vehicles (e.g. do not wash your vehicle on a public highway).
you should
– Wash your car frequently, with the engine off, with cleaning products recommended by our Technical Department (never use abrasive products) and be sure to jet-rinse off:
– spots of tree resin and industrial
grime;
–
bird droppings, which cause a chemical reaction with the paint that rapidly discolours paint- work and may even cause the paint to peel off; Wash the vehicle immediately to remove these marks since it is impossible to remove them by polishing;
– salt, particularly in the wheel
arches and underneath the body after driving in areas where the roads have been gritted;
– mud in the wheel arches and un
- derneath the body which form damp patches.

Downloaded from www.Manualslib.com manuals search engine
changing a wheel..................................(up to the end of the DU)lifting the vehiclechanging a wheel ............................(up to the end of the DU)
5.11
ENG_UD10600_1Changement de roue (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5
Turn it a few times to lift the wheel off the ground.Undo the bolts and take off the wheel.Fit the emergency spare wheel on the central hub and turn it to locate the mounting holes in the wheel and the hub.Tighten the bolts and lower the jack.With the wheel on the ground, fully tighten the bolts and check they are correctly tightened as quickly as possi- ble (tightening torque 110 Nm).
Changing a wheel
If you have a puncture, re- place the wheel as soon as possible.
A tyre which has been punc- tured should always be inspected (and repaired, where possible) by a specialist.
Switch on the hazard warn- ing lights.
Keep the vehicle away from traffic and on a level sur- face where it will not slip (if neces- sary, place a solid support under the jack base).
Apply the hand brake and engage a gear (first or reverse, or P for auto- matic transmissions).
Ask all the passengers to leave the vehicle and keep them away from traffic.
CHANGING A WHEEL
A
5
4
3
2
1
Anti-theft bolt
If you use anti-theft bolts, fit these nearest the valve (otherwise it may not be possible to fit the wheel trim).
If necessary, remove the wheel trim.Depending on the vehicle, position adapter 1 on the wheel bolt.Use the wheelbrace to slacken off the
wheel bolts 2. Position it so as to be able to push from above.
Crank up jack 3 by hand to position the
jack head against jacking point 4 clos- est to the wheel concerned and, de- pending on the vehicle, marked by an
arrow 5.Continue to crank the jack so that the baseplate is correctly positioned (it should be underneath the vehicle and
aligned with jack head A).

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

5.17
ENG_UD14672_3Projecteurs avant avec lampes halogènes : remplacement des lampes (X\
85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5

Additional cornering light
Due to their reduced accessibility (sometimes requiring the removal of bodywork or mechanical components),
we advise you to have your bulbs 7 re- placed by an approved Dealer.
Bulb type: H7.
Front side light
Remove cover E , then pull bulb holder 6 to access the bulb.
Bulb type: W5W.
Direction indicator lights
Turn bulb holder F a quarter of a turn and take out the bulb.
Bulb type: orange PY21 W.
Once the bulb has been replaced, check that it is properly secured.
The bulbs are under pres- sure and can break when replaced.
Risk of injury.
HALOGEN HEADLIGHTS: changing bulbs (3/3)
The engine may be hot when carrying out opera- tions in close proximity. In addition, the engine cooling fan can come on at any moment.
Risk of injury.
To comply with local legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from an ap- proved dealer.
E
6
F
7

Downloaded from www.Manualslib.com manuals search engine
5.28
ENG_UD12592_2Batterie : dépannage (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5

JauneNoirNoir texte

Depending on the battery, reposition
block A in the runners and slide it until it
is positioned between the two marks 1.
Pull block
A slightly to the right to clip it
on pin E, press, and check that it locks properly.
Refitting the battery covers
– position cover C in its hinges and clip it in place;
– then position cover
B in its hinges and clip it in place;
Check that the two covers
B and C are correctly locked.
Access to the battery
Depending on the vehicle, in the engine compartment:
– lift block
A to unclip it, then, while
holding pipe D , slide block A towards you;
– unclip cover
B and remove it;
– then unclip cover
C and remove it.
BATTERY: troubleshooting (2/4)
D
A
B
C
E
1
Handle the battery with care as it contains sulphuric acid, which must not come into contact with eyes or skin. If it does, wash the affected area with
plenty of cold water. If necessary, consult a doctor.
Ensure that naked flames, red hot objects and sparks do not come into contact with the battery as there is a risk of explosion.

Downloaded from www.Manualslib.com manuals search engine
5.44
ENG_UD14711_3Anomalies de fonctionnement (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5

JauneNoirNoir texte

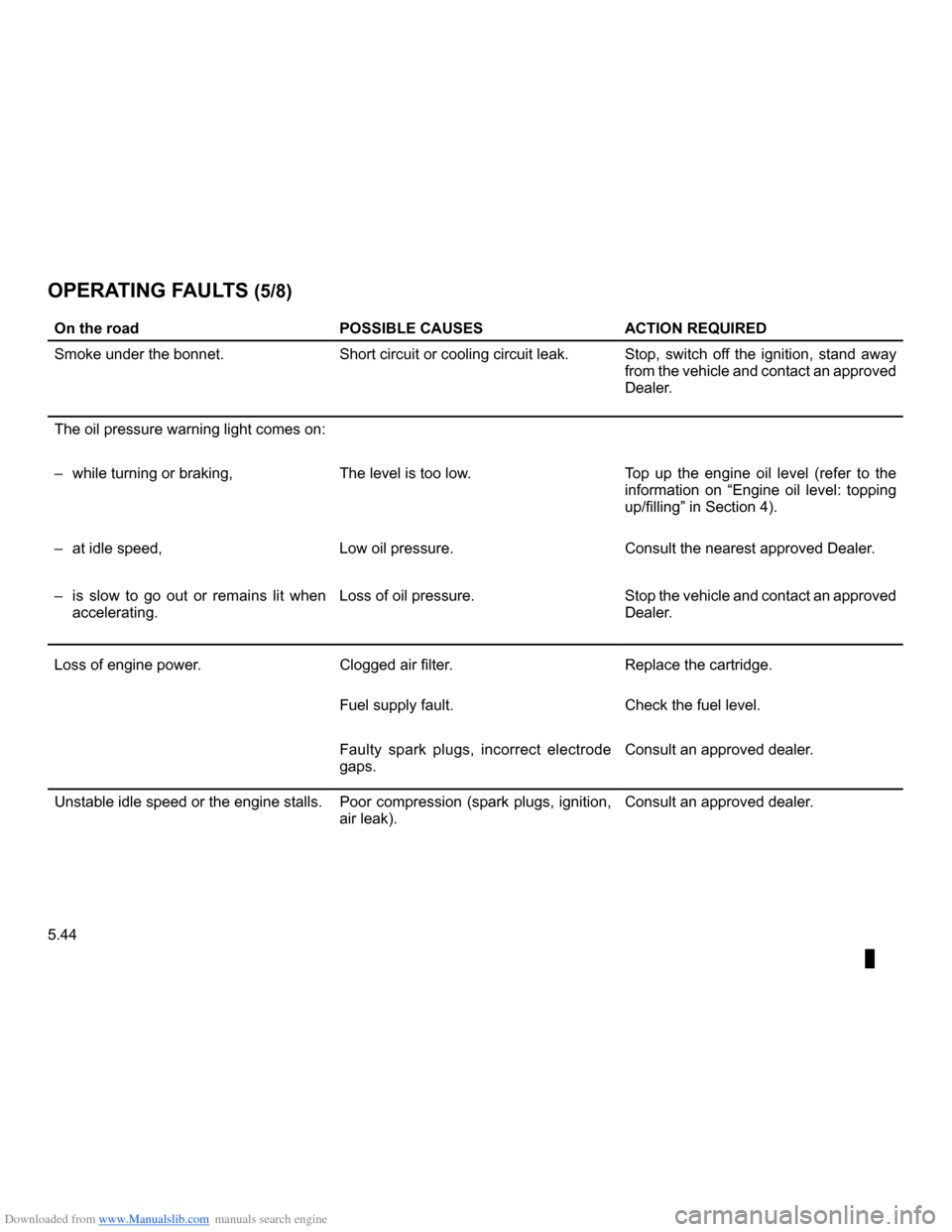

OPERATING FAULTS (5/8)
On the roadPOSSIBLE CAUSESACTION REQUIRED
Smoke under the bonnet.Short circuit or cooling circuit leak.Stop, switch off the ignition, stand away from the vehicle and contact an approved Dealer.
The oil pressure warning light comes on:
– while turning or braking,
The level is too low.Top up the engine oil level (refer to the information on “Engine oil level: topping up/filling” in Section 4).
– at idle speed,
Low oil pressure.Consult the nearest approved Dealer.
– is slow to go out or remains lit when
accelerating.Loss of oil pressure.Stop the vehicle and contact an approved Dealer.
Loss of engine power.Clogged air filter.Replace the cartridge.
Fuel supply fault.Check the fuel level.
Faulty spark plugs, incorrect electrode gaps.Consult an approved dealer.
Unstable idle speed or the engine stalls.Poor compression (spark plugs, ignition, air leak).Consult an approved dealer.

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

5.45
ENG_UD14711_3Anomalies de fonctionnement (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5

On the roadPOSSIBLE CAUSESACTION REQUIRED
Steering wheel hard to turn:– assistance overheating,Leave to cool.
– weak or dead battery.
Recharge or replace the battery.
The engine overheats. The coolant tem- perature warning light comes on (or the indicator needle is in the red area).
Coolant pump: belt stretched or broken.Engine cooling fan not working.Stop the vehicle, switch off the engine and contact an approved Dealer.
Coolant leaks.Check the condition of hoses and clips.
Check the coolant reservoir: it should contain fluid. If it does not, top it up (once it has cooled). Take care not to scald yourself. This action is only temporary; consult your approved Dealer as soon as possible.

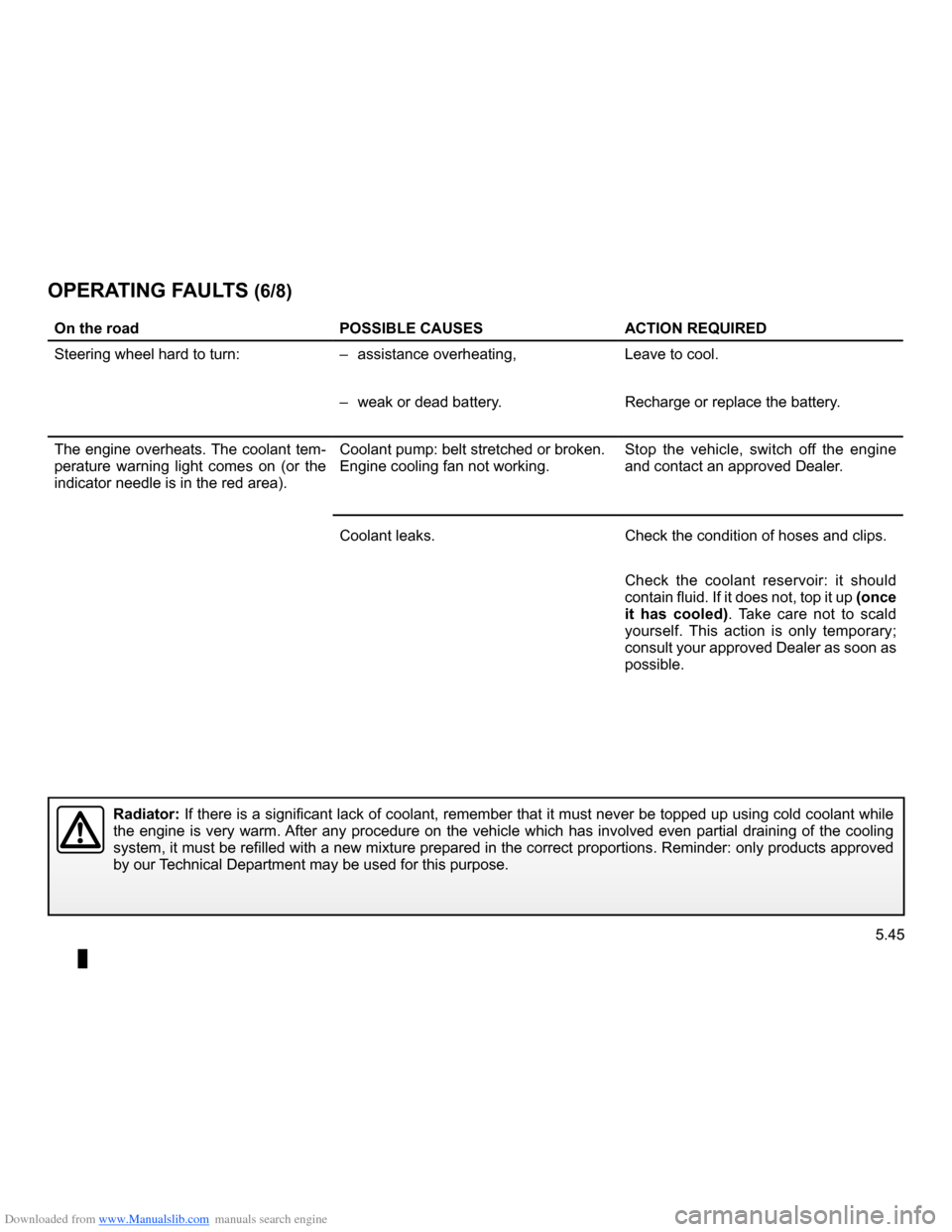

OPERATING FAULTS (6/8)
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved by our Technical Department may be used for this purpose.

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

5.47
ENG_UD14711_3Anomalies de fonctionnement (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_5

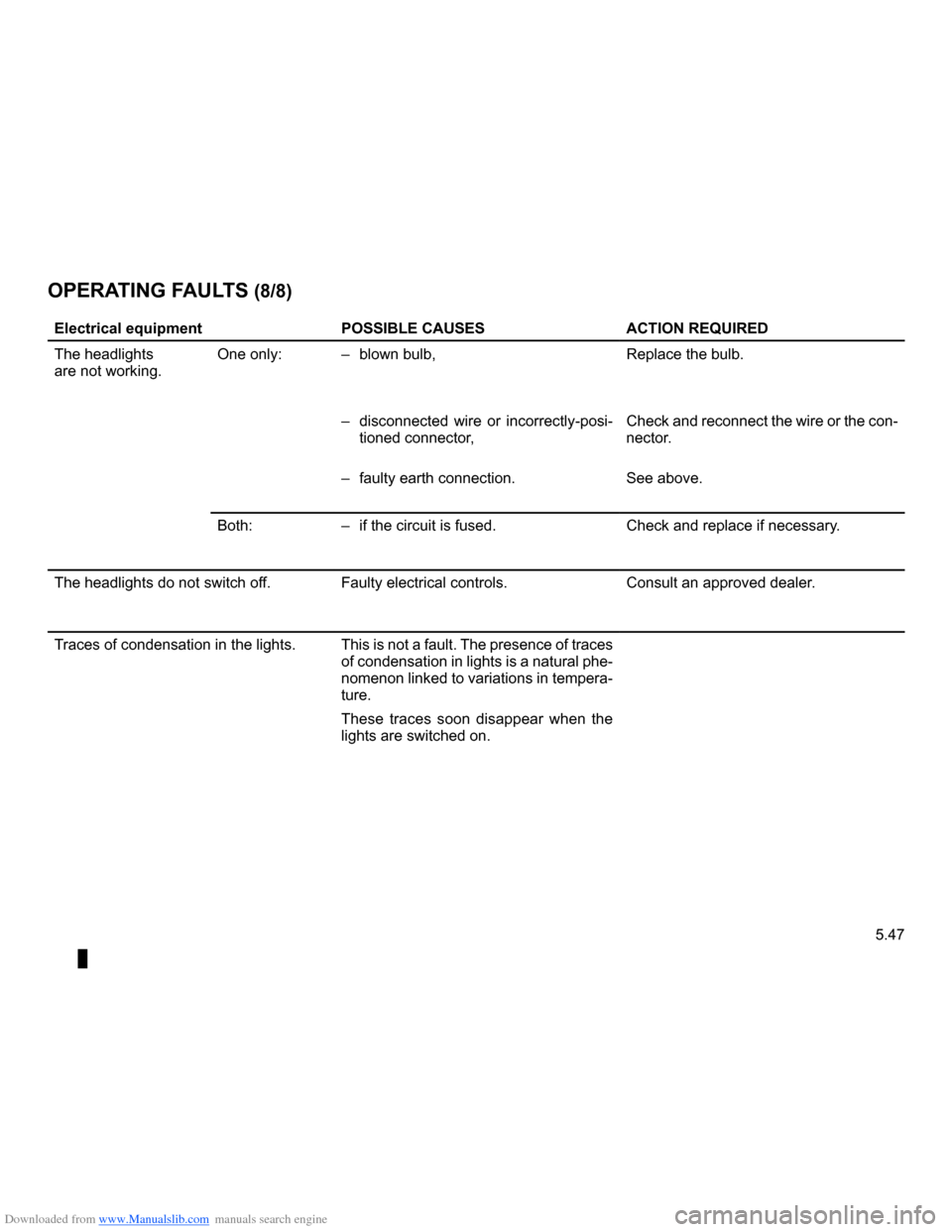

OPERATING FAULTS (8/8)
Electrical equipmentPOSSIBLE CAUSESACTION REQUIRED
The headlightsare not working.One only:– blown bulb,Replace the bulb.
– disconnected wire or incorrectly-posi
- tioned connector,Check and reconnect the wire or the con- nector.
– faulty earth connection.
See above.
Both: – if the circuit is fused.Check and replace if necessary.
The headlights do not switch off.Faulty electrical controls.Consult an approved dealer.
Traces of condensation in the lights.This is not a fault. The presence of traces of condensation in lights is a natural phe- nomenon linked to variations in tempera- ture.
These traces soon disappear when the lights are switched on.
