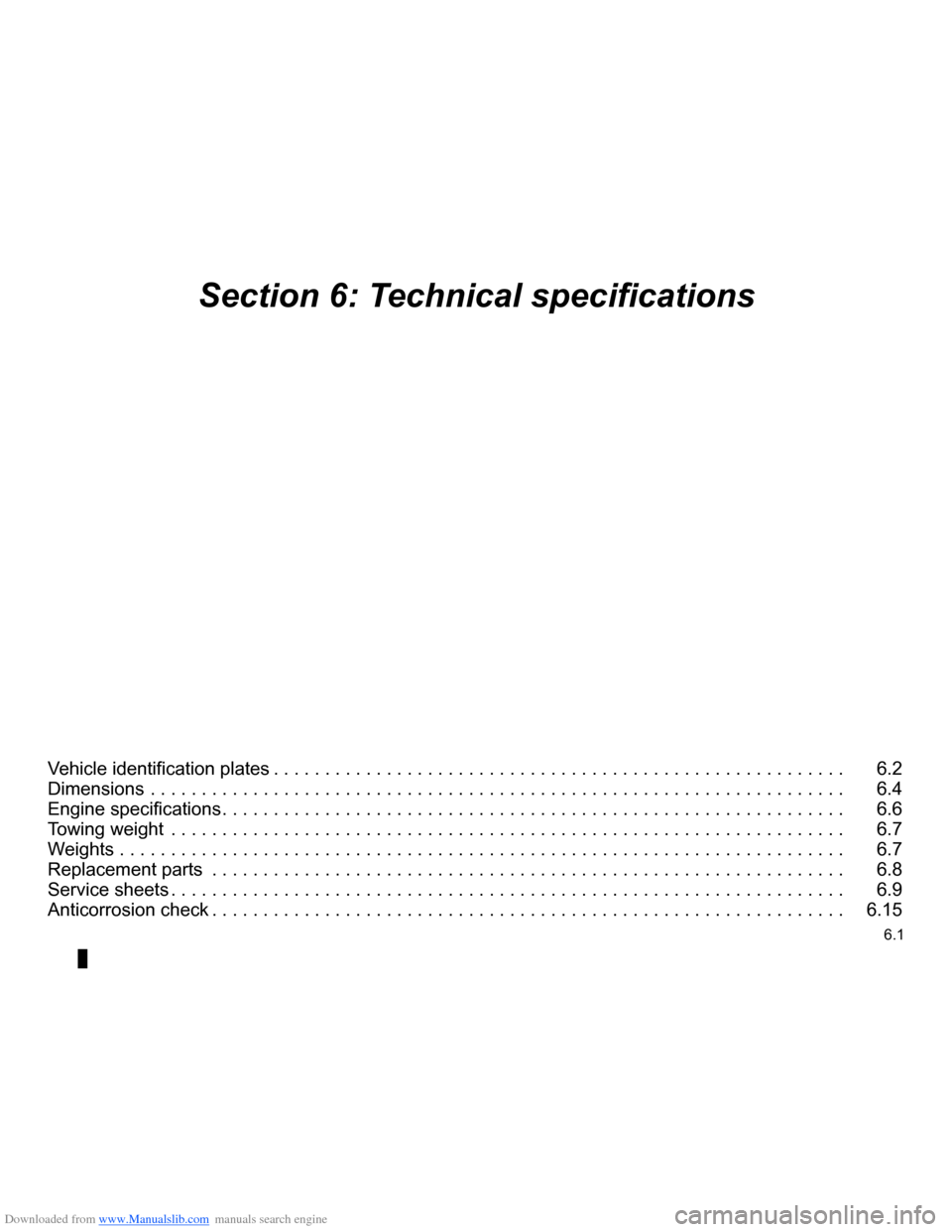

Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Towing weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

Downloaded from www.Manualslib.com manuals search engine
technical specifications .........................(up to the end of the DU)vehicle identification .............................(up to the end of the DU)paintworkreference ..........................................................(current page)vehicle identification plates ...................(up to the end of the DU)
6.2
ENG_UD15290_2Plaques d identification (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_6
JauneNoirNoir texte
Vehicle identification plates
5 Maximum permissible all-up weight, rear axle.
6 Technical specifications of the ve- hicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica- tion.
12 Fabrication number.
13 Interior trim code.
The information shown on vehicle iden- tification plate A should be quoted on all correspondence or orders.
Vehicle identification plate
A
1 Vehicle type and chassis number. Depending on the vehicle, this information is also given on marking B.
2 Maximum permissible all-up weight.
3 Total train weight (vehicle fully loaded, with trailer).
4 Maximum permissible all-up weight, front axle.

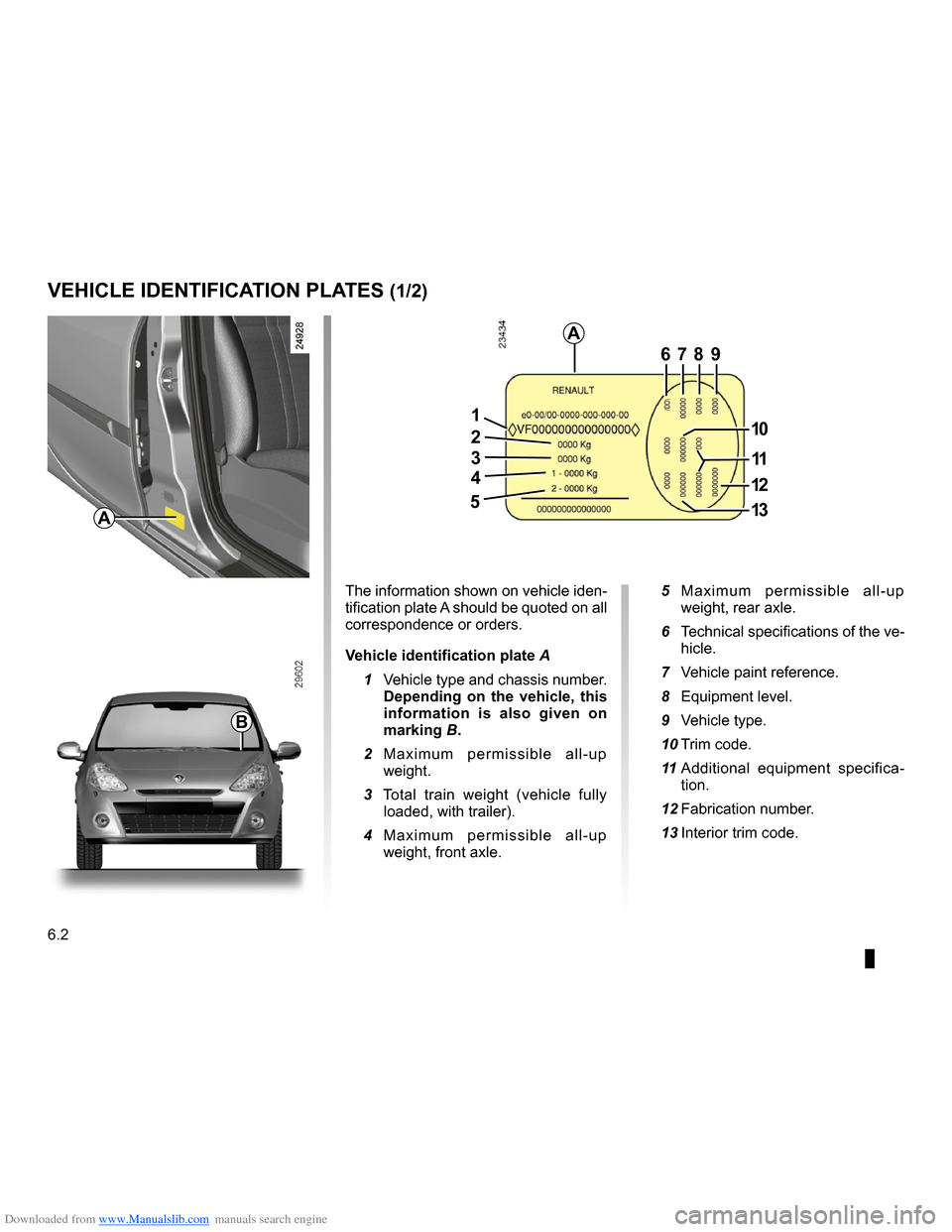

VEHICLE IDENTIFICATION PLATES (1/2)
A
B
A
1
2
3
4
5
10
11
7896
12
13

Downloaded from www.Manualslib.com manuals search engine
technical specifications .........................(up to the end of the DU)dimensions ...........................................(up to the end of the DU)
6.4
ENG_UD13300_2Dimensions (en mètres) (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_6
JauneNoirNoir texte
Dimensions
1,497*
1,458 to 1,472 (1)0,8052,5750,621
4,017

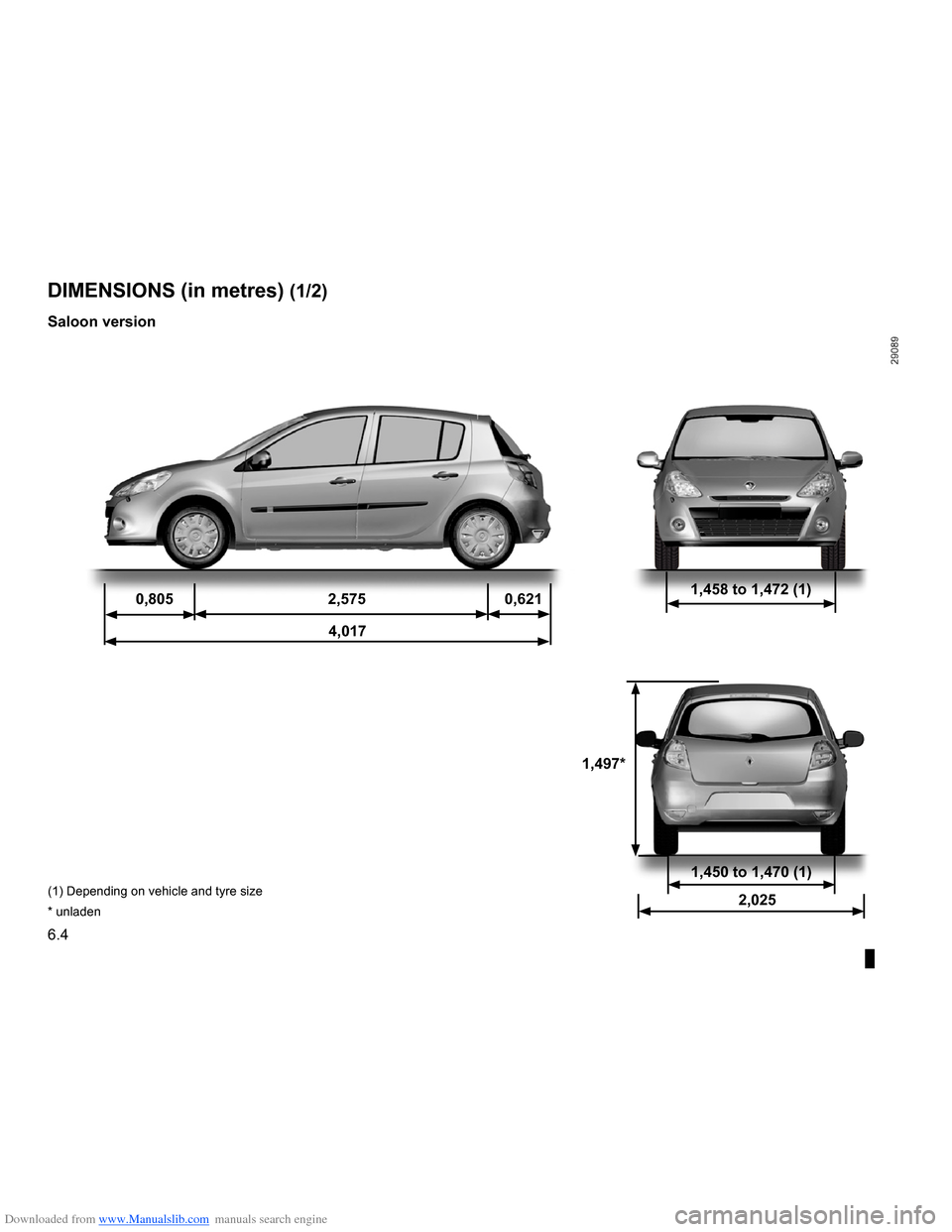

DIMENSIONS (in metres) (1/2)
1,450 to 1,470 (1)
2,025(1) Depending on vehicle and tyre size
* unladen
Saloon version

Downloaded from www.Manualslib.com manuals search engine
technical specifications .........................(up to the end of the DU)enginetechnical specifications ...................(up to the end of the DU)engine specifications ............................(up to the end of the DU)
6.6
ENG_UD10620_1Caractéristiques moteurs (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_6
Engine specifications
ENGINE SPECIFICATIONS
Versions1.2 16V1.2 TCE1.4 16V1.6 16V2.01.5 dCi
Engine type(see engine plate)D4FD4F TurboK4JK4MM4RK9K Turbo
Cubic capacity (cc)11491390159819981461
Type of fuelOctane ratingIt is essential that you use unleaded petrol of the octane rating stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98,
– with an octane rating of 87 for a label with the ratings 91, 95 or 98.
Diesel: the label located in the fuel filler flap indicates authorised fuels.
Spark plugsOnly use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine com- partment. If it is not then contact an approved Dealer.
Fitting spark plugs other than those specified may damage the engine.–

Downloaded from www.Manualslib.com manuals search engine
technical specifications .........................(up to the end of the DU)towing a caravan ..................................(up to the end of the DU)towing weights ......................................(up to the end of the DU)weights .................................................(up to the end of the DU)
6.7
ENG_UD14712_3Masses (en kg) (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_6
Towing weightWeights
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. Consult your approved Dealer.
Maximum permissible all-up weight (MMAC)Maximum permissible all-up weight (MMTA)Total train weight (MTR)
Weights are indicated on the vehicle identification plate (refer to the information on “Vehicle identification plates” in Section 6)
Braked trailer weightobtained by calculating: MTR - MMAC
Unbraked trailer weight535
Permissible nose weight75
Maximum permissible load on roof80 kg (including the carrying device)
Towing weight (Towing a caravan, boat, etc.)
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer for any modifications to tow\
ing equipment.
– When towing, under no circumstances may
the total train weight (vehicle + trailer) be exceeded. However the following is permitted:
– the Maximum permissible weight at the rear may be exceeded by no more th\
an 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10\
% or 100 kg (whichever occurs first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be increased by 0.2 bar (3 PSI). In all cases, comply with local legislat\
ion.
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.

Downloaded from www.Manualslib.com manuals search engine
technical specifications .........................(up to the end of the DU)replacement parts .................................(up to the end of the DU)
6.8
ENG_UD7339_1Pièces de rechange et réparations (X76 - Renault)ENG_NU_853-3_BCSK85_Renault_6
Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the repair order.
REPLACEMENT PARTS AND REPAIRS
