Tableau de bord : témoins lumineux (X85 - B85 - C85 - S85 - K85 - Ren\
ault)
ENG_NU_853-7_BCSK85_Renault_1
WARNING LIGHTS (4/4)
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when you are driving ac-
companied by the
® warning light
and a beep, it is essential to stop and
switch off the ignition.
Check the oil level. If the level is normal,
the indicator light is being lit by some-
thing else. Contact an approved Dealer.
ÒElectronic fault warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
a fault in the injection computer or the
automatic transmission.
Contact your approved Dealer as soon
as possible.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
2
Door status warning light
A
ÉPreheating warning light
(diesel version)
This should come on when the igni -
tion is switched on. It indicates that the
heater plugs are in operation.
It goes out when preheating is com -
plete. The engine can be started.
ÆWarning light for serious in-
jection fault
This lights up when the ignition is
switched on and goes out after a few
seconds.
If this light comes on when you are driv-
ing, it indicates a fault in the injection
system. Stop immediately, switch off
the ignition and contact an approved
Dealer.
UVa r i a b l e p o w e r - a s s i s t e d
steering warning light
This comes on when the ignition is
switched on and goes out after a few
seconds.
If it lights up when you are driving, this
indicates a fault in the system. Consult
an approved Dealer as soon as possi-
ble.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine environment .......................................... (up to the end of the DU)
2.16
ENG_UD16012_2
Environnement (X95 - E95 - E33 - X33 - X62 - Renault)
ENG_NU_853-7_BCSK85_Renault_2
Environment
ENVIRONMENT
Emissions
Your vehicle has been designed to
emit fewer greenhouse gases (CO2)
while in use, and therefore to consume
less fuel (eg. 140 g/km, equivalent to
5.3 l/100 km for a diesel vehicle).
Our vehicles are also equipped with a
particle filter system including a cata -
lytic converter, an oxygen sensor and
an active carbon filter (the latter pre -
vents vapour from the fuel tank being
released into the open air).
Please make your own
contribution towards
protecting the environment
too.
– Worn parts replaced in the course of
routine vehicle maintenance (vehi -
cle battery, oil filter, air filter, batter -
ies, etc.) and oil containers (empty or
filled with used oil) must be disposed
of through specialist organisations.
– At the end of the vehicle’s service
life, it should be sent to approved
centres to ensure that it is recycled.
– In all cases, comply with local legis -
lation.
Recycling
Your vehicle is 85% recyclable and
95% recoverable.
To achieve these objectives, many of
the vehicle components have been de-
signed to enable them to be recycled.
The materials and structures have
been carefully designed to allow these
components to be easily removed and
reprocessed by specialist companies.
In order to preserve raw material re -
sources, this vehicle incorporates nu -
merous parts made from recycled plas-
tics or renewable materials (vegetable
or animal-derived materials such as
cotton or wool).
Your vehicle has been designed with
respect for the
environment in mind for
its entire service life: during production,
use and at the end of its life.
This commitment is illustrated by the
Renault eco² group signature.
Manufacture
Your vehicle has been manufactured at
an industrial site which uses a progress
policy to reduce environmental impacts
on rivers and natural areas (reduc -
tion of water and energy consumption,
visual and noise pollution, atmospheric
emissions and waste water, sorting and
reusing waste).

Downloaded from www.Manualslib.com manuals search engine 4.1
ENG_UD25610_8
Sommaire 4 (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_4

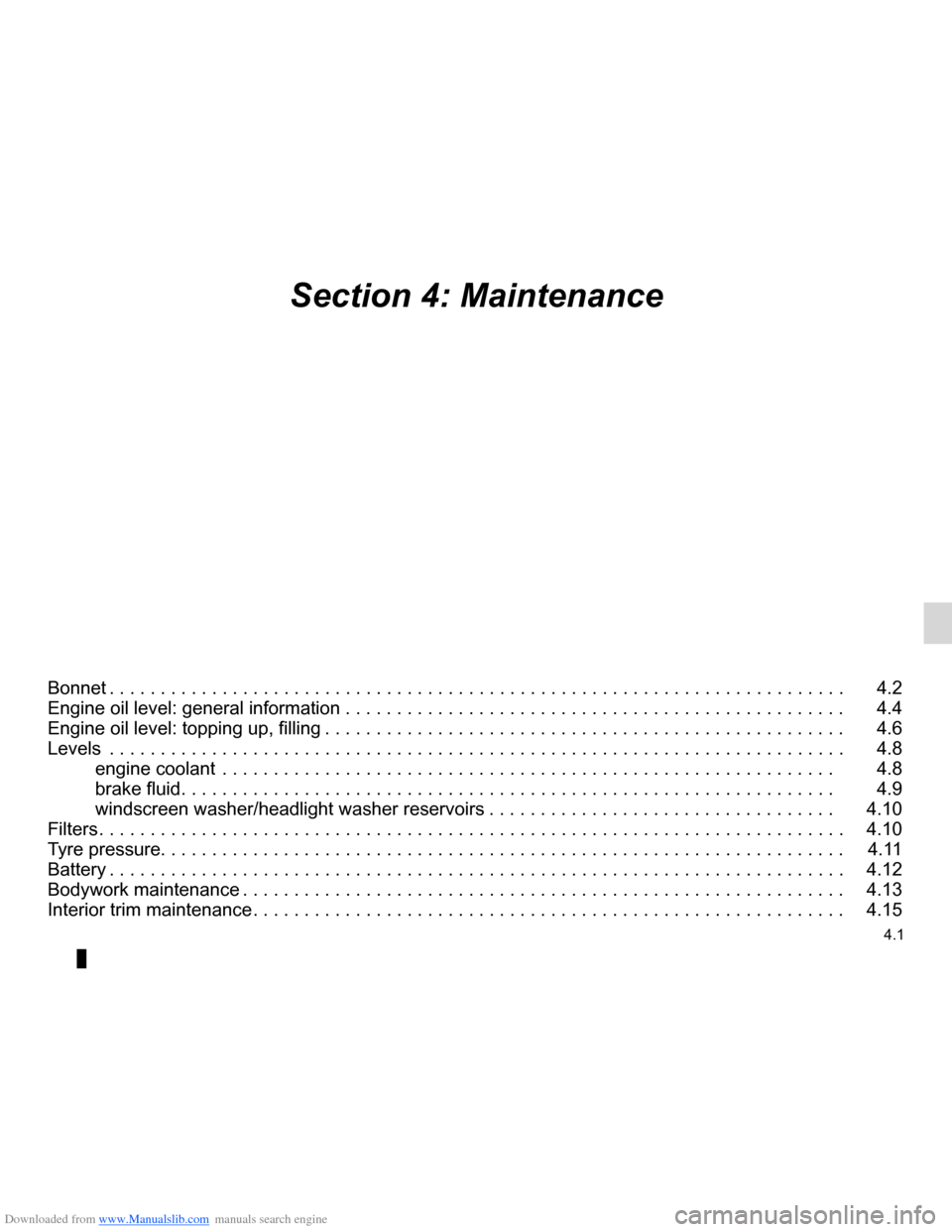

Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
windscreen washer/headlight washer reservoirs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.13
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.15

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
4.7
ENG_UD24922_4
Niveau huile moteur : appoint, remplissage (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-7_BCSK85_Renault_4
Engine oil grade
Refer to the Maintenance Service
Booklet for your vehicle.
ENGINE OIL LEVEL: topping up/filling (2/2)
Never run the engine in an
enclosed space as exhaust
gases are poisonous.
Engine oil change : if you
are changing the oil when
the engine is hot, be careful
not to scald yourself if the
oil overflows.
Filling: take care when
topping up the oil that
no oil drips onto engine
components - risk of fire.
Remember to refit the cap securely
as there is a risk of fire if oil splashes
onto hot engine components.
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Oil changeS e r v i c e i n t e r v a l : r e f e r t o t h e
Maintenance Service Booklet for your
vehicle.
Average capacities for oil change
including oil filter
(for information)
1.2 16V engine : 4.0 litres
1.2 TCE engine: 4.15 litres
1.6 16V engine : 4.7 litres
Engine 1.5 dCi : 4.5 litres
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
1
2

Downloaded from www.Manualslib.com manuals search engine 5.44
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
Jaune NoirNoir texte
On the road POSSIBLE CAUSESACTION REQUIRED
White smoke from the exhaust. This is not necessarily a fault. Smoke
may be caused by regeneration of the
particle filter.Refer to the information on “Special fea-
tures of diesel versions” in Section 2.
Vibrations. Tyres not inflated to correct pressures,
incorrectly balanced or damaged.Check the tyre pressures. If this is not the
problem, have them checked by an ap
-
proved Dealer.
Coolant boiling in the coolant reservoir. Mechanical fault: cylinder head gasket
blown, faulty coolant pump.Stop the engine.
Consult an approved dealer.
OPERATING FAULTS (4/8)

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
5.45
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-7_BCSK85_Renault_5
OPERATING FAULTS (5/8)
On the road POSSIBLE CAUSESACTION REQUIRED
Smoke under the bonnet. Short circuit or cooling circuit leak.Stop, switch off the ignition, stand away
from the vehicle and contact an ap-
proved Dealer.
Coolant circuit fault. Consult an approved dealer.
The oil pressure warning light comes on:
– while turning or braking, The level is too low. Top up the engine oil level (refer to the
information on “Engine oil level: topping
up/filling” in Section 4).
– at idle speed, Low oil pressure. Consult the nearest approved Dealer.
– is slow to go out or remains lit when
accelerating. Loss of oil pressure.
Stop the vehicle and contact an ap-
proved Dealer.
Loss of engine power. Clogged air filter.Replace the cartridge.
Fuel supply fault. Check the fuel level.
Faulty spark plugs, incorrect electrode
gaps. Consult an approved dealer.
Unstable idle speed or the engine stalls. Poor compression (spark plugs, ignition,
air leak).Consult an approved dealer.

Downloaded from www.Manualslib.com manuals search engine 7.2
FRA_UD25613_8
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (2/5)
emergency brake assist ..................................................... 2.23
emergency braking ............................................................ 2.23
emergency key .................................................................... 1.8
emergency spare wheel ............................................ 5.2 → 5.5
engine technical specifications .................................................. 6.6
engine coolant ..................................................................... 4.8
engine immobiliser............................................................. 1.19
engine oil .................................................................... 4.4 – 4.5
engine oil level ............................................................ 4.4 – 4.5
engine specifications ........................................................... 6.6
engine start/stop button ............................................. 2.3 → 2.8
environment ....................................................................... 2.16
ESP: Electronic Stability Program .......................... 2.19 – 2.20
external temperature ......................................................... 1.74
F
faults operating faults ................................................ 5.41 → 5.48
filter air filter ......................................................................... 4.10
diesel filter .................................................................... 4.10
particle filter ................................................................. 2.11
passenger compartment filter ...................................... 4.10
fitting a radio ...................................................................... 5.34
fittings .................................................................... 3.24 → 3.27
fog lights ................................................................... 1.81, 5.19
front passenger air bag deactivation ................................. 1.48
front seat adjustment .............................................. 1.22 – 1.23
front seats adjustment ............................................... 1.22 – 1.23, 1.25
fuel advice on fuel economy ............................................... 2.13
filling .................................................................. 1.86 – 1.87
grade ................................................................. 1.86 – 1.87
fuel economy ......................................................... 2.13 → 2.15fuel filler cap
........................................................... 1.86 – 1.87
fuel level ................................................................ 1.56 → 1.60
fuel tank capacity ........................................................................ 1.86
fuel tank capacity .................................................... 1.86 – 1.87
fuses ....................................................................... 5.26 – 5.27
G
gear lever ........................................................................\
... 2.12
glove box ........................................................................\
... 3.26
h
handbrake ........................................................................\
.. 2.12
hands-free telephone integrated control ............................ 3.42
hazard warning lights signal .............................................. 1.51
headlight beam adjustment ............................................... 1.82
headrest ......................................................... 1.20 – 1.21, 3.29
heated seats ...................................................................... 1.22
heated windscreen .................................................. 3.8 → 3.15
heating and air conditioning system ........................ 3.4 → 3.16
heating system ........................................................ 3.4 → 3.16
horn ........................................................................\
........... 1.51
hubcap tool ............................................................... 5.9 – 5.10
i
ignition switch ...................................................................... 2.3
indicator lights .................................................................... 5.23
indicators ................................ 1.51, 5.16 → 5.18, 5.20 → 5.23
indicators: direction indicators ....................................................... 1.51
instrument panel .............................................. 1.56 → 1.65
instrument panel .................................................... 1.56 → 1.65
instrument panel messages ...................................1.63 → 1.65
interior trim maintenance ..................................................... 4.15 – 4.16
Isofix ....................................................................... 1.39 – 1.40
