Page 171 of 258

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.3

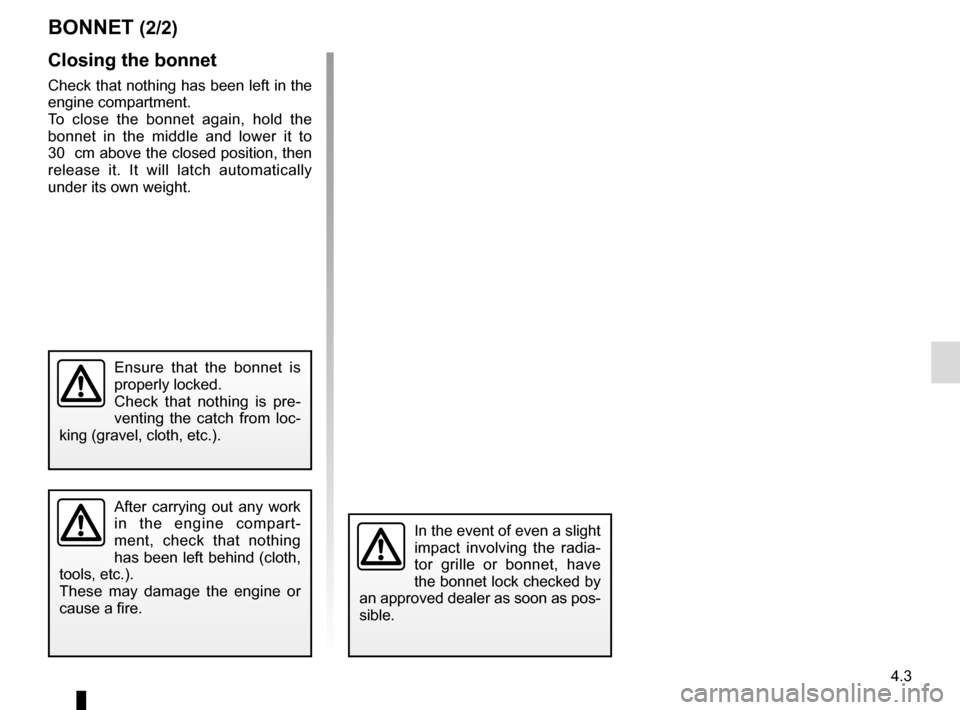

Closing the bonnet
Check that nothing has been left in the
engine compartment.
To close the bonnet again, hold the
bonnet in the middle and lower it to
30  cm above the closed position, then
r

Page 172 of 258

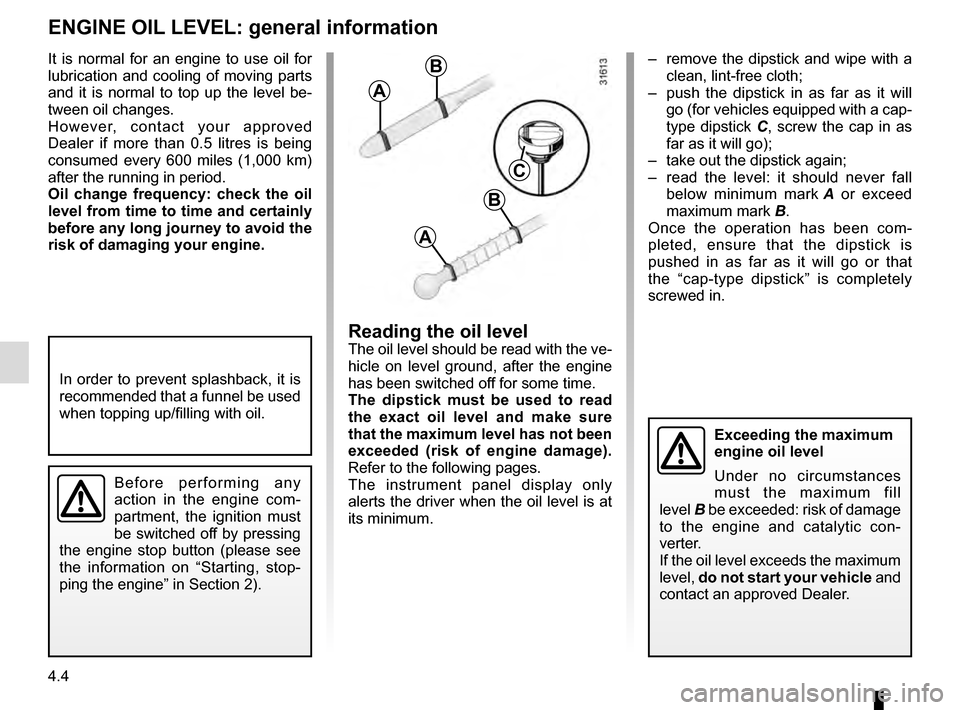

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.4
–  remove the dipstick and wipe with a clean, lint-free cloth;
–  push the dipstick in as far as it will  go (for vehicles equipped with a cap-
type dipstick C, screw the cap in as
far as it

Page 173 of 258

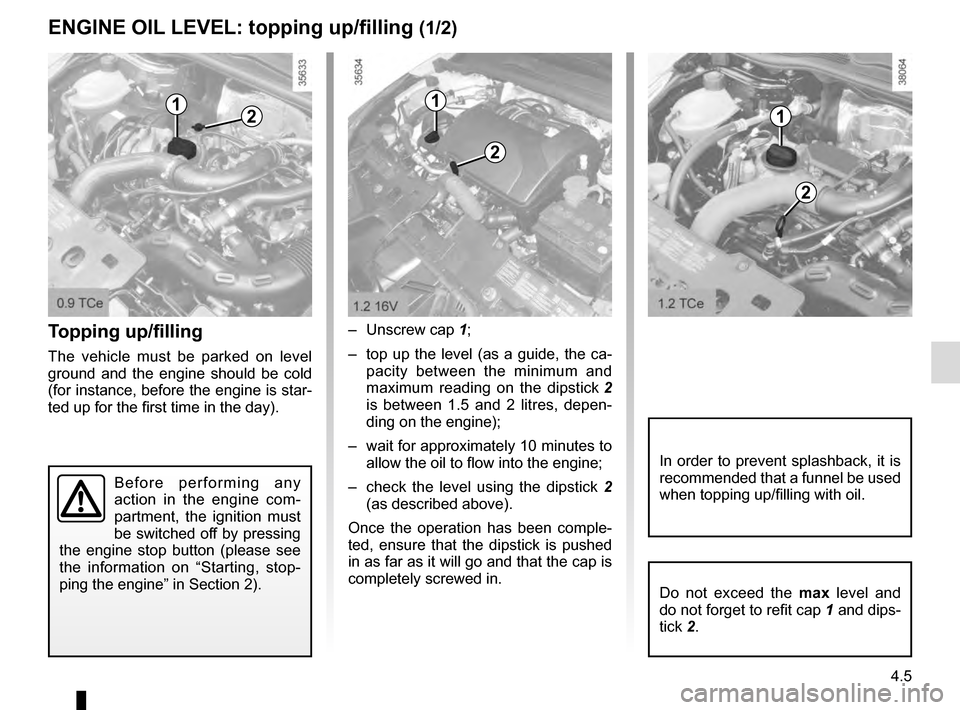

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.5
Topping up/filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is star-
ted up for the first time in the day).– Unscrew cap
1;

Page 174 of 258

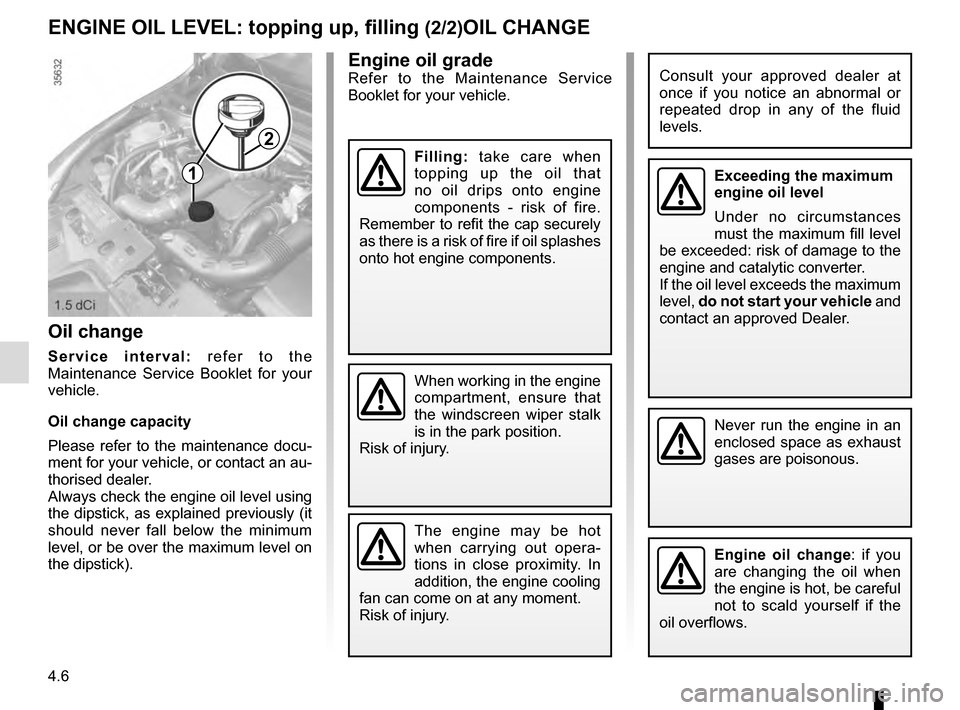

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.6
Engine oil gradeRefer to the Maintenance Service
Booklet for your vehicle.
ENGINE OIL LEVEL: topping up, filling (2/2)OIL CHANGE
Never run the engine in an
enclosed space as exhaust
gases are p

Page 175 of 258

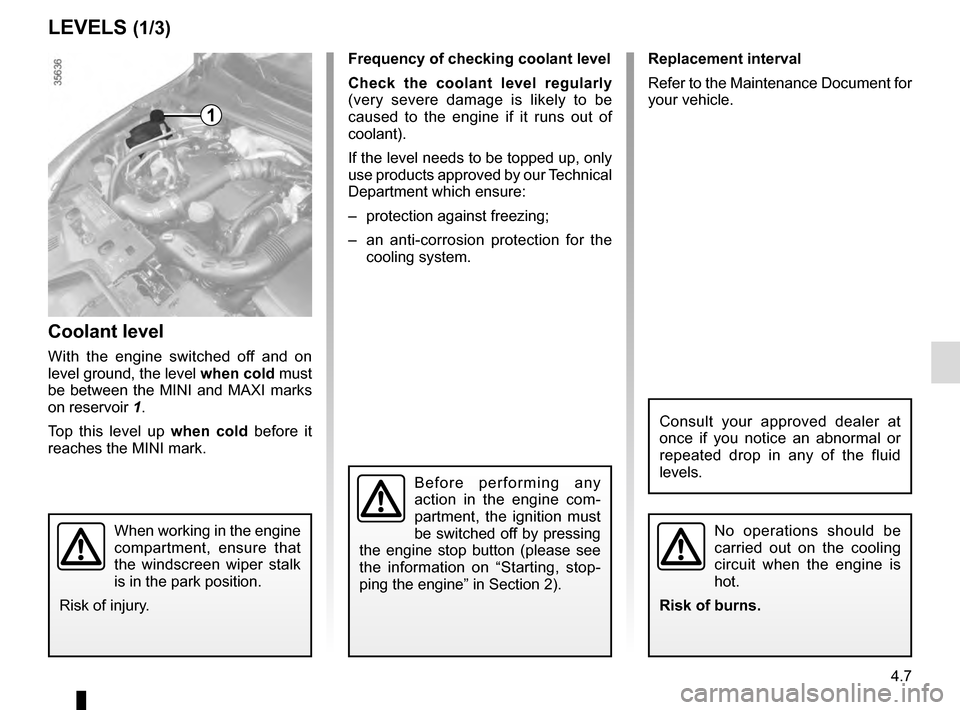

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.7
Frequency of checking coolant level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, on

Page 176 of 258

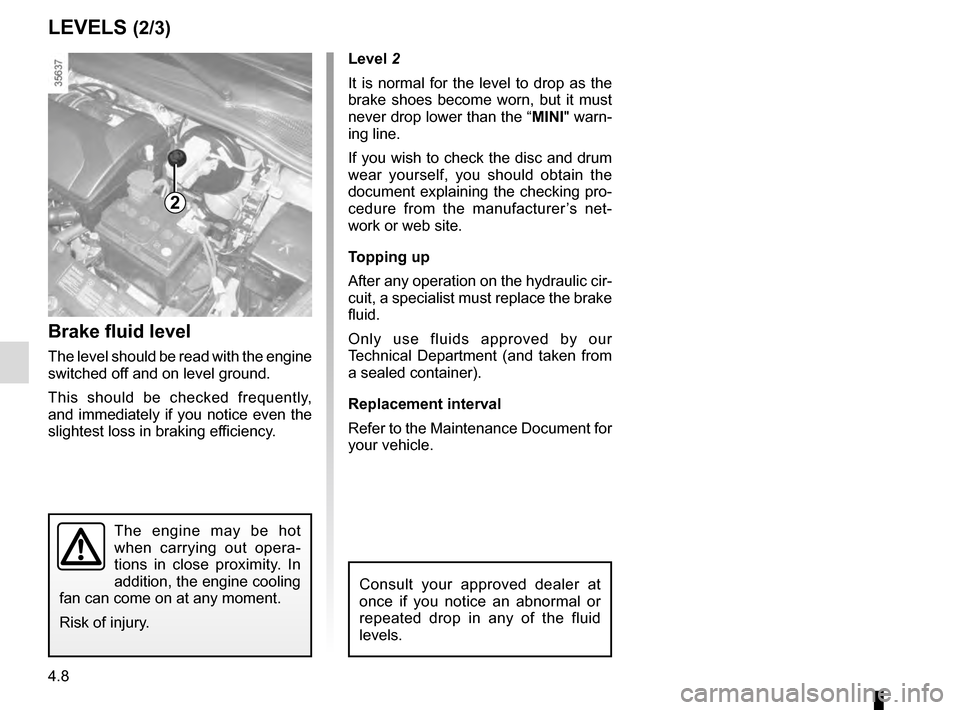

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.8
Level 2
It is normal for the level to drop as the
brake shoes become worn, but it must
never drop lower than the “MINI" warn-
ing line.
If you wish to check the disc and drum
wear yourself, y

Page 177 of 258

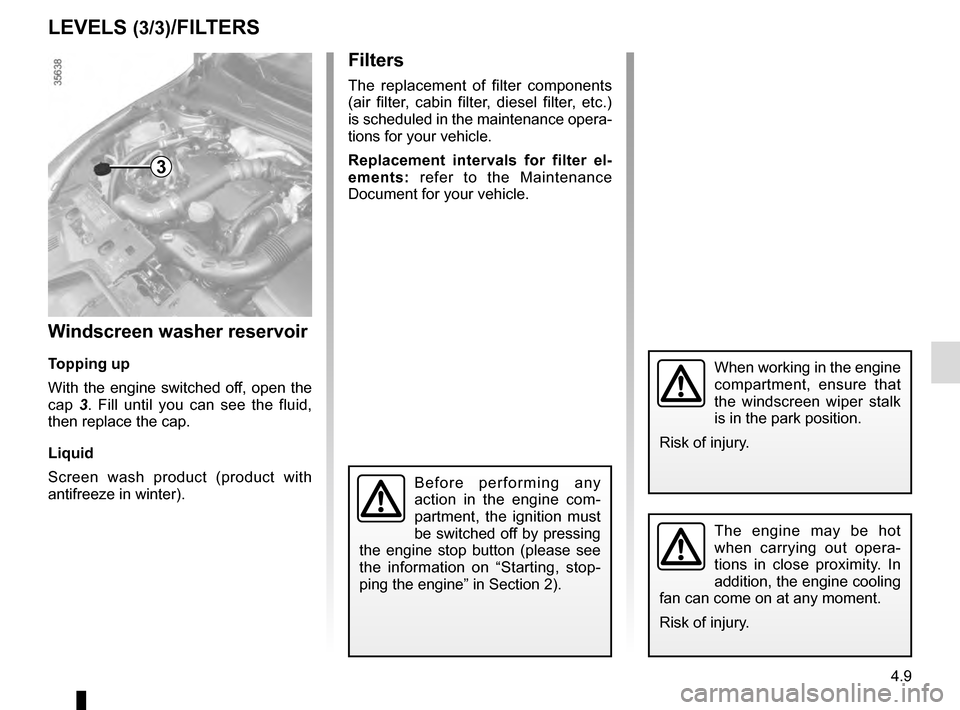

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.9
Filters
The replacement of filter components
(air filter, cabin filter, diesel filter, etc.)
is scheduled in the maintenance opera-
tions for your vehicle.
Replacement intervals for filter el-
e

Page 178 of 258

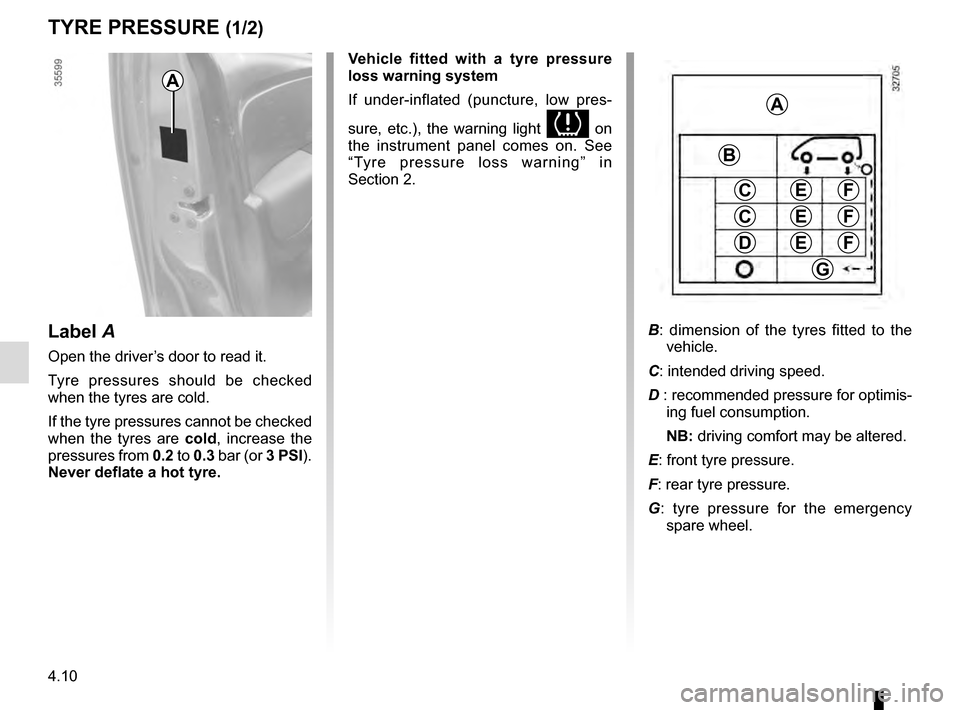

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.10
TYRE PRESSURE (1/2)
A
C
D
FE
G
A
B
C
E
E
F
F
B: dimension of the tyres fitted to the
vehicle.
C: intended driving speed.
D : recommended pressure for optimis- ing fuel consumption.
 NB: driving

Page 179 of 258

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.11
TYRE PRESSURE (2/2)
Special note concerning fully laden
vehicles (Maximum Permissible All-Up
Weight) and towing a trailer:  the maxi-
mum speed must be limited to  60 mph
(100 kph) and the tyr

Page 180 of 258

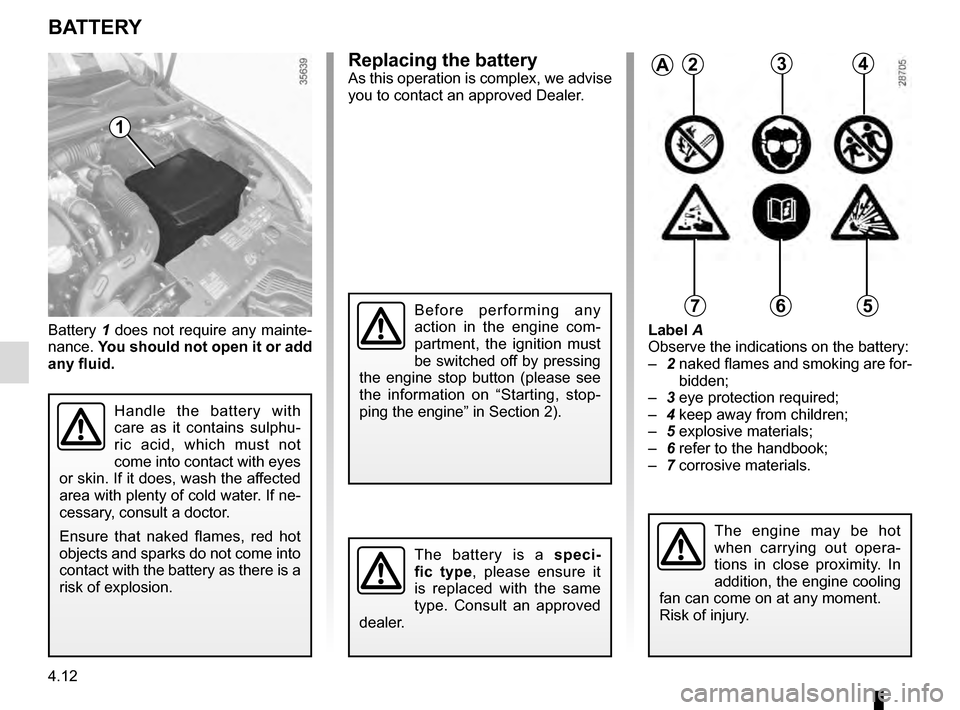

RENAULT CLIO 2016 X98 / 4.G Owners Manual 4.12
Replacing the batteryAs this operation is complex, we advise
you to contact an approved Dealer.
Battery 1 does not require any mainte-
nance.  You should not open it or add
any fluid. Label A
O
