Page 211 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.27

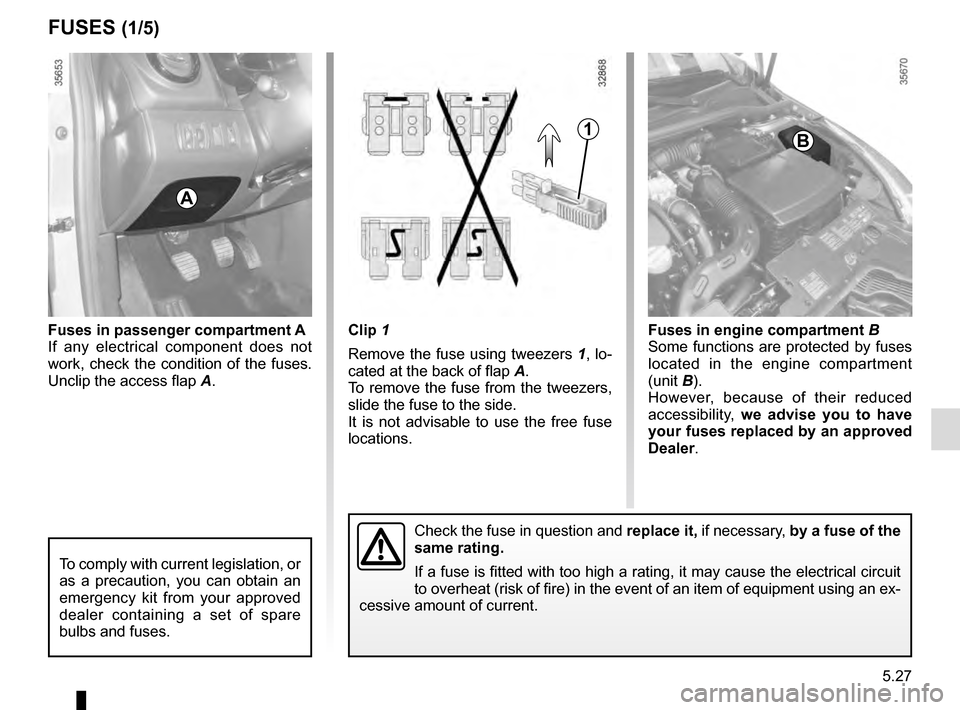

Clip 1
Remove the fuse using tweezers  1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.F

Page 212 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.28

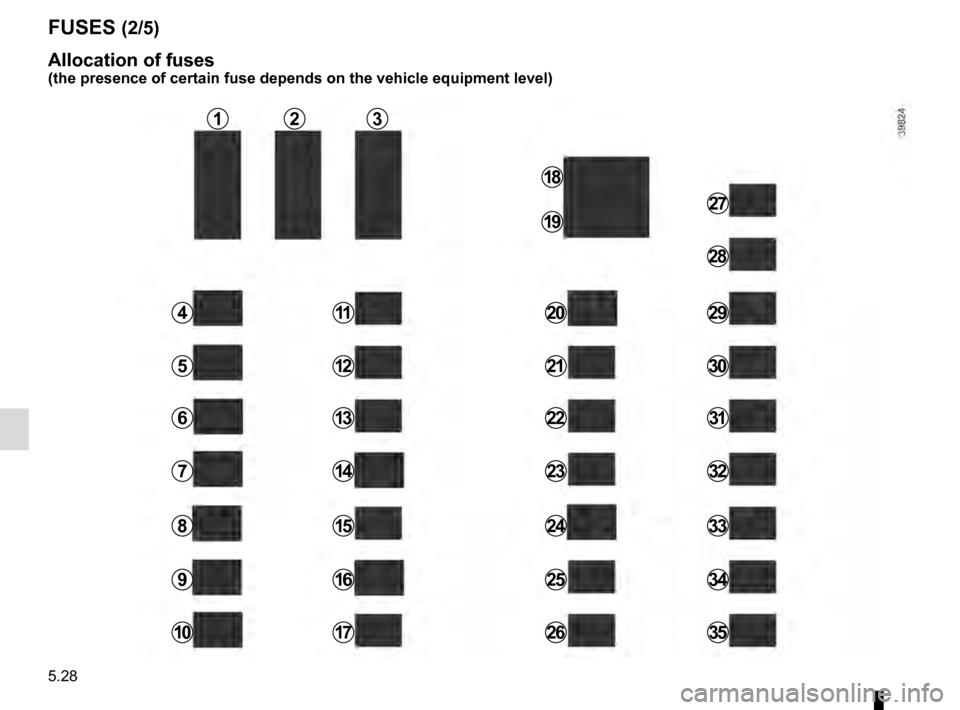

FUSES (2/5)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
1
81524
2
91625
3
101726
411
18
27
512
19
28
29
613
20
22
30
714
21
2332
31
33
34
35

Page 213 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.29
Number Allocation

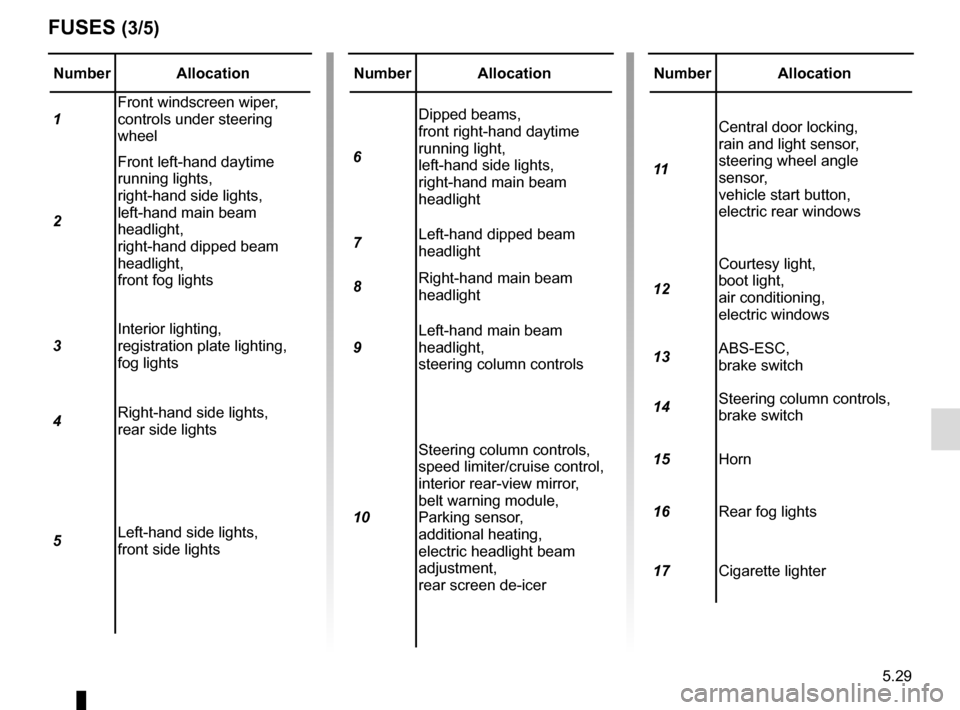

1 Front windscreen wiper,
controls under steering
wheel
2 Front left-hand daytime
running lights,
right-hand side lights,
left-hand main beam
headlight,
right-hand dipped be

Page 214 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.30

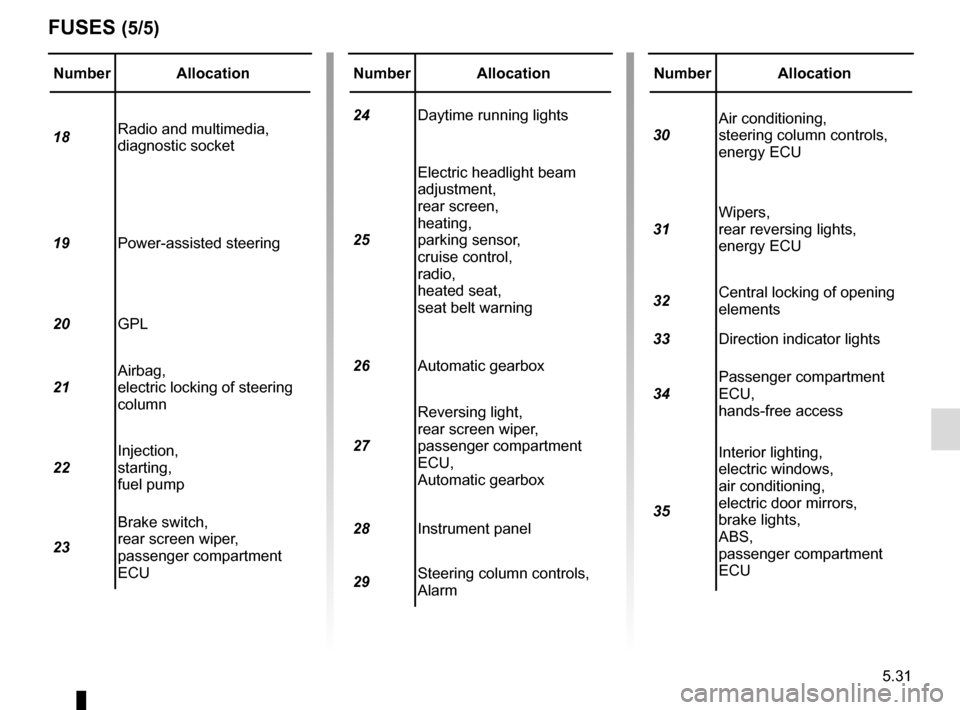

FUSES (4/5)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
1
81524
2
91625
3
101726
411
18
27
512
19
28
29
613
20
22
30
714
21
2332
31
33
34
35

Page 215 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.31
Number Allocation
18 Radio and multimedia,
diagnostic socket
19 Power-assisted steering
20 GPL
21 Airbag,
electric locking of steering
column
22 Injection,
starting,
fuel pump
23 B

Page 216 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.32

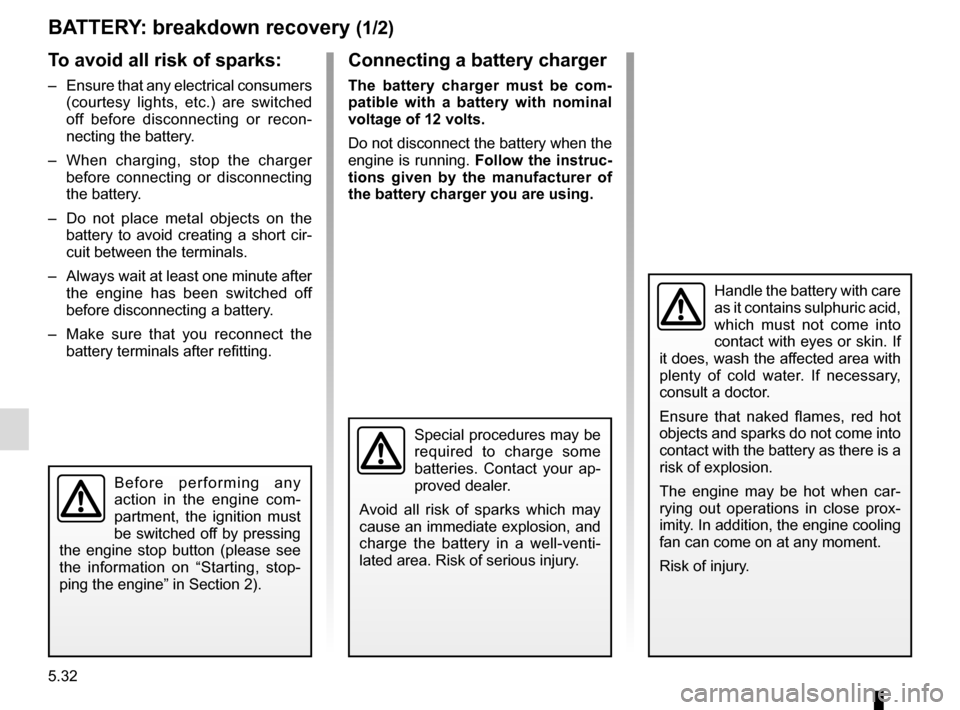

BATTERY: breakdown recovery (1/2)
To avoid all risk of sparks:
–  Ensure that any electrical consumers (courtesy lights, etc.) are switched
off before disconnecting or recon-
necting the batte

Page 217 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.33

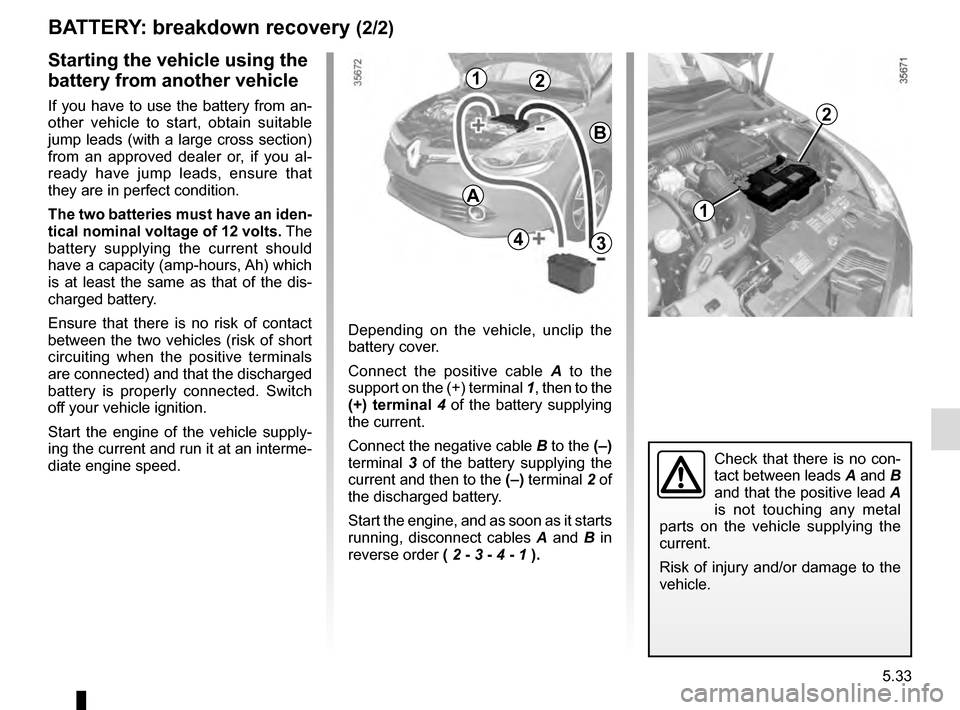

BATTERY: breakdown recovery (2/2)
Depending on the vehicle, unclip the
battery cover.
Connect the positive cable A to the
support on the (+) terminal  1, then to the
(+) terminal 4 of the bat

Page 218 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.34

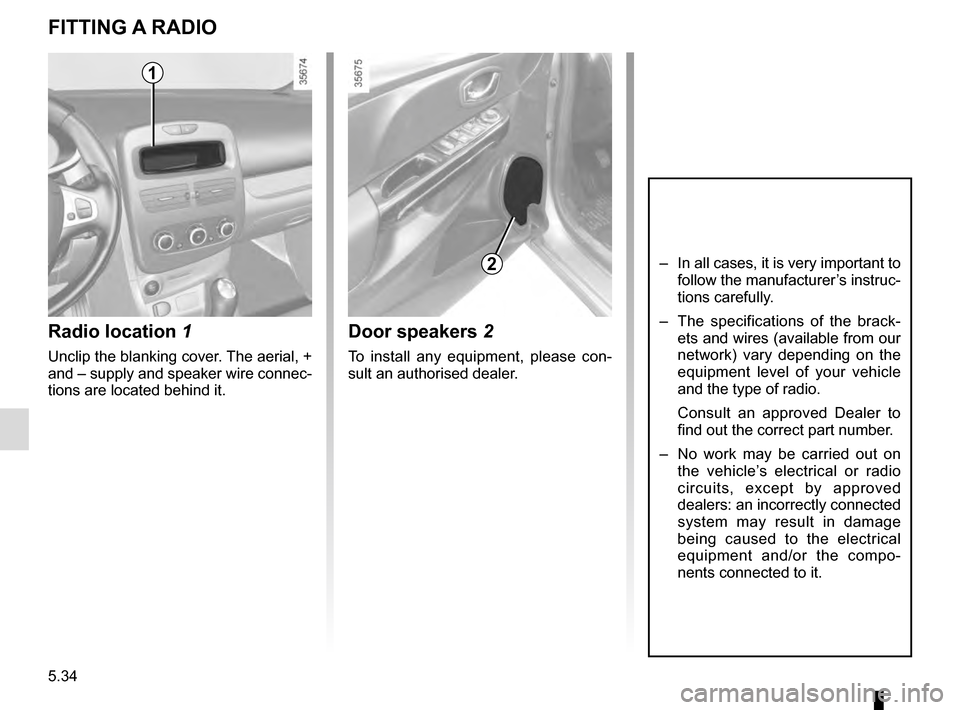

Radio location 1
Unclip the blanking cover. The aerial, +
and – supply and speaker wire connec-
tions are located behind it.
Door speakers 2
To install any equipment, please con-
sult an autho

Page 219 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.35

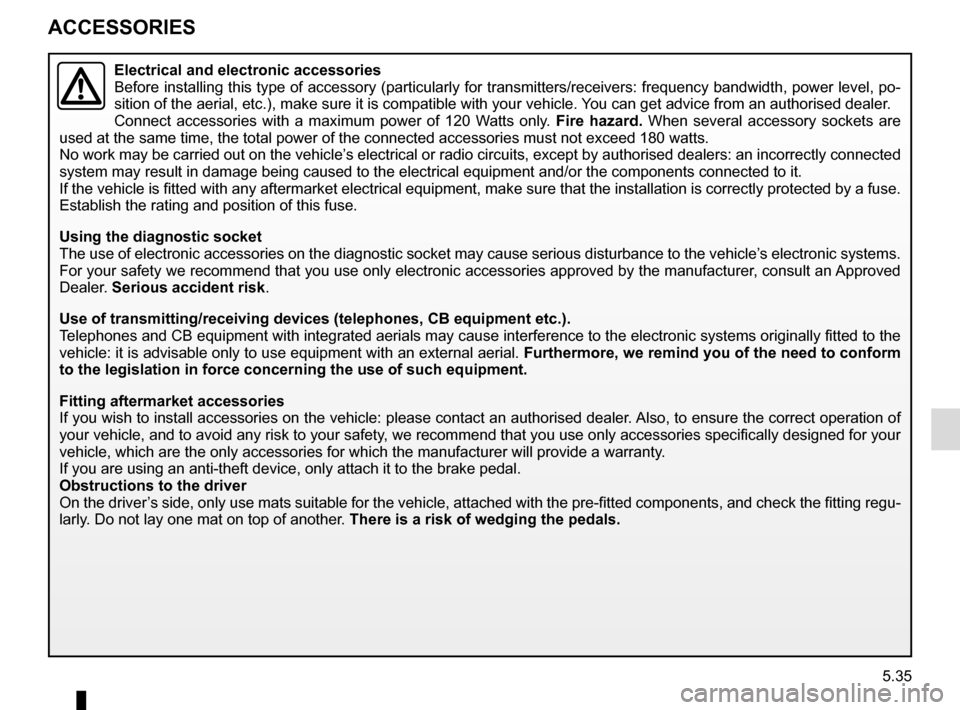

ACCESSORIES
Electrical and electronic accessories
Before installing this type of accessory (particularly for transmitters\
/receivers: frequency bandwidth, power level, po-
sition of the aerial,

Page 220 of 258

RENAULT CLIO ESTATE 2016 X98 / 4.G Owners Manual 5.36
Lower tab 3, by pressing on either
side A.
Then push the blade forwards  B, to re-
lease hook  4.
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the bl
