RENAULT CLIO SPORT TOURER 2012 X85 / 3.G User Guide

JauneNoirNoir texte
1.5
ENG_UD22280_2
Clé / Télécommande à radiofréquence : utilisation (X85 - B85 - C8\
5 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
1
5
Locking the doors
Remote control A or B
Press locking button 1.
The hazard warning lights and indica -
tors lights flash twice to indicate that
the doors have locked.
If a door or the tailgate is open or not
properly shut, the doors or tailgate lock
then quickly unlock and the hazard
warning lights and indicator lights do
not flash.
Unlocking/locking the
luggage compartment lid
only
(for some countries)
Press button 5 to unlock or lock the tail-
gate.
The hazard warning lights and indica -
tor lights flash once to indicate that the
tailgate is unlocked if the vehicle doors
are locked.
The hazard warning lights and indicator
lights flash twice to indicate that the tail-
gate is locked if the vehicle doors are
locked.
Note: the key buttons are inactive with
the engine running, ignition on and in
accessories position.
5
B
1
A
RADIO FREQUENCY REMOTE CONTROL: use (2/2)

central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
deadlocking the doors .......................... (up to the end of the DU)
1.6
ENG_UD10510_1
Clé / télécommande à radiofréquence : super condamnation \
(X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
To activate deadlocking
Press button 1 twice in quick succes -
sion.
The hazard warning lights and indica -
tor lights flash five times to indicate that
the doors have locked.
Never use deadlocking if
someone is still inside the
vehicle.
If fitted to the vehicle, this allows the
doors to be locked and prevents them
from being opened with the interior
handles (for example, by breaking the
window and then trying to open the
doors from the inside).
RADIO FREQUENCY REMOTE CONTROL: deadlocking
1
1

RENAULT carduse .................................................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
children .................................................................. (current page)
1.7
ENG_UD19713_2
Cartes Renault : généralités (X85 - B85 - C85 - S85 - K85 - Re\
nault)
ENG_NU_853-8_BCSK85_Renault_1
RENAULT card: general information, use, deadlocking
The RENAULT card is used
for:
– locking/unlocking the doors and lug-
gage compartment (doors, luggage
compartment) and the fuel filler flap
(see the following pages);
– starting the engine; refer to the in -
formation on “Starting the engine” in
Section 2.
Battery life
It is supplied by a battery which should
be replaced when the message
“Change card battery” appears on the
instrument panel (refer to the informa -
tion on the “RENAULT card: Battery” in
Section 5).
Range of the RENAULT card
This varies according to the environ -
ment. It is therefore important when
handling the RENAULT card to ensure
that you do not lock or unlock the ve -
hicle by inadvertently pressing the but-
tons.
1
Unlocking the doors and tailgate.
2 Locking all doors and tailgate.
3 Locking/unlocking the luggage com-
partment lid.
4 Emergency key.
RENAULT CARD: general information (1/2)
2
1
3
4
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
Advice
Avoid leaving the card in hot, cold or
humid areas.
Do not keep the RENAULT card in a
place where it could be bent or dam-
aged accidentally, such as in a back
pocket of a garment.

emergency key ...................................................... (current page)

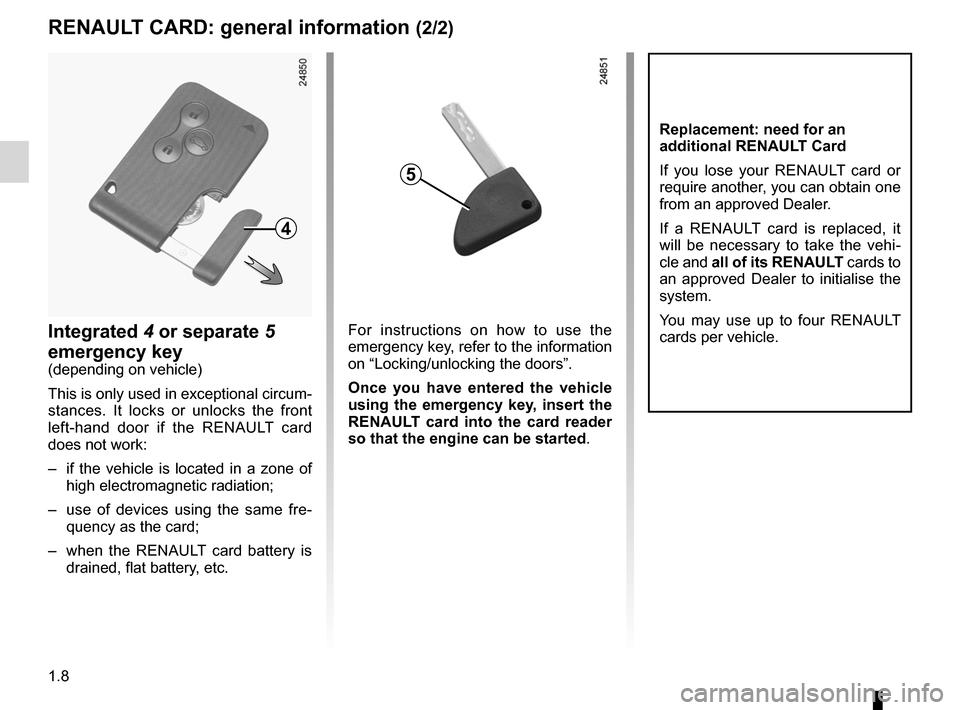

1.8
ENG_UD19713_2
Cartes Renault : généralités (X85 - B85 - C85 - S85 - K85 - Re\
nault)
ENG_NU_853-8_BCSK85_Renault_1
For instructions on how to use the
emergency key, refer to the information
on “Locking/unlocking the doors”.
Once you have entered the vehicle
using the emergency key, insert the
RENAULT card into the card reader
so that the engine can be started .Integrated 4 or separate 5
emergency key
(depending on vehicle)
This is only used in exceptional circum-
stances. It locks or unlocks the front
left-hand door if the RENAULT card
does not work:
– if the vehicle is located in a zone of
high electromagnetic radiation;
– use of devices using the same fre -
quency as the card;
– when the RENAULT card battery is
drained, flat battery, etc.
RENAULT CARD: general information (2/2)
4
5
Replacement: need for an
additional RENAULT Card
If you lose your RENAULT card or
require another, you can obtain one
from an approved Dealer.
If a RENAULT card is replaced, it
will be necessary to take the vehi-
cle and all of its RENAULT cards to
an approved Dealer to initialise the
system.
You may use up to four RENAULT
cards per vehicle.

RENAULT carduse .................................................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
1.9
ENG_UD10512_1
Carte Renault : utilisation en mode télécommande (X85 - B85 - C85\
- S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Unlocking/locking the tailgate
only
Press button 3 to unlock or lock the tail-
gate.
The hazard warning lights and indica -
tor lights flash once to indicate that the
tailgate is unlocked if the vehicle doors
are locked.
The hazard warning lights and indicator
lights flash twice to indicate that the tail-
gate is locked if the vehicle doors are
locked.
Note: the card buttons are inactive if
the engine is running or the ignition on.
Locking the doors
Press locking button 2.
The hazard warning lights and indica -
tors lights flash twice to indicate that
the doors have locked.
If a door or the tailgate is open or not
properly closed, or if a RENAULT card
is still in the reader, the doors and tail-
gate quickly lock then unlock and the
hazard warning lights and indicator
lights do not flash.
Unlocking the doors
Press unlocking button 1.
The hazard warning lights and indica -
tor lights flash once to indicate that the
doors have unlocked.
REMOTE CONTROL RENAULT CARD: use
1
2
3
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is unlocked;
– two flashes indicates that the
vehicle is locked;
The card buttons are deactivated
when the engine is running.

RENAULT carduse .................................................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
1.10
ENG_UD12573_2
Carte Renault en mode mains libres : utilisation (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
Jaune NoirNoir texte
Unlocking the doors and
tailgate
Walk up to your vehicle carrying your
RENAULT card.
As soon as you put your hand through a
door handle 2, the vehicle’s doors and
tailgate unlock. Pressing on the tailgate
button 3 unlocks the tailgate only.
The hazard warning lights and indicator
lights flash once to indicate unlocking.
Use
On equipped vehicles, in addition to
the functions of the remote control
RENAULT card, it can be used to lock
and unlock without using the RENAULT
card, when it is in access zone 1.
HANDS-FREE RENAULT CARD: use (1/2)
1
2
3

child safety............................................................. (current page)
children .................................................................. (current page)
JauneNoirNoir texte
1.11
ENG_UD12573_2
Carte Renault en mode mains libres : utilisation (X85 - B85 - C85 - S85\
- K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_1
If you wish to check that the doors are
locked after locking with the RENAULT
card or buttons on the handles, you
have approximately three seconds to
try the door handles without unlocking
them.
After this delay, the hands-free mode
is activated once again and any move-
ment of the handle will unlock the doors.
If a door or the tailgate is open or not
properly shut, or if a card is in the
reader, the doors or tailgate lock then
quickly unlock and the hazard warning
lights and indicator lights do not flash.Locking the vehicle
With the RENAULT card in your pos -
session and with the doors and tailgate
closed, press button 4 located on one
of the handles 2 or button 5 on the tail-
gate.
The indicator lights and hazard warning
lights flash twice to indicate that the
doors have locked.
Note: the RENAULT card must be
within the vehicle's access zone to be
able to use the buttons for locking.
HANDS-FREE RENAULT CARD: use (2/2)
245
Driver’s responsibility
Never leave your vehicle with the RENAULT card inside and never leave
a child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Risk of serious injury.

RENAULT carduse .................................................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
deadlocking the doors .......................... (up to the end of the DU)
1.12
ENG_UD10514_1
Carte Renault : super condamnation (X85 - B85 - C85 - S85 - K85 - Renau\
lt)
ENG_NU_853-8_BCSK85_Renault_1
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
– press button 2 twice in quick succes-
sion;
– or press on the button on one of the
exterior door handles twice in quick
succession or on the tailgate button.
The hazard warning lights flash five
times to indicate locking.
If the vehicle is equipped with a dead -
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
RENAULT CARD: deadlocking
2
To deactivate deadlocking
Unlock the vehicle using button 1 on
the RENAULT card. The hazard warn -
ing lights flash once to indicate that the
doors have been unlocked.1

doors/tailgate ........................................ (up to the end of the DU)
locking the doors .................................. (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
children ................................................. (up to the end of the DU)
lights-on warning buzzer ........................................ (current page)
closing the doors .................................. (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
1.13
ENG_UD22281_3
Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_1
Doors
Opening from the inside
Pull handle 2.
Opening the doors from the
outside
With the doors unlocked or the “hands -
free” RENAULT card in your posses -
sion, hold handle 1 and pull it towards
you. In some cases, it may be neces -
sary to pull the handle twice to open the
door.
OPENING AND CLOSING THE DOORS (1/2)
12
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on a re -
minder buzzer will sound when a door
is opened.
Door/tailgate open buzzer
If a door or the tailgate is open or not
properly closed, as soon as the vehi -
cle reaches 4 mph (7 km/h), a warning
light appears on the instrument panel
accompanied by the message ‘Tailgate
open’ or ‘Doors open’ depending on the
vehicle.
Card reminder buzzer
A beep will let you know if you have left
the card in the reader when you open
the driver ’s door, and the ‘Remove
card’ message will appear on the instru-
ment panel.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

1.14
ENG_UD22281_3
Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_1
Child safety
Vehicles fitted with switch 3
Press switch 3 to inhibit operation of
the rear electric windows and opening
of the rear doors from the inside. The
indicator light in the switch lights up.
Other cases
Lower lever 4 and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
OPENING AND CLOSING THE DOORS (2/2)
3
4
Safety of rear occupants
The driver can authorise
operation of the rear doors
and, depending on the ve -
hicle, the electric windows by press-
ing switch 3; the integrated indicator
light goes out.
Depending on the vehicle, in the
event of a fault:
– a beep sounds;
– a message is displayed on the in-
strument panel;
– the integrated indicator does not
light up.
If the battery has been discon -
nected, press switch 3 on the side
with the symbol to lock the rear
doors.
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.
