brake sensor RENAULT CLIO SPORT TOURER 2012 X85 / 3.G Owners Manual

driving ................................................... (up to the end of the DU)
Electronic Stability Program: ESP ........ (up to the end of the DU)
ESP: Electronic Stability Program ........ (up to the end of the DU)
2.19
ENG_UD10562_1
Contrôle dynamique de conduite : E.S.P. avec contrôle de sous-virage (X85 - B85 - C85 - S85 - K85 - Renaul\
t)
ENG_NU_853-8_BCSK85_Renault_2
This system helps to keep control of
the vehicle in critical driving situations
(avoiding an obstacle, loss of grip when
cornering, etc.) and works in conjunc -
tion with the ‘understeer control’
system .

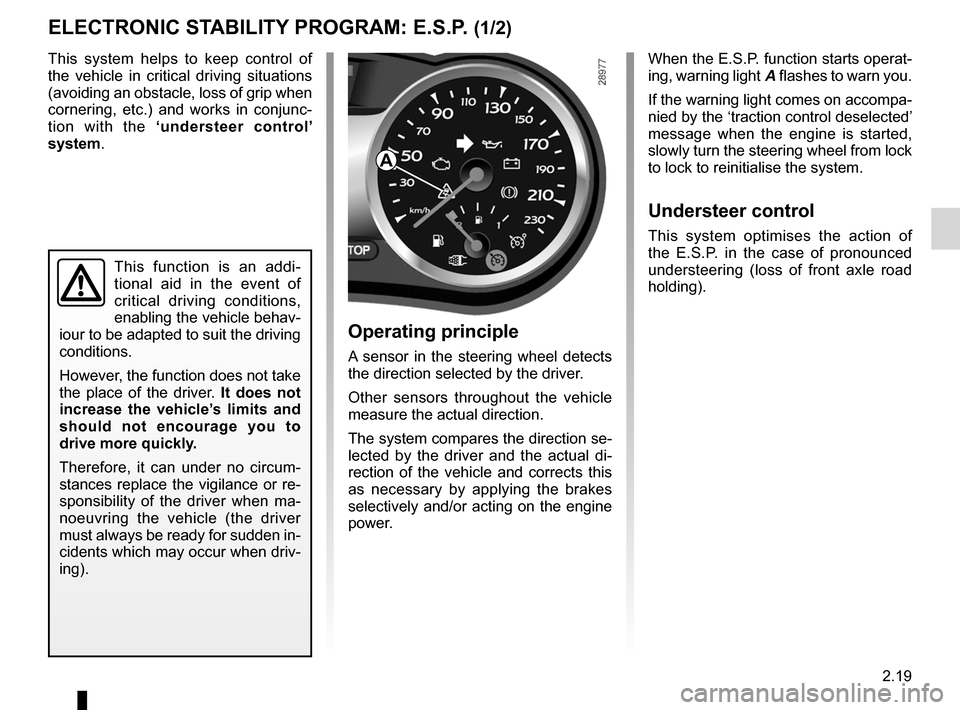

Electronic Stability Program: ESP
This function is an addi -
tional aid in the event of
critical driving conditions,
enabling the vehicle behav -
iour to be adapted to suit the driving
conditions.
However, the function does not take
the place of the driver. It does not
increase the vehicle’s limits and
should not encourage you to
drive more quickly.
Therefore, it can under no circum -
stances replace the vigilance or re-
sponsibility of the driver when ma -
noeuvring the vehicle (the driver
must always be ready for sudden in-
cidents which may occur when driv-
ing).
When the E.S.P. function starts operat-
ing, warning light A flashes to warn you.
If the warning light comes on accompa -
nied by the ‘traction control deselected’
message when the engine is started,
slowly turn the steering wheel from lock
to lock to reinitialise the system.
Understeer control
This system optimises the action of
the E.S.P. in the case of pronounced
understeering (loss of front axle road
holding).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares the direction se-
lected by the driver and the actual di -
rection of the vehicle and corrects this
as necessary by applying the brakes
selectively and/or acting on the engine
power.
ELECTRONIC STABILITY PROGRAM: E.S.P. (1/2)
A

traction control: ASR .............................(up to the end of the DU)
driving ................................................... (up to the end of the DU)
traction control: ASR .............................(up to the end of the DU)
2.21
ENG_UD10563_1
Système antipatinage : A.S.R. (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_2

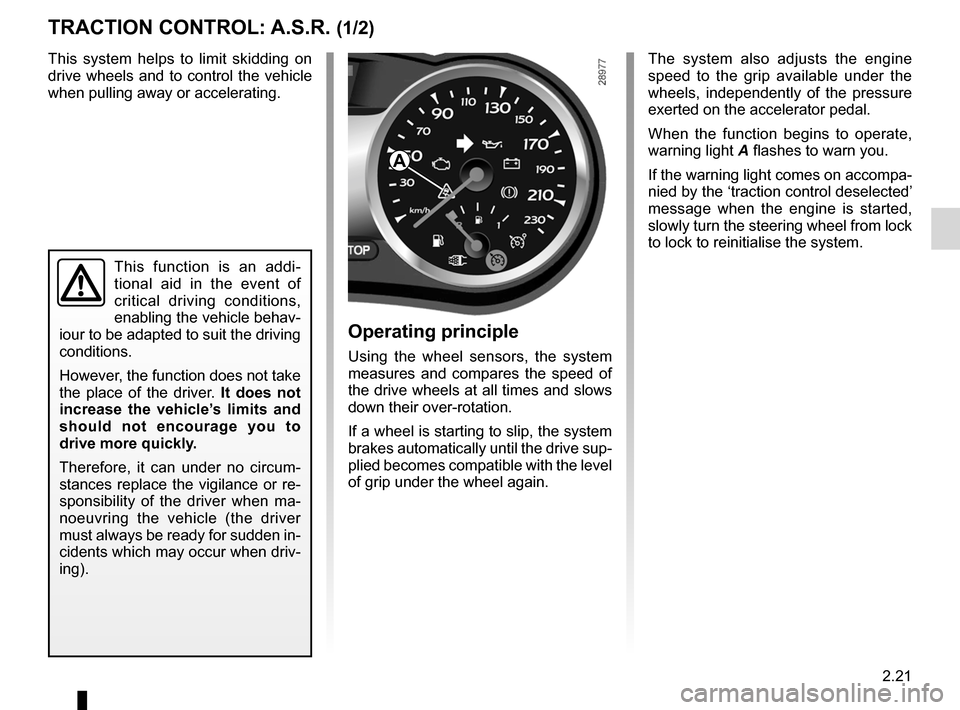

Traction control: ASR
This function is an addi -
tional aid in the event of
critical driving conditions,
enabling the vehicle behav -
iour to be adapted to suit the driving
conditions.
However, the function does not take
the place of the driver. It does not
increase the vehicle’s limits and
should not encourage you to
drive more quickly.
Therefore, it can under no circum -
stances replace the vigilance or re-
sponsibility of the driver when ma -
noeuvring the vehicle (the driver
must always be ready for sudden in-
cidents which may occur when driv-
ing).
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.
When the function begins to operate,
warning light A flashes to warn you.
If the warning light comes on accompa -
nied by the ‘traction control deselected’
message when the engine is started,
slowly turn the steering wheel from lock
to lock to reinitialise the system.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation.
If a wheel is starting to slip, the system
brakes automatically until the drive sup-
plied becomes compatible with the level
of grip under the wheel again.
This system helps to limit skidding on
drive wheels and to control the vehicle
when pulling away or accelerating.
TRACTION CONTROL: A.S.R. (1/2)
A

7.4
FRA_UD27585_9
Index (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
use ................................................... 1.7 → 1.12, 2.5 → 2.8
RENAULT card battery ...................................................... 5.33
replacement parts ................................................................ 6.8
reverse gear selecting ....................................................................... 2.12
reversing sensor ..................................................... 2.34 – 2.35
roof bars ................................................................. 3.40 – 3.41
roof rack roof bars ............................................................ 3.40 – 3.41
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.29 → 1.32
seat belts ............................................................... 1.25 → 1.28
service sheets .......................................................... 6.9 → 6.14
signals and lights .......................................... 1.51, 1.77 → 1.82
speakers location ........................................................................ 5.34
special features of diesel vehicles with particle filter ......... 2.11
special features of diesel versions .....................................2.10
special features of petrol vehicles ....................................... 2.9
speed limiter .......................................................... 2.24 → 2.26
starting the engine ..................................................... 2.3 → 2.7
steering wheel adjustment ................................................................... 1.24
stopping the engine ................................................... 2.4 → 2.8
storage compartment ............................................. 3.24 → 3.27
storage compartments ........................................... 3.24 → 3.27
sun visor ........................................................................\
.... 3.22
sunroof .................................................................... 3.20 – 3.21
switching on the vehicle ignition ................................... 2.3, 2.7
t
tailgate .......................................................... 3.32, 3.35 → 3.37tanks and reservoirs
brake fluid ...................................................................... 4.9
coolant ........................................................................... 4.8
tanks and reservoirs: windscreen washer ...................................................... 4.10
technical specifications .............................................. 6.4 → 6.8
temperature regulation ............................................ 3.4 → 3.16
tool kit ........................................................................\
.......... 5.9
towing breakdown .......................................................5.38 → 5.40
towing a caravan .......................................................... 5.40
towing equipment ......................................................... 5.40
towing a caravan ................................................................. 6.7
towing equipment fitting ............................................................................ 5.40
towing hitch ..................................................... 5.9, 5.38 → 5.40
towing rings ............................................................ 3.35 – 3.36
towing weights ..................................................................... 6.7
traction control: ASR ............................................... 2.21 – 2.22
transporting children .......................... 1.36 – 1.37, 1.39 → 1.48
transporting objects in the luggage compartment ........................................ 3.37
luggage net ....................................................... 3.38 – 3.39
on the roof ...................................................................... 6.7
trims ........................................................................\
........... 5.10
trip computer and warning system .........................1.63 → 1.65
tyre inflation kit ........................................................... 5.6 → 5.8
tyre pressure ...................................................................... 5.14
tyres ....................................................................... 5.13 → 5.15
U
unlocking the doors ............................................... 1.15 → 1.17
V
variable power-assisted steering ....................................... 1.24
ventilation ................................................................ 3.2 → 3.16
