Advice: antipollution and fuel economy

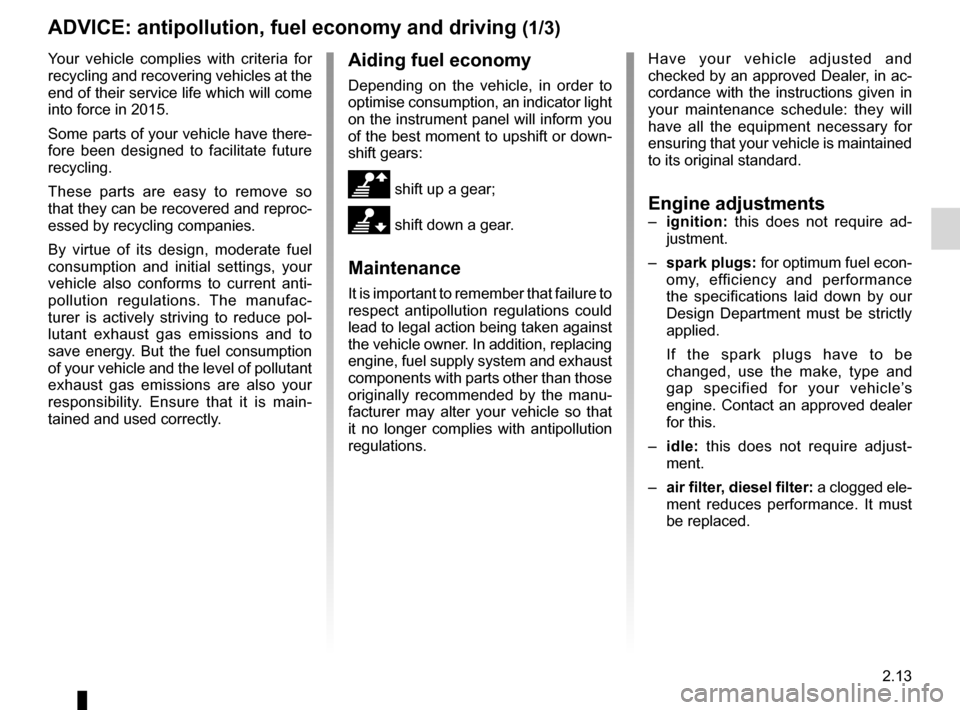

ADVICE: antipollution, fuel economy and driving (1/3)
Your vehicle complies with criteria for
recycling and recovering vehicles at the
end of their service life which will come
into force in 2015.
Some parts of your vehicle have there-
fore been designed to facilitate future
recycling.
These parts are easy to remove so
that they can be recovered and reproc-
essed by recycling companies.
By virtue of its design, moderate fuel
consumption and initial settings, your
vehicle also conforms to current anti-
pollution regulations. The manufac -
turer is actively striving to reduce pol -
lutant exhaust gas emissions and to
save energy. But the fuel consumption
of your vehicle and the level of pollutant
exhaust gas emissions are also your
responsibility. Ensure that it is main -
tained and used correctly.Aiding fuel economy
Depending on the vehicle, in order to
optimise consumption, an indicator light
on the instrument panel will inform you
of the best moment to upshift or down -
shift gears:
\ shift up a gear;
[ shift down a gear.
Maintenance
It is important to remember that failure to
respect antipollution regulations could
lead to legal action being taken against
the vehicle owner. In addition, replacing
engine, fuel supply system and exhaust
components with parts other than those
originally recommended by the manu -
facturer may alter your vehicle so that
it no longer complies with antipollution
regulations. Have your vehicle adjusted and
checked by an approved Dealer, in ac-
cordance with the instructions given in
your maintenance schedule: they will
have all the equipment necessary for
ensuring that your vehicle is maintained
to its original standard.
Engine adjustments–
ignition: this does not require ad -
justment.
– spark plugs: for optimum fuel econ-
omy, efficiency and performance
the specifications laid down by our
Design Department must be strictly
applied.
If the spark plugs have to be
changed, use the make, type and
gap specified for your vehicle’s
engine. Contact an approved dealer
for this.
– idle: this does not require adjust -
ment.
– air filter, diesel filter: a clogged ele-
ment reduces performance. It must
be replaced.

JauneNoirNoir texte
5.45
ENG_UD13707_1
Anomalies de fonctionnement (L38 - X38 - Renault)
ENG_NU_853-8_BCSK85_Renault_5
OPERATING FAULTS (5/8)
On the road POSSIBLE CAUSESACTION REQUIRED
Smoke under the bonnet. Short circuit or cooling circuit leak.Stop, switch off the ignition, stand away
from the vehicle and contact an ap-
proved Dealer.
Coolant circuit fault. Consult an approved dealer.
The oil pressure warning light comes on:
– while turning or braking, The level is too low. Top up the engine oil level (refer to the
information on “Engine oil level: topping
up/filling” in Section 4).
– at idle speed, Low oil pressure. Consult the nearest approved Dealer.
– is slow to go out or remains lit when
accelerating. Loss of oil pressure.
Stop the vehicle and contact an ap-
proved Dealer.
Loss of engine power. Clogged air filter.Replace the cartridge.
Fuel supply fault. Check the fuel level.
Faulty spark plugs, incorrect electrode
gaps. Consult an approved dealer.
Unstable idle speed or the engine stalls. Poor compression (spark plugs, ignition,
air leak).Consult an approved dealer.
