Page 81 of 258

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.75
Heated door mirrorsWith the engine running, mirror de-
icing is activated simultaneously with
rear screen de-icing/demisting.
Folding door mirrors
(depending on vehicle)
Move button 1  to positi

Page 82 of 258

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.76
Daytime running lights
function
(front lights only)
Depending on the vehicle, the daytime
running lights come on automatically
when the engine is started.
EXTERIOR LIGHTING AND SIGNALS (1/3)

Page 83 of 258

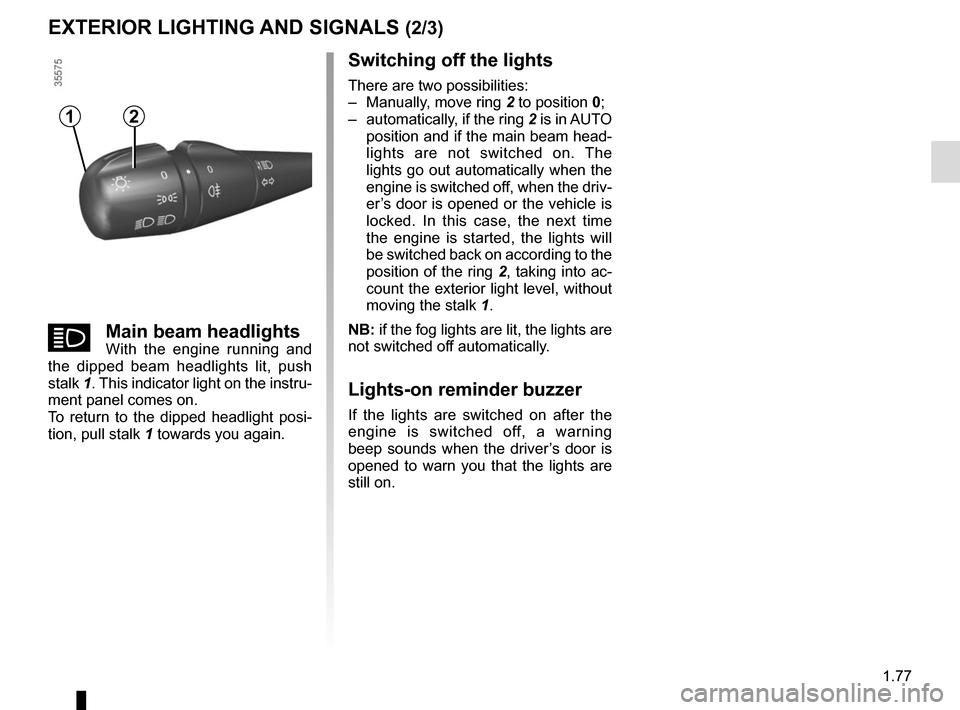

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.77
EXTERIOR LIGHTING AND SIGNALS (2/3)
Switching off the lights
There are two possibilities:
–  Manually, move ring 2 to position 0;
–  automatically, if the ring 2 is in AUTO  position and if t

Page 84 of 258

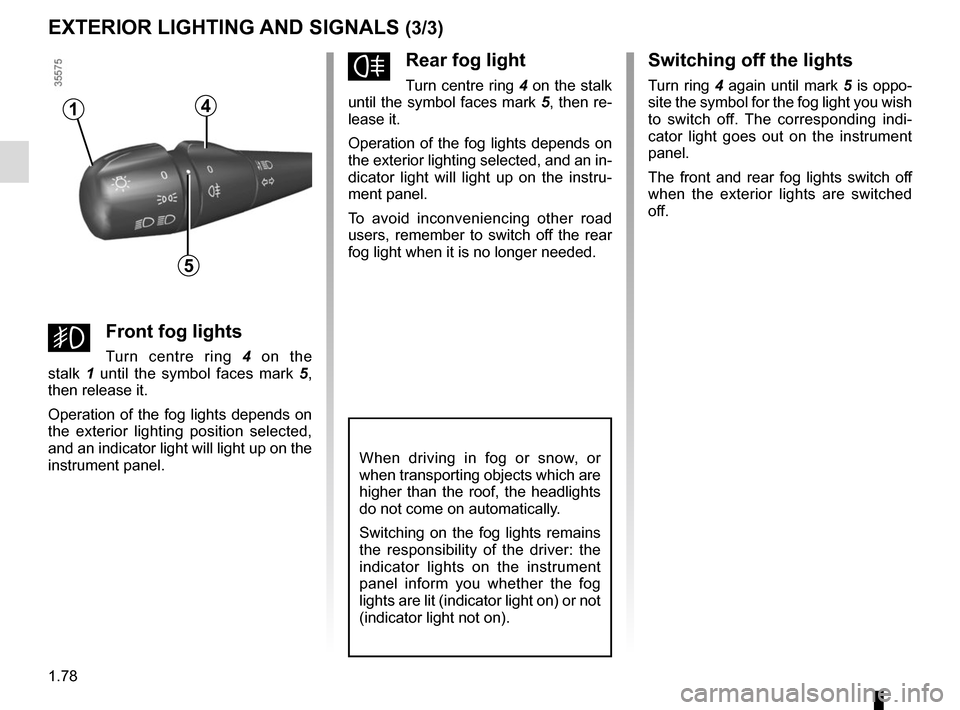

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.78
EXTERIOR LIGHTING AND SIGNALS (3/3)
fRear fog light
Turn centre ring 4 on the stalk
until the symbol faces mark  5, then re-
lease it.
Operation of the fog lights depends on
the exterior lighti

Page 85 of 258

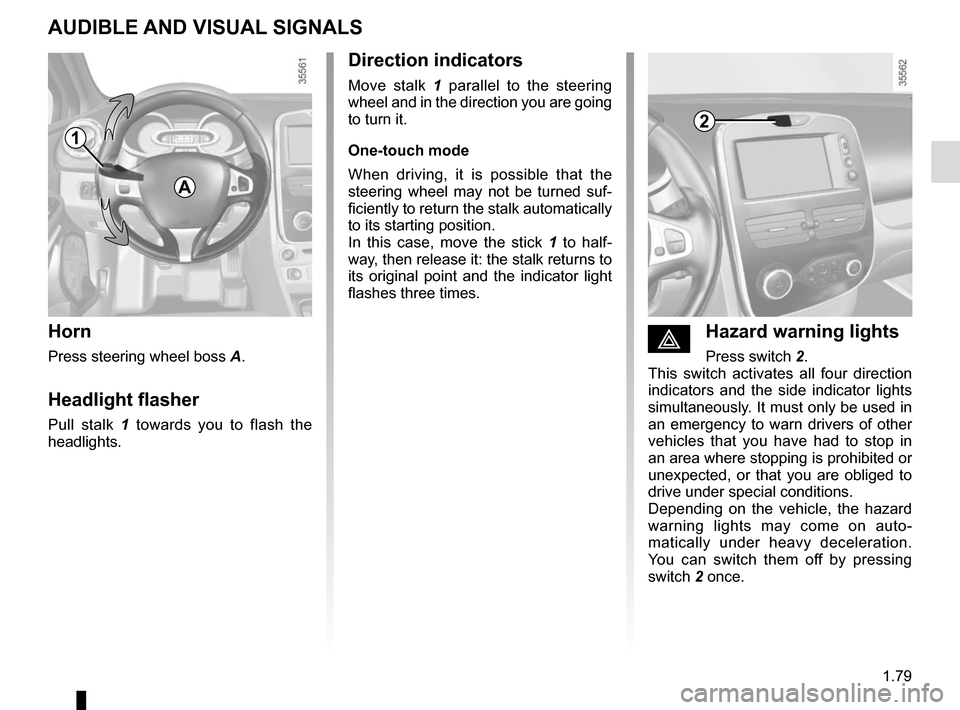

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.79
éHazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously. It must only be used in
an emergency to warn drivers

Page 86 of 258

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.80
HEADLIGHT BEAM ADJUSTMENT
On vehicles fitted with this function,
control A allows you to adjust the height
of the beams according to the load.
Turn control A downwards to lower the
headlights

Page 87 of 258

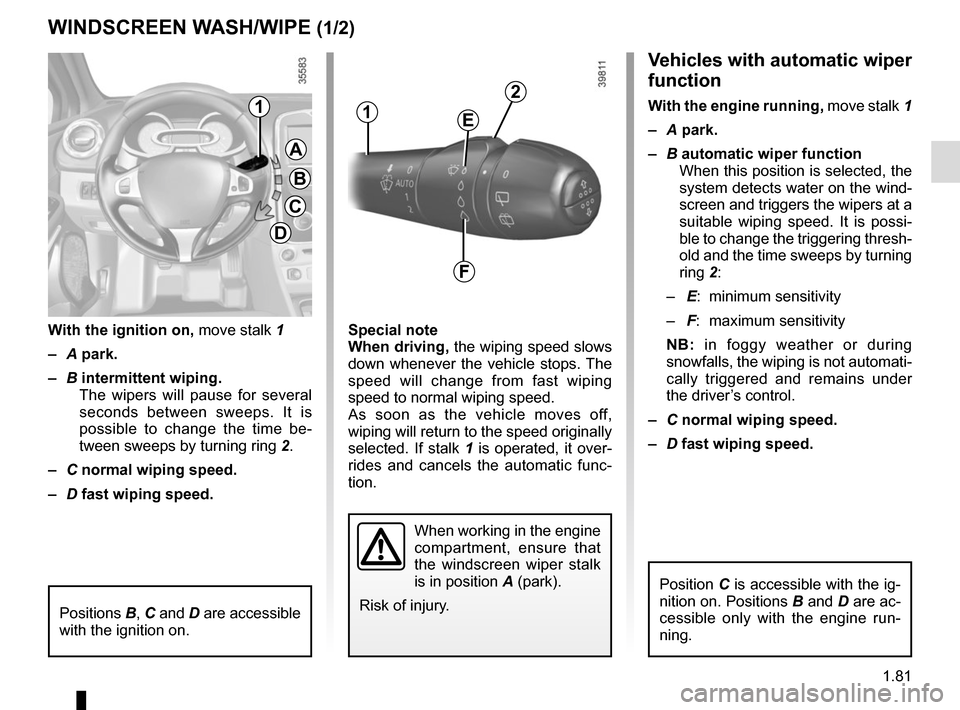

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.81
Vehicles with automatic wiper
function
With the engine running, move stalk 1
–  A park.
–  B automatic wiper function
When this position is selected, the
system detects water on the wind-
s

Page 88 of 258

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.82
Before any action involving
the windscreen (washing
the vehicle, de-icing, clean-
ing the windscreen, etc.)
return stalk 1 to position A (park).
Risk of injury and/or damage.
Windscreen washer

Page 89 of 258

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.83
pRear screen wash/wipe
With the ignition on, turn the
end of stalk 1 to align mark 2 with the
symbol.
When the stalk is released, it returns to
the rear wipe position.
Special note
If the wind

Page 90 of 258

RENAULT CLIO SPORT TOURER 2016 X98 / 4.G Manual Online 1.84
Fuel grade
Use a high-grade fuel that complies
with the legislation in force in each
country and which  must comply with
the specifications given on the label
on the cover A. Please refer to
