Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.14

vehicle identification ............................. (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
vehicle identification plates ................... (up to the end of the DU)
paintwork reference ......................................... (up to the end of the DU)
6.2
ENG_UD25707_2
Plaques d’identification véhicule (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_6
Vehicle identification plates
VEHICLE IDENTIFICATION pLATEs
Quote the manufacturer ’s plate
(right-hand side) in all correspond -
ence or when ordering parts .
The presence and location of the in-
formation depends on the vehicle.
Vehicle identification plate A
1 Vehicle type and chassis number.
Depending on the vehicle, this in-
formation is also given on mark -
ing B.
2 Maximum permissible all-up weight
of the vehicle.3 GTW (Gross train weight – vehicle
fully loaded, with trailer).
4 Front axle maximum permissible
all-up weight.
5 Rear axle maximum permissible
all-up weight.
6 Technical specifications of vehicle.
7 Paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specification.
12 Production number.
13 Interior trim code.
12345
6
7
8
9
10
11
12
13
A
A
B

engine specifications ............................ (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD20931_2
Caractéristiques moteurs (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_6
Engine specifications
ENgINE spECIFICATIONs
Versions 2.0 T2.0 dCi
Engine type
(see engine plate) F4R turbo
M9R turbo
Cubic capacity (cc) 1 998 1 998
Type of fuel
Octane rating It is
essential that you use unleaded petrol
of the octane rating stated on the label
inside the fuel filler flap.
If not available, for a limited time only, use
unleaded fuel:
– with an octane rating of 91 for a label
showing 95 or 98;
– with an octane rating of 87 for a label
showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified
for your vehicle’s engine.
The type should be marked on a label
affixed inside the engine compartment. If it is not, contact an approved dealer.
Fitting spark plugs which are not to
specification may damage the engine. –

technical specifications .......................................... (current page)
towing a caravan ................................................... (current page)
towing weights ....................................................... (current page)
weights .................................................................. (current page)
load permitted on the roof ......................................(current page)
transporting objects on the roof ........................................................ (current page)
6.5
ENG_UD24351_2
Masses (en kg) (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_6
Weights
Towing weights
WEIgHTs (in kg)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. Consult
your approved Dealer.
Maximum permissible all-up weight (MMAC)
Total train weight (MTR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked Trailer Weight* 750
permissible nose weight* 80
permissible load on the roof with the carrying device 80 kg (including the carrying device)
* Towing weight (Towing a caravan, boat, etc.)
Towing is prohibited when the calculation MTR (Total train weight) - MMAC (Maximum permissible all-up weight) is zero\
.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be
increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weight transfer
If the Maximum Authorised Mass of the vehicle has not been reached, up to 500 kg can be transferred to the braked trailer, within
the limits of the Gross Train Weight.

technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.7
ENG_UD7339_1
Pièces de rechange et réparations (X76 - Renault)
ENG_NU_932-3_X81ph3_Renault_6

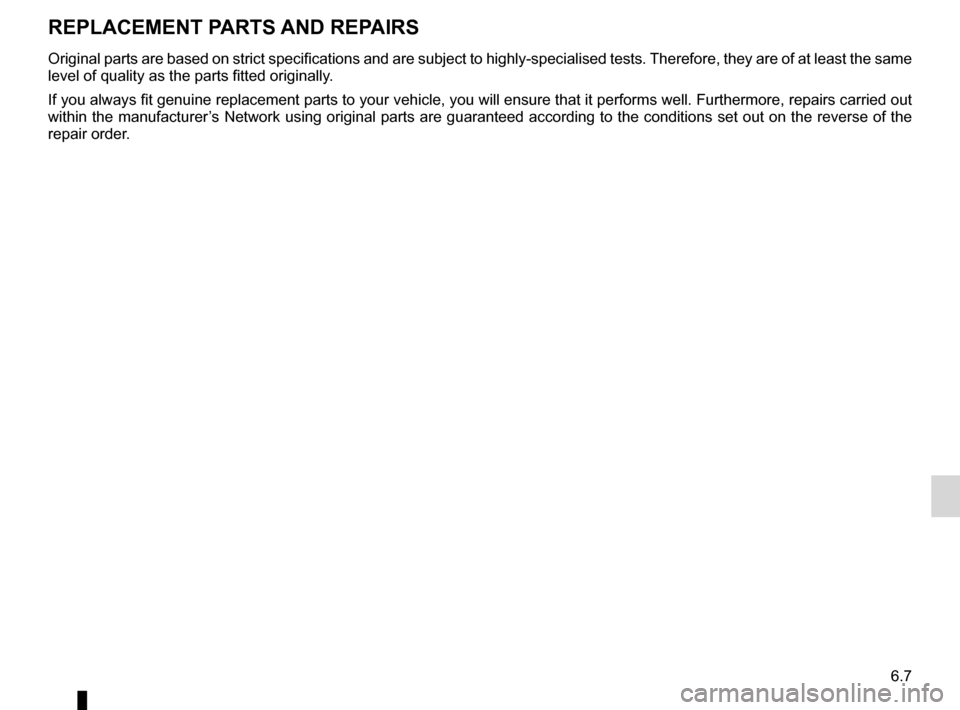

Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
REpLACEMENT p ARTs AND REp AIRs
