RENAULT ESPACE 2015 5.G Owners Manual
Manufacturer: RENAULT, Model Year: 2015, Model line: ESPACE, Model: RENAULT ESPACE 2015 5.GPages: 316, PDF Size: 6.98 MB
Page 211 of 316

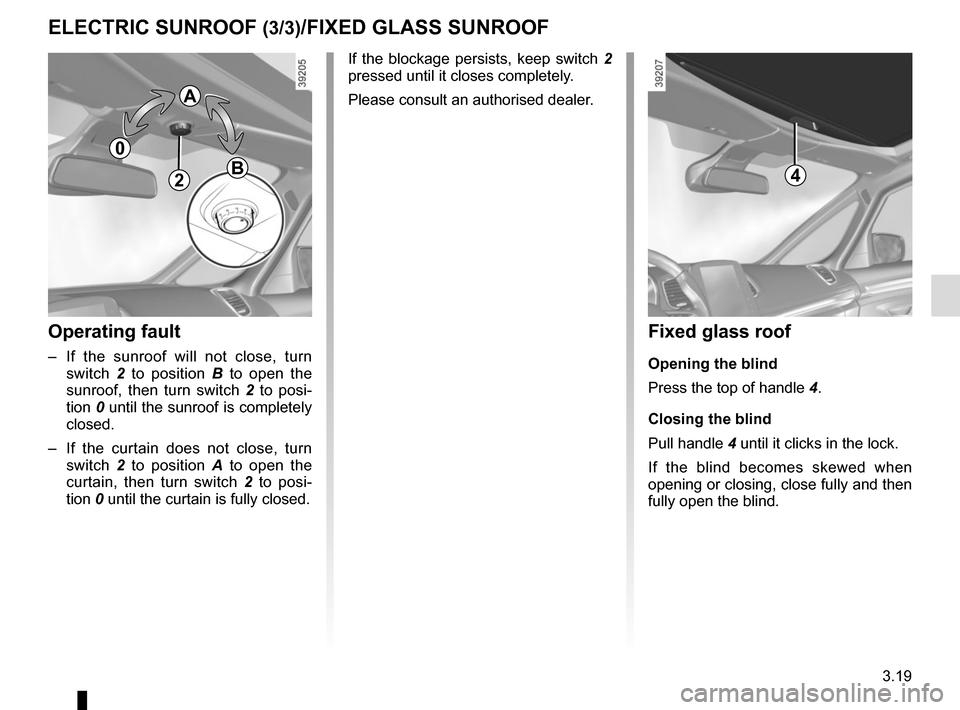

3.19
Operating fault
– If the sunroof will not close, turn switch 2 to position B to open the
sunroof, then turn switch 2 to posi-
tion 0 until the sunroof is completely
closed.
– If the curtain does not close, turn switch 2 to position A to open the
curtain, then turn switch 2 to posi-
tion 0 until the curtain is fully closed.
2
ELECTRIC SUNROOF (3/3)/FIXED GLASS SUNROOF
If the blockage persists, keep switch 2
pressed until it closes completely.
Please consult an authorised dealer.
0
A
B
Fixed glass roof
Opening the blind
Press the top of handle 4.
Closing the blind
Pull handle 4 until it clicks in the lock.
If the blind becomes skewed when
opening or closing, close fully and then
fully open the blind.
4
Page 212 of 316

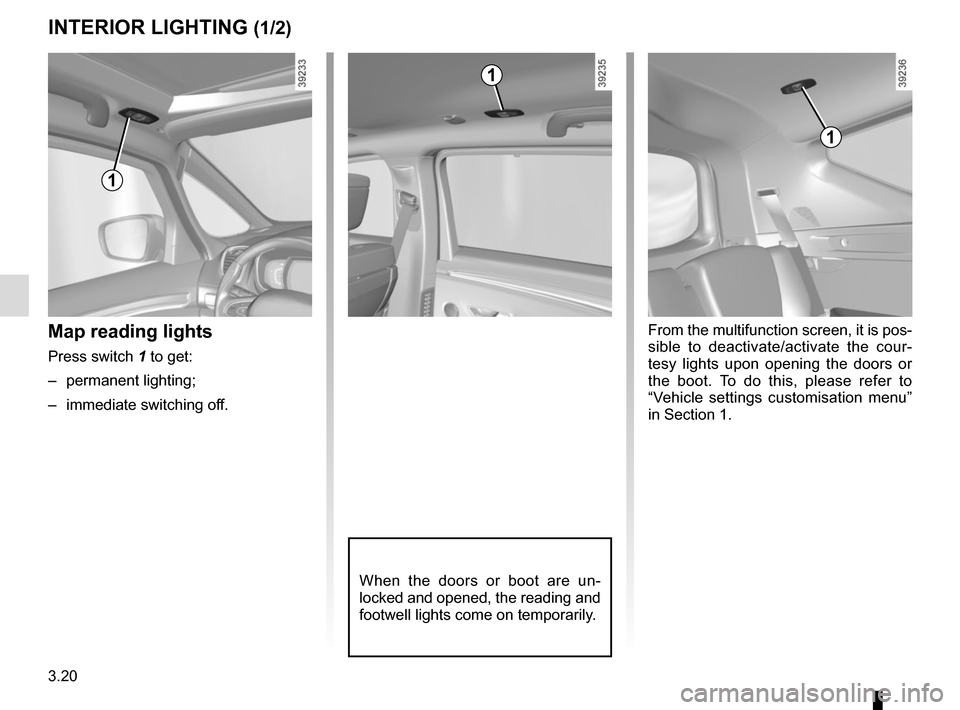

3.20
When the doors or boot are un-
locked and opened, the reading and
footwell lights come on temporarily.
Map reading lights
Press switch 1 to get:
– permanent lighting;
– immediate switching off.
1
1
From the multifunction screen, it is pos-
sible to deactivate/activate the cour-
tesy lights upon opening the doors or
the boot. To do this, please refer to
“Vehicle settings customisation menu”
in Section 1.
INTERIOR LIGHTING (1/2)
1

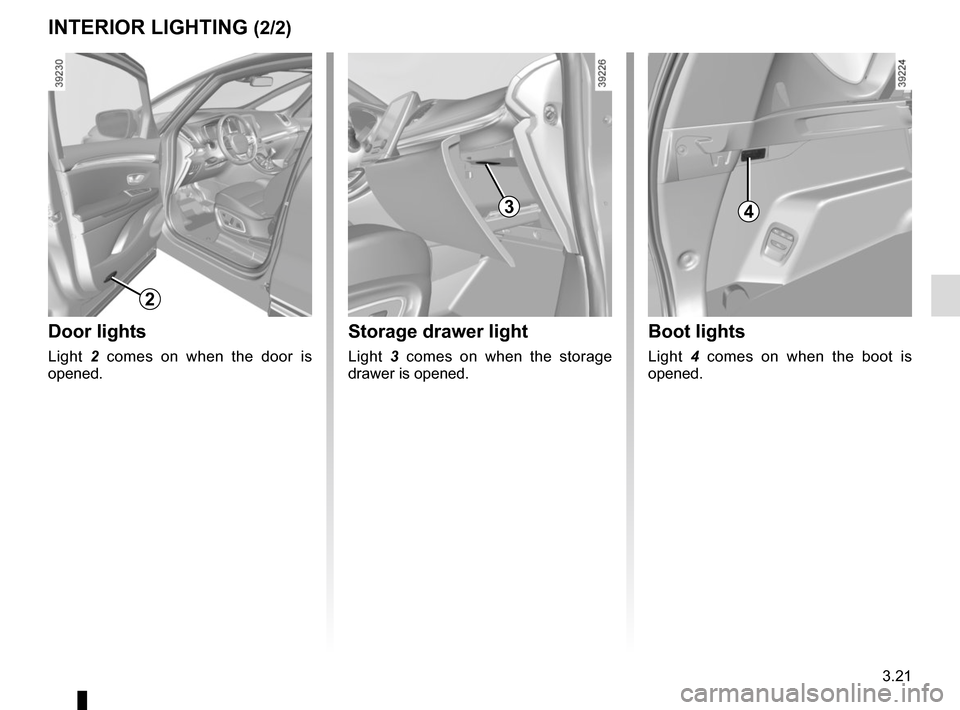

Page 213 of 316
3.21
Boot lights
Light 4 comes on when the boot is
opened.
Storage drawer light
Light 3 comes on when the storage
drawer is opened.
INTERIOR LIGHTING (2/2)
3
Door lights
Light 2 comes on when the door is
opened.
2
4
Page 214 of 316

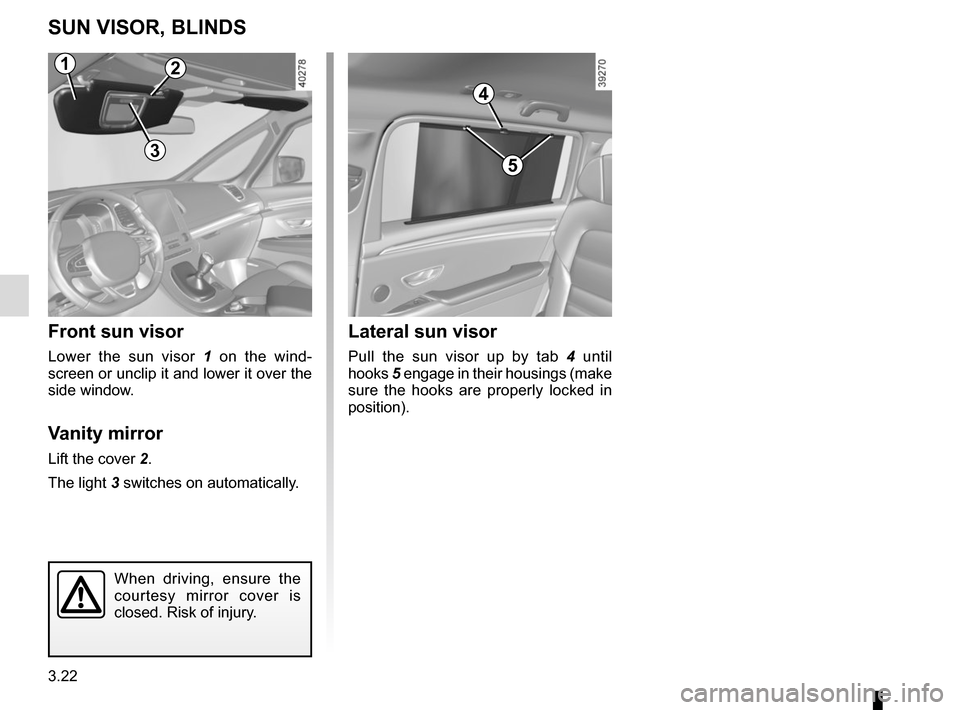

3.22
SUN VISOR, BLINDS
Front sun visor
Lower the sun visor 1 on the wind-
screen or unclip it and lower it over the
side window.
Vanity mirror
Lift the cover 2.
The light 3 switches on automatically.
Lateral sun visor
Pull the sun visor up by tab 4 until
hooks 5 engage in their housings (make
sure the hooks are properly locked in
position).
4
5
2
3
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
1
Page 215 of 316

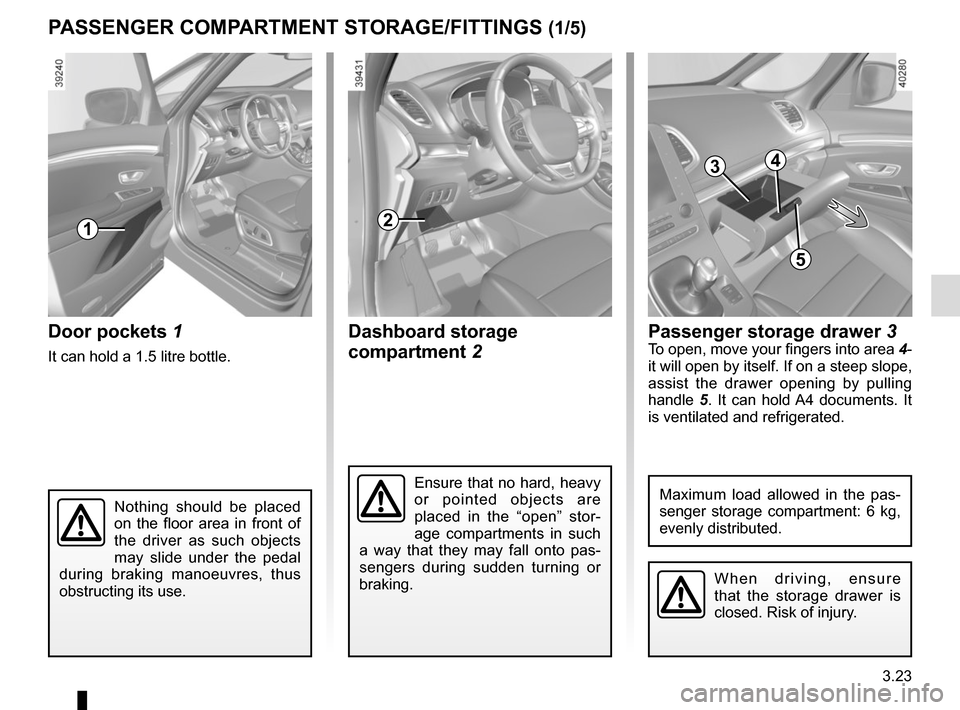

3.23
Dashboard storage
compartment 2Door pockets 1
It can hold a 1.5 litre bottle.
PASSENGER COMPARTMENT STORAGE/FITTINGS (1/5)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
2
Passenger storage drawer 3To open, move your fingers into area 4-
it will open by itself. If on a steep slope,
assist the drawer opening by pulling
handle 5. It can hold A4 documents. It
is ventilated and refrigerated.
Maximum load allowed in the pas-
senger storage compartment: 6 kg,
evenly distributed.
When driving, ensure
that the storage drawer is
closed. Risk of injury.
34
5
Page 216 of 316

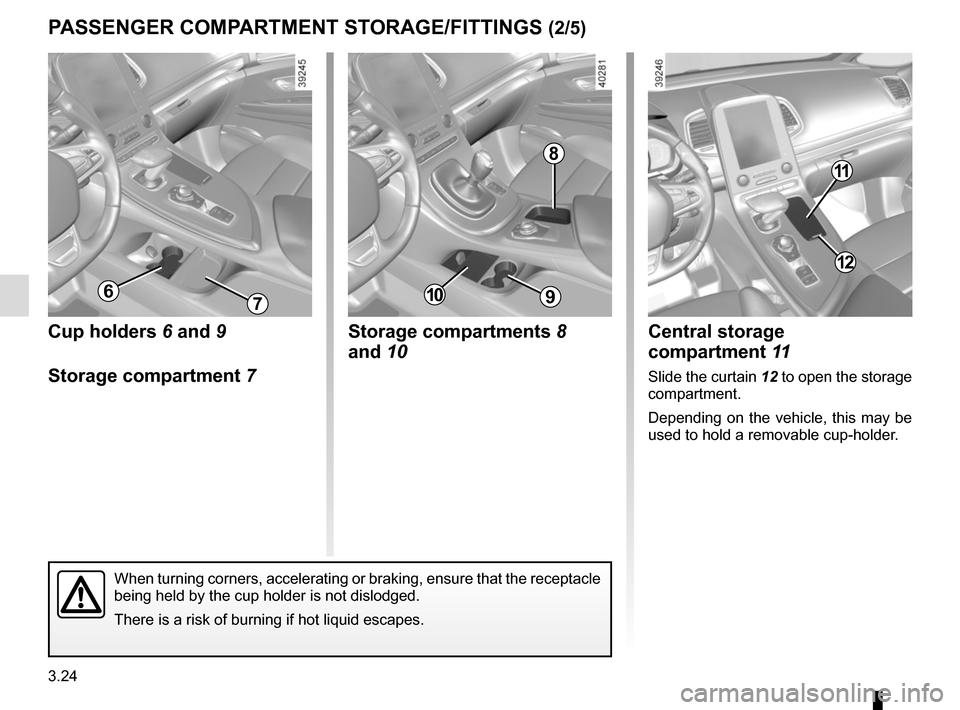

3.24
PASSENGER COMPARTMENT STORAGE/FITTINGS (2/5)
Central storage
compartment 11
Slide the curtain 12 to open the storage
compartment.
Depending on the vehicle, this may be
used to hold a removable cup-holder.
Cup holders 6 and 9
Storage compartment 7 Storage compartments 8
and 10
67
8
910
11
12
When turning corners, accelerating or braking, ensure that the receptacl\
e
being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.
Page 217 of 316

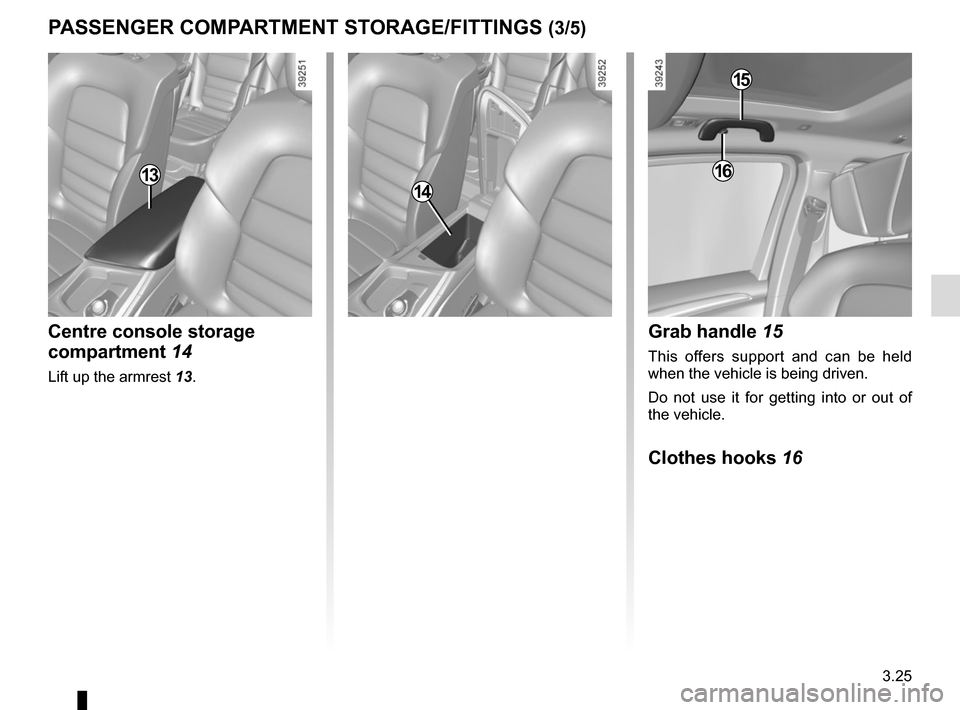

3.25
PASSENGER COMPARTMENT STORAGE/FITTINGS (3/5)
Centre console storage
compartment 14
Lift up the armrest 13.
1314
Grab handle 15
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
Clothes hooks 16
15
16
Page 218 of 316

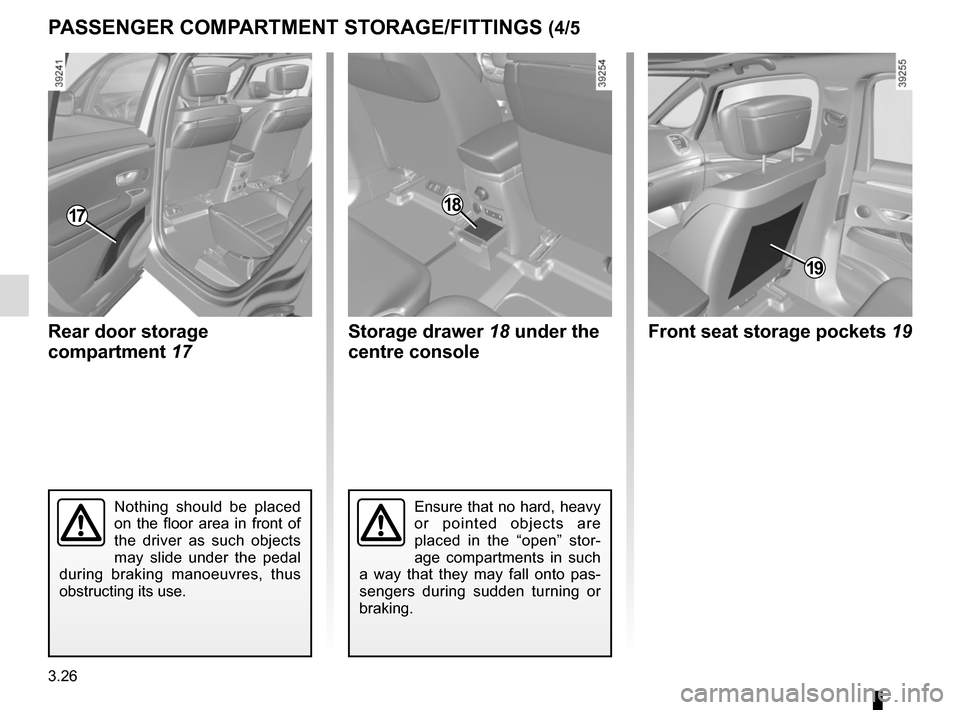

3.26
PASSENGER COMPARTMENT STORAGE/FITTINGS (4/5
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
Storage drawer 18 under the
centre console
18
Rear door storage
compartment 17
17
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Front seat storage pockets 19
19
Page 219 of 316
3.27
PASSENGER COMPARTMENT STORAGE/FITTINGS (5/5)
Rear parcel shelf 20
20
Flap under the feet of the
right rear passenger 21
This location houses the tool kit. Please
refer to the information on “Tools” in
Section 5.
21
Page 220 of 316

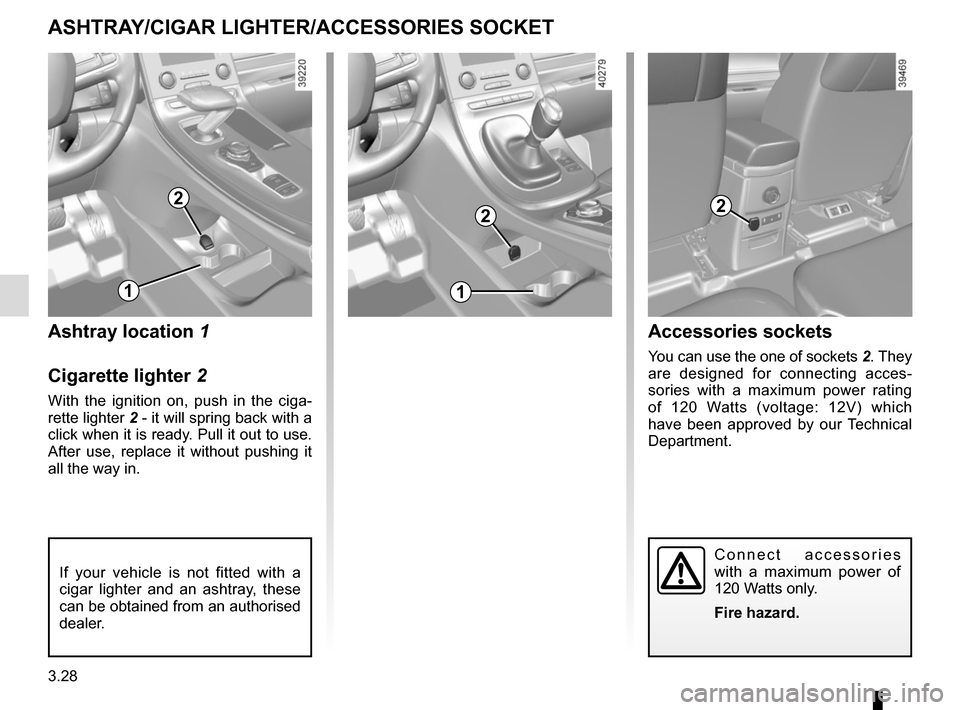

3.28
ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET
2
Ashtray location 1
Cigarette lighter 2
With the ignition on, push in the ciga-
rette lighter 2 - it will spring back with a click when it is ready. Pull it out to use.
After use, replace it without pushing it
all the way in.
2
Accessories sockets
You can use the one of sockets 2. They
are designed for connecting acces-
sories with a maximum power rating
of 120 Watts (voltage: 12V) which
have been approved by our Technical
Department.
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.
11
2
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an authorised
dealer.
