RENAULT ESPACE 2015 5.G Owner's Manual

RENAULT ESPACE 2015 5.G Owner's Manual https://www.carmanualsonline.info/img/7/1597/w960_1597-0.png RENAULT ESPACE 2015 5.G Owner's Manual

Page 21 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.15
If fitted on the vehicle, the tailgate locks
and unlocks at the same time as the
doors.
There are four modes to manoeuvre
the tailgate:
–  using the RENAULT card remote control;
–  using t

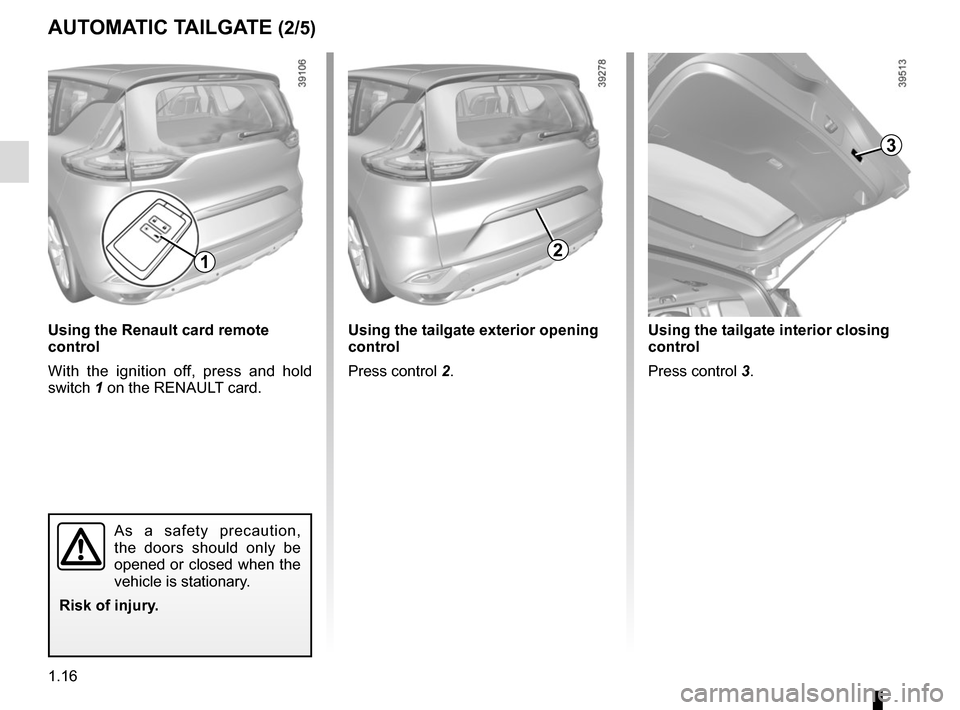

Page 22 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.16
AUTOMATIC TAILGATE (2/5)
3
Using the tailgate interior closing
control
Press control 3.
2
Using the tailgate exterior opening
control
Press control 2.
1
Using the Renault card remote
control
W

Page 23 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.17
Do not keep your foot in the air. Carry
out the movement without stopping.
Note: With the tailgate open, after de-
tecting a closure control, it waits around
3 seconds before triggering the clo

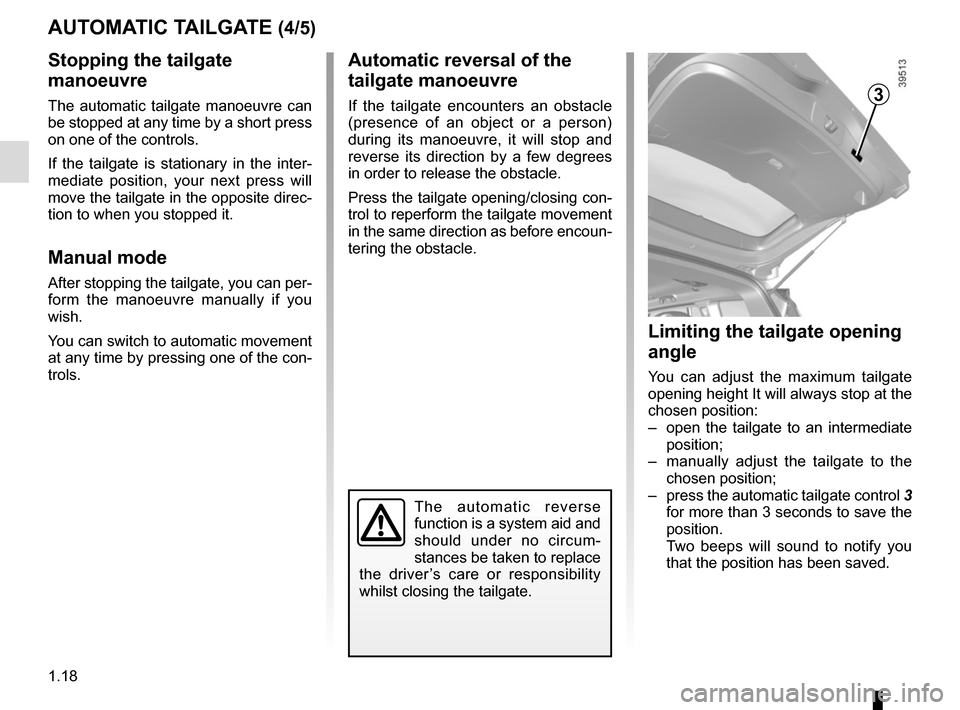

Page 24 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.18
AUTOMATIC TAILGATE (4/5)
Stopping the tailgate
manoeuvre
The automatic tailgate manoeuvre can
be stopped at any time by a short press
on one of the controls.
If the tailgate is stationary in t

Page 25 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.19
AUTOMATIC TAILGATE (5/5)Operating faults
If you activate the automatic tailgate
continuously for around a minute (se-
quence of opening and closing), it will
stop in order to avoid overheating.

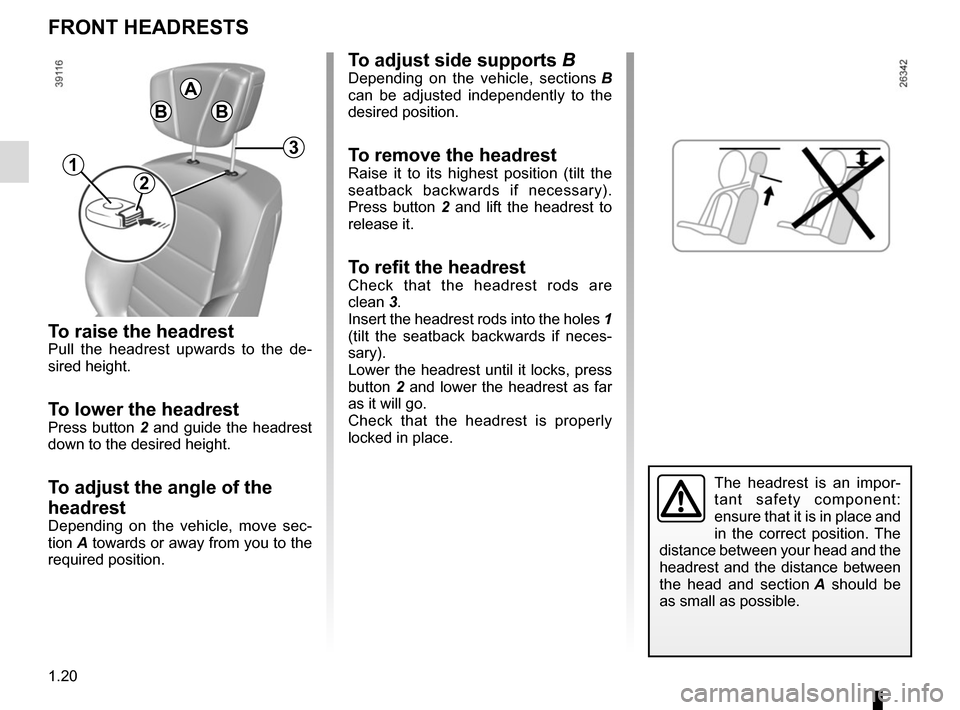

Page 26 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.20
To raise the headrestPull the headrest upwards to the de-
sired height.
To lower the headrestPress button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headres

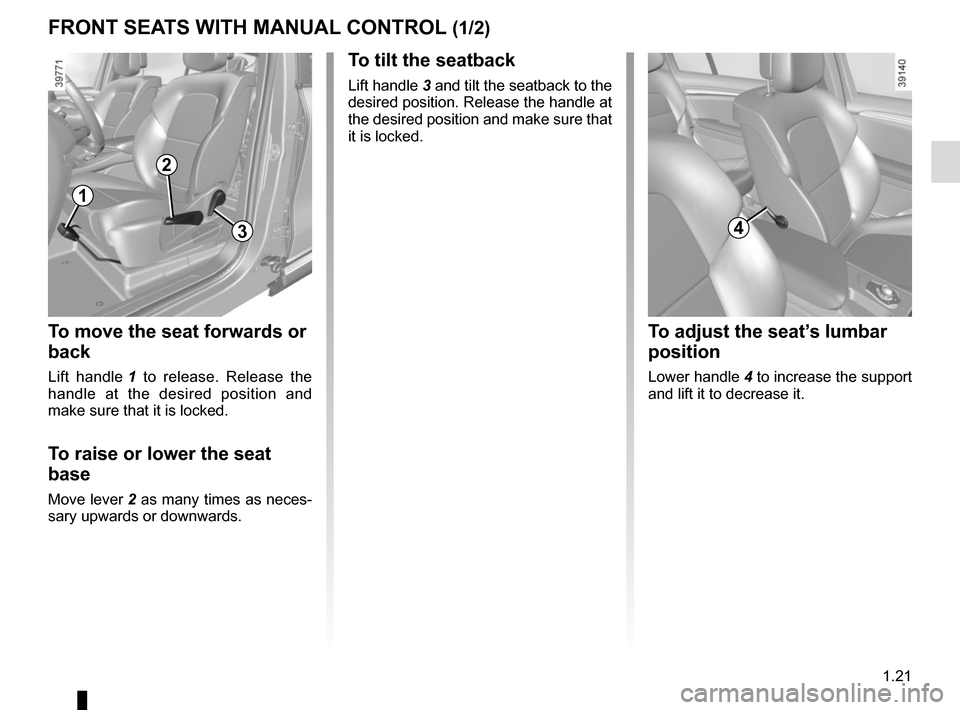

Page 27 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.21
FRONT SEATS WITH MANUAL CONTROL (1/2)
To move the seat forwards or
back
Lift handle  1 to release. Release the
handle at the desired position and
make sure that it is locked.
To raise or lower

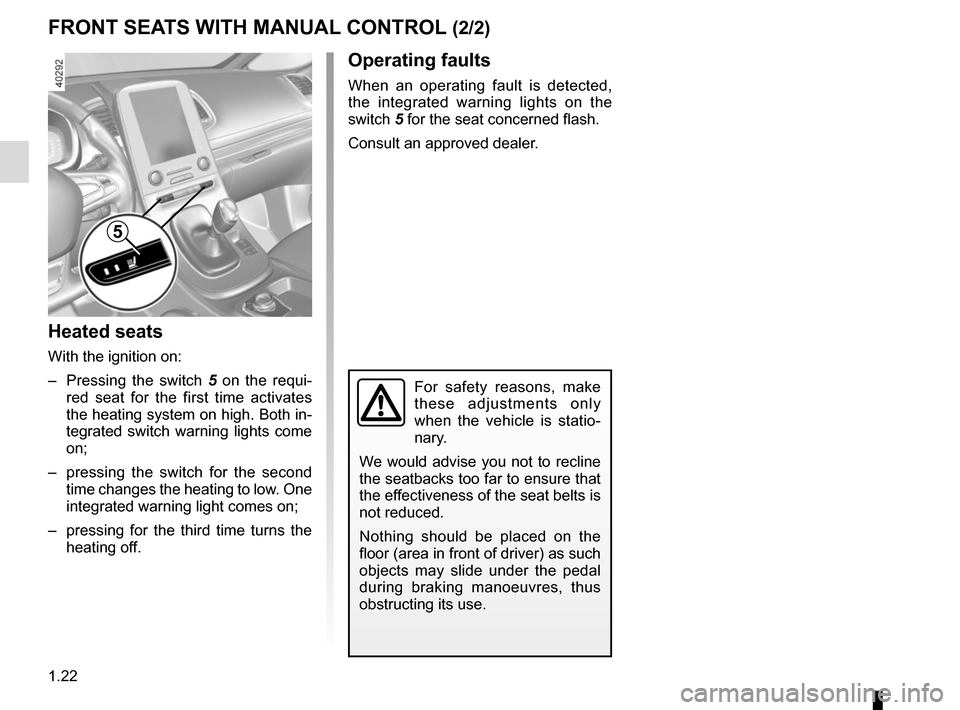

Page 28 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.22
Heated seats
With the ignition on:
–  Pressing the switch 5 on the requi-
red seat for the first time activates
the heating system on high. Both in-
tegrated switch warning lights come
on;

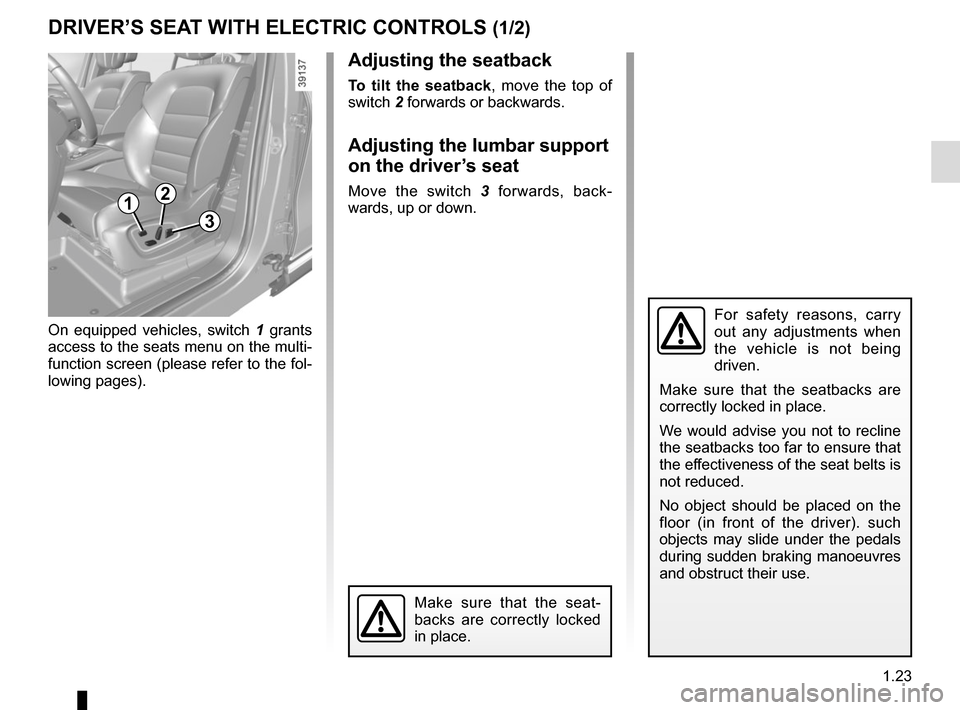

Page 29 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.23
DRIVER’S SEAT WITH ELECTRIC CONTROLS (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Make sure that the seatbacks are
correctly locked in place.
We

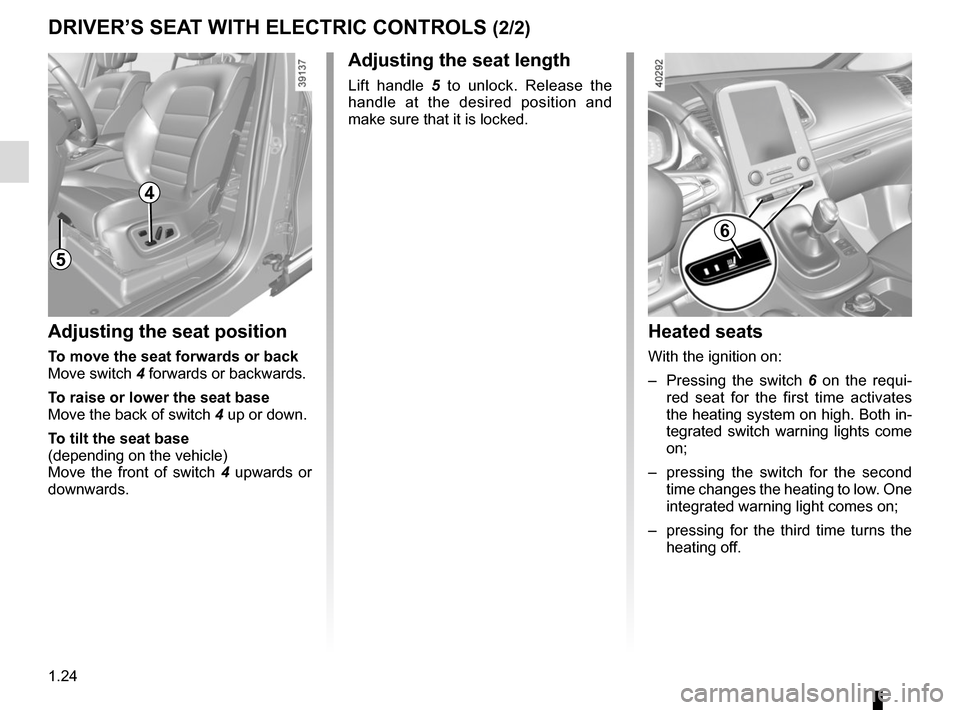

Page 30 of 316

RENAULT ESPACE 2015 5.G Owners Manual 1.24
DRIVER’S SEAT WITH ELECTRIC CONTROLS (2/2)
5
Heated seats
With the ignition on:
–  Pressing the switch 6 on the requi-
red seat for the first time activates
the heating system on high. Both
