RENAULT GRAND SCENIC 2015 J95 / 3.G Owners Manual
Page 151 of 270
AIR CONDITIONING: information and advice on use
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing
consumption and therefore
helping to preserve the
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Refer to the Maintenance Document
for your vehicle for the inspection
As a general rule, contact your ap-
proved dealer in the event of an op-
– Reduction in de-icing, demist-
ing or air conditioning per-
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged.
– No cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
Advice on use
In some situations, (air conditioning
off, air recirculation activated, venti-
lation speed at zero or low, etc.) you
may notice that condensation starts
to form on the windows and wind-
If there is condensation, use the
“Clear View” function to remove it,
then use the air conditioning in auto-
matic mode to stop it forming again.
If the condensation does not clear,
use the FAST programme.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Presence of water under the ve-
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.
Page 152 of 270
ELECTRIC WINDOWS/ELECTRIC SUNROOF (1/3)
These systems operate with the igni-
tion on or off, until one of the front doors
is opened (limited to about 3 minutes).
From the driver’s seat, use switch:
1 for the driver’s side;
2 for the front passenger’s side;
3 and 5 for the rear passenger win-
From the passenger seats, use
Note: if the window detects resistance
when closing (e.g.: fingers, branch of
a tree, etc.) it stops and then lowers
again by a few centimetres.
Electric windowsPress or pull the switch to raise or lower
a window to the desired height (the rear
windows do not open fully);
This mode works in addition to the
operation of the electric windows de-
Briefly press or pull the window switch
fully: the window is fully lowered or
raised. Pressing the switch again stops
the window moving.
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
Safety of rear occupants
The driver can disable op-
eration of the electric win-
dows and, depending on
the vehicle, the rear doors, by
pressing switch 4. The indicator
light integrated in the switch lights
up to confirm that the locks have
Never leave your vehicle with the
RENAULT card inside and never
leave a child (or a pet) unsuper-
vised, even for a short while. They
may pose a risk to themselves or to
others by starting the engine, acti-
vating equipment such as the elec-
tric windows or by locking the doors.
If any part of the body becomes
trapped, reverse the direction of the
window immediately by pressing the
Risk of serious injury.
Page 153 of 270
ELECTRIC WINDOWS/ELECTRIC SUNROOF (2/3)
– open the sun blind;
– to open slightly: turn button 7 to po-
– to open fully: turn button 7 to po-
sition B , C or D, depending on the
opening position required;
– to close: turn button 7 to position 0.
– to open: push handle 9 upwards
and guide the blind as it retracts;
– to close: pull handle 9 until it clicks
into the catch.
Your vehicle is equipped with an antip-
inch facility: when the sunroof encoun-
ters resistance whilst closing, (some-
body’s fingers, etc.) it stops and then
moves back several centimetres.
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
If a body part gets trapped, reverse
the direction of travel as soon as
possible by turning button 7 fully to
the right (position D).
Risk of serious injury.
Page 154 of 270
In case of a fault when closing a window,
the system reverts to normal mode:
pull the switch concerned up as often
as necessary to fully close the window
(the window will close gradually), hold
the switch (still on the closure side) for
three seconds then lower and raise the
window fully to reinitialise the system.
If necessary, contact an approved
If the roof does not close, turn button 7
to the 0 position, then press button 8
until the roof is fully closed: consult an
ELECTRIC WINDOWS/ELECTRIC SUNROOF (3/3)
Closing windows can cause
If the vehicle is equipped
with this function, this action
will activate deadlocking.
Check that there is no-one
still inside the vehicle
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months
using products recommended by our
– do not open the sunroof immedi-
ately after the vehicle has been in
the rain or after your car has been
– vehicle with roof bars As a general rule, if there is a load
on the roof, use of the sunroof is not
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop-
erly arranged and secured and
should not interfere with the opera-
tion of the sunroof.
Contact an approved Dealer for de-
tails of possible conversions.
Important: during this operation,
the sunroof anti-pinch facility is de-
activated. Contact your approved
dealer as soon as possible.
Remote control window
(vehicles with 4 one-touch electric win-
When you lock the doors from the out-
side, press the locking button on the
RENAULT card twice in quick suc-
cession, or on the driver's door in
hands-free mode, and all the windows
will close automatically.
It is recommended that the user only
operates the system when the vehi-
cle can be seen clearly and no one is
Note: locking the doors using the
RENAULT card deactivates hands-free
Page 155 of 270
Front door lights
On equipped vehicles, light 5 comes on
when the door is opened.
MANUAL WINDOW WINDERS/INTERIOR LIGHTING (1/2)
When the doors or luggage com-
partment are unlocked and opened
the courtesy and door lights come
Tilt switch 3 to move it to the position
– permanent lighting;
– intermittent lighting, which comes on when a door is opened. This
switches off after a time delay, once
the doors concerned have been
– immediate switching off.
Map reading lights(depending on vehicle)
Press switch 2 or 4.
Manual window winders
Turn handle 1.
Page 156 of 270
INTERIOR LIGHTING (2/2)Luggage compartment light 7
Depending on the vehicle, light 7
comes on when the luggage compart-
ment is opened.
Glove box light 6
Light 6 comes on when the cover is
Page 157 of 270

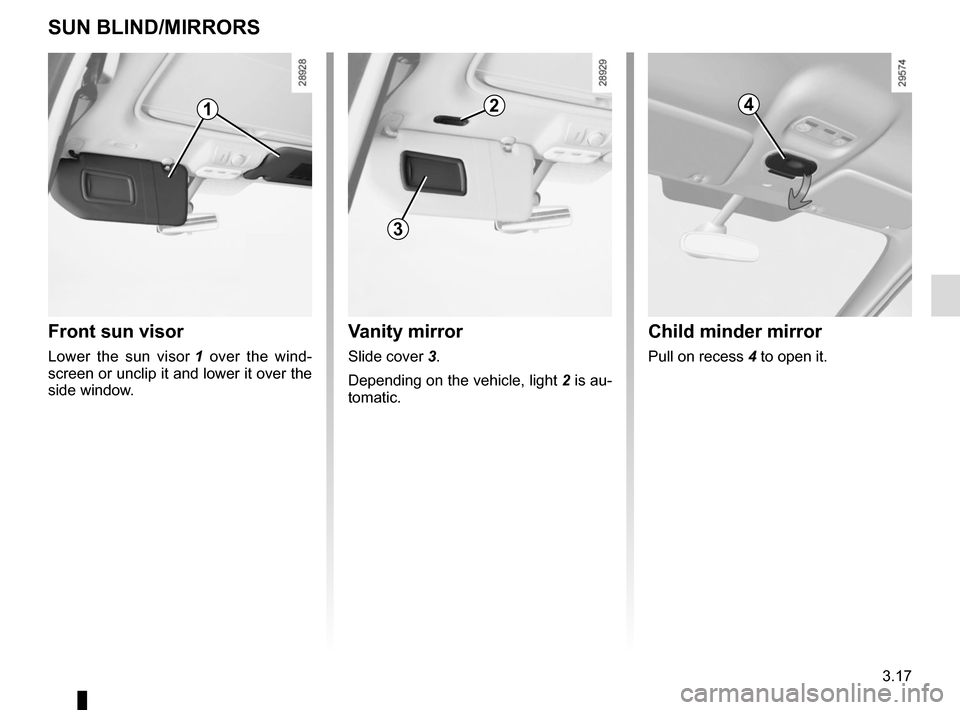

Slide cover 3.
Depending on the vehicle, light 2 is au-
Child minder mirror
Pull on recess 4 to open it.
Front sun visor
Lower the sun visor 1 over the wind-
screen or unclip it and lower it over the
Page 158 of 270
Lateral sun visor
Pull the sun blind upwards using tab 1
until hook 2 engages in its housing
(make sure that the hook is correctly
Rear side sun blind
Pull the sun blind upwards using hook 3
until it engages in housing 4 (make sure
that the hook is correctly clipped in).
Rear sun blind on the tailgate
Pull the sun blind upwards using tabs 6
until they engage in hook 5 (make sure
they are correctly clipped in).
Page 159 of 270
compartment 2Door pockets 1
It can hold a 1.5 litre bottle.
PASSENGER COMPARTMENT STORAGE/FITTINGS (1/6)
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy or pointed objects are placed in the “open\
storage compartments in such a way that they may fall onto passengers
during sudden turning or braking.
Storage compartment under
the instrument panel 3
Page 160 of 270
PASSENGER COMPARTMENT STORAGE/FITTINGS (2/6)
Sunglasses holder 4
Sun blind storage 5
This can be used for storing motorway
tickets, cards, etc.
Central storage compartment
or control 6
Depending on the vehicle, central con-
trol 6 may be replaced by a storage
