Page 241 of 270

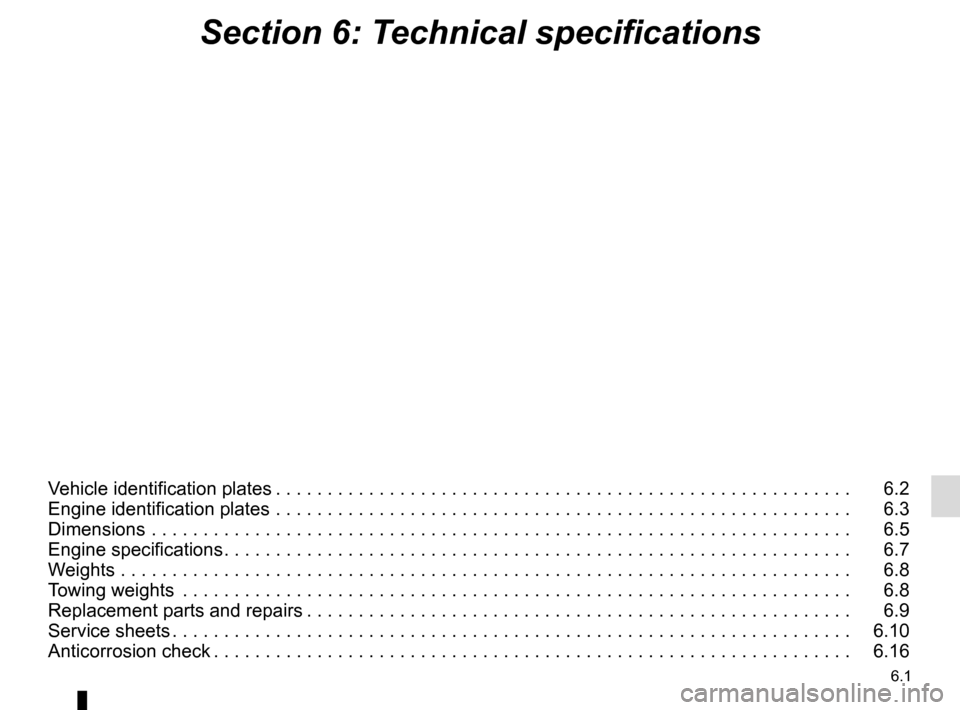

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . .   6.2
Engine ide

Page 242 of 270

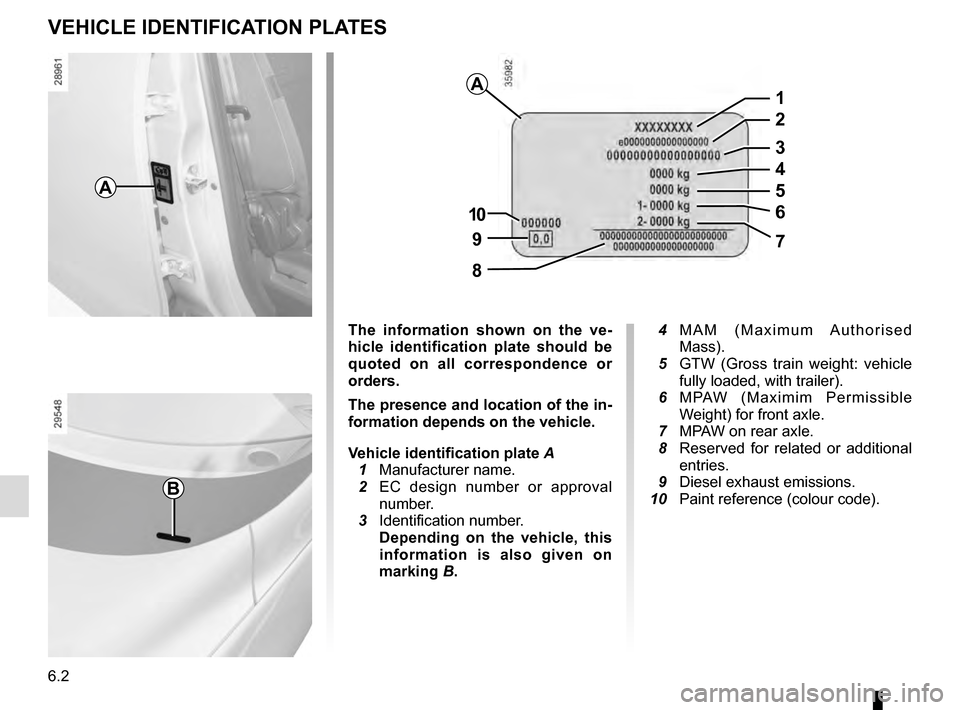

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.2
VEHICLE IDENTIFICATION PLATES
A
B
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
The presence and location of the in-
formation dep

Page 243 of 270

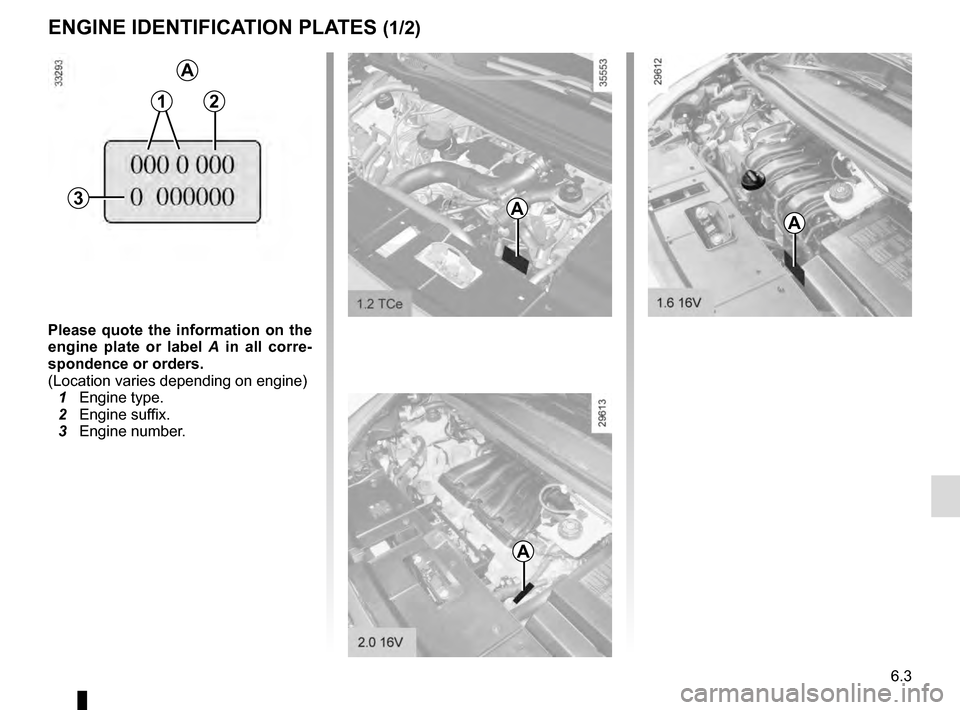

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.3
ENGINE IDENTIFICATION PLATES (1/2)
Please quote the information on the
engine plate or label A  in all corre-
spondence or orders.
(Location varies depending on engine)
  1 Engine type.
  2 Engin

Page 244 of 270

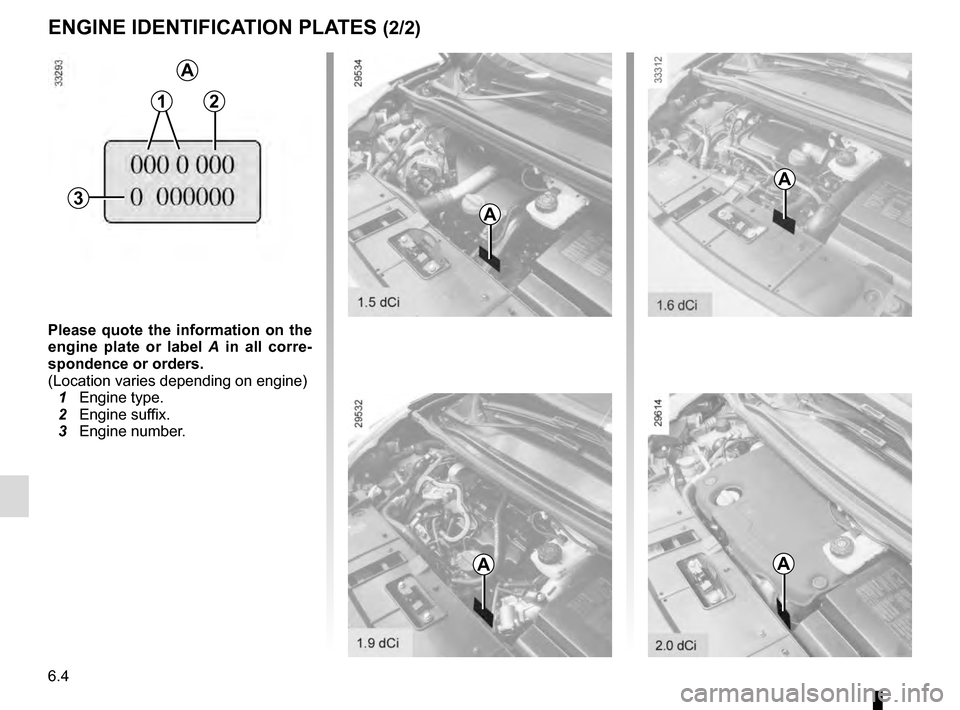

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.4
ENGINE IDENTIFICATION PLATES (2/2)
A
A
A
A
12
3
Please quote the information on the
engine plate or label A  in all corre-
spondence or orders.
(Location varies depending on engine)
  1 Engine ty

Page 245 of 270

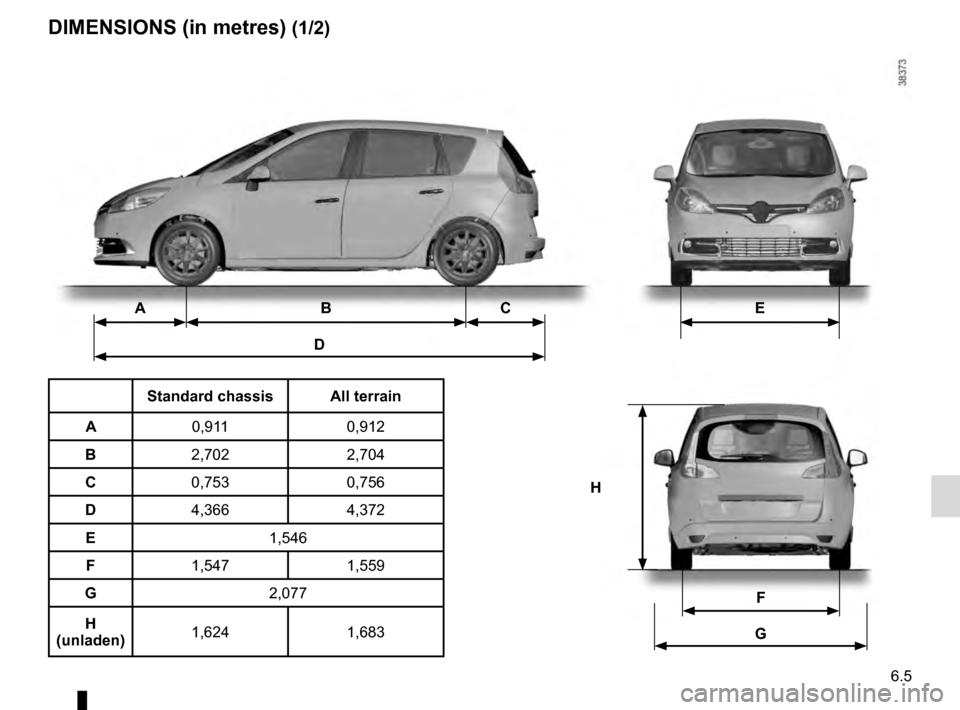

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.5
DIMENSIONS (in metres) (1/2)
ABC E
D
H
F
G
Standard chassis All terrain
A 0,911 0,912
B 2,702 2,704
C 0,753 0,756
D 4,366 4,372
E 1,546
F 1,547 1,559
G 2,077
H
(unladen) 1,624
1,683

Page 246 of 270

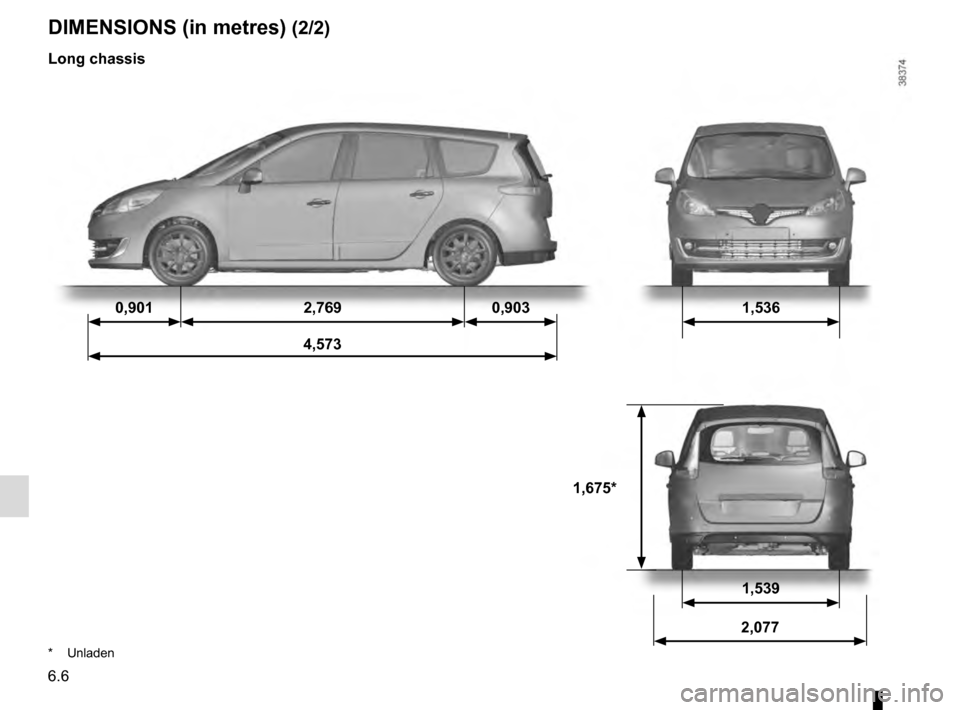

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.6
DIMENSIONS (in metres) (2/2)
* Unladen
Long chassis
0,9012,7690,903 1,536
4,573
1,675*
1,539
2,077

Page 247 of 270

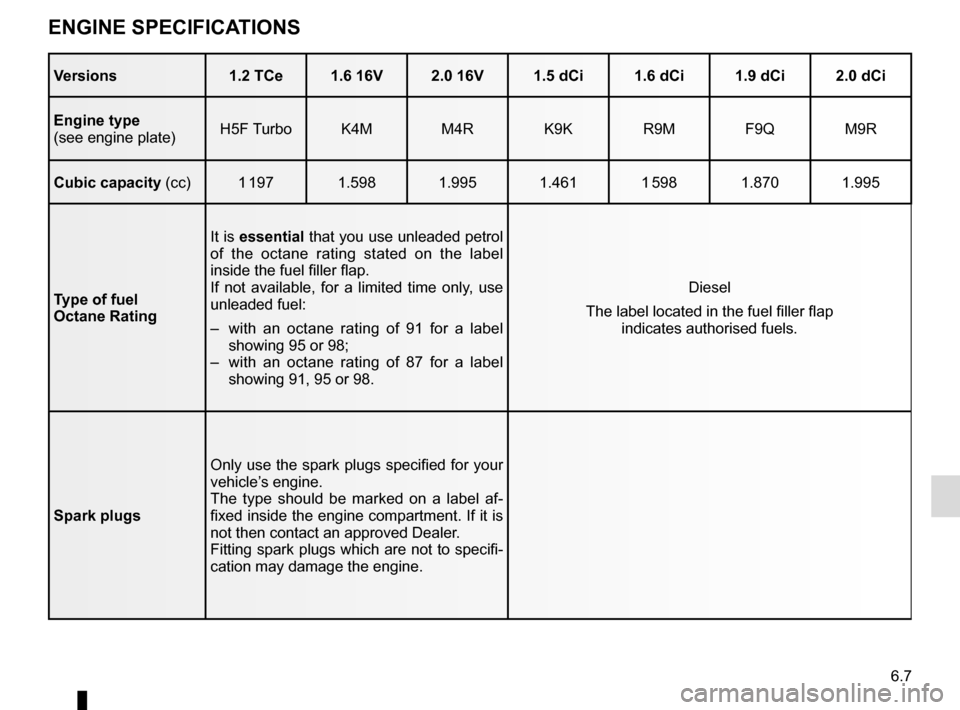

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.7
ENGINE SPECIFICATIONS
Versions1.2 TCe 1.6 16V 2.0 16V 1.5 dCi 1.6 dCi 1.9 dCi 2.0 dCi
Engine type
(see engine plate) H5F Turbo K4M M4R K9K R9M F9Q M9R
Cubic capacity  (cc) 1 197 1.598 1.995 1.461

Page 248 of 270

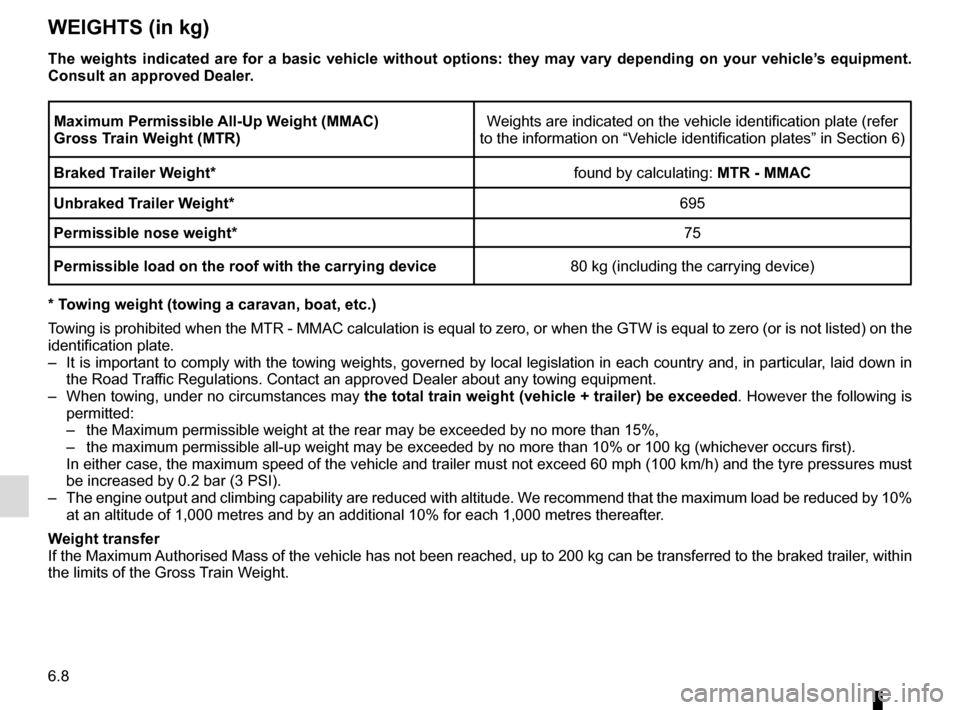

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.8
WEIGHTS (in kg)
The weights indicated are for a basic vehicle without options: they may \
vary depending on your vehicle’s equipment.
Consult an approved Dealer.
Maximum Permissible All-Up Weig

Page 249 of 270

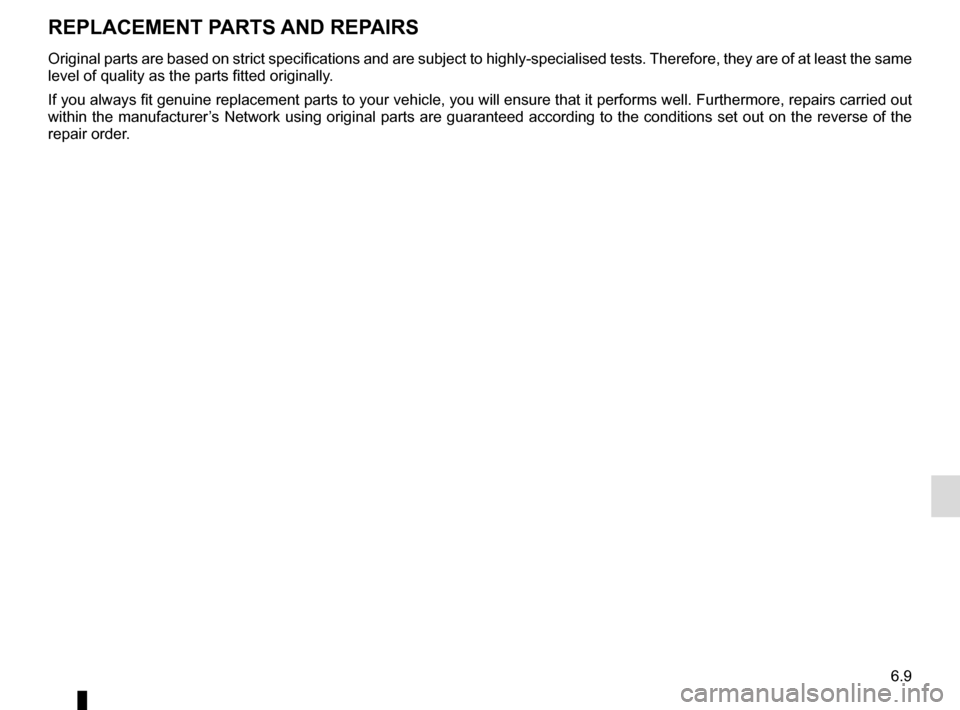

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.9
Original parts are based on strict specifications and are subject to hig\
hly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you a

Page 250 of 270

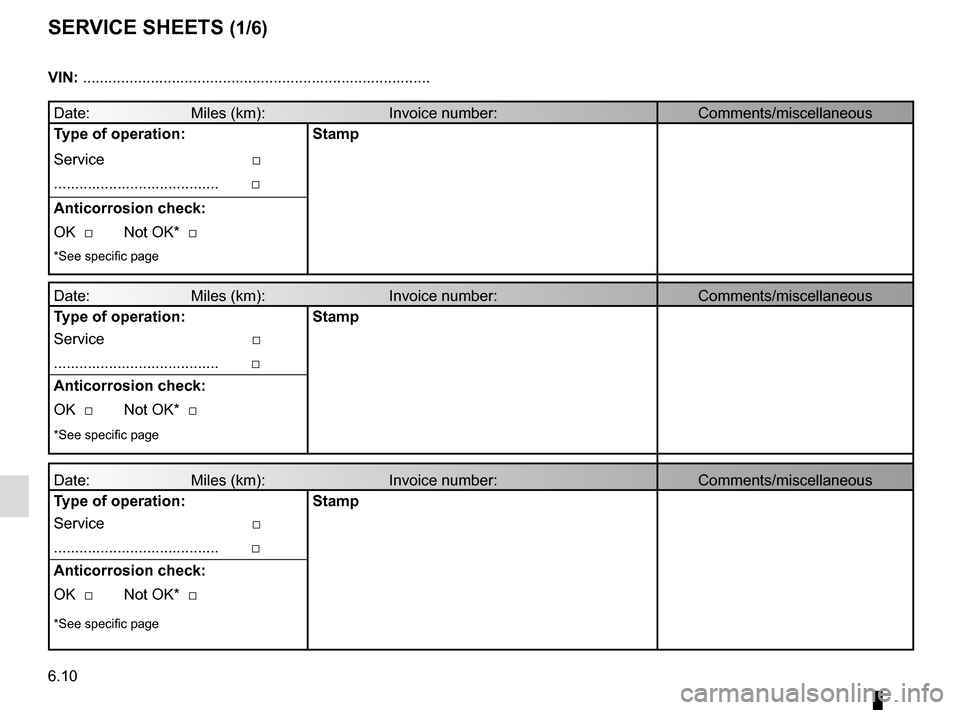

RENAULT GRAND SCENIC 2016 J95 / 3.G Owners Manual 6.10
SERVICE SHEETS (1/6)
Date:     Miles (km):      Invoice number:Comments/miscellaneous
Type of operation: Stamp
Service     □
.......................................    □
Anticorrosion check:
