2.30
LANE DEPARTURE WARNING (2/2)Adjustment
From the vehicle settings customisation
menu (please refer to the information
on the “Vehicle settings customisation
menu” in Section 1), you can:
– adjust the alert audio volume. To do this, select “lane departure alert:
volume” (five levels);
– adjust the alert sensitivity. To do this, select “lane departure alert: sensiti-
vity” (three levels).
Deactivation
Press button 1 on the central rear-view
mirror.
The warning light on button 1 goes out,
accompanied by a message on the ins-
trument panel “Lane departure warning
de-activated”.
Operating faults
In the event of a malfunction, a mes-
sage “Lane departure warning check” is
displayed on the instrument panel, and
the warning light on button 1 stays off.
Consult an approved dealer.
The function sounds the alarm if:
a line is crossed without activating the
indicator lights. The function alerts the
driver through warning light
on
the instrument panel, along with a beep.
Conditions for non-activation
of alerts
– Indicators activated or having been activated less than approximately
four seconds prior to departing from
the lane;
– Very fast lane departure;
– Driving continuously on a line;
– On bends, the function allows for slightly cutting the bend;
– ...
1
ActivationPress button 1 : the warning light on
the 1 button lights up, accompanied by
the message “Lane departure warning
activated” and a beep.
The function is set to notify the
driver if:
– the warning light on the 1 button
lights up;
and
– the vehicle speed is greater than ap- proximately 45 mph (70 km/h);
and
– lines are detected.
Warning light
\f comes on on the
instrument panel to notify the driver.

2.40

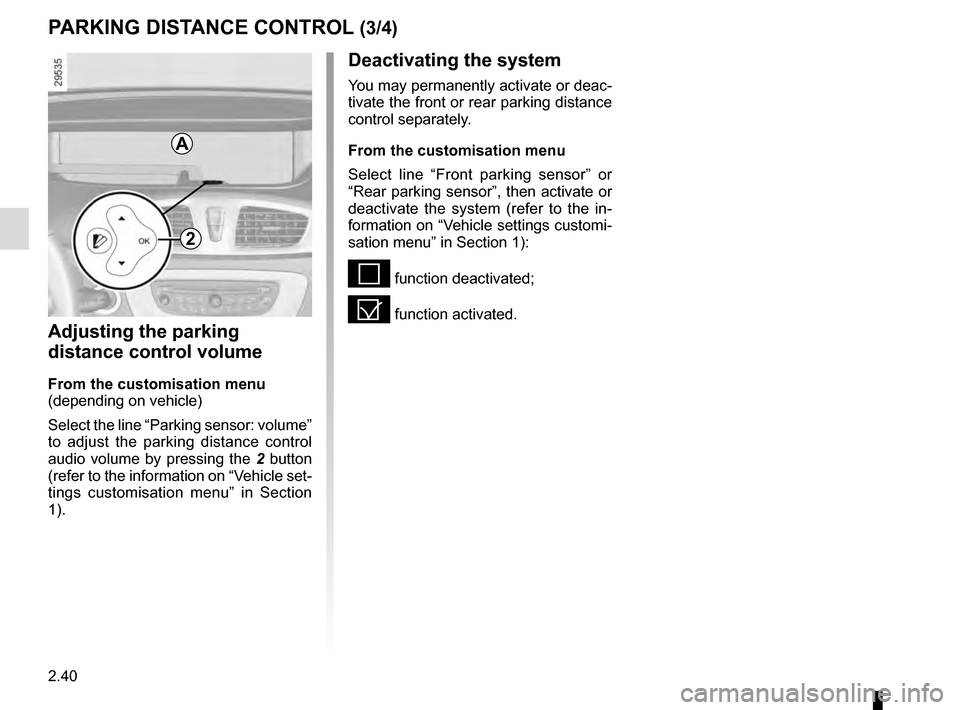

PARKING DISTANCE CONTROL (3/4)
Adjusting the parking
distance control volume
From the customisation menu
(depending on vehicle)
Select the line “Parking sensor: volume”
to adjust the parking distance control
audio volume by pressing the 2 button
(refer to the information on “Vehicle set-
tings customisation menu” in Section
1).
Deactivating the system
You may permanently activate or deac-
tivate the front or rear parking distance
control separately.
From the customisation menu
Select line “Front parking sensor” or
“Rear parking sensor”, then activate or
deactivate the system (refer to the in-
formation on “Vehicle settings customi-
sation menu” in Section 1):
< function deactivated;
= function activated.
2
A
