2.12
ENG_UD21480_4
Conseils : antipollution, économies de carburant, conduite (X83 - X61 - Renault)
ENG_NU_813-11_FK61_Renault_2
Jaune NoirNoir texte
ADVICE: antipollution, fuel economy and driving (2/3)
– Do not overrev the engine in the in-
termediate gears.
Always use the highest gear possi -
ble without labouring the engine.
– Do not try to maintain the same
speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating
before switching off are unnecessary
in modern vehicles.
– Bad weather, flooded roads:
Do not drive through
floods if the water is
above the lower edge of
the wheel rims.
Exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub -
stances may be released into the at -
mosphere or damage may occur.
ÄThis warning light on the in -
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult an
approved Dealer as soon as possi -
ble;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved dealer as soon as
possible.
Driving
– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive
with a light right foot.
– Brake as little as possible. If you an-
ticipate an obstacle or bend in ad -
vance, simply release the accelera -
tor pedal.
– Avoid sudden acceleration.
Obstructions to the driver
On the driver ’s side, only
use mats suitable for the
vehicle, attached with the
pre-fitted components, and check
the fitting regularly. Do not lay one
mat on top of another.
Risk of pedals jamming
Page 102 of 237
2.16
ENG_UD29758_3
Dispositifs de correction de conduite (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_2
Jaune NoirNoir texte
DRIVER CORRECTION DEVICES AND AIDS (2/3)
Electronic stability control
ESP with understeer control
and traction control ASR
Electronic stability control ESP
This system helps you to keep control
of the vehicle in critical driving condi -
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares driver input to
the actual trajectory of the vehicle and
corrects the trajectory if necessary by
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
flashes on the instrument panel. Understeer control
This system optimises the action of the
ESP in the case of pronounced under
-
steer (loss of front axle road holding).
Traction control ASR
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au -
tomatically until the drive supplied be -
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal. Operating faults
When the system detects an operating
fault the message “
CHECK ESP” and
warning light
© appear on the in-
strument panel. In this case, the ESP
and ASR. are deactivated.
Consult an approved dealer.
Page 114 of 237
2.28
ENG_UD14843_2
Boîte automatique (X61 - Renault)
ENG_NU_813-11_FK61_Renault_2
Jaune NoirNoir texte
Operating faults
– When driving, if the message
“Check gearbox” and the
©
warning light appear on the instru -
ment panel, this indicates a fault.
Contact your approved Dealer as
soon as possible.
– When driving, if the message
“Gearbox overheating” appears on
the instrument panel, drive at a mod-
erate speed and avoid leaving the
lever in the D (or R) position, where
traffic conditions allow: always return
to the N position when you stop.
Contact your approved Dealer as
soon as possible.
– If a vehicle with an automatic
gearbox breaks down, refer to the
information on “Towing” in Section 5.
AUTOMATIC GEARbOx (2/3)
Driving in manual mode
With the selector lever 1 in position D,
move the lever to the left. Shifting the
lever repeatedly allows you to change
gears manually:
– To move down through the gears,
push the lever backwards;
– To move up through the gears, push
the lever forwards.
The gear selected is displayed on the
instrument panel.
Special cases
In certain driving conditions (eg.:
engine protection, operation of the
Electronic Stability Program) the auto -
mated system may change the gear au-
tomatically.
Likewise, to prevent incorrect manoeu -
vres, a gear change may be refused by
the automatic system: in this case the
gear display flashes for a few seconds
as a warning.
1
Economical driving
When driving, leave the lever in posi -
tion D, keeping the accelerator pedal
lightly depressed to ensure automatic
gear changes at comparatively low
engine speeds.
An impact to the underside of the vehicle (e.g.: striking a post, raised kerb
or other street furniture) may result in damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved
dealer.
Page 131 of 237
air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
temperature regulation ......................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
3.15
ENG_UD10048_2
Air conditionné : informations et conseils d’utilisation (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3

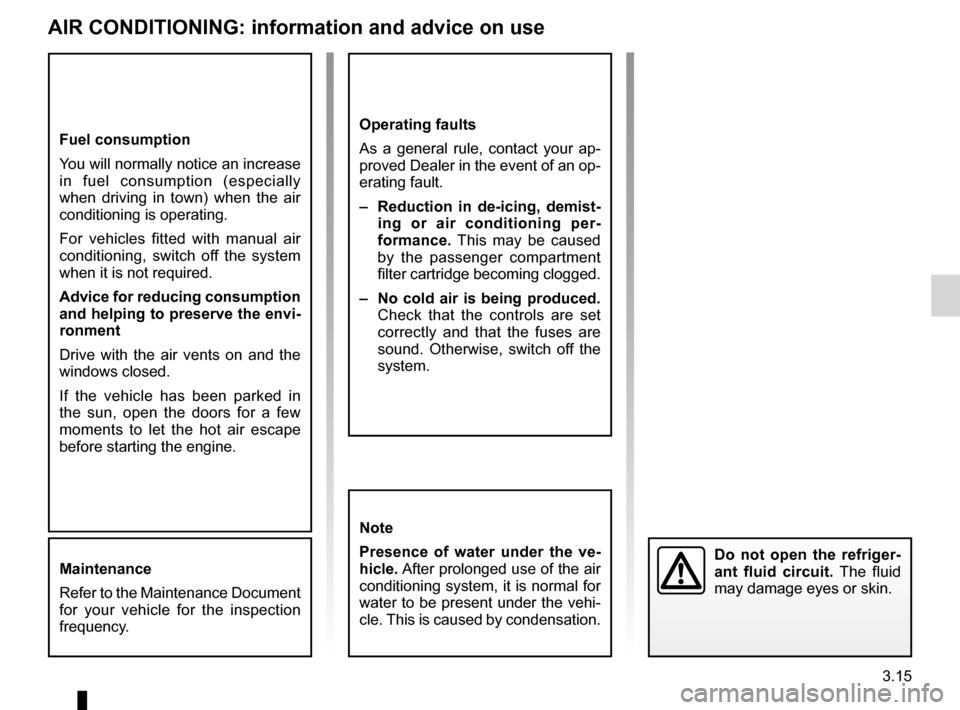

Air conditioning: information and advice on use
Operating faults
As a general rule, contact your ap-
proved Dealer in the event of an op-
erating fault.
– r eduction in de-icing, demist -
ing or air conditioning per -
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged.
– no cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing consumption
and helping to preserve the envi-
ronment
Drive with the air vents on and the
windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Air COnDitiOninG: information and advice on use
note
Presence of water under the ve -
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.
Do not open the refriger -
ant fluid circuit. The fluid
may damage eyes or skin.Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection
frequency.
Page 154 of 237
bonnet................................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
4.2
ENG_UD25823_5
Capot moteur (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_4
Jaune NoirNoir texte
To open, pull handle 1 , located on the
left-hand side of the dashboard.Unlocking the bonnet catch
Lift the bonnet by several centimetres
and push lever 2 to the left.
Bonnet
Bonnet (1/2)
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
1
2
In the event of an impact,
even slight, against the ra -
diator grille or bonnet, have
the bonnet catch checked
by an approved dealer as soon as
possible.
4
5
3
Deactivate the Stop and
Start function for any opera -
tion performed in the engine
compartment.
opening the bonnet
Lift the bonnet up and release stay 4
from its holder 5 . For your own safety,
it is very important to fit the stay into
its retainer 3 . Check that it is correctly
locked.
Page 155 of 237
JauneNoirNoir texte
4.3
ENG_UD25823_5
Capot moteur (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_4
Bonnet (2/2)
Ensure that the bonnet is
properly locked.
Check that nothing is pre -
venting the catch from lock-
ing (gravel, cloth, etc.).
After carrying out any work
in the engine compart -
ment, check that nothing
has been left behind (cloth,
tools, etc.).
These may damage the engine or
cause a fire.
4
5
Closing the bonnet
Check that nothing has been left in the
engine compartment.
Release the stay 4 and replace it in its
holder 5.
Lower the bonnet and release it when it
is approximately 20 cm from the closed
position. It will latch automatically under
its own weight.
Page 156 of 237
maintenance:mechanical ...................................... (up to the end of the DU)
engine oil .............................................. (up to the end of the DU)
dipstick.................................................. (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
4.4
ENG_UD25824_5
Niveau huile moteur : généralités (X61 - F61 - K61 - Renault)\
ENG_NU_813-11_FK61_Renault_4
Jaune NoirNoir texte
Engine oil level:
general description
Minimum oil level display A
If the level is above the minimum
level
The “oil level” message appears on the
display, accompanied by squares indi -
cating the level. These squares disap -
pear as the level drops and they are re-
placed by dashes.
To advance to trip computer reading,
press button 1 or 2 again. If the level is at the minimum
The message “adjust oil level” or “oil”
and the © warning light are dis
-
played on the instrument panel.
It is vital to top up the oil as soon as
possible.
The display only warns the
driver if the oil level is at the
minimum level. It does not
inform the driver that the oil
level has exceeded the maximum
level as this can only be measured
using a dipstick.
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, contact an approved Dealer if
more than 0.5 litres is being consumed
every 600 miles (1,000 km) after the
running in period.
o il change frequency: check the oil
level from time to time and certainly
before any long journey to avoid the
risk of damaging your engine.
Reading the oil level
The oil level should be read with the ve-
hicle on level ground, after the engine
has been switched off for some time.
t he dipstick must be used to read
the exact oil level and make sure
that the maximum level has not been
exceeded (risk of engine damage).
Refer to the following pages.
The instrument panel display only
alerts the driver when the oil level is at
its minimum.
1
2A
engIne oIl level: general information (1/2)
Page 158 of 237
engine oil .............................................. (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
oil change ............................................. (up to the end of the DU)
engine oil capacity ................................ (up to the end of the DU)
4.6
ENG_UD17476_1
Niveau huile moteur : appoint, remplissage (X61 - F61 - K61 - Renault)\
ENG_NU_813-11_FK61_Renault_4
Jaune NoirNoir texte
topping up/filling
topping up/filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is
started up for the first time in the day).
engine oil grade
Refer to the Maintenance Document for
your vehicle. –
Unscrew cap 4;
– top up the level (as a guide, the ca-
pacity between the minimum and the
maximum reading on the dipstick 5 is
1.5 litres, depending on the engine);
– wait for approximately 10 minutes to
allow the oil to flow into the engine;
– check the level using dipstick 5 (as
described above).
Once the operation has been com -
pleted, ensure that the dipstick is
pushed in as far as it will go or that
the “cap-type dipstick” is completely
screwed in.
Do not exceed the max level and
do not forget to refit cap 4 and dip-
stick 5.
4
54
5
engIne oIl level: topping up/filling (1/2)
4
5
Page 160 of 237
levels .................................................... (up to the end of the DU)
levels: brake fluid ........................................................ (current page)
brake fluid .............................................................. (current page)
4.8
ENG_UD25825_5
Niveaux / Filtres (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_4
Jaune NoirNoir texte
Levels
levelS (1/3)
Brake fluid level
This should be checked frequently,
and immediately if you notice even the
slightest loss in braking efficiency.
The level should be read with the engine
switched off and on level ground. level 1
It is normal for the level to drop as the
brake shoes become worn, but it must
never drop lower than the
“MInI" warn-
ing line.
If you wish to check the disc and drum
wear yourself, you should obtain the
document explaining the checking pro-
cedure from our network or from the
manufacturer’s website. t
opping up
After any operation on the hydraulic cir-
cuit, a specialist must replace the fluid.
Only use fluids approved by our
Technical Department (and taken from
a sealed container).
Replacement intervals
Refer to the Maintenance Document for
your vehicle.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
1
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.Deactivate the Stop and
Start function for any opera -
tion performed in the engine
compartment.
Page 161 of 237
levels:coolant ............................................................. (current page)
engine coolant ....................................................... (current page)
JauneNoirNoir texte
4.9
ENG_UD25825_5
Niveaux / Filtres (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_4
levelS (2/3)
Coolant
The level when cold should be be -
tween the MINI and MAXI marks on the
coolant reservoir 2.
Top this level up when cold before it
reaches the MINI mark.
The level should be read with the engine
switched off and on level ground. Checking intervals
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
–
antifreeze protection;
– anticorrosion protection of the cool -
ing system.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Replacement intervals
Refer to the Maintenance Document for
your vehicle.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
2
