MeTHODS OF ReSTRAINT IN ADDITION TO THe FRONT SeAT BeLTS (2/3)
Air bags for driver and front
passenger
It is fitted to the front seats on the driv-
er’s side and, depending on the vehicle,
on the passenger’s side as well.
Depending on the vehicle, the pres -
ence of this equipment is indicated by
the word “air bag” on the steering wheel
and dashboard (air bag zone A ) and
a symbol on the lower section of the
windscreen.
Each air bag system consists of:
– an air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
– an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
– a single indicator light
å on the
instrument panel;
– remote sensors.
A
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the air bags
inflate rapidly, cushioning the impact
of the driver’s head and chest against
the steering wheel and of the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
Load limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener -
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
In a situation where an air bag is
required, it will inflate immediately
and this may cause some minor, su-
perficial grazing to the skin or other
problems.

environment .......................................... (up to the end of the DU)
2.14
ENG_UD25716_1
Environnement (sans marque) (X44 - X45 - X77 - X81 - X85 - X90 - X91 - X83 - X61 - TEST - X95 - J95 - R95 - F90 Ph2 - X33 - X47 - X43 - X38 - H79 - X62 - X32 - X09 -
ENG_NU_813-11_FK61_Renault_2

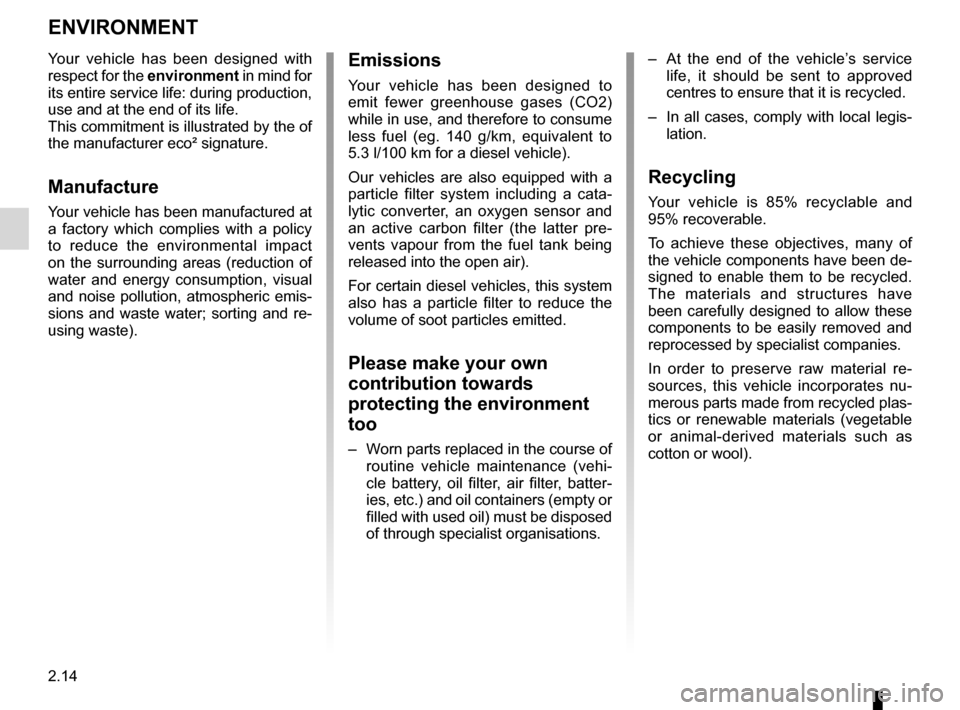

Environment
ENVIRONMENT
Emissions
Your vehicle has been designed to
emit fewer greenhouse gases (CO2)
while in use, and therefore to consume
less fuel (eg. 140 g/km, equivalent to
5.3 l/100 km for a diesel vehicle).
Our vehicles are also equipped with a
particle filter system including a cata -
lytic converter, an oxygen sensor and
an active carbon filter (the latter pre -
vents vapour from the fuel tank being
released into the open air).
For certain diesel vehicles, this system
also has a particle filter to reduce the
volume of soot particles emitted.
Please make your own
contribution towards
protecting the environment
too
– Worn parts replaced in the course of
routine vehicle maintenance (vehi -
cle battery, oil filter, air filter, batter -
ies, etc.) and oil containers (empty or
filled with used oil) must be disposed
of through specialist organisations. –
At the end of the vehicle’s service
life, it should be sent to approved
centres to ensure that it is recycled.
– In all cases, comply with local legis -
lation.
Recycling
Your vehicle is 85% recyclable and
95% recoverable.
To achieve these objectives, many of
the vehicle components have been de-
signed to enable them to be recycled.
The materials and structures have
been carefully designed to allow these
components to be easily removed and
reprocessed by specialist companies.
In order to preserve raw material re -
sources, this vehicle incorporates nu -
merous parts made from recycled plas-
tics or renewable materials (vegetable
or animal-derived materials such as
cotton or wool).
Your vehicle has been designed with
respect for the
environment in mind for
its entire service life: during production,
use and at the end of its life.
This commitment is illustrated by the of
the manufacturer eco² signature.Manufacture
Your vehicle has been manufactured at
a factory which complies with a policy
to reduce the environmental impact
on the surrounding areas (reduction of
water and energy consumption, visual
and noise pollution, atmospheric emis-
sions and waste water; sorting and re-
using waste).

2.16
ENG_UD29758_3
Dispositifs de correction de conduite (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_2
Jaune NoirNoir texte
DRIVER CORRECTION DEVICES AND AIDS (2/3)
Electronic stability control
ESP with understeer control
and traction control ASR
Electronic stability control ESP
This system helps you to keep control
of the vehicle in critical driving condi -
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares driver input to
the actual trajectory of the vehicle and
corrects the trajectory if necessary by
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
 flashes on the instrument panel. Understeer control
This system optimises the action of the
ESP in the case of pronounced under
-
steer (loss of front axle road holding).
Traction control ASR
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au -
tomatically until the drive supplied be -
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal. Operating faults
When the system detects an operating
fault the message “
CHECK ESP” and
warning light
© appear on the in-
strument panel. In this case, the ESP
and ASR. are deactivated.
Consult an approved dealer.

parking distance control........................(up to the end of the DU)
driving ................................................... (up to the end of the DU)
reversing sensor ................................... (up to the end of the DU)
2.25
ENG_UD29761_3
Aide au parking (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_2
Parking distance control
This function is an addi -
tional aid that indicates the
distance between the vehi -
cle and an obstacle whilst
reversing, using sound signals.
Under no circumstances should it
replace the driver’s care or respon-
sibility whilst reversing.
The driver should always pay atten-
tion to sudden incidents during driv-
ing: always ensure that there are no
moving obstacles (such as a child,
animal, pram, bicycle, etc.) or small,
narrow objects such as stones or
posts in your path when manoeu -
vring.
Operating principle
Ultrasonic sensors, fitted in the vehi -
cle’s rear bumper, measure the dis -
tance between the vehicle and an ob -
stacle when reversing.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately 25 centi -
metres from the obstacle.
There is a beep when reverse gear is
engaged. If the beep sounds for a long
time (3 seconds), this signals an oper-
ating fault.
Note: make sure that the ultrasonic
sensors are not obscured (by dirt, mud,
snow, etc.).
PARkING DISTANCE CONTROl (1/2)
An impact to the underside
of the vehicle (e.g.: striking
a post, raised kerb or other
street furniture) may result
in damage to the vehicle (e.g.: de -
formation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap -
proved dealer.

7.4
FRA_UD29767_11
Index (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
rear screen
demisting ................................................................ 3.2, 3.4
rear seats functions ........................................................... 3.28 – 3.29
rear view mirrors ................................................................ 1.47
remote control door locking batteries ....................................................................... 5.35
remote control electric door locking .............................. 1.2, 1.4
RENAULT ANTI-INTRUDER DEVICE (RAID) ...................1.13
replacement parts ................................................................ 6.8
reverse gear selecting .................................................... 2.7, 2.27 → 2.29
reversing sensor ..................................................... 2.25 – 2.26
roof bars ............................................................................ 3.34
running in ............................................................................. 2.2
S
seat belts ...................................................... 1.25 → 1.33, 1.53
see-me-home lighting ........................................................ 1.71
service sheets .......................................................... 6.9 → 6.14
side indicator lights changing bulbs ............................................................. 5.21
side protection devices ...................................................... 1.32
side windows ..................................................................... 3.20
signals and lights ................................................... 1.70 → 1.72
speakers ............................................................................ 5.33
special features of diesel versions .....................................2.10
special features of petrol vehicles ....................................... 2.9
speed limiter ................................................. 1.54, 2.18 → 2.20
starting the engine ..................................................... 2.3 → 2.6
steering wheel adjustment ................................................................... 1.24
stopping the engine ................................................... 2.3 → 2.6
storage compartment ............................................. 3.23 → 3.27
storage compartments ........................................... 3.23 → 3.27
sun visor ................................................................... 3.18, 3.24sunroof
............................................................................... 3.21
t
tailgate ................................................. 1.8 → 1.10, 3.30 – 3.31
technical specifications ....................................... 6.2, 6.6 → 6.8
temperature regulation ............................................ 3.4 → 3.15
tool kit .................................................................................. 5.8
towing .................................................................................. 6.5
breakdown ................................................................... 5.30
towing a caravan ................................................................. 6.5
towing equipment fitting ............................................................................ 3.31
towing hitch ................................................................. 5.8, 5.30
towing rings ............................................................ 1.37 – 1.38
towing weights ..................................................................... 6.5
traction control: ASR .............................................. 2.15 → 2.17
transporting children .......................... 1.34 – 1.35, 1.37 → 1.46
transporting objects in the luggage compartment ............................. 3.30 – 3.31
trims ..................................................................................... 5.9
trip computer and warning system .........................1.59 → 1.67
turning circle ............................................................... 6.6 – 6.7
tyre inflation kit ........................................................... 5.3 → 5.7
tyre pressure ...................................................................... 4.13
tyre pressures ............................................... 4.13, 5.12 → 5.14
tyres .............................................................. 4.13, 5.12 → 5.14
U
unlocking the doors ................................................ 1.11 – 1.12
V
variable power-assisted steering ....................................... 1.53
vehicle identification ............................................................ 6.2
vehicle identification plates ......................................... 6.2 – 6.3
ventilation ................................................................ 3.2 → 3.15
