RENAULT KANGOO 2017 X61 / 2.G Owners Manual
Page 151 of 260
As a general rule, contact your ap-
proved dealer in the event of an oper-
– Reduction in de-icing, demisting or air conditioning performance.
This may be caused by the passen-
ger compartment filter cartridge be-
– No cold air is being produced .
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
After prolonged use of the air condi-
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
AIR CONDITIONING: information and operating instructions (1/2)
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
You will normally notice an increase in
fuel consumption (especially in town)
when the air conditioning is operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
Drive with the air vents open and the
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
Advice on use
In some situations (air conditioning off,
air recirculation activated, ventilation
speed at zero or low etc.), you may
notice that condensation starts to form
on the windows and windscreen.
If there is condensation, use the “Clear
View” function to remove it, then use
the air conditioning in automatic mode
to stop it forming again.
Refer to the Maintenance Document
for your vehicle for the inspection fre-
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
There is a risk of damage or of
Page 152 of 260
AIR CONDITIONING: information and operating instructions (2/2)
The refrigerant fluid circuit contains
fluorinated greenhouse gases.
Depending on the vehicle, you will find
the following information on label A af-
fixed inside the engine compartment.
The presence and location of the infor-
mation on label A depends on the ve-
Do not open the refrigerant
fluid circuit. The fluid may
damage eyes or skin.
Before carrying out any
work in the engine com-
partment, the engine must
be stopped (and not on
standby): stop the engine (please
see “Starting, stopping the engine”
in Section 2).
ÑType of refrigerant fluid
Type of oil in the air condi-
Consult the driver’s hand-
Quantity of refrigerant
fluid present in the ve-
Potential (CO2 equi-
Quantity in weight and
in CO2 equivalent.
Page 153 of 260
Map reading lights(depending on vehicle)
Tilt the switch 3 for permanent lighting.
In the front passenger seat, press
switch 2.Courtesy lights
Switches 1 or 3 provide:– permanent lighting;
– intermittent lighting, which comes on when a door is opened. It goes out
when the doors concerned are prop-
– immediate switching off.
INTERIOR LIGHTING (1/2)
Luggage compartment light A(depending on vehicle)
Tilt the switch 4 for permanent lighting.
Unlocking and opening the doors or
luggage compartment switches on
the timed courtesy lights.
Page 154 of 260
Depending on the vehicle, remote un-
locking of the doors triggers timed light-
ing of the passenger compartment. If
one of the front or rear doors is opened,
the period for which the light is switched
on will start again.
Then the courtesy light and the luggage
compartment light dim and go out.
The lighting timer will cut out for vari-
– if a door has been open for 15 min-utes;
– if all the doors have been closed for 15 seconds or 5 minutes, depending
on the vehicle;
– when the ignition is switched on.
Luggage compartment light B(depending on vehicle)
INTERIOR LIGHTING (2/2)
Sliding side door light C(depending on vehicle)
Pressing switch 5 gives:
– permanent lighting;
– light when the sliding side door is opened. It goes out when the door in
question is correctly closed;
– immediate switching off.
Page 155 of 260
Courtesy mirror 2(passenger side)
If the sun visor is fitted with a courtesy
mirror, it has a cover.Front sun visor
Lower sun visor 1.
The clip can be used to hold motorway
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
Child minder mirror 3
The child minder mirror allows you to
keep an eye on your child in the back
Page 156 of 260
With the ignition on:
– press the switch for the window concerned to lower it to the desired
– lift the switch for the window concer- ned to raise it to the desired height.
From the driver’s seat
Operate the switches as follows:
– 1 for the driver’s side;
– 2 for the front passenger’s side;
– 3 and 5 for the rear passenger win-
ELECTRIC WINDOWS (1/2)
From the rear seats
With the doors closed, press switch 7.
From the front passenger seat
Press switch 6.
Safety of rear occupants
Depending on the vehicle, the driver can disable operation of the rear
electric windows by pressing switch
Never leave your vehicle with the remote control unit inside and never l\
child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves or to others by starting the engine o\
ting equipment (such as the gear lever or electric windows). If any pa\
rt of the body
becomes trapped, reverse the direction of the window immediately by pres\
the relevant switch.
Risk of serious injury.
Page 157 of 260
One-touch electric window
The one-touch mode works in addition
to the operation of the electric windows
It is fitted to the driver’s window.
Briefly press or pull the switch 1: the
window is fully lowered or raised.
Pressing the switch again stops the
ELECTRIC WINDOWS (2/2)/HALF-OPENING WINDOW
Manual window winders
Turn handle 8.
To half-open the window, turn handle 9
in the direction of the arrow then lock it
by pushing the handle. When closing it,
check that it is properly locked.
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
Closing windows can cause
Page 158 of 260
To the first position
Push handle 1 towards the front of the
vehicle until it stops.
To the second position
Press tab 2 and push handle 1 at the
same time until it stops again.
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months using products recommended by our
– do not open the sunroof immedi-
ately after the vehicle has been in
the rain or after your car has been
– Vehicle with roof bars As a general rule, if there is a load
on the roof, use of the sunroof is not
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop-
erly arranged and secured and
should not interfere with the opera-
tion of the sunroof.
Contact your approved Dealer for
details of possible conversions.
Hold tab 2 pressed in and return the
handle 1 to the initial position.
Page 159 of 260
Removable ashtray 1
This is a removable ashtray which can
be placed in the cup holders 3.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.
ASHTRAYS/CIGAR LIGHTER/ACCESSORIES SOCKETS
You may use the cigar lighter recess 2
or one of sockets 4 (depending on the
vehicle). They are designed for con-
necting accessories with a maximum
power rating of 120 Watts (voltage:
12V) which have been approved by our
Depending on the battery charge, the
accessories socket may stop working.
Cigar lighter 2
With the ignition on, press it in. It will
spring back with a click when it is ready.
Pull it out to use.
After use, replace it without pushing it
all the way in.
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
with a maximum power of
120 Watts only.
Page 160 of 260

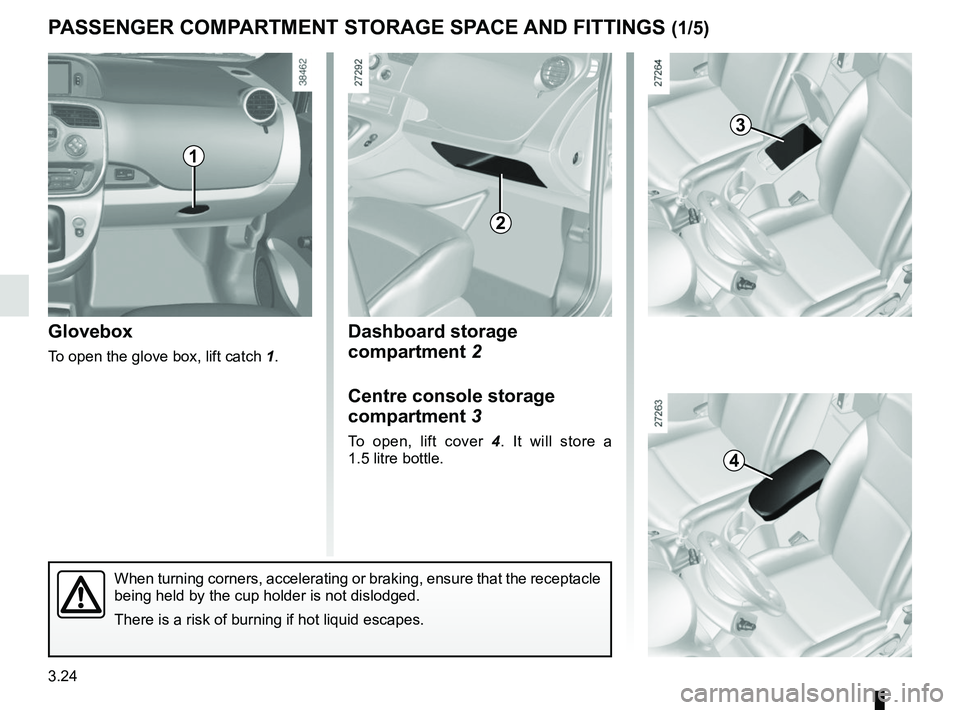

Centre console storage
To open, lift cover 4. It will store a
1.5 litre bottle.
To open the glove box, lift catch 1.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/5)
When turning corners, accelerating or braking, ensure that the receptacl\
being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.
