3.15
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an oper-
ating fault.
– Reduction in de-icing, demisting or air conditioning performance.
This may be caused by the passen-
ger compartment filter cartridge be-
coming clogged.
– No cold air is being produced .
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
vehicle
After prolonged use of the air condi-
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
AIR CONDITIONING: information and operating instructions (1/2)
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Fuel consumption
You will normally notice an increase in
fuel consumption (especially in town)
when the air conditioning is operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
ment
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection fre-
quency.
Advice on use
In some situations (air conditioning off,
air recirculation activated, ventilation
speed at zero or low etc.), you may
notice that condensation starts to form
on the windows and windscreen.
If there is condensation, use the “Clear
View” function to remove it, then use
the air conditioning in automatic mode
to stop it forming again.
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.
Use the air conditioning system reg-
ularly, even in cold weather, running
it at least once a month for approxi-
mately 5 minutes.
Vehicles equipped with
modeECO
Once activated, ECO mode may
reduce air conditioning perform-
ance. Please refer to the informa-
tion on “Driving advice, Eco-driving”
in Section 2.

3.16
AIR CONDITIONING: information and operating instructions (2/2)
The refrigerant circuit may contain
fluorinated greenhouse gases.
Depending on the vehicle, you will find
the following information on label A af-
fixed inside the engine compartment.
The presence and location of the infor-
mation on label A depends on the ve-
hicle.
AAA
Do not open the refriger-
ant circuit . The fluid may
damage eyes or skin.
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).
ÑType of refrigerant fluid
Type of oil in the air condi-
tioning circuit
Inflammable product
Consult the driver’s hand-
book
Maintenance
Quantity of refrigerant
fluid present in the ve-
hicle.
x.xxx kg
Global Warming
Potential (CO2 equi-
valent).
GWP xxxxx
Quantity in weight and
in CO2 equivalent.
CO2 eq
x.xx t

3.17
Map reading lights(depending on vehicle)
Tilt the switch 3 for permanent lighting.
In the front passenger seat, press
switch 2.Courtesy lights
Switches 1 or 3 provide:– permanent lighting;
– intermittent lighting, which comes on when a door is opened. It goes out
when the doors concerned are prop-
erly closed;
– immediate switching off.
INTERIOR LIGHTING (1/2)
2
1
Luggage compartment light A(depending on vehicle)
Tilt the switch 4 for permanent lighting.
A
34
Unlocking and opening the doors or
luggage compartment switches on
the timed courtesy lights.

3.18
Special features
Depending on the vehicle, remote un-
locking of the doors triggers timed light-
ing of the passenger compartment. If
one of the front or rear doors is opened,
the period for which the light is switched
on will start again.
Then the courtesy light and the luggage
compartment light dim and go out.
The lighting timer will cut out for vari-
ous reasons:
– if a door has been open for 15 min-utes;
– if all the doors have been closed for 15 seconds or 5 minutes, depending
on the vehicle;
– when the ignition is switched on.
B
Luggage compartment light B(depending on vehicle)
INTERIOR LIGHTING (2/2)

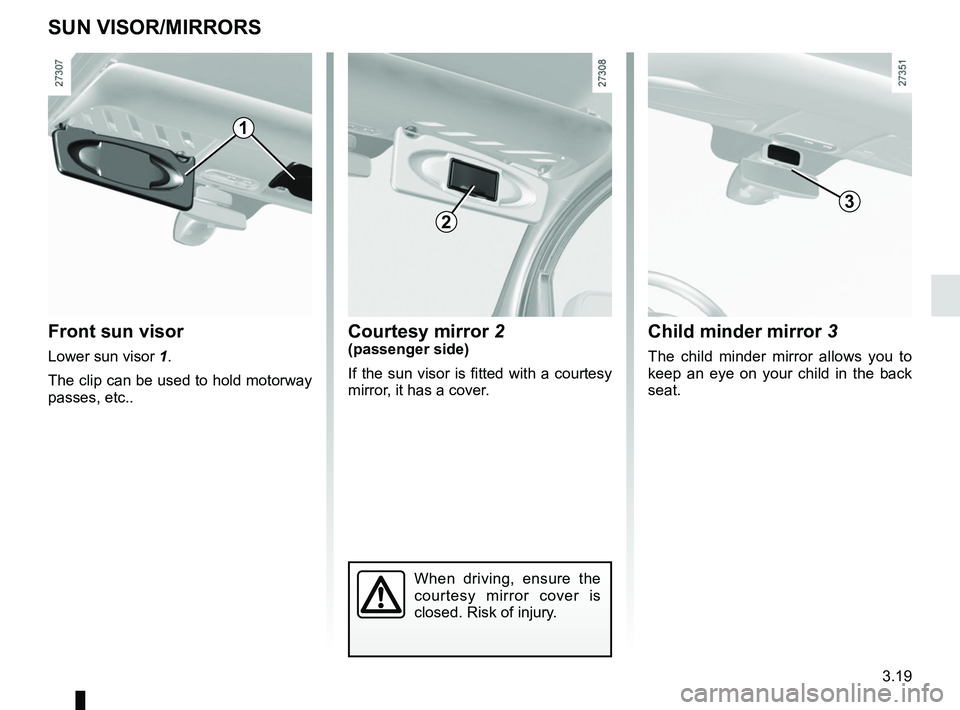

3.19
Courtesy mirror 2(passenger side)
If the sun visor is fitted with a courtesy
mirror, it has a cover.Front sun visor
Lower sun visor 1.
The clip can be used to hold motorway
passes, etc..
SUN VISOR/MIRRORS
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
Child minder mirror 3
The child minder mirror allows you to
keep an eye on your child in the back
seat.
1
2
3

3.20
Electric windows
With the ignition on:
– press the switch for the window concerned to lower it to the desired
height;
– lift the switch for the window con- cerned to raise it to the desired
height.
From the driver’s seat
Operate the switches as follows:
– 1 for the driver’s side;
– 2 for the front passenger’s side;
– 3 and 5 for the rear passenger win-
dows.
ELECTRIC WINDOWS (1/2)
From the rear seats
With the doors closed, press switch 7.
From the front passenger seat
Press switch 6.
1
2
34
56
Safety of rear occupants
Depending on the vehicle, the driver can disable operation of the rear
electric windows by pressing switch
4.
Driver’s responsibility
Never leave your vehicle with the remote control unit inside and never l\
eave a
child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves or to others by starting the engine o\
r activa-
ting equipment (such as the gear lever or electric windows). If any pa\
rt of the body
becomes trapped, reverse the direction of the window immediately by pres\
sing
the relevant switch.
Risk of serious injury.
7

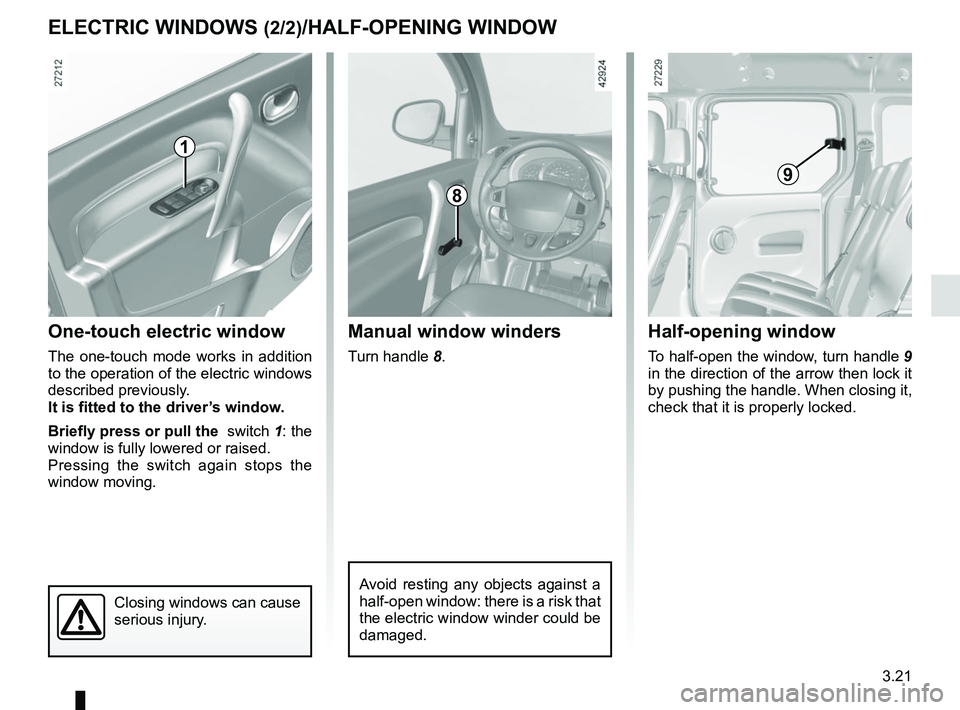

3.21
One-touch electric window
The one-touch mode works in addition
to the operation of the electric windows
described previously.
It is fitted to the driver’s window.
Briefly press or pull the switch 1: the
window is fully lowered or raised.
Pressing the switch again stops the
window moving.
ELECTRIC WINDOWS (2/2)/HALF-OPENING WINDOW
Manual window winders
Turn handle 8.
8
9
Half-opening window
To half-open the window, turn handle 9
in the direction of the arrow then lock it
by pushing the handle. When closing it,
check that it is properly locked.
8
1
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.
Closing windows can cause
serious injury.

3.22
MANUAL SUNROOF
Opening
To the first position
Push handle 1 towards the front of the
vehicle until it stops.
To the second position
Press tab 2 and push handle 1 at the
same time until it stops again.
1
2
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months using products recommended by our
Technical Department;
– do not open the sunroof immedi-
ately after the vehicle has been in
the rain or after your car has been
washed.
– Vehicle with roof bars As a general rule, if there is a load
on the roof, use of the sunroof is not
recommended.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop-
erly arranged and secured and
should not interfere with the opera-
tion of the sunroof.
Contact your approved Dealer for
details of possible conversions.
Closing
Hold tab 2 pressed in and return the
handle 1 to the initial position.

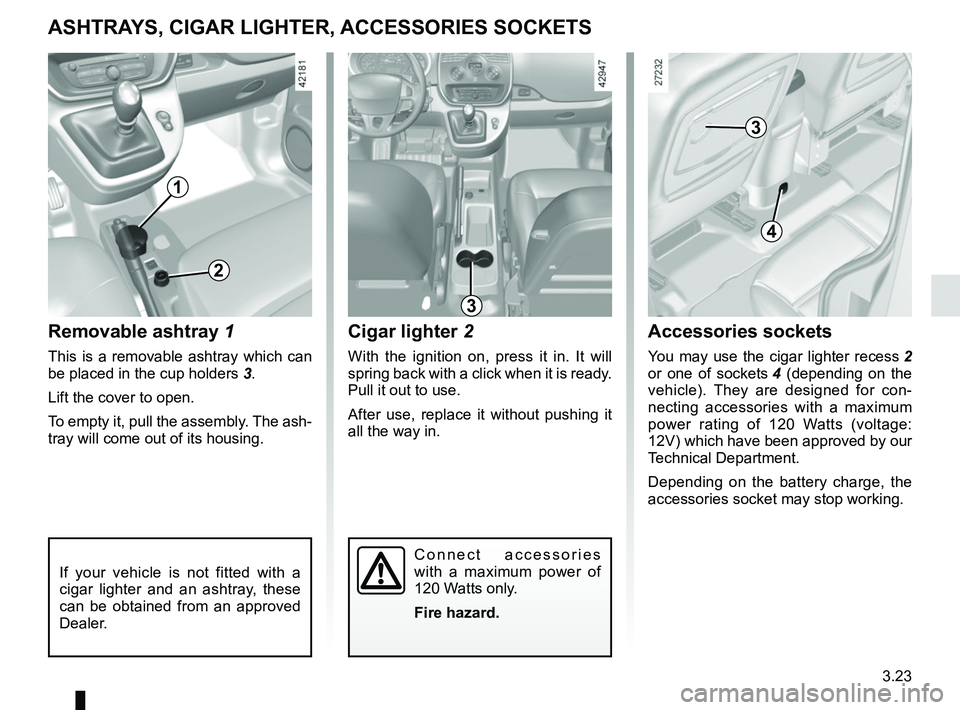

3.23
Removable ashtray 1
This is a removable ashtray which can
be placed in the cup holders 3.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.
2
ASHTRAYS, CIGAR LIGHTER, ACCESSORIES SOCKETS
1
Accessories sockets
You may use the cigar lighter recess 2
or one of sockets 4 (depending on the
vehicle). They are designed for con-
necting accessories with a maximum
power rating of 120 Watts (voltage:
12V) which have been approved by our
Technical Department.
Depending on the battery charge, the
accessories socket may stop working.
4
3
Cigar lighter 2
With the ignition on, press it in. It will
spring back with a click when it is ready.
Pull it out to use.
After use, replace it without pushing it
all the way in.
3
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.

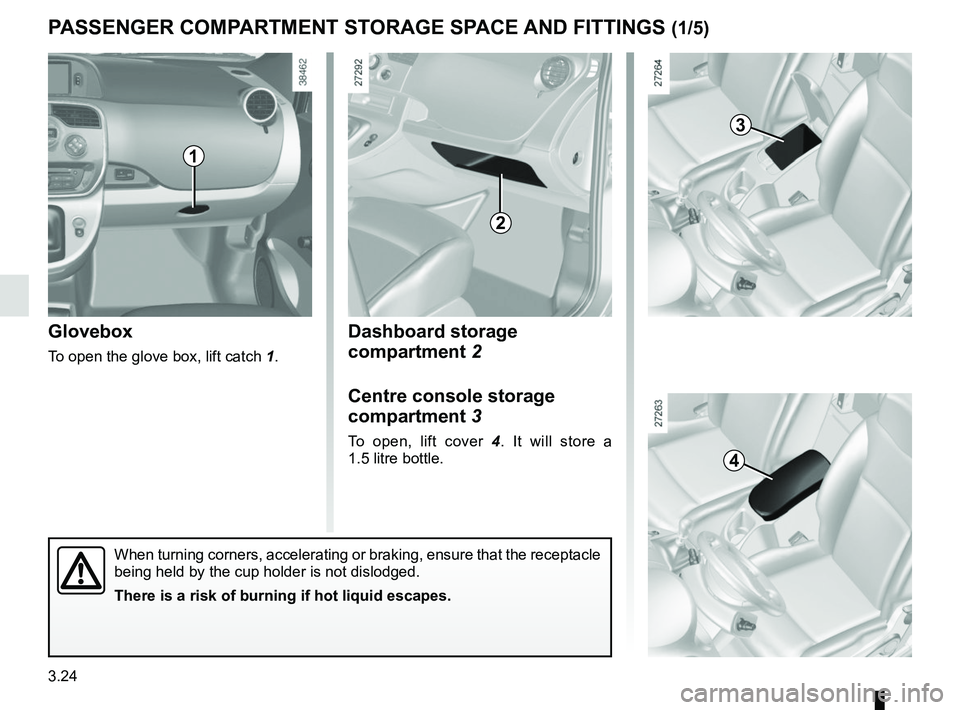

3.24
Dashboard storage
compartment 2
Centre console storage
compartment 3
To open, lift cover 4. It will store a
1.5 litre bottle.
Glovebox
To open the glove box, lift catch 1.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/5)
1
2
4
3
When turning corners, accelerating or braking, ensure that the receptacl\
e
being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.
