2.43

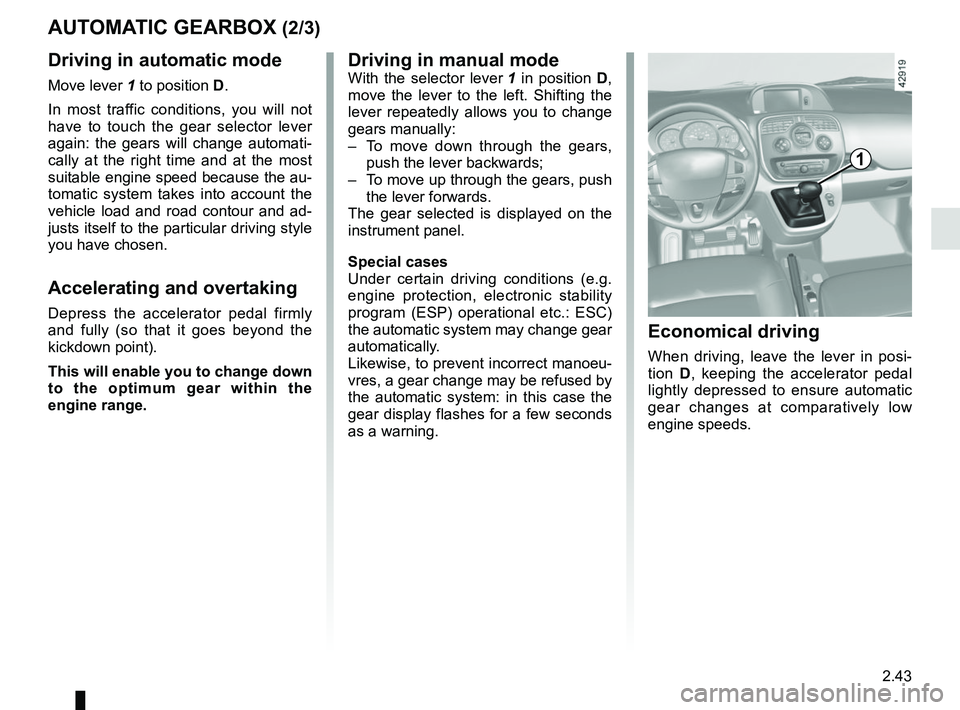

AUTOMATIC GEARBOX (2/3)Driving in manual mode
With the selector lever 1 in position D,
move the lever to the left. Shifting the
lever repeatedly allows you to change
gears manually:
– To move down through the gears, push the lever backwards;
– To move up through the gears, push the lever forwards.
The gear selected is displayed on the
instrument panel.
Special cases
Under certain driving conditions (e.g.
engine protection, electronic stability
program (ESP) operational etc.: ESC)
the automatic system may change gear
automatically.
Likewise, to prevent incorrect manoeu-
vres, a gear change may be refused by
the automatic system: in this case the
gear display flashes for a few seconds
as a warning.
1
Economical driving
When driving, leave the lever in posi-
tion D, keeping the accelerator pedal
lightly depressed to ensure automatic
gear changes at comparatively low
engine speeds.
Driving in automatic mode
Move lever 1 to position D.
In most traffic conditions, you will not
have to touch the gear selector lever
again: the gears will change automati-
cally at the right time and at the most
suitable engine speed because the au-
tomatic system takes into account the
vehicle load and road contour and ad-
justs itself to the particular driving style
you have chosen.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.

5.27
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved Dealer.
FUSES (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip cover A. To locate the fuses, please see the fol-
lowing page.
It is not advisable to use the free fuse
locations.
Some functions are protected by fuses
located in the engine compartment.
However, because of their reduced ac-
cessibility,
it is recommended to have
these fuses replaced by an autho-
rised dealer.
Check the fuse in question and replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the elect\
rical
circuit to overheat (risk of fire) in the event of an item of equipmen\
t using
an excessive amount of current.
A
1
Tweezers 1
Remove the fuse using tweezers 1, lo-
cated at the back of cover A.
To remove the fuse from the tweezers,
slide the fuse to the side.

7.2
ALPHABETICAL INDEX (2/5)
ECO mode ........................................................................\
. 2.12
electric windows ..................................................... 3.20 – 3.21
electronic stability control: ESC .............................2.26 → 2.30
emergency brake assist.........................................2.26 → 2.30
emergency braking ................................................2.26 → 2.30
emergency spare wheel ...................................................... 5.2
engine technical specifications ......................................... 6.4 – 6.5
engine coolant ..................................................................... 4.9
engine oil ..........................................................1.56, 4.4 → 4.7
engine oil capacity ...................................................... 4.6 – 4.7
engine oil level ...........................................................4.4 → 4.7
engine specifications .................................................. 6.4 – 6.5
environment ............................................................\
........... 2.16
ESC: electronic stability control ....................1.57, 2.26 → 2.30
external temperature .............................................. 1.70 – 1.71
F
faults operating faults ................................................5.37 → 5.42
filter .................................................................\
................... 4.10
fitting a radio ........................................................... 5.33 – 5.34
fittings ...............................................................\
.....3.24 → 3.28
fog lights ................................................................... 1.77, 5.18
front lights changing bulbs .................................................. 5.16 – 5.17
front passenger air bag deactivation .....................1.46 → 1.48
front seat adjustment .............................................1.19 → 1.21
front seats adjustment .......................................................1.19 → 1.21
fuel advice on fuel economy ................................... 2.11 → 2.14
capacity ...............................................................\
......... 1.83
consumption .................................................... 2.11 → 2.14
filling ........................................................1.56, 1.83 → 1.85
grade ..................................................................\
.......... 1.83 fuel consumption ................................................... 2.11
→ 2.14
fuel filler cap ..........................................................1.83 → 1.85
fuel tank capacity ............................................................1.83 → 1.85
fuel tank capacity ...................................................1.83 → 1.85
fuses ....................................................................... 5.27 – 5.28
G
gear lever........................................................................\
..... 2.7
glove box ........................................................................\
... 3.24
grip control ........................................................................\
. 2.29
H
handbrake................................................................... 1.55, 2.8
hazard warning lights signal .............................................. 1.74
headlight beam adjustment .................................... 1.78 – 1.79
headrest.................................................................1.15 → 1.18
heated seats ..........................................................1.19 → 1.21
heating and air conditioning system ........................3.4 → 3.15
heating system ........................................................3.4 → 3.16
horn ...................................................................\
................ 1.74
horn: flash ..................................................................\
........... 1.74
sounding the horn ........................................................ 1.74
hubcap tool ........................................................................\
.. 5.8
I
ignition switch ...................................................................... 2.2
indicators ................................................ 1.54, 1.74, 5.17, 5.22
indicators: direction indicators .............................................. 5.17, 5.22
instrument panel ..............................................1.58 → 1.60
instrument panel ....................................................1.54 → 1.69
instrument panel messages...................................1.61 → 1.69
interior lighting: changing bulbs .................................................. 5.23 – 5.24
